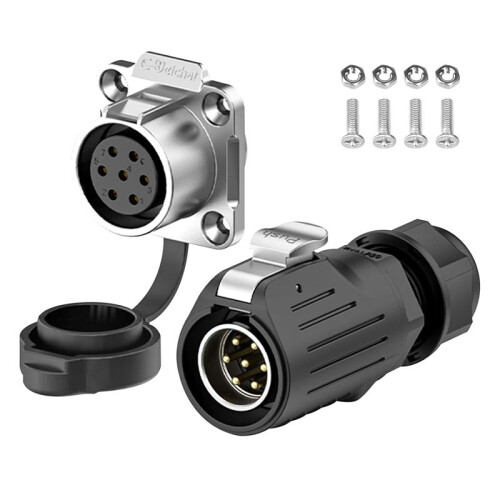

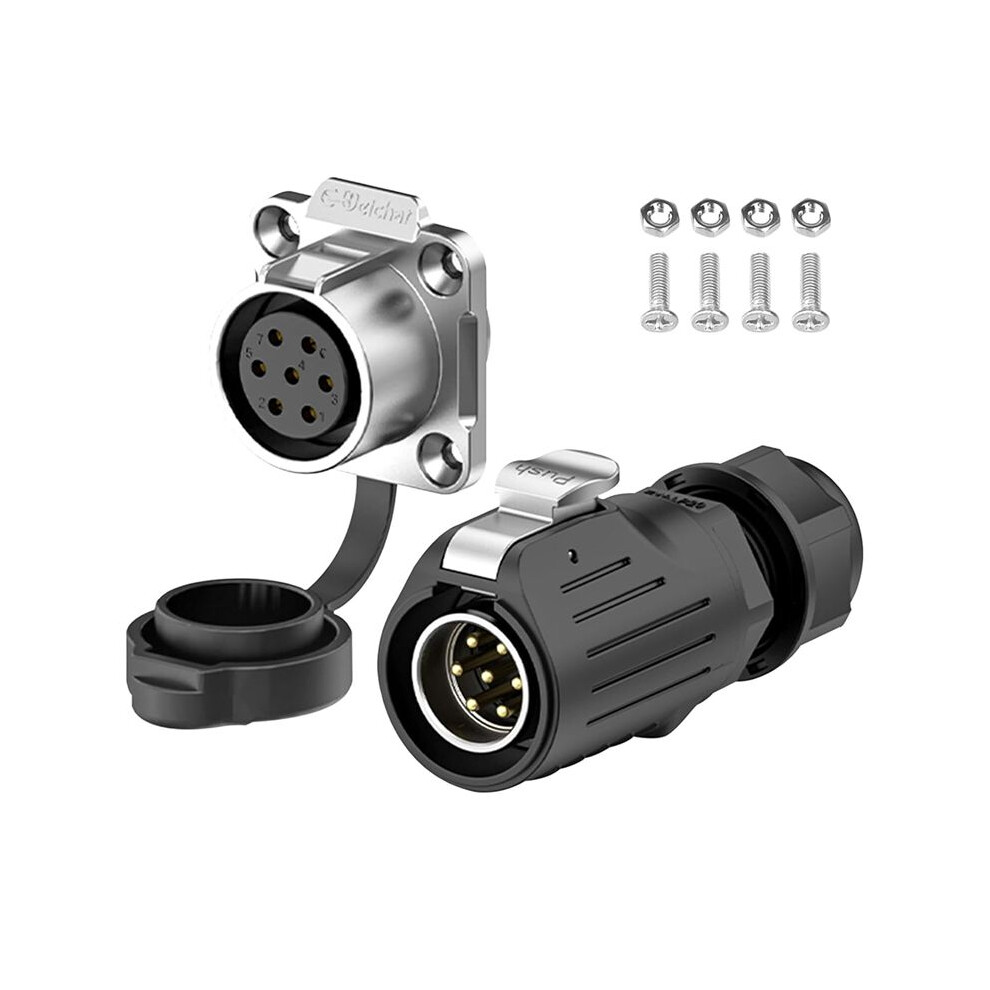

Industrial Waterproof Connector IP68 Quick Plugging Circular Connector Anti-Interference Shell Connector (7 Pin)
Lignende produkter, vi tror du vil kunne lide
Would you like us to let you know when it's back?
Oversigt
- Pairing type: male plug+female socket; Connection mode: One click button plug/unplug power; Locking method: automatic insertion, self-locking device; Protection level: IP68 (2M/2H) (paired); Assembly method: solder.
- Cable Standard: Cable Specification: 2.5-4.0mm ²/ 14-12AWG; Cable diameter range: 8.0-12.0mm; Contact diameter x number: φ 2.7x2; Durability: greater than equal 1900 mating/without cycles.
- Electrical characteristics: Rated current: 20a; Operating voltage (AC. V. RMS): 500V; Puncture test: 2500V; Contact resistance: Less than 1M ohm; Insulation resistance: Greater than 1000M ohm; Do not plug in when powered on.
- Material properties: Shell material: High performance PBT plastic material; Temperature range: -40℃ to 80 ℃; High temperature aging: 85 ℃/168 h; Temperature rise: 20A 30K ↓; 25a 40k ↓; 30a 50k ↓; Flame retardant level: UL94 V-0; Sealing: High quality silicon ring; Contact core: copper alloy (gold-plated)
- Widely used: in various challenging environments. Suitable for mechanical, server, photovoltaic, energy storage, power grid, automotive, marine, communication, detection, measurement, industrial control, audio-visual equipment, stage equipment, etc.
Industrial Waterproof Connector IP68 Quick Plugging Circular Connector Anti-Interference Shell Connector (7 Pin) Beskrivelse
Pairing type: male plug+female socket; Connection mode: One click button plug/unplug power; Locking method: automatic insertion, self-locking device; Protection level: IP68 (2M/2H) (paired); Assembly method: solder.
Cable Standard: Cable Specification: 2.5-4.0mm ²/ 14-12AWG; Cable diameter range: 8.0-12.0mm; Contact diameter x number: φ 2.7x2; Durability: greater than equal 1900 mating/without cycles.
Electrical characteristics: Rated current: 20a; Operating voltage (AC. V. RMS): 500V; Puncture test: 2500V; Contact resistance: Less than 1M ohm; Insulation resistance: Greater than 1000M ohm; Do not plug in when powered .
Material properties: Shell material: High performance PBT plastic material; Temperature range: -40 to 80 ; High temperature aging: 85 /168 h; Temperature rise: 20A 30K ; 25a 40k ; 30a 50k ; Flame retardant level: UL94 V-0; Sealing: High quality silicon ring; Contact core: copper alloy (gold-plated)
Widely used: in various challenging environments. Suitable for mechanical, server, photovoltaic, storage, power grid, automotive, marine, communication, detection, measurement, industrial control, audio-visual equipment, stage equipment, etc.
Type:7 Pin
Colour:Black
Material:Plastic
Package Contents:
1 * connectors
Detaljer
| OPC | PV8BG8G |
|---|---|
| Mærke | Typecat |
| Koder | 6032982417723 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.099kg |
| Colour | Black |
| Size | 7 Pin |
| Material | Plastic |
