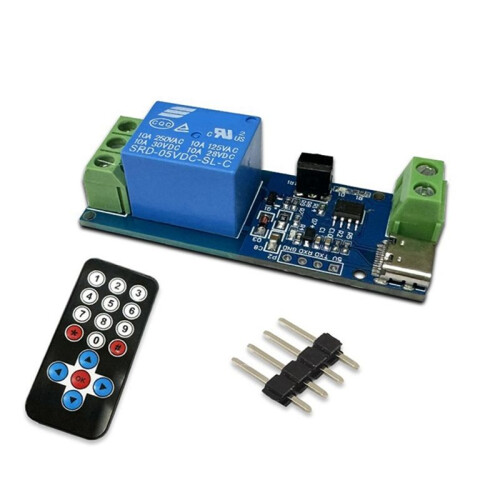

Infrared Remote Control Single Relay Module Self-Locking Tapping Multi-Functional Convenient Portable Utility Module

Infrared Remote Control Single Relay Module Self-Locking Tapping Multi-Functional Convenient Portable Utility Module Beskrivelse

Support Infrared Control, Powerful Function
Supports Switching Between Self-Locking, Inching, And Interlocking Modes, And Has Led Lights For Prompts.
Equipped With Cascade Port, Supports Ttl Serial Port And Then Burning
The Infrared Remote Control Relay Module Is Programmed By The STC8G1K08 Chip, And The Relay Is Controlled By Sending Instructions Through The Infrared Remote Control.
It Has The Advantages Of Multi-Mode Switching, Low Signal Transmission Delay, Low Power Consumption, And Stable Performance. Press The "Ok" Button The Infrared Remote Control To Modes.

Product Name:Infrared Remote Control Single-Channel Relay Module
Product Interface:Type-C Port
Advantages:Low Signal Transmission Delay, Low Power Consumption, Stable Performance
Infrared Remote Control Instructions
1. Power The Infrared Remote Control Single-Channel Relay Module (5v Power Supply)
2. The Module Has 2 Modes, Namely: Self-Locking Mode (Mode 1) And Jog Mode (Mode 2). After Power-, The Module Defaults To Mode 1.
3. Press The "Ok" Button The Remote Control To The Current Mode. The Mode Switching Sequence Is: 12,21;
4. In Self-Locking Mode: Remote Control "1" Controls The Relay To Open And Close. Press The Button To Open The Relay. Press It Again To Close The Relay. In Jogging Mode: Remote Control "1" Controls The Relay To Open And Close. Press The Button To Open The Relay. The Relay Automatically Turns Off After A Delay Of 1 Second.
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB+Plastic

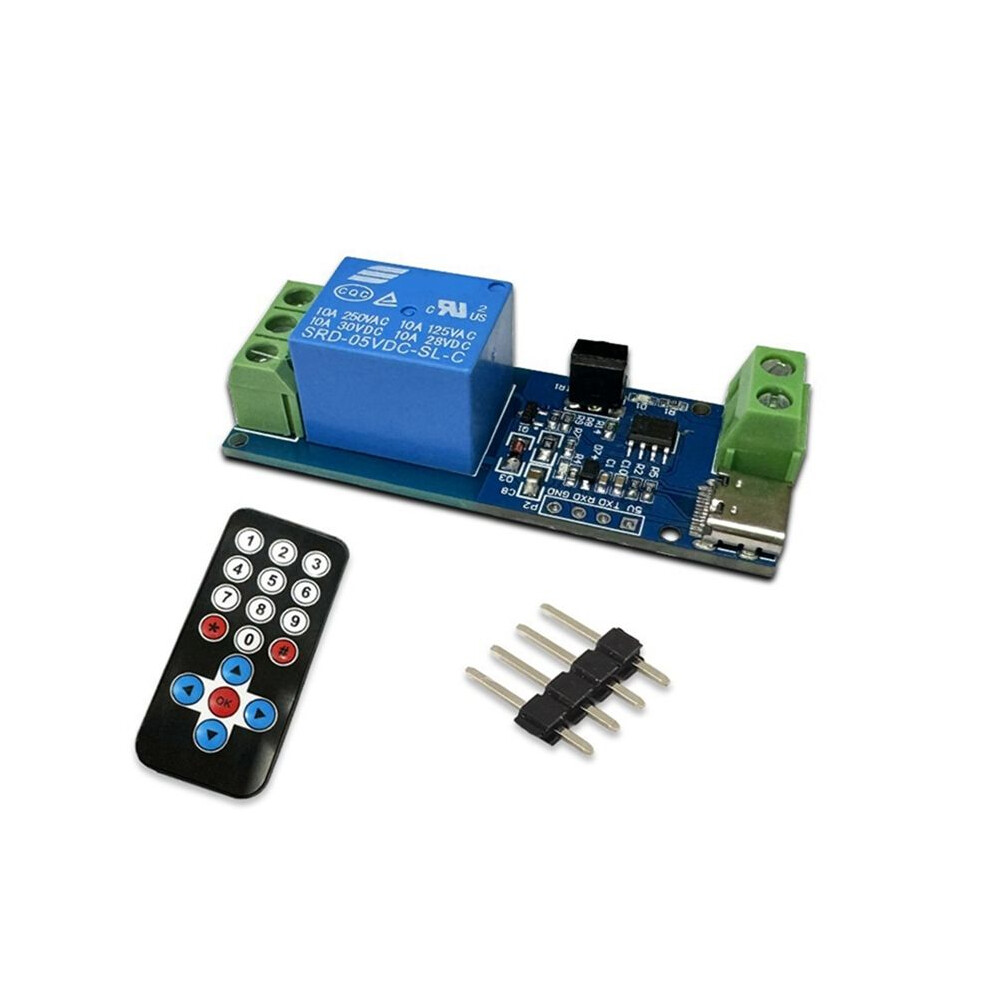

Package Contents:
1 * Infrared Remote Control Single-Channel Relay Module
1 * Infrared Remote Control
1 * Single Row Of Pins (4pin)
