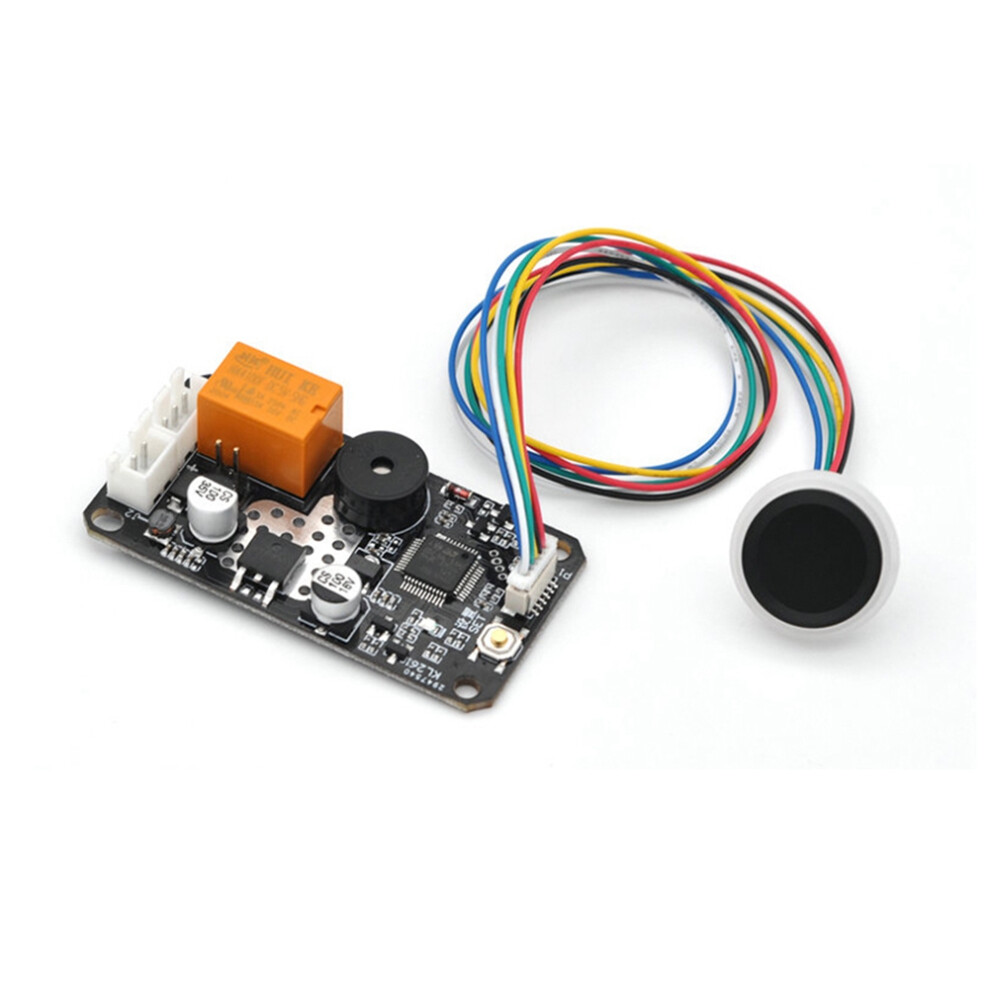

KL261 R558-S DC5.5-15V Realy Output Low Power Consumption Fingerprint Access Control Board with Self-Locking Mode

KL261 R558-S DC5.5-15V Realy Output Low Power Consumption Fingerprint Access Control Board with Self-Locking Mode Beskrivelse

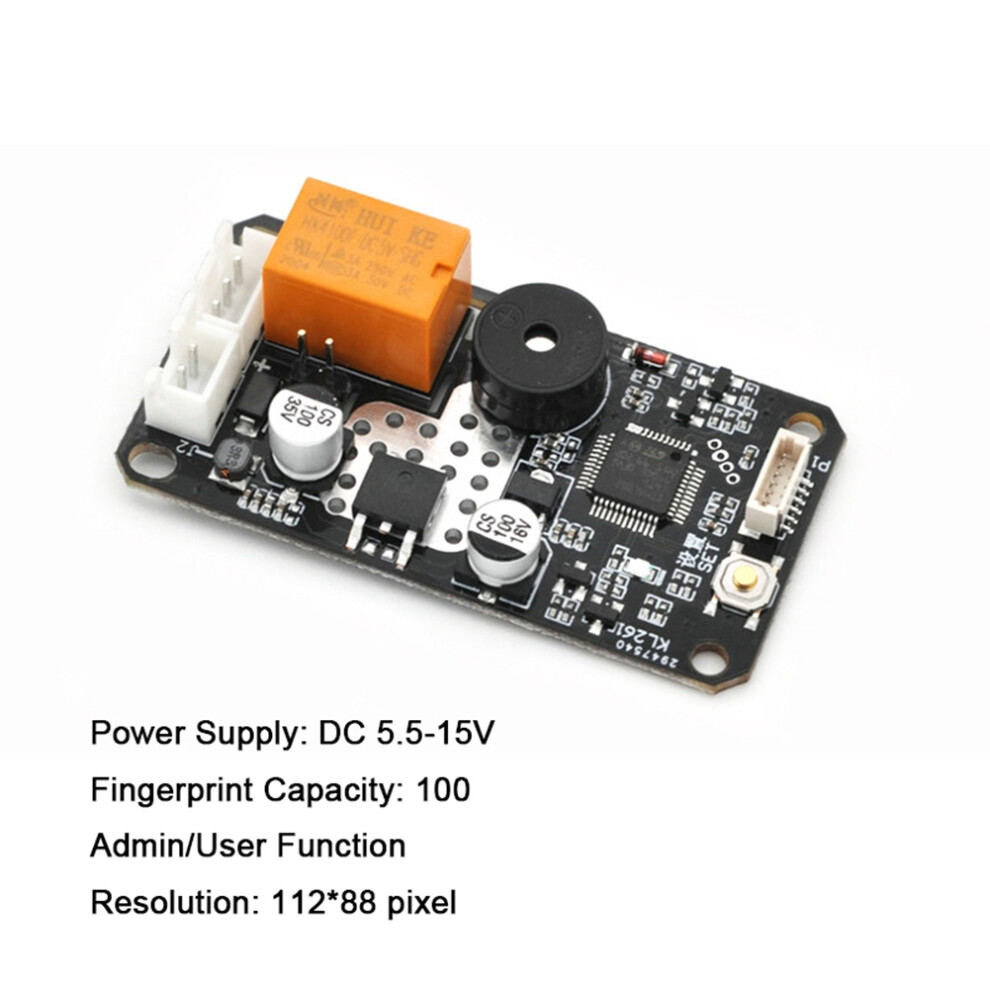

Power supply: 5.5-15V, Greater than 500mA
Standby current: 25uA(DC12V)
current: 200mA(DC12V)
Fingerprint capacity: 100 pieces (Admin Fingerprint: 20 pieces, User Fingerprint: 80 pieces)

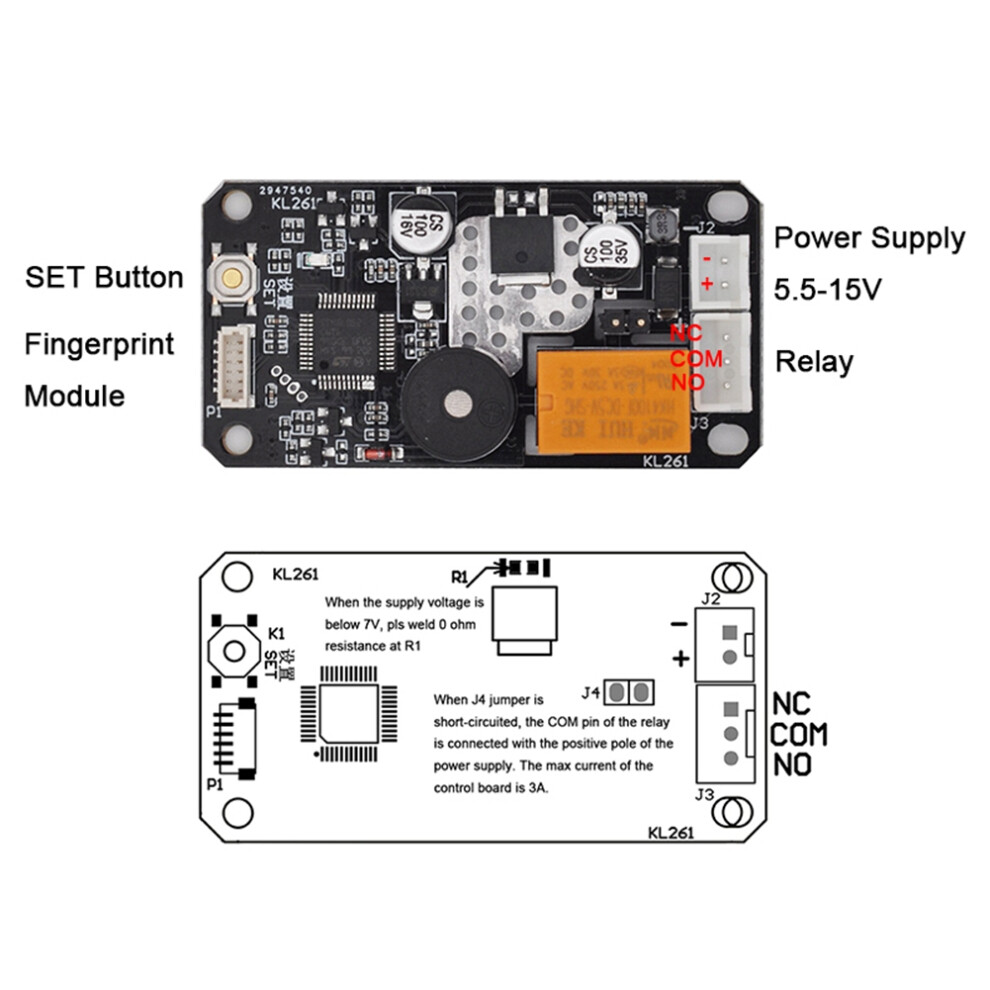

Output: Relay

KL261 is designed for low power consumption, the power supply is DC5.5-15V. It have admin and user fingerprint.

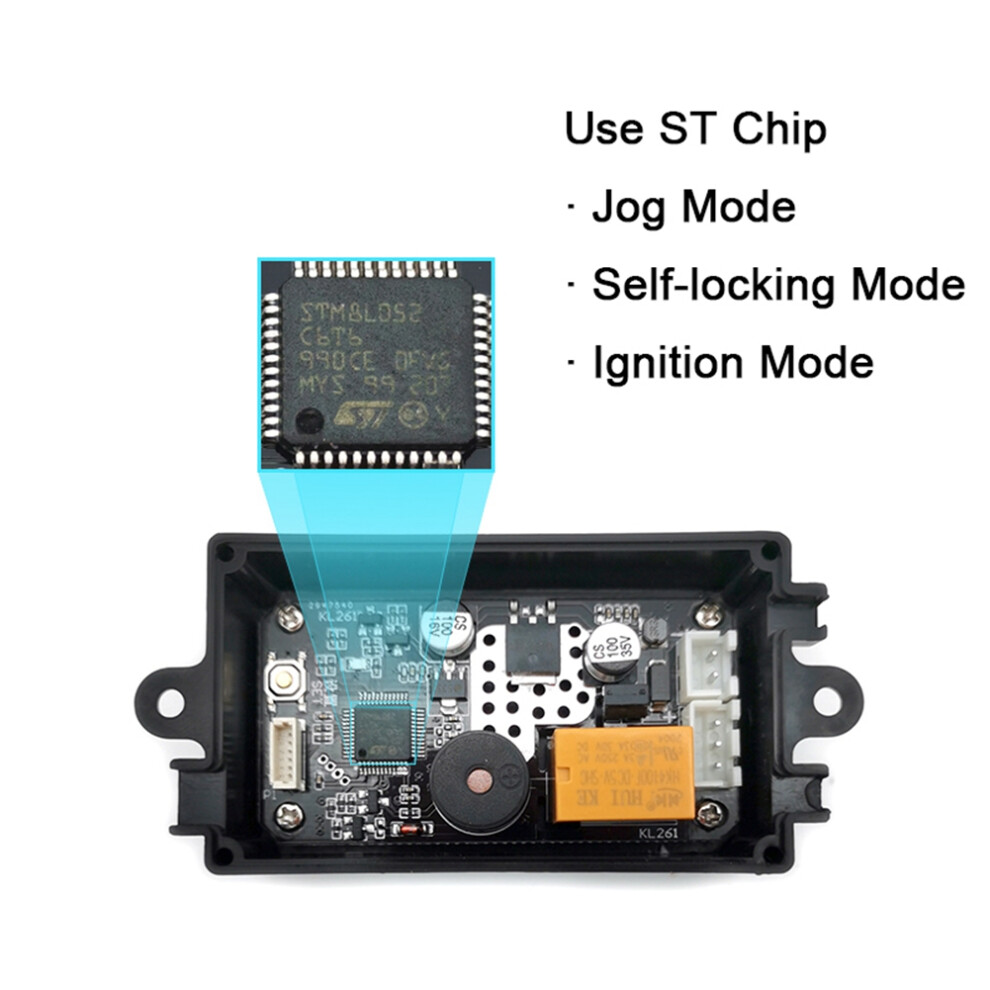

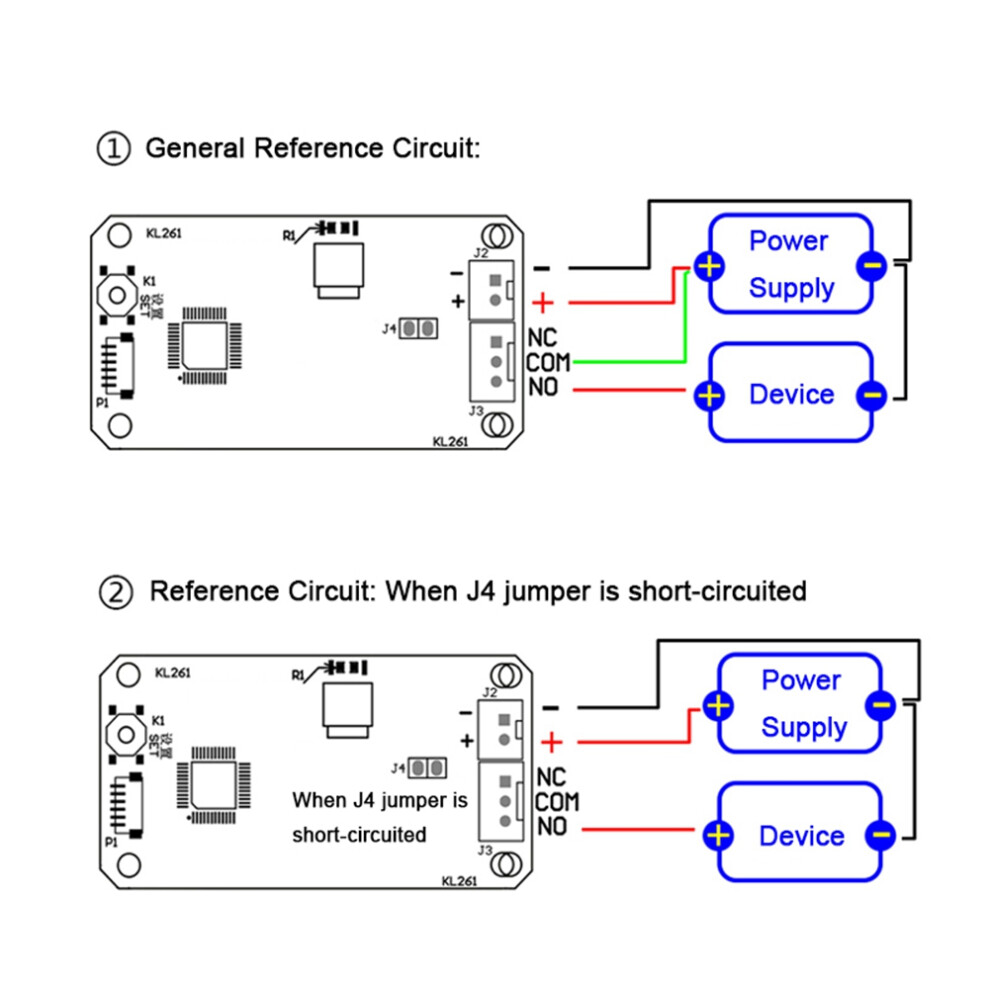

Have three relay mode:jog mode, self-locking mode, ignition mode.
Helpful hints:
If need to connect with car,motorcycle, and needs high security product,suggest to high pixel fingerprint module, like K202+R503,K215-V1.3+R503,K216 +R503 board and so .

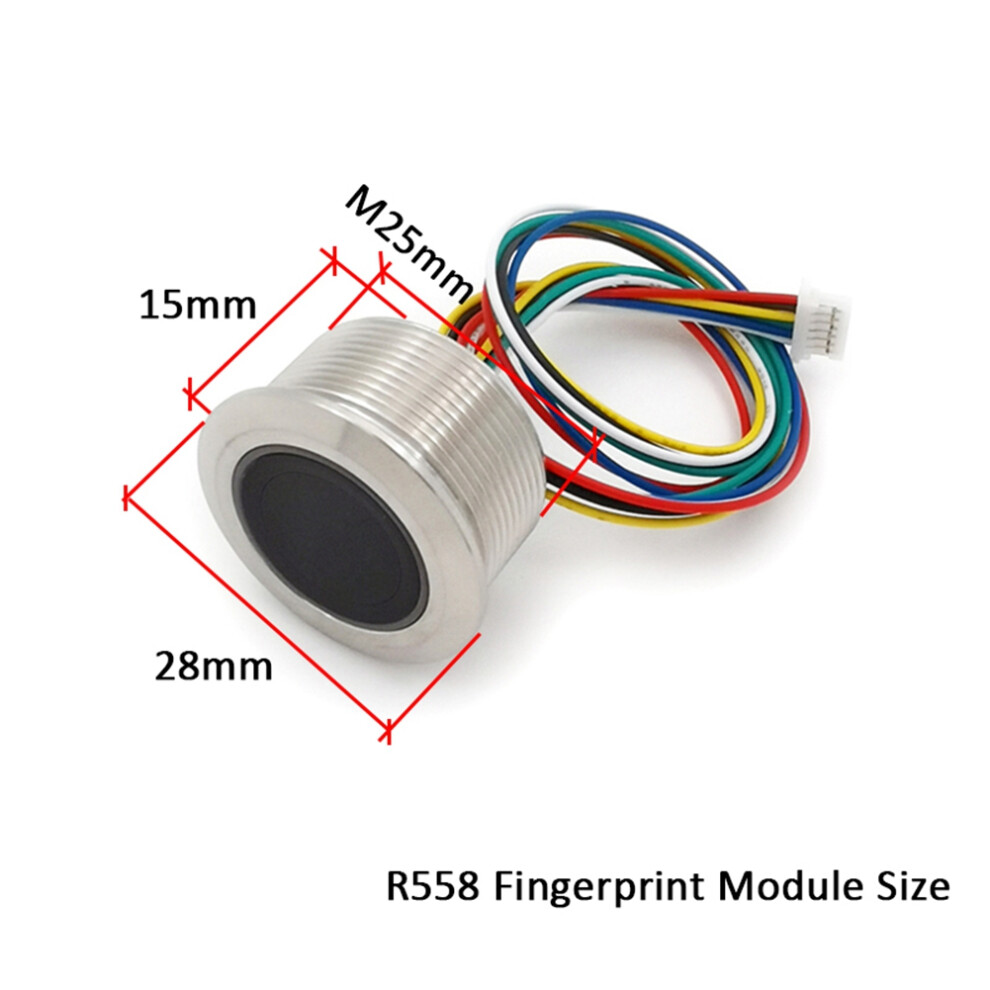

The KL261 is low sensing array, only have 112 x 88 pixel, when register fingerprint, you have to put multiple in register fingerprint.
If you have high requirements for products and design, we suggest you can chose R503,R502-A serials products, like K202+R503,K215-V1.3+R503,K216 +R503 board and so .

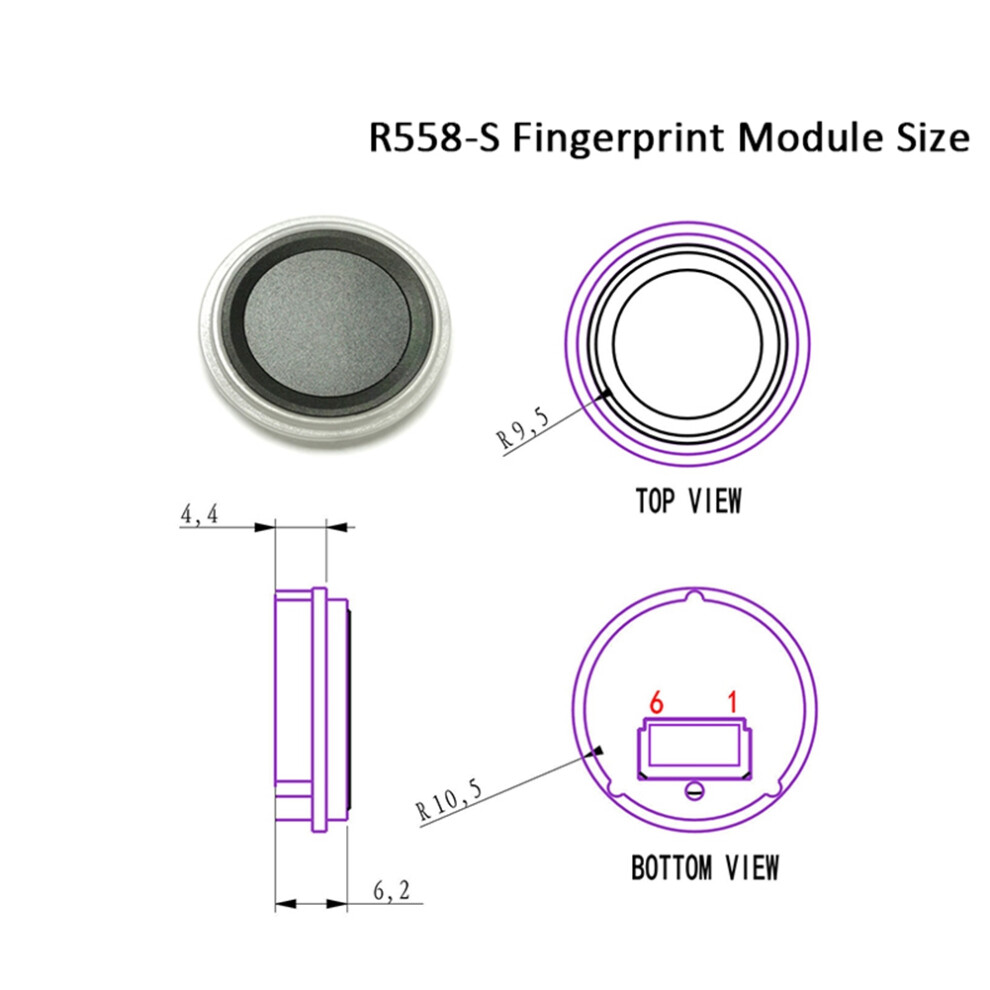

Type: KL261 R558-S
color:As shown

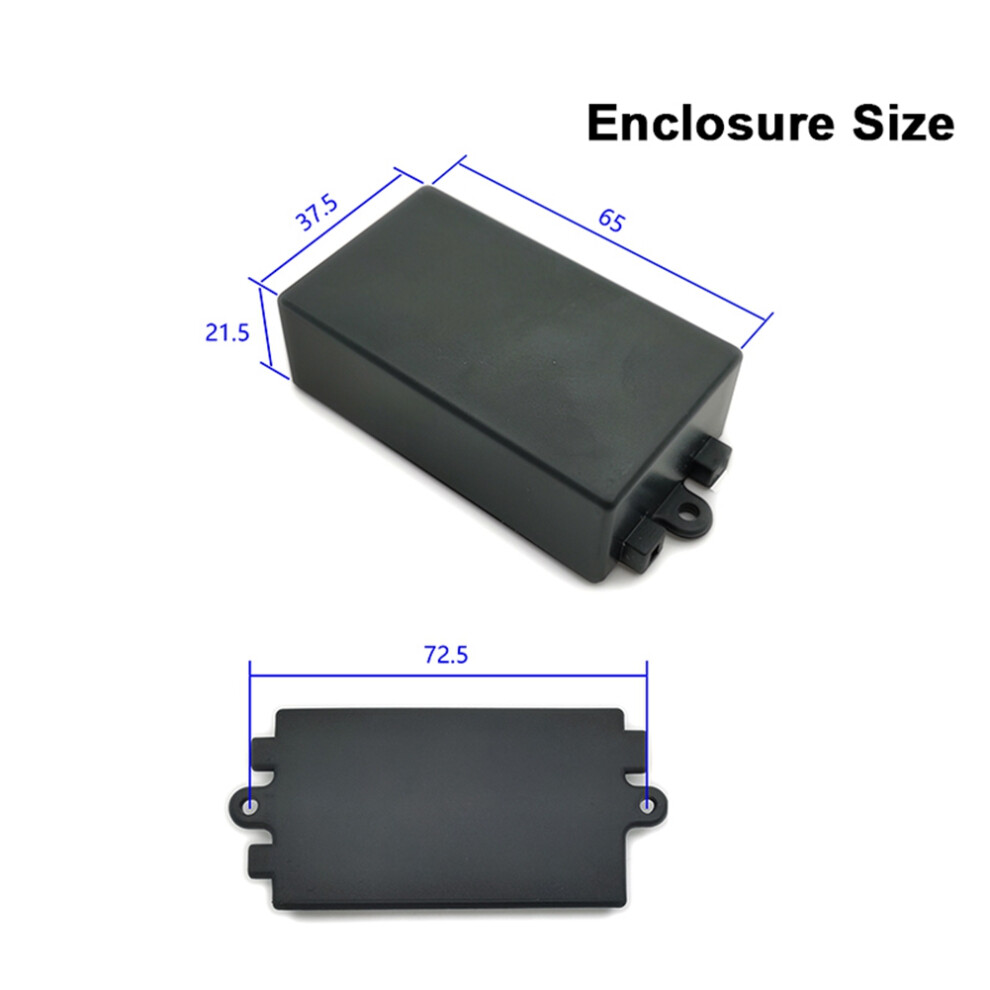

Material:Metal+ABS

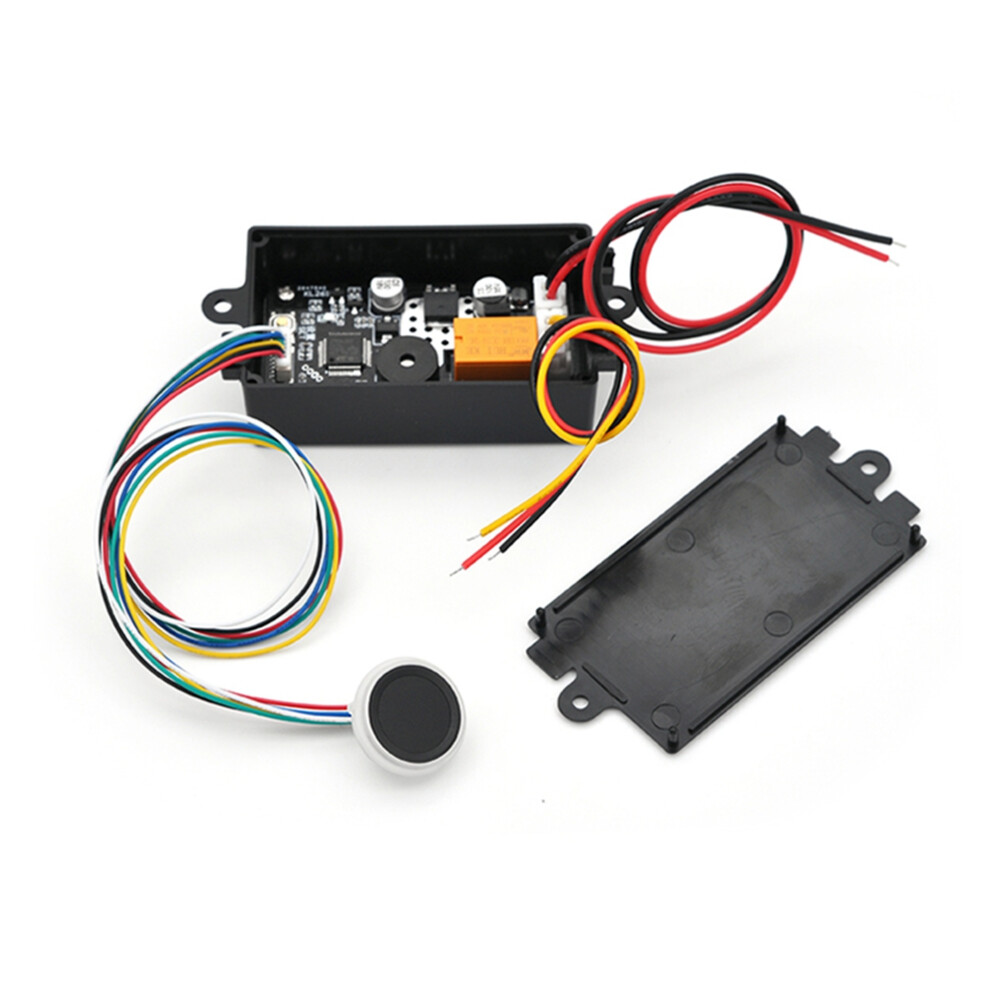

Package Contents:
1 x Fingerprint control board
