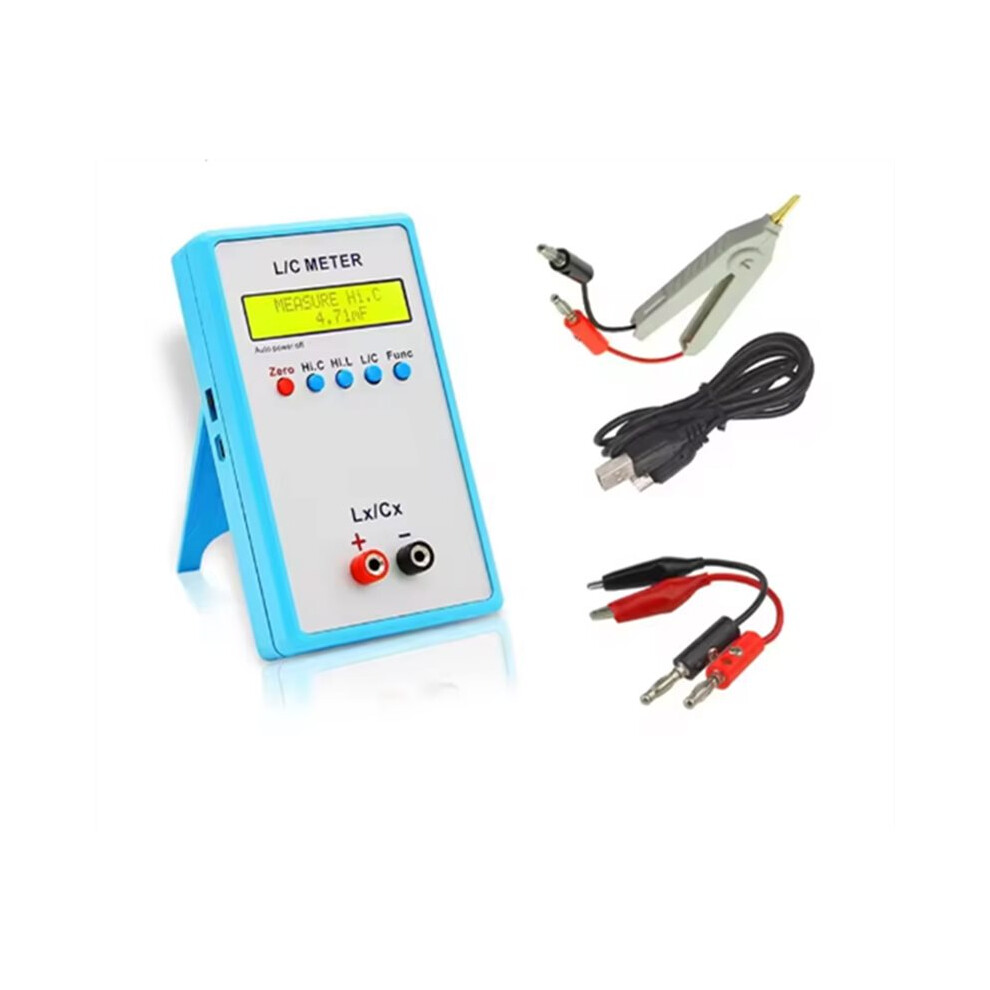

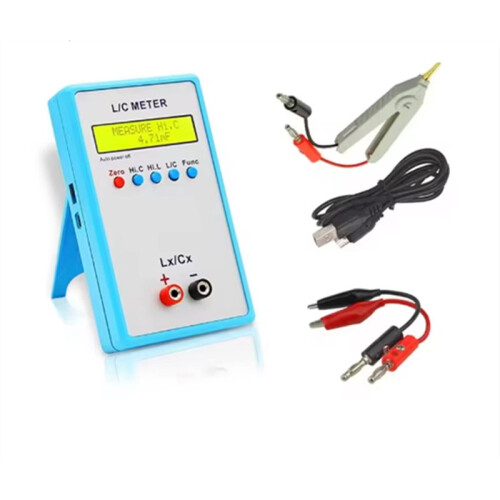

LC200A High-Precision Surface-Mount Inductor and Capacitor Meter, Handheld Measuring Instrument LC Digital Bridge Tester

LC200A High-Precision Surface-Mount Inductor and Capacitor Meter, Handheld Measuring Instrument LC Digital Bridge Tester Beskrivelse

LC200A handheld inductor and capacitor meter is an LC tester built by the department to open the mold. It has a wide range and is easy to use. With a plastic case, the internal use of surface mount high-quality components to ensure excellent quality;
can measure 1pF-100mF capacitance and 1uH-100H inductance, capacitance resolution to 0.01pF, inductor resolution 0.001uH.
The instrument is based the principle of LC resonance and can measure inductance below 1uH and small capacitance less than 1pF. This is also the characteristic of this instrument, especially suitable for microwave production and measurement of switching power supply , filter inductors, etc.;
and it has flexible online calibration at any Maintain measurement accuracy; instrument does not use any potentiometer adjustment, calibration parameters are completely stored in the microcontroller's FLASH, power loss will not be lost, compared to other potentiometer calibration method to be accurate and convenient.

C range : Capacitance (1pF-10uF)
Capacitance accuracy : 1%(1pF~1uF), 5%(1uF~10uF)
Measurement resolution of capacitance (C Range): 0.01pF
Hi.C range : Large capacitance ,1uF-100mF
Large capacitance accuracy: 5%(1uF-100mF)
Measurement resolution of large capacitance(Hi.C Range): 0.01uF
L range : Inductance (1uH-100mH)
Inductance accuracy :1%(1uH~100mH)
Measurement resolution of inductance(L Range): 0.001uH
Hi.L range : Large inductance (0.001mH-100H)
Large inductance accuracy: 1%(100mH~1H),5%(1H~100H)
Measurement resolution of large inductance(Hi.L Range): 0.001mH
Test Frequency: L Range,C Range,500kHz; Hi.L Range,500Hz~50KHz
Measurement method of capacitance,Inductance and Large Inductance: LC Resonance
Measurement method of large capacitance:Charge-discharge
Display:1602 LCD
