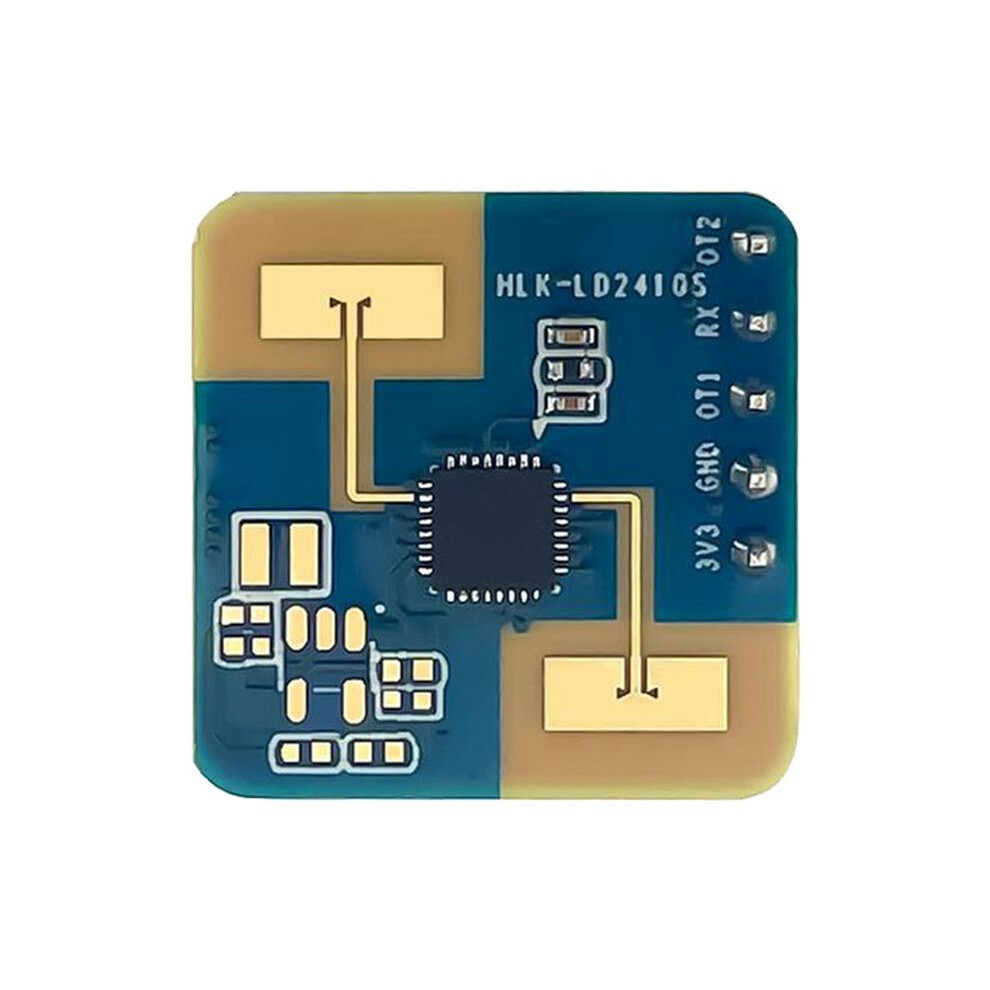

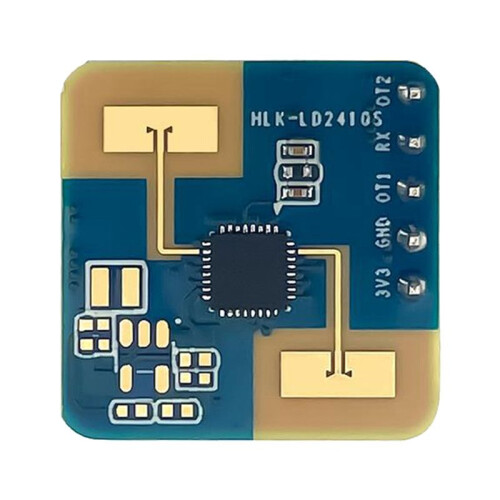

LD2410S Motion Detection Sensor Module 24GHz Human Presence Sensor, for Home
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 19. - ons. 24. jun.
Solgt af: Kulemip
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Bevægelsessensorer
Oversigt
- Equipped with a single-chip smart millimeter wave sensor SoC and smart algorithm firmware
- Wall mountable, with a large detection angle
- compliant with 24GHz ISM band, No Commission Spectrum Regulations
- Offers a wide voltage range of 3.0V to 3.6V
- Minimal operating current of 0.1 mA at 1Hz reported frequency
LD2410S Motion Detection Sensor Module 24GHz Human Presence Sensor, for Home Beskrivelse
Equipped with a single-chip millimeter wave sensor SoC and algorithm firmware
Wall mountable, with a large detection angle
compliant with 24GHz ISM band, No Commission Spectrum Regulations
Offers a wide voltage range of 3.0V to 3.6V
Minimal operating current of 0.1 mA at 1Hz reported frequency
Frequency: 24G-24.25GHz
Modulation method: FMCW
Detection distance: motion detection within 8m/sensor within 4m
Detection angle: 60
Power supply: 3.3V(Typ.)
Current: ~0.12mA(Typ.)
Output serial port level: 3.3V
Sweep bandwidth: 250MHz (in with CE/FCC certification standards)
Maximum equivalent omnidirectional radiated power: 10dBm
Data refresh cycle: 40s (Typ. configurable)
Data format: Serial port ASCII output/high and low levels 3.3V&OV
Package form: Default with pins
Material: PCB
colour:
Package Contents:
1 x Sensor Module
Detaljer
| OPC | PVCSVKS |
|---|---|
| Mærke | Wella Elements |
| Koder | 4713920699136 (EAN) |
Produktdata
| Height | 1cm |
|---|---|
| Width | 3cm |
| Length | 3cm |
| Weight | 0.0025kg |
| Colour | blue |
| Material | PCB |
