Oversigt

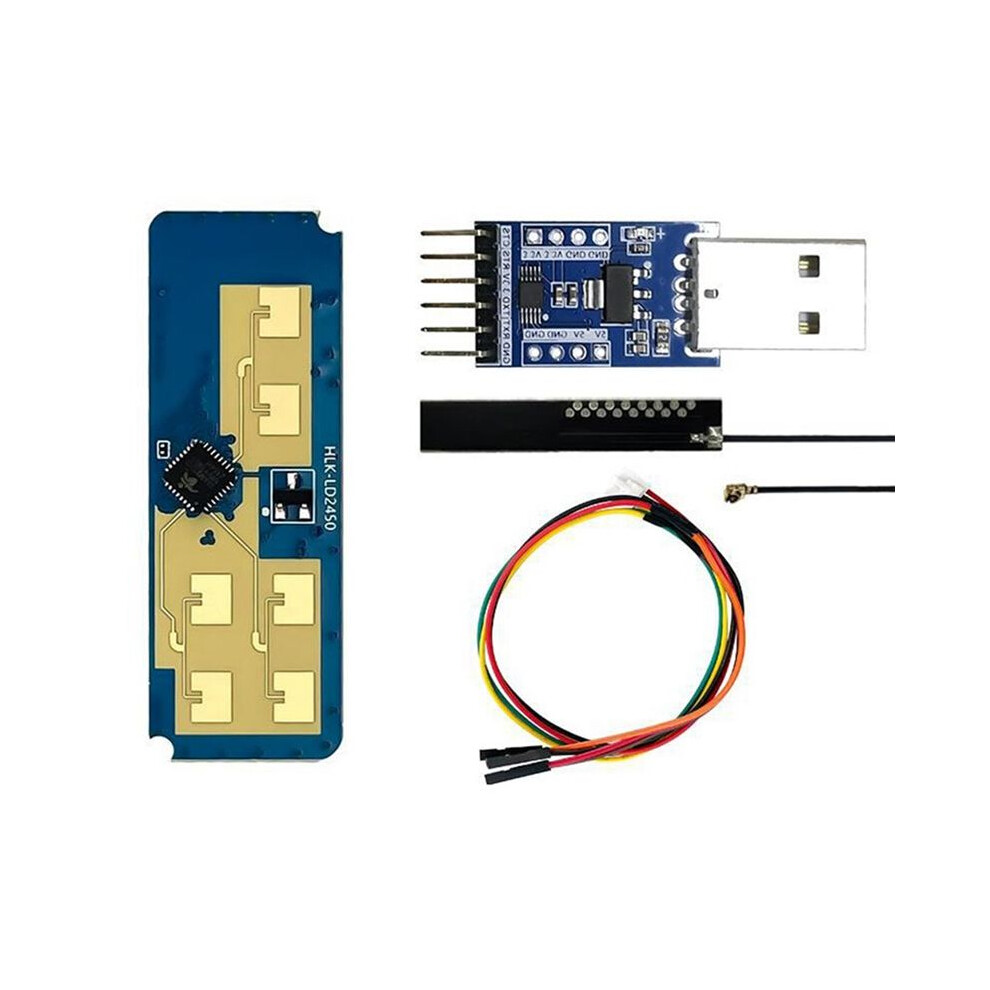

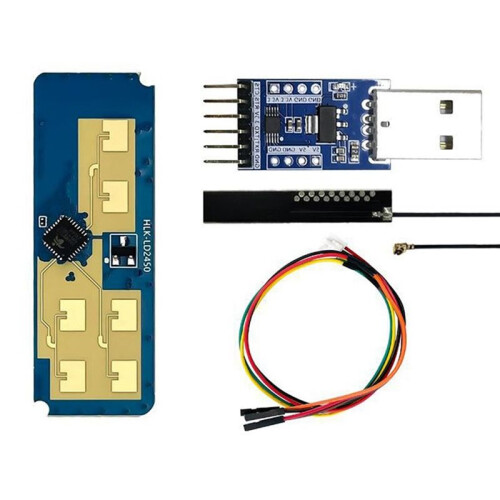

- The LD2450 is a motion target tracking sensor module from the 24G millimeter wave radar series, which includes extremely simplified 24 GHz radar sensor hardware and intelligent algorithm firmware.
- The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
- Motion target tracking is to track the position of the moving target in the region in real time, and realize the distance, angle and speed measurement of the moving target in the region.
- The sensor hardware consists of an for AloT millimeter wave radar chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the radar chip's proprietary advanced signal processing technology.
- It supports serial output of detection data, which is plug-and-play and can be flexibly applied to different smart scenarios and end products.
LD2450 DC5V 24G Home Motion Human Tracking Trajectory Test Distance Angle Speed Sensor Module Beskrivelse
The LD2450 is a motion target tracking sensor module from the 24G millimeter wave series, which includes extremely simplified 24 GHz sensor hardware and intelligent algorithm firmware.
The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
Motion target tracking is to track the position of the moving target in the region in real , and realize the distance, angle and speed measurement of the moving target in the region.
The sensor hardware consists of an for AloT millimeter wave chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the chip's proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and- and can be flexibly applied to different scenarios and end products.
Type: LD2450
Current: 5v
Average operating current: 120 mA
Detection distance: 8m
Modulation method: FMCW
Detection angle: 60
Ambient temperature: -40-85
Working current: 50mA
Azimuth angle: 60
Pitch angle: 35
Colour:Photo Color
Material:ABS
Size:15mm x 44mm
Package Contents:
1set x Human movement tracking module
Detaljer
| OPC | PXCVB2P |
|---|---|
| Mærke | Jojomino |
| Koder | 6032498601043 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 11cm |
| Length | 12cm |
| Weight | 0.0135kg |
| Colour | Photo Color |
| Material | ABS |
