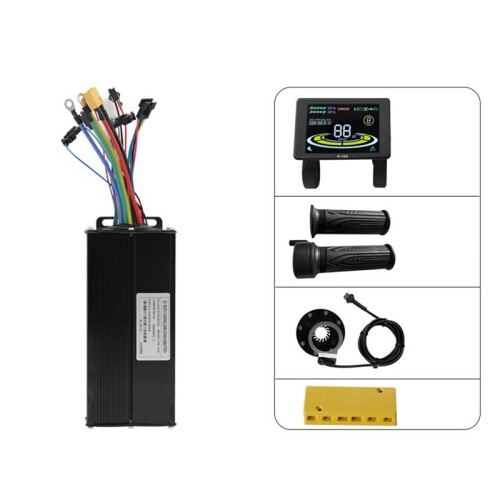

Li-Ion Power Boost Conversion Kit H-100 Color Meter with 40A Controller and 20X Handlebar Boost Kit Junction Box

Li-Ion Power Boost Conversion Kit H-100 Color Meter with 40A Controller and 20X Handlebar Boost Kit Junction Box Beskrivelse

1. Mountain bike lithium battery-assisted modification accessories
2.40A three-mode 15-tube sine wave + H-100 color screen horizontal screen LCD instrument + 20X rotating handle + Quantum 8 magnetic set
3. The controller is a sine wave three-mode controller, matched with Hall and non-Hall brushless motors, with self-learning function
4. Applicable to 36V 1500W/36V 2000W/48V 1500W/48V 2000W/52V 1500W/ 52V 2000W brushless motor with Hall or without Hall 36V 48V 52V/40A

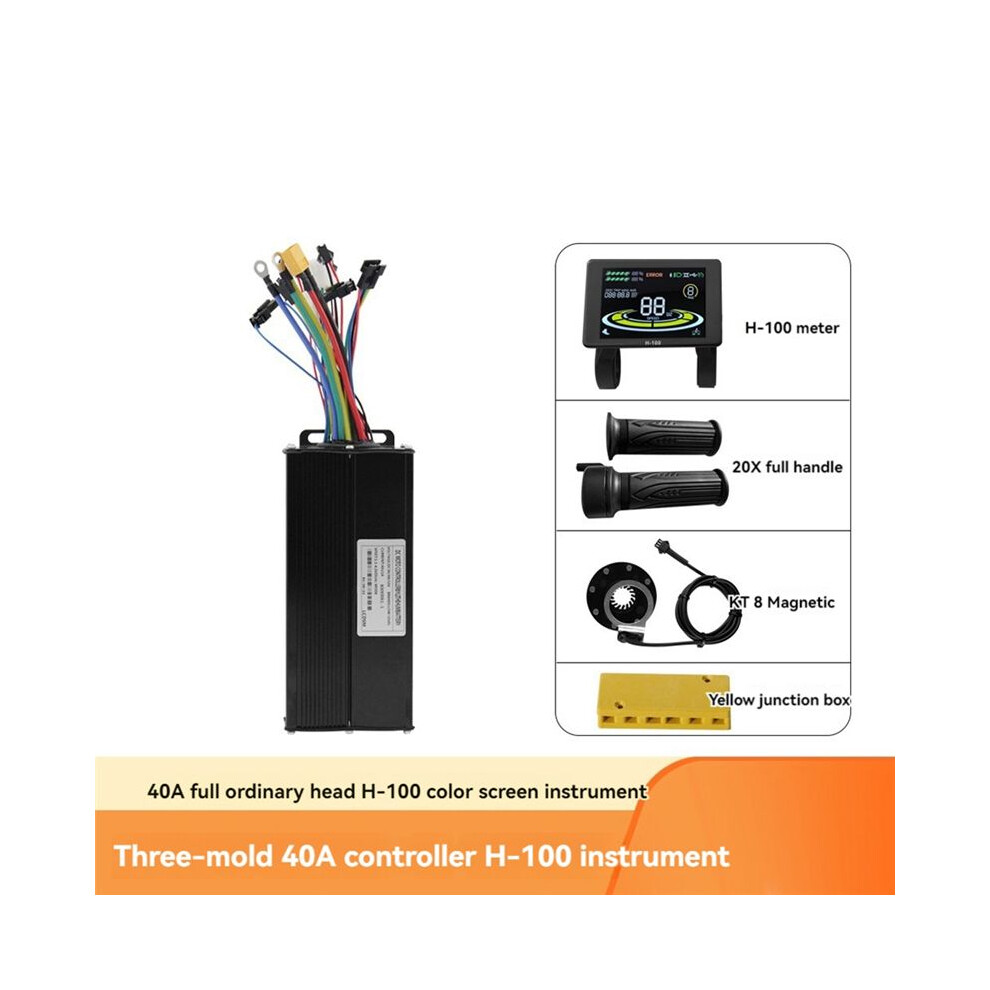

5. Three-mode sine wave 15-tube controller + H-100 color screen LCD instrument + 20X handle + Quantum 8 magnetic set.

Description:
20X full turning handlebar
Product model:20X
Product name: Full turn handle
Core wire specifications: 3pins
Operating temperature: -20C-60C
Voltage: 12V-72V
Connector: Ordinary connector
Cable length: 1760mm

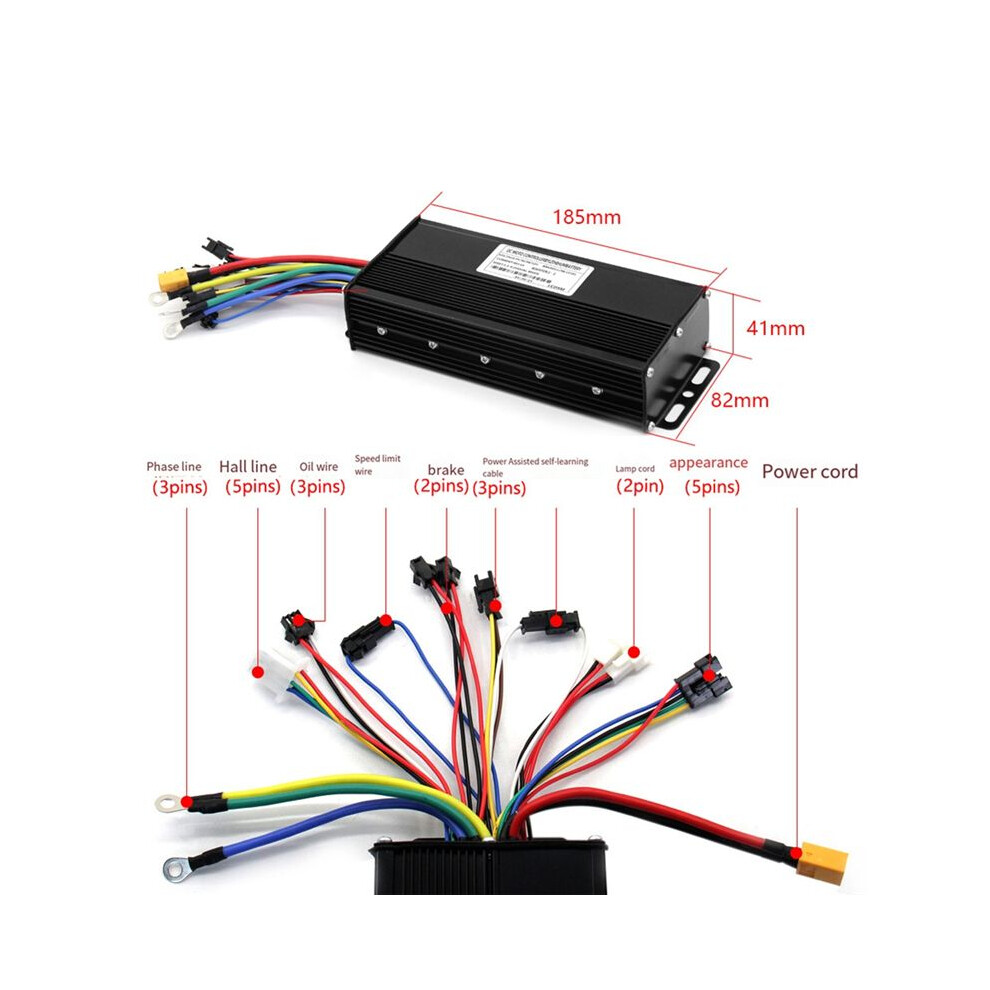

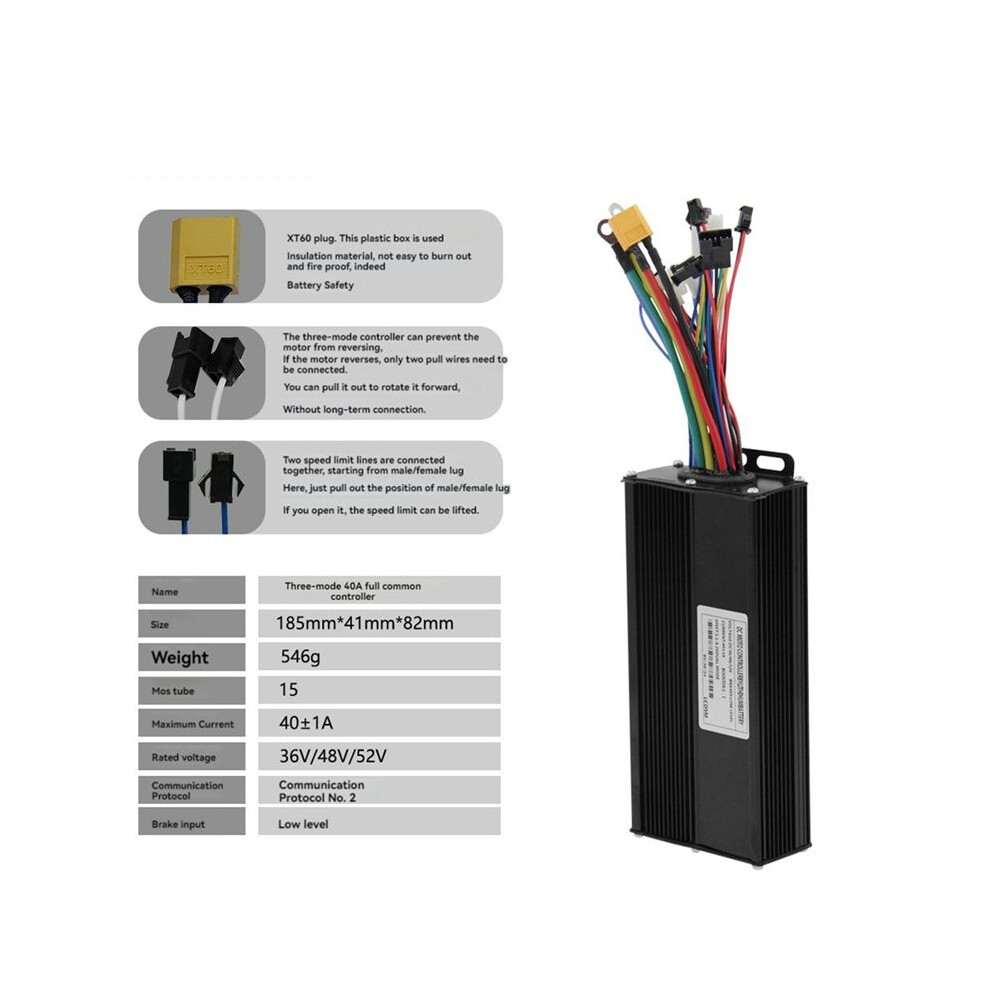

Three-mode 40A all-ordinary controller
Name: Three-mode 40A all-ordinary controller
Size: 185mm x 41mm x 82mm
MOS tube: 15
Maximum current: 40+1A
Rated voltage: 36V/48V/52V
Communication protocol: Communication protocol No. 2
Brake input: low level

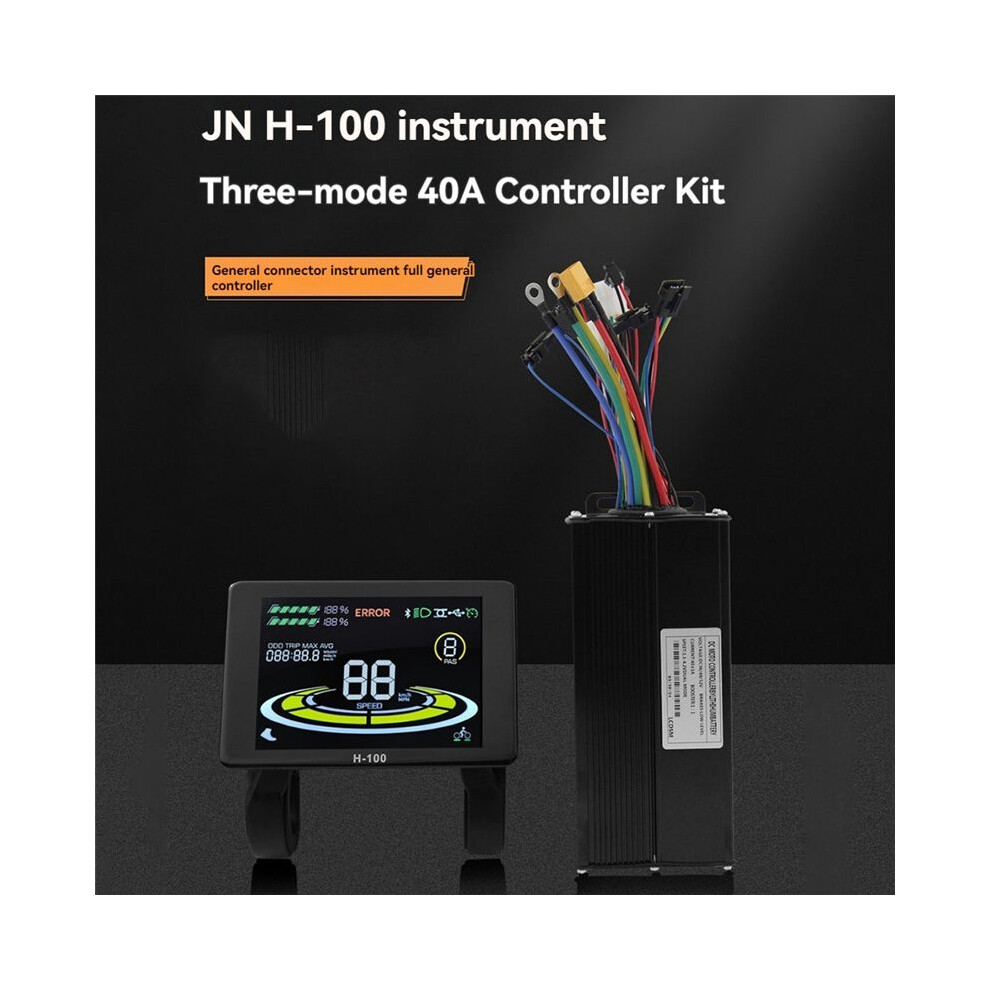

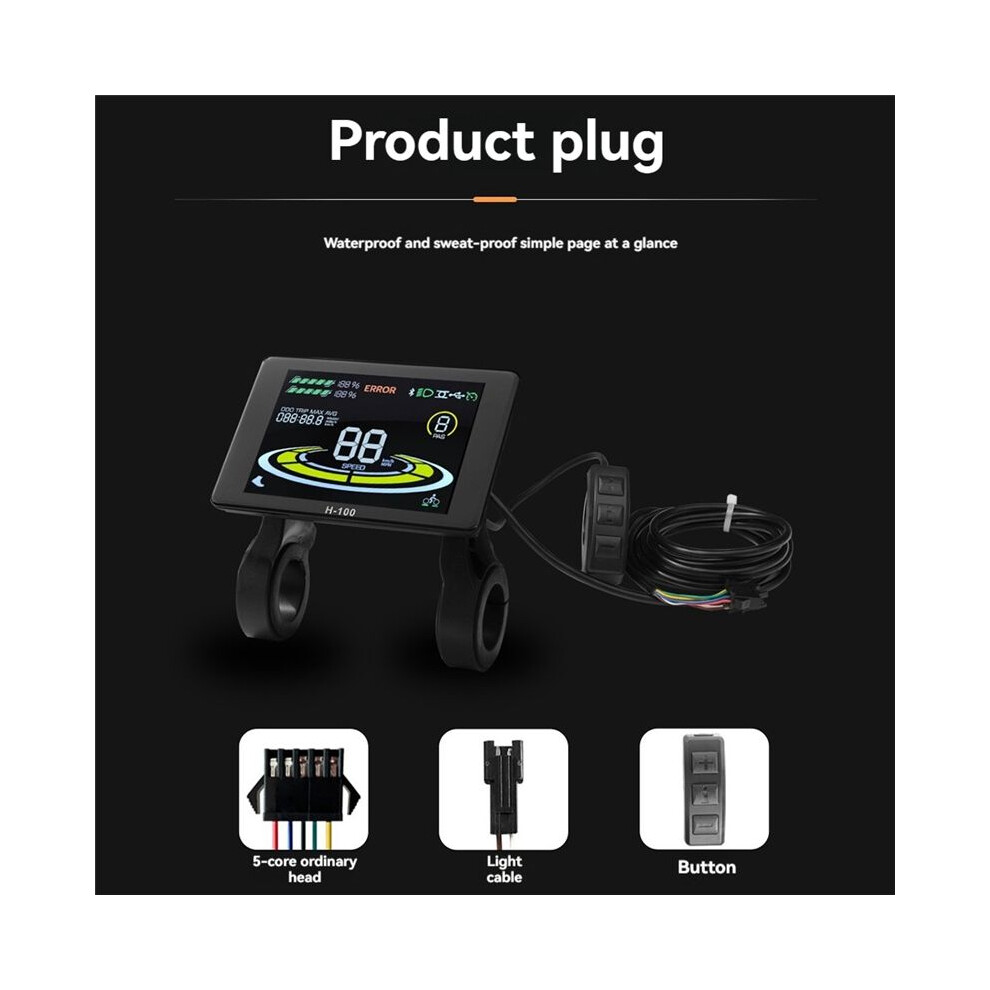

JN H-100 meter
Type:JN H-100 Meter
Plug: 5 core + 2 core ordinary plug
Dimensions: approx. height 93.4 x length 62.2mm
Voltage:24V-72V
Ordinary length: 1650mm
Working temperature:-20~60C

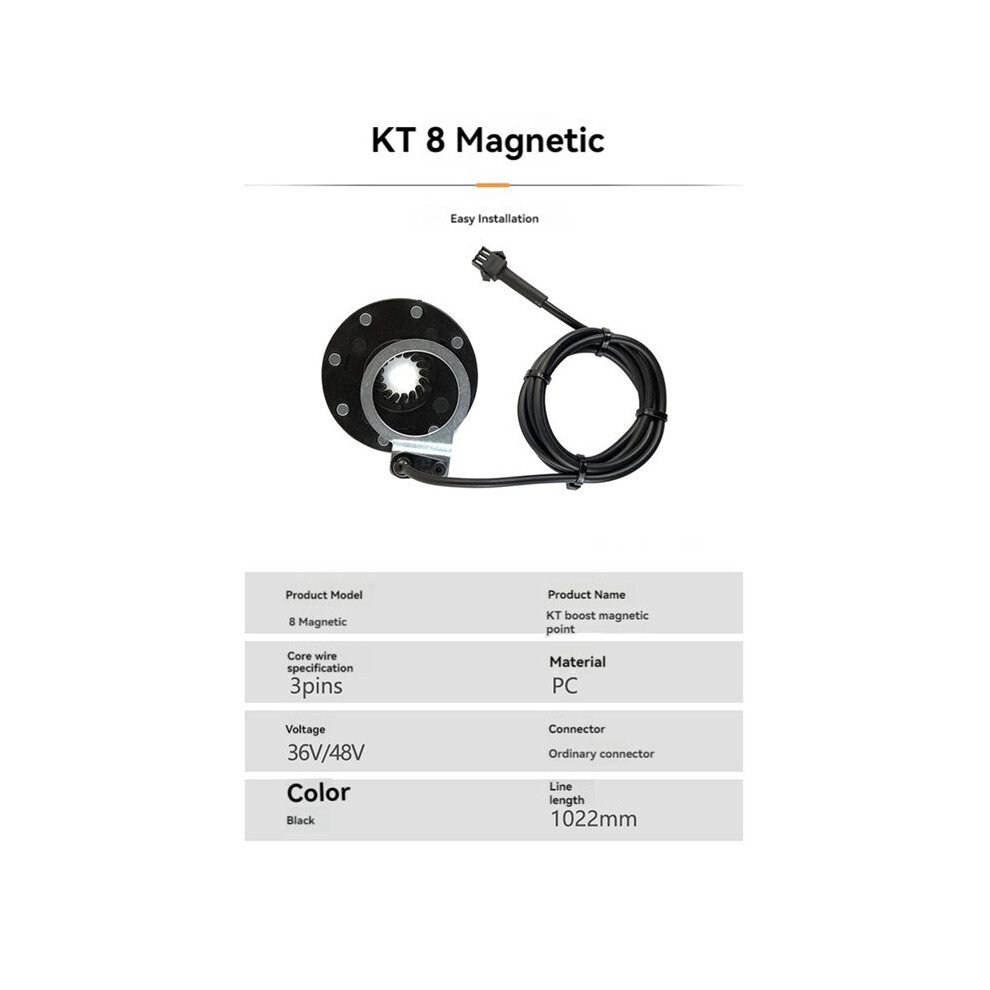

8 magnetic
Name:KT power assist sensor
Plug: 3-pin ordinary plug
Model: 8 magnetic
Voltage:36V/48V
Cable length: 1022mm
Size:64mm
Material: ABS+PC+aluminum alloy
colour: As shown

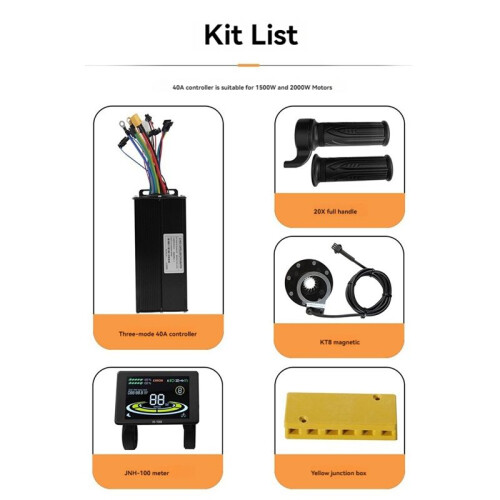

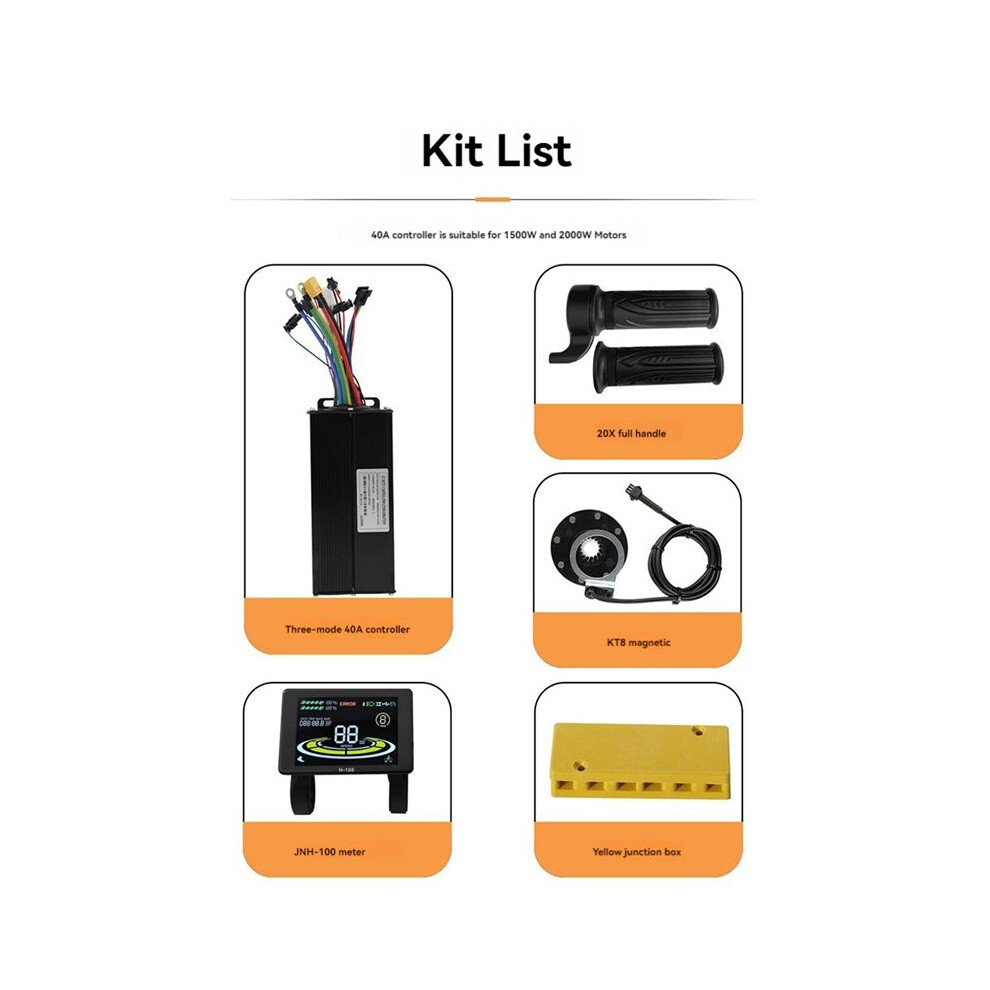

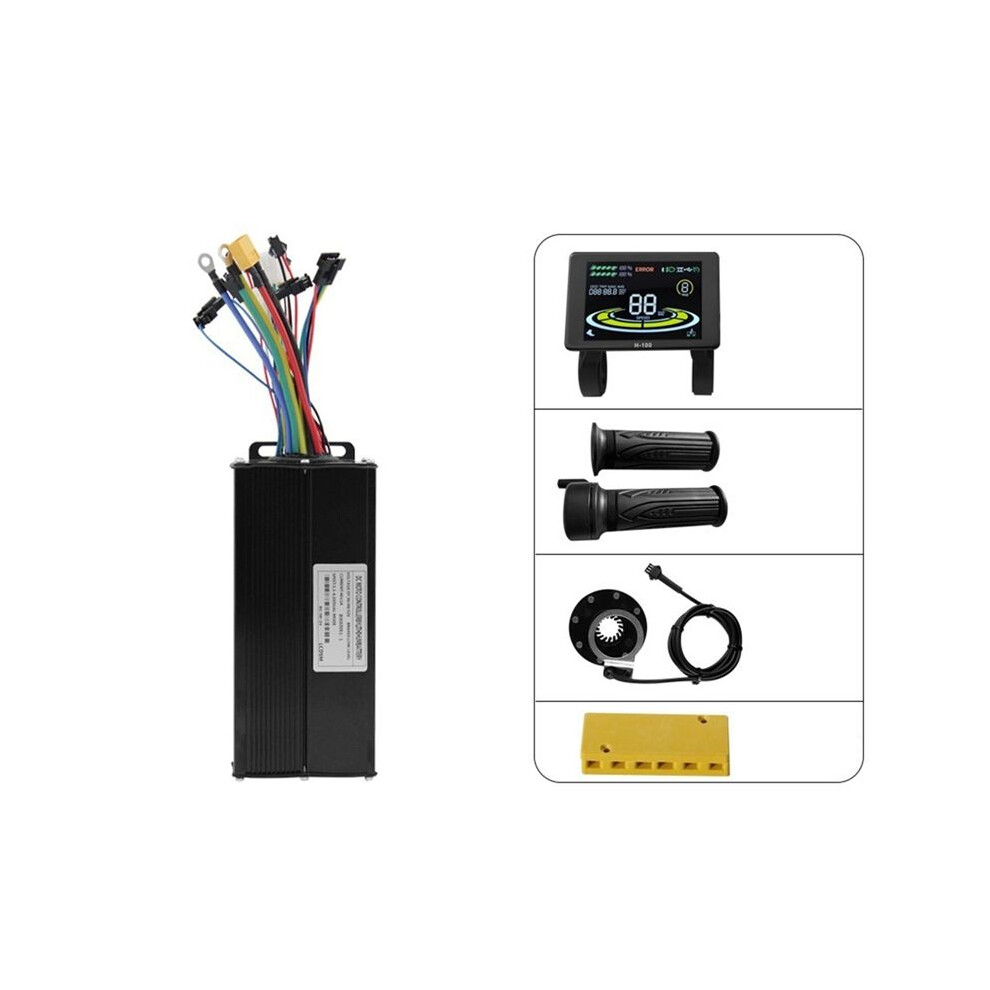

Package Contents:
1 x Three-Mode 40A Controller
1 x H-100 Meter
1 x 20X Full Turning Handle
1 x KT 8 Magnetic Booster Set (Including Wire)
1 x Yellow Junction Box

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the pictu
