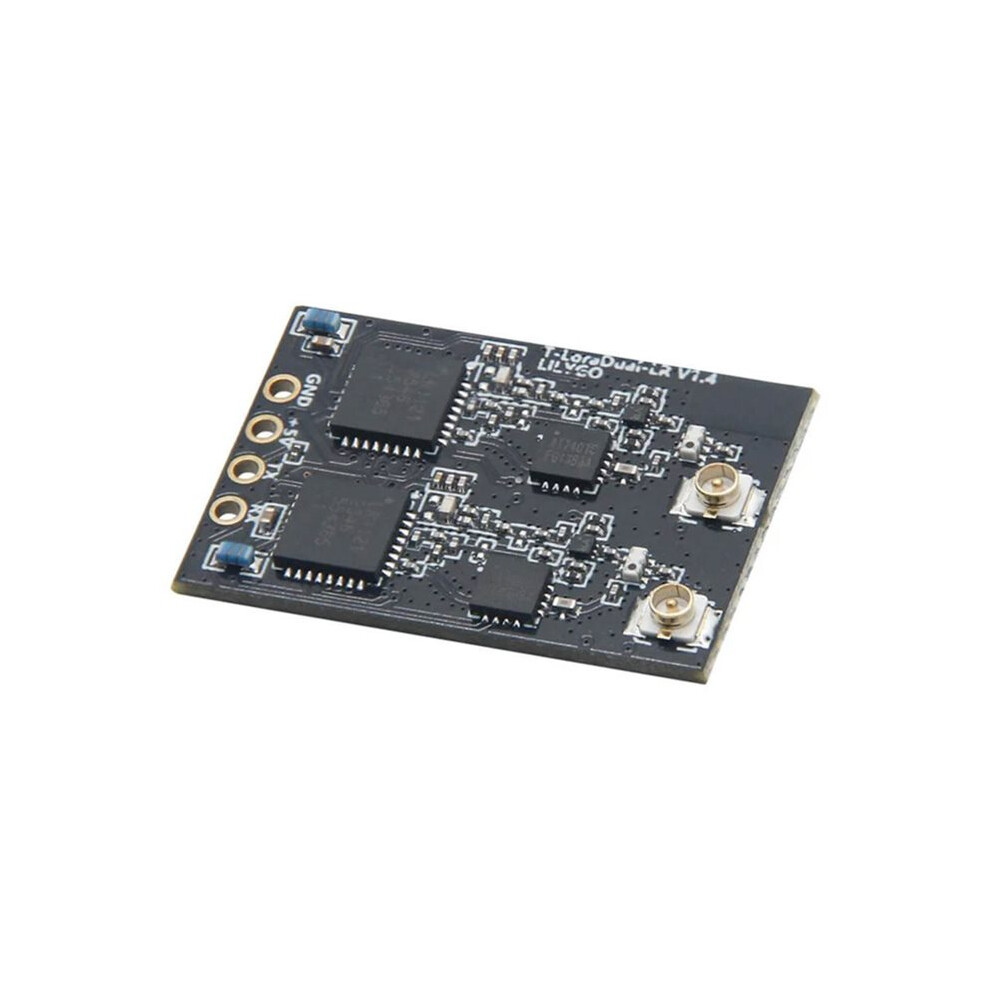

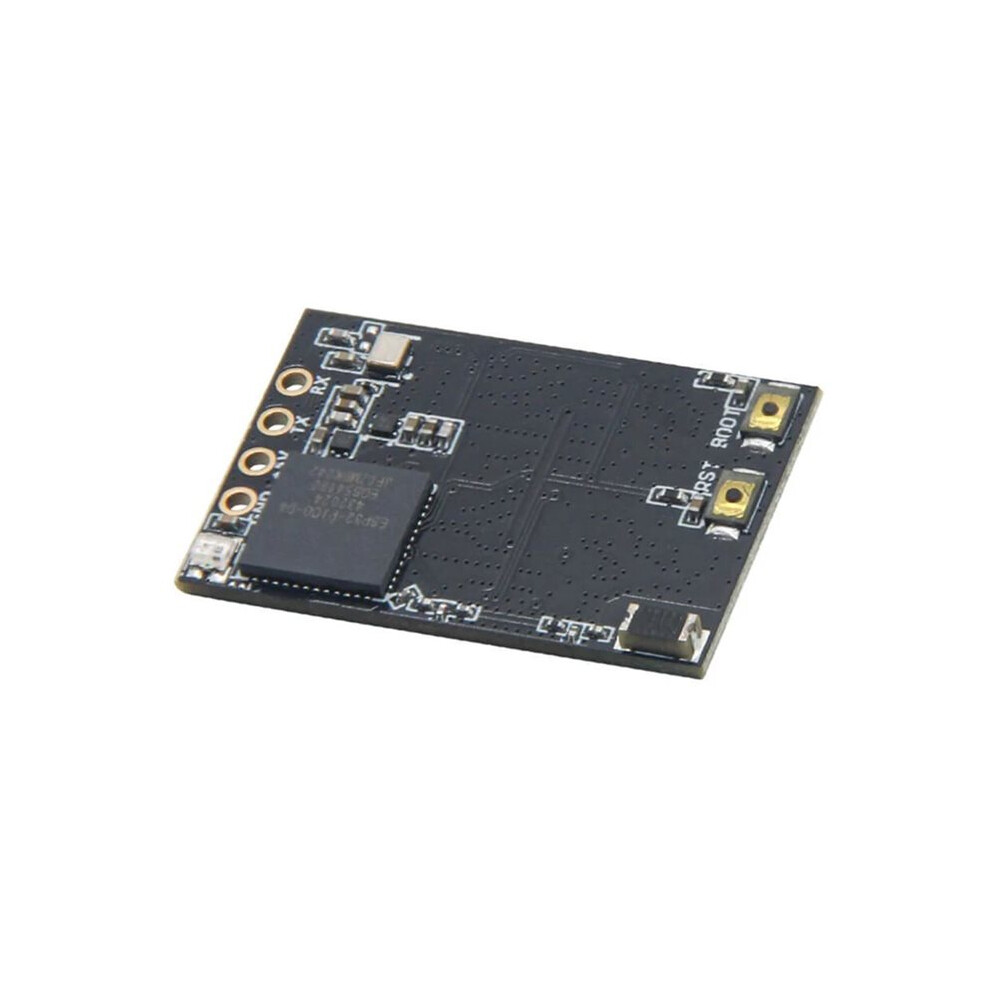

LILYGO 915Mhz T-Lora Dual LR Module ESP32--D4+LORA LR1121 Compatible with ExpressLRS Flight Control Platform

LILYGO 915Mhz T-Lora Dual LR Module ESP32--D4+LORA LR1121 Compatible with ExpressLRS Flight Control Platform Beskrivelse

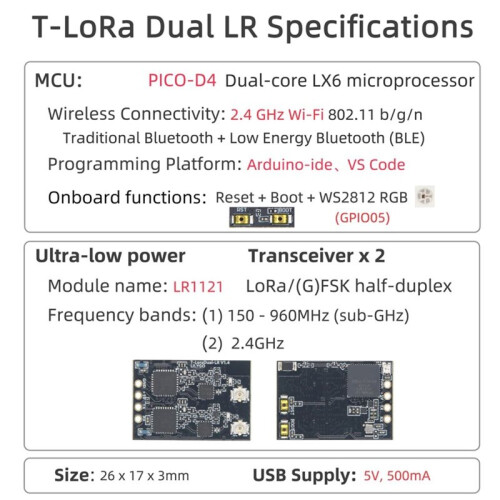

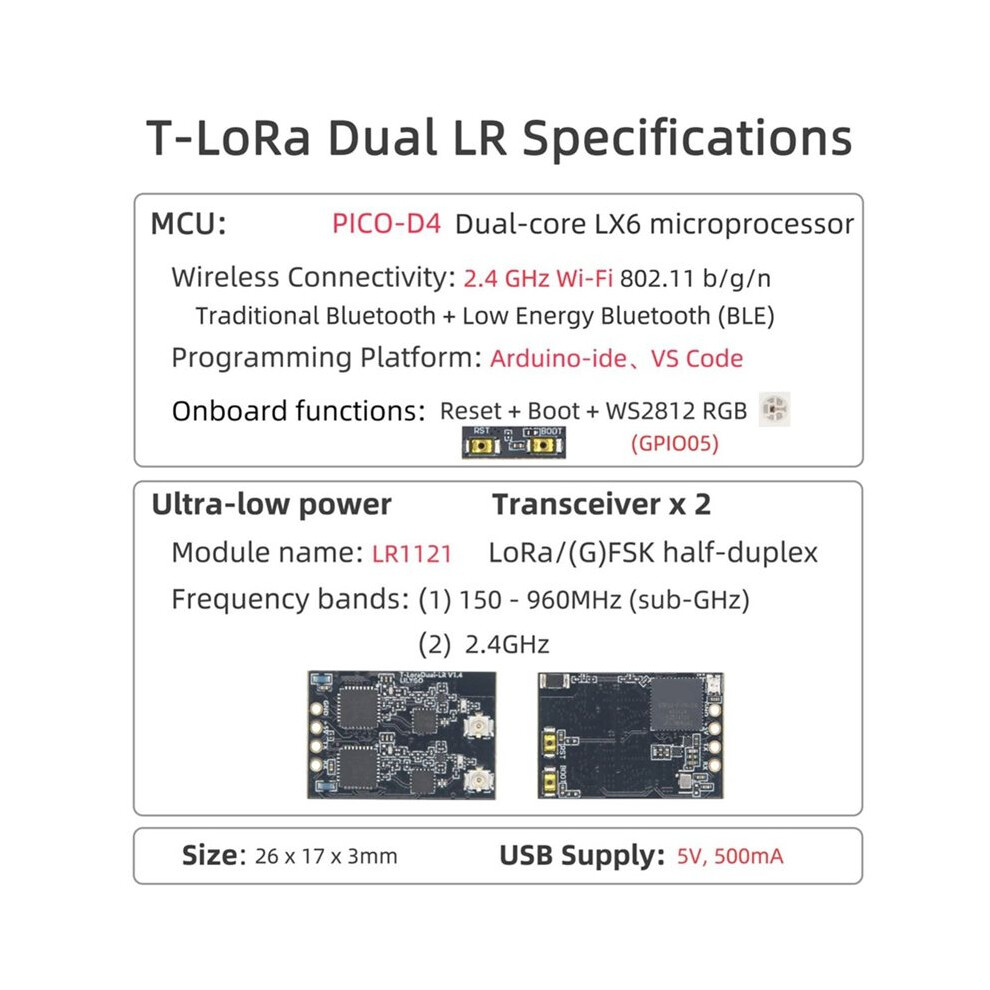

This project is developed based the ESP32(-D4) microcontroller, integrating two LR1121 multi-band wireless communication modules, compatible with the ExpressLRS flight control platform. The system supports multi-band communication in Sub-GHz/1.9GHz/2.4GHz, suitable for IoT application scenarios such as remote control, data , etc.

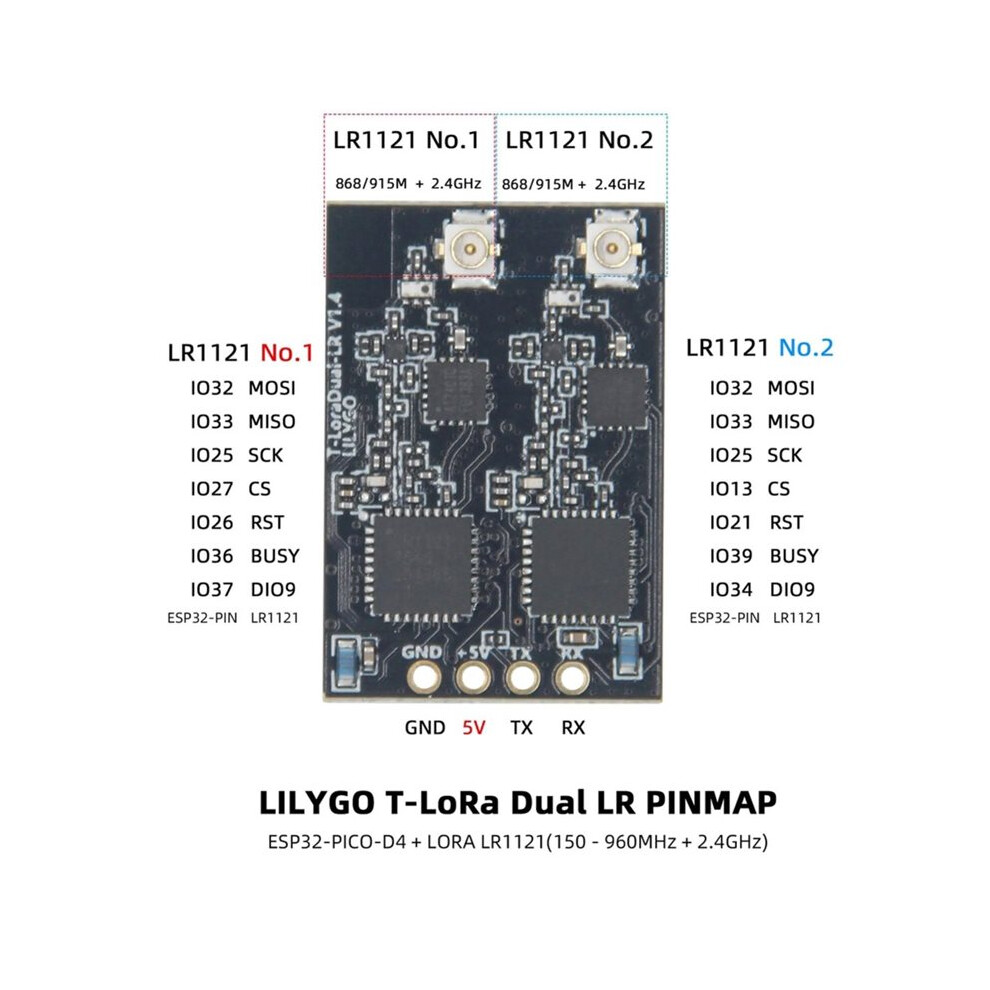

Dual Module Architecture: Two LR1121 modules are connected through a shared SPI bus (SCK/MOSI/MISO) to achieve concurrent communication in multi-bands.
Hardware Isolation: Each LR1121 module is independently configured with CS/RESET/BUSY signals to ensure that communications do not interfere with each other.
Status Monitoring: The DIO9 pin is used to receive interrupt signals from the module, and the BUSY pin reflects the real- working status of the module.
Color: Black
Material: PCB

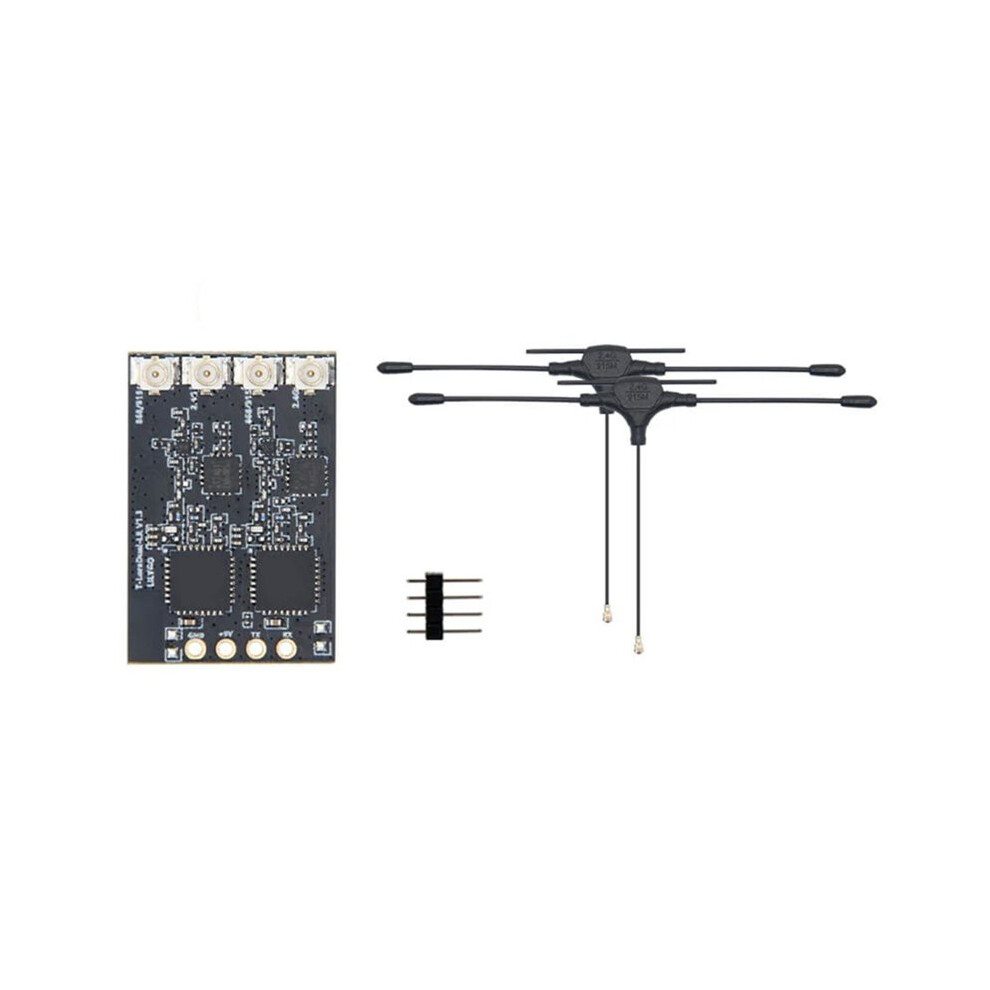

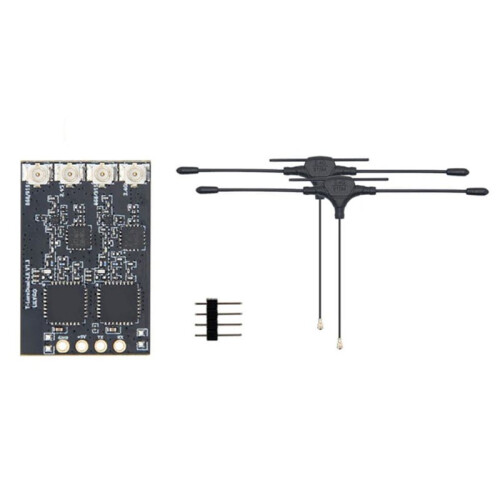

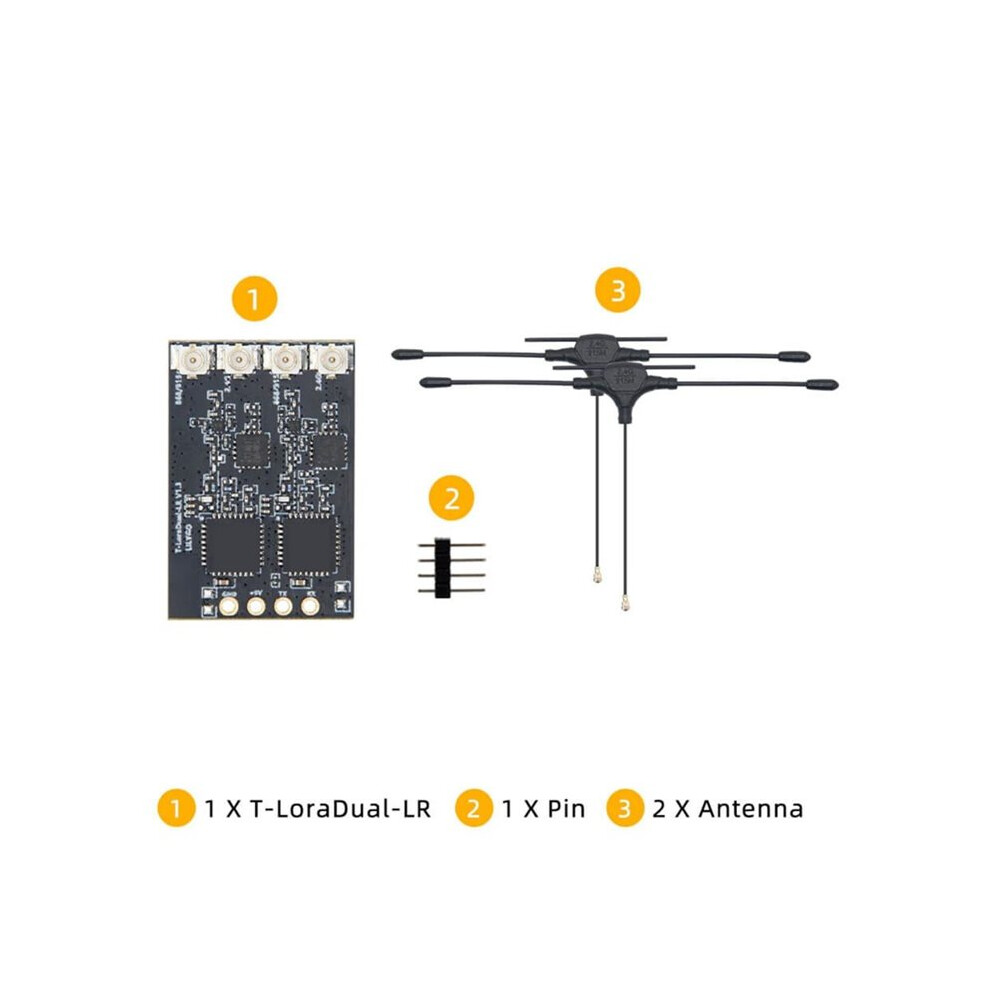

Package Contents:
1*Module Kit
