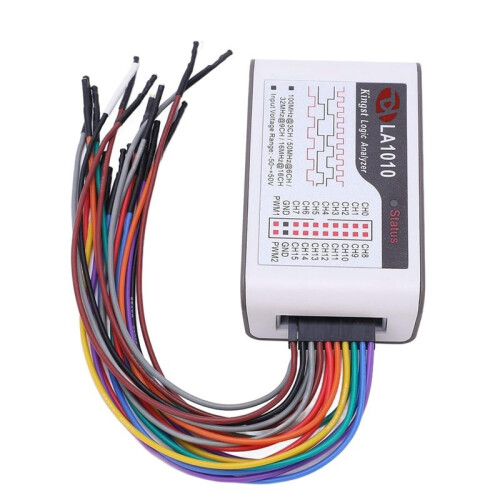

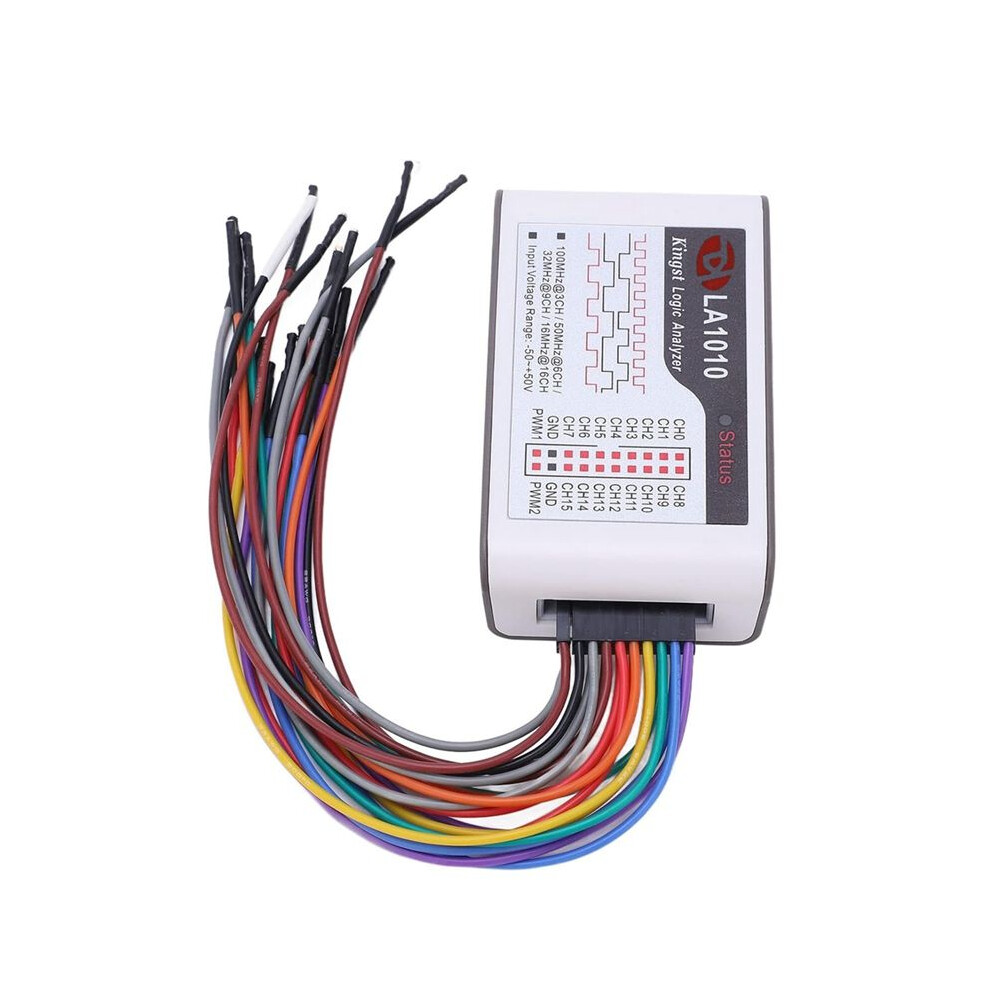

Logic Analyzer, 16 Channel Logic Analyzer Portable Device with Cable USB Interface 100M Sampling Rate 50V Input

Logic Analyzer, 16 Channel Logic Analyzer Portable Device with Cable USB Interface 100M Sampling Rate 50V Input Beskrivelse

[Linkable Window] Connect waveform and analysis result window for easy data retrieval.
[Export Formats] Export sampling data to various formats for compatibility with other software.
[Good Compatibility] Adjustable threshold for compatibility with multiple level standards.
[Display Formats] Supports binary, decimal, and hexadecimal data for easy analysis.
[Intuitive Interface] Easy trigger setting with various trigger conditions.

Number of Channels: 16 Channels
Supported Modes: Streaming Mode
Maximum Sampling Rate: 100M (3 channels), 50M (6 channels), 32M (9 channels), 25M (12 channels), 16M (16 channels)
Highest Collectable Signal Frequency: 20MHz
Minimum Collectable Pulse Width: 20ns
Maximum Streaming Mode Sampling Depth: 100G
(the actual depth may be limited by the memory capacity of the computer, and each level transition of each channel requires 5Bytes of memory)
Input Voltage Range: -50-50VEquivalent Input Impedance: 200KΩ, 15pf
Threshold Voltage: Adjustable Range: -4-4V, Adjustment Step: 0.01
VInterface Type: USB2.0Standby Current: 100mA
Maximum Operating Current: 200mA
Colour:As Shown
Material:Plastic

Package Contents:
1x Logic Analyzer
