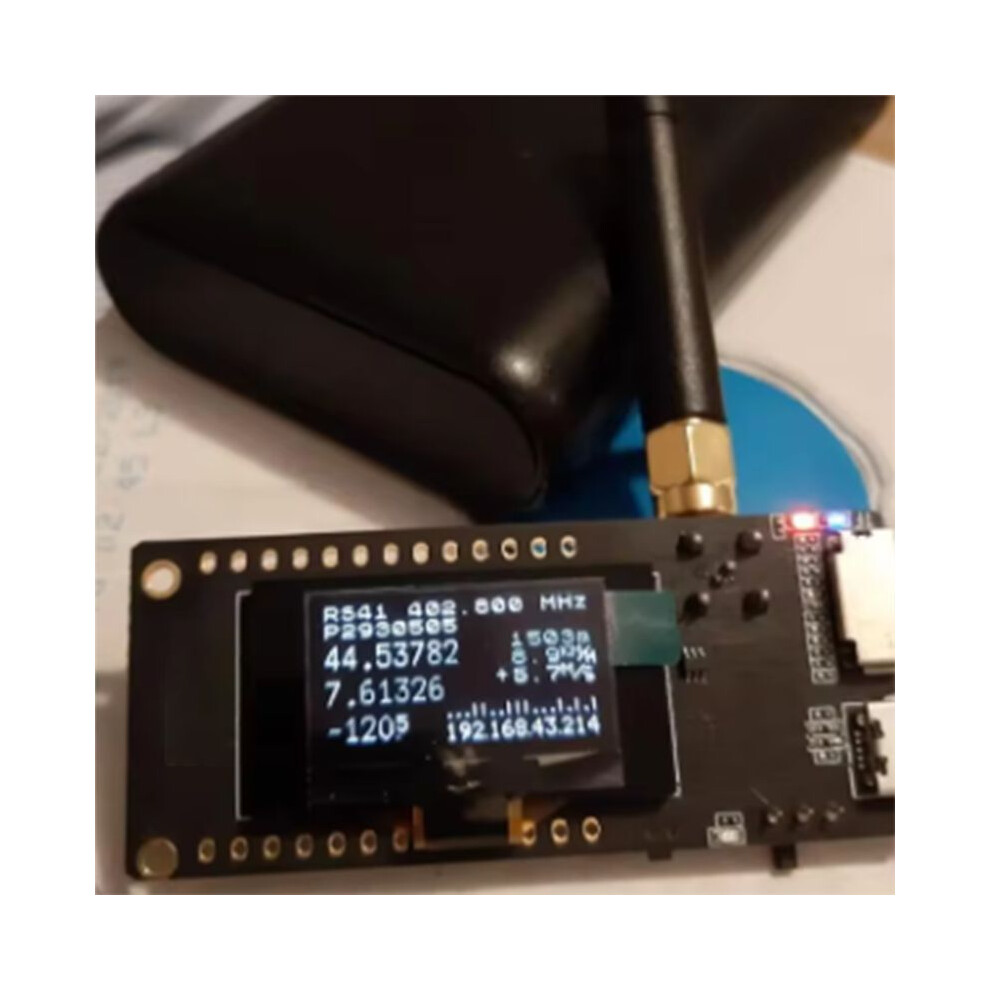

LoRa32 V2.1-1.6 Version 433Mhz ESP-32 SMA CH9102F LoRa OLED 0.96 Inch Card WIFI Module
Brand Typecat
New
320,52 kr.
Lignende produkter, vi tror du vil kunne lide
Would you like us to let you know when it's back?
Beskrivelse og detaljer
Oversigt
- Digital RSSI function
- Automatic frequency correction,Automatic gain control
- Fast wake-up and frequency hopping
- Highly configurable data packet handler
- SMA Antenna,IP5306
LoRa32 V2.1-1.6 Version 433Mhz ESP-32 SMA CH9102F LoRa OLED 0.96 Inch Card WIFI Module Beskrivelse
Digital RSSI function
Automatic frequency correction,Automatic gain control
Fast wake- and frequency hopping
Highly configurable data packet handler
SMA Antenna,IP5306
Working voltage: 1.8-3.7v
Acceptable current: 10-14mA
Transmit current: 120mA@+20dBm, 90mA@+17dBm, 29mA@+13dBm
Operating frequency: 433/868/915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps, -136dBm@LoRa &125Khz&SF=12&293bps, -118dBm@LoRa &125Khz&SF=6&9380bps, -123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K-300Kbps@FSK
0.018K-37.5Kbps@LoRa
Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM,OOK
Interface form: SPI
Operating temperature: -40- +85
Due to different product batches, the appearance may vary, which does not affect the use
Colour:As Shown
Material:PC+Plastic
Type: A: 433MHZ CH9102F
Package Contents:
1x LoRa Module(Without memory card)
1x Power Cable(Jst 2pin 1.25mm)
1x Antenna
2x Pin
Detaljer
| OPC | PVGWYQC |
|---|---|
| Mærke | Typecat |
| Koder | 4711503412431 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.0315kg |
| Colour | As Shown |
| Size | A |
| Material | PC+Plastic |
