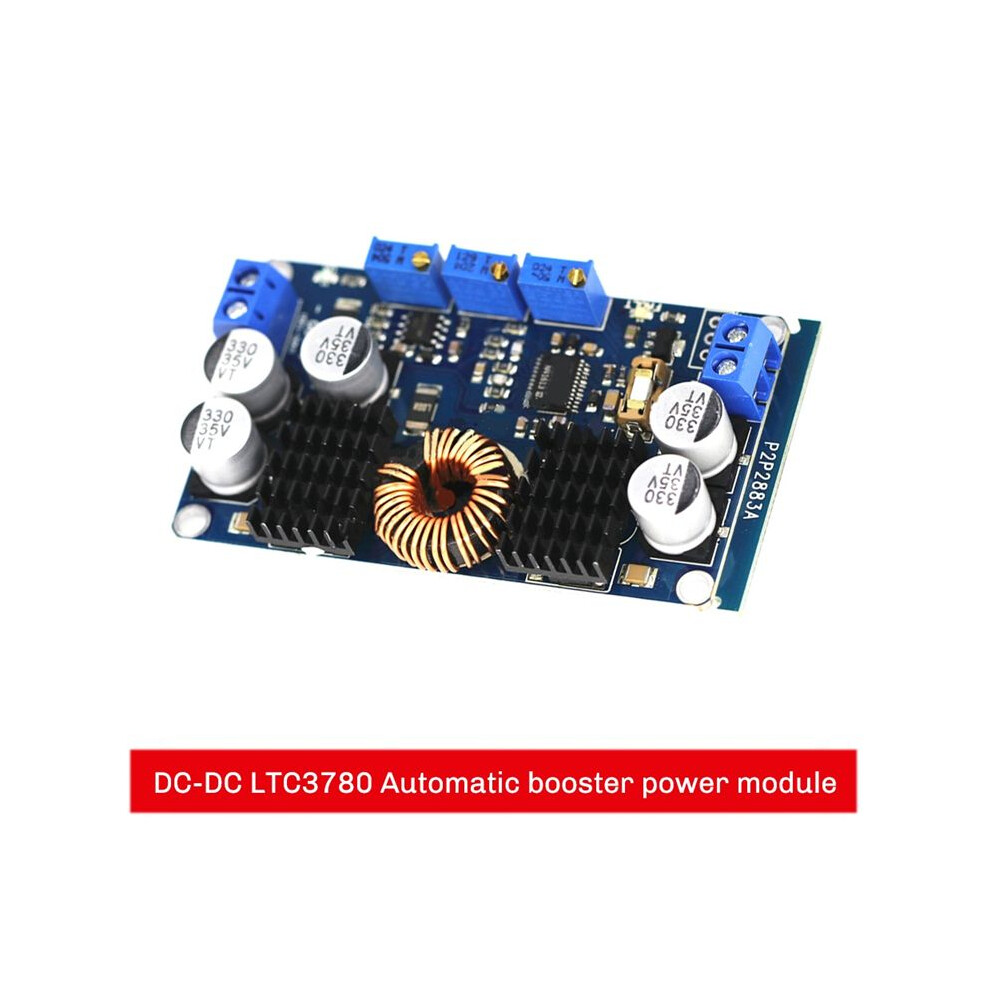

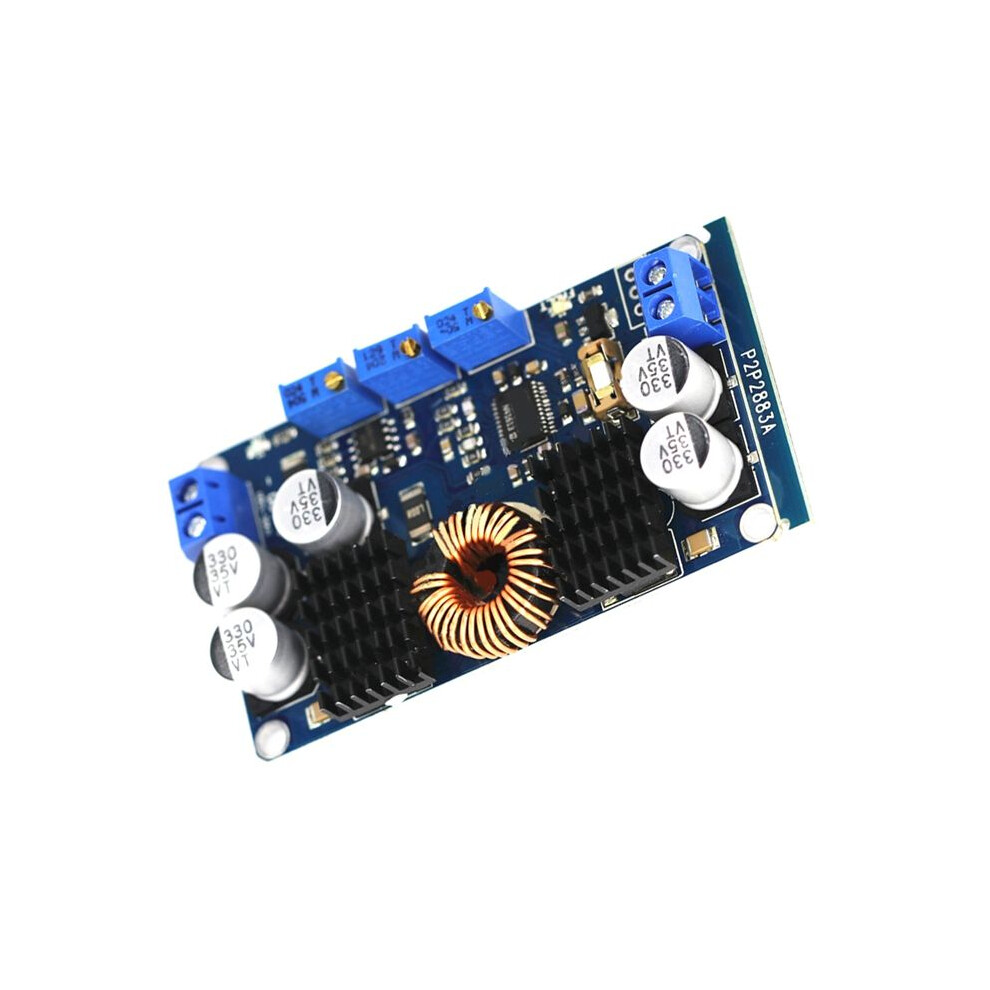

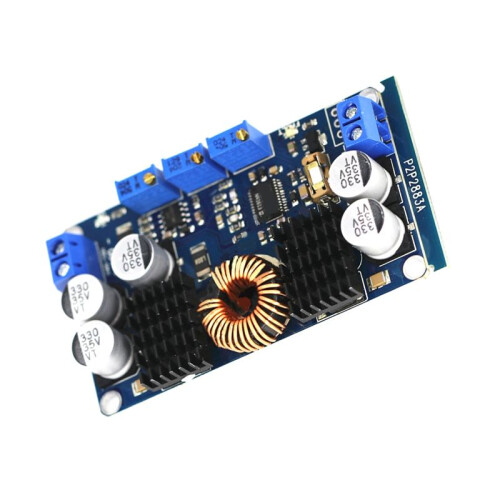

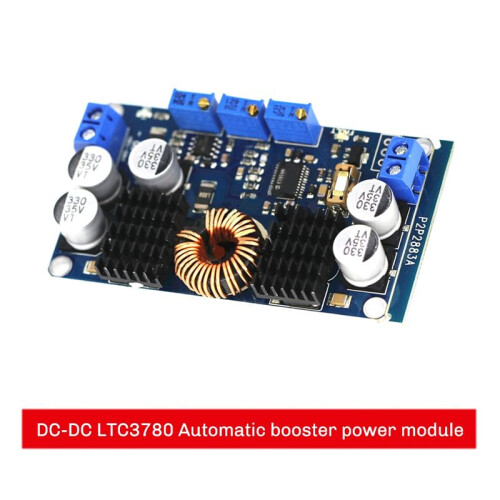

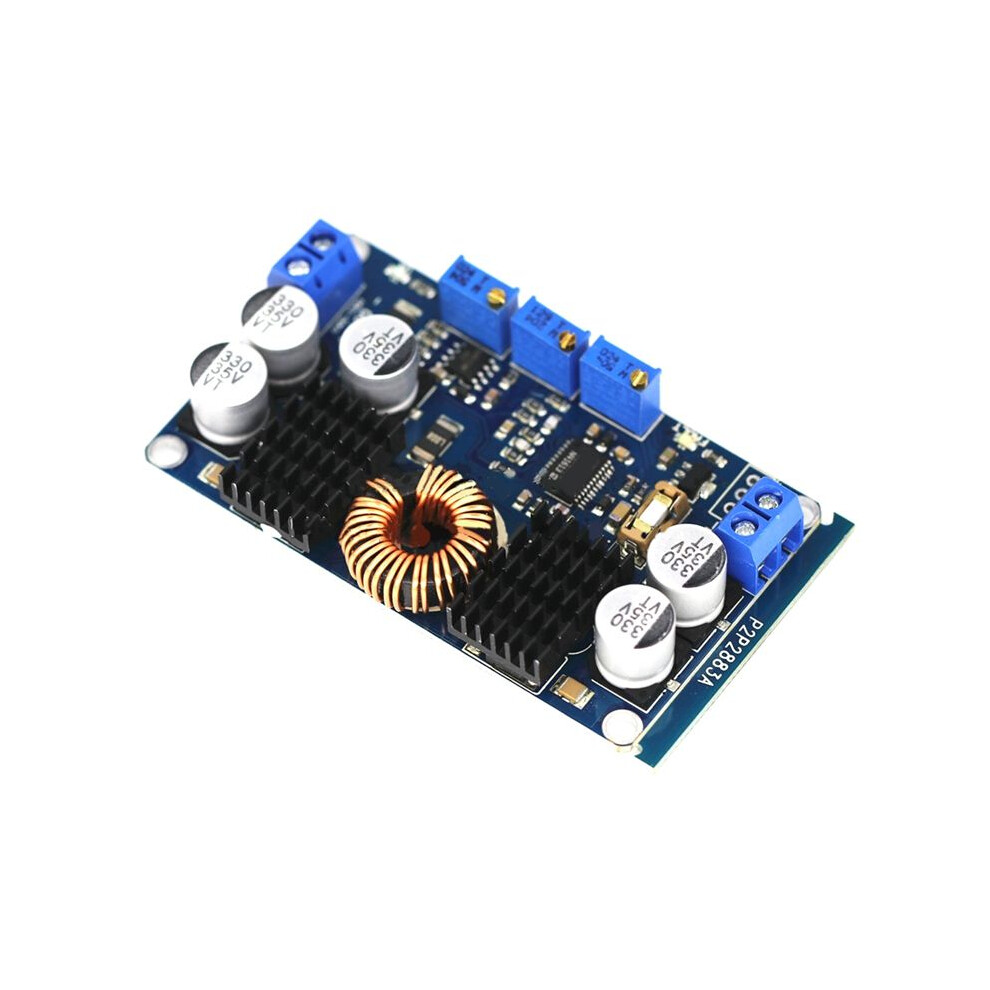

- LTC3780 Automatic Buck Boost Power Module Solar Car Voltage Regulator Constant Voltage Constant Current 10A

- LTC3780 Automatic Buck Boost Power Module Solar Car Voltage Regulator Constant Voltage Constant Current 10A Beskrivelse

The input adopts replaceable fuse to protect the power supply and equipment
The whole electrolytic board adopts imported patch, low resistance, high frequency capacitor, so that the ripple is reduced to the freezing point
Constant voltage, constant current, undervoltage protection (MPPT is more suitable for solar charging)Output error indicator light, which lights when the output voltage drift is too serious, short circuit and other faults
The heat dissipation effect of the oxidized heat sink is better than that of the natural aluminum sheet
The inductor adopts iron silicon aluminum, which generates less heat

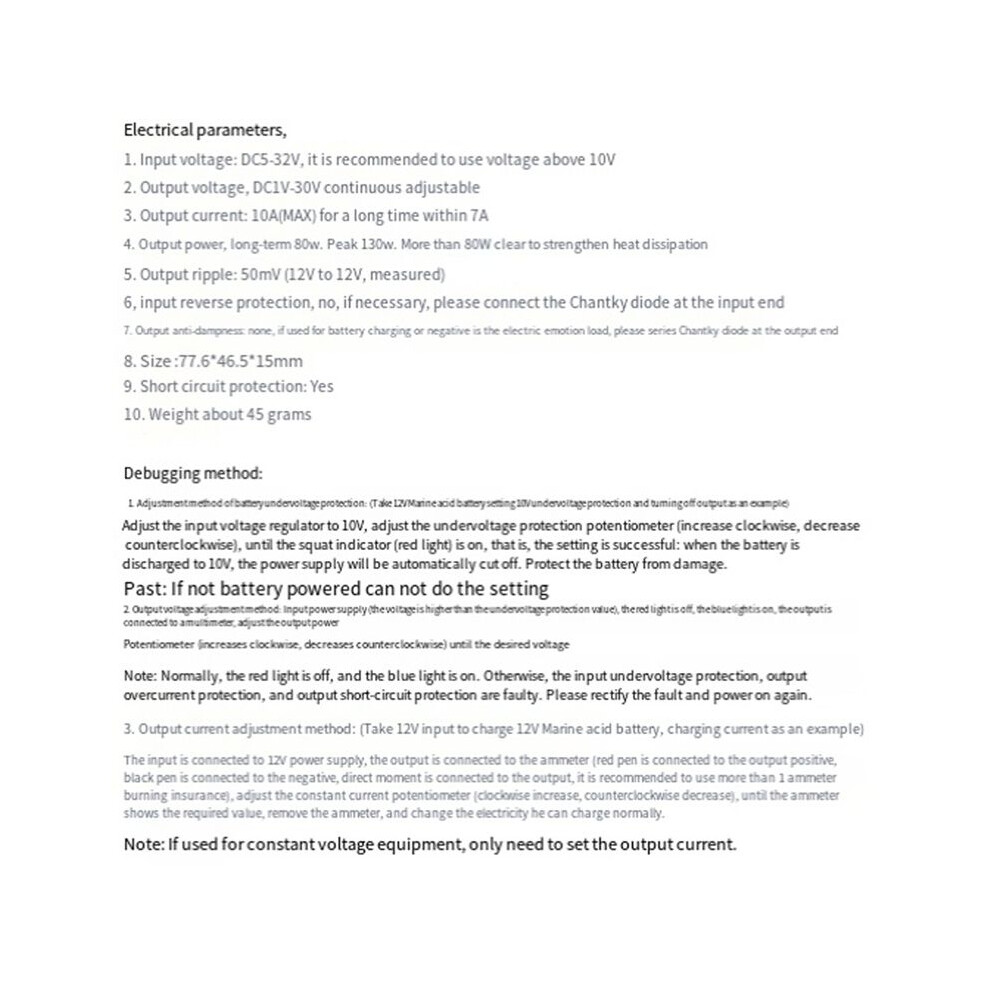

Electrical parameters:
Input voltage: DC5-32V, recommended voltage is above 10V
Output voltage: DC1V-30V continuously adjustable
Output current: 10A (MAX), long-term within 7A
Output power: long-term 80W, 130W, please strengthen heat dissipation if it exceeds 80W
Output ripple: 50mV (12V to 12V, measured)
Input reverse connection protection: No, if necessary, please connect a Schottky diode in series at the input end
Output backflow protection: No, if used for battery charging or the load is a self-charged load, please connect a Schottky diode in series at the output end
Size: 77.6x46.5x15mm
Short circuit protection:Yes
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Solar Car Voltage Regulator
