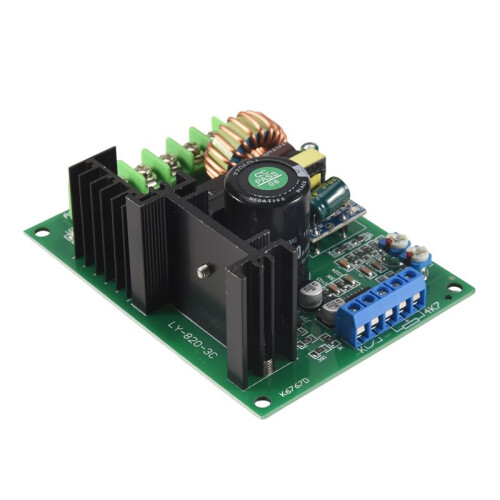

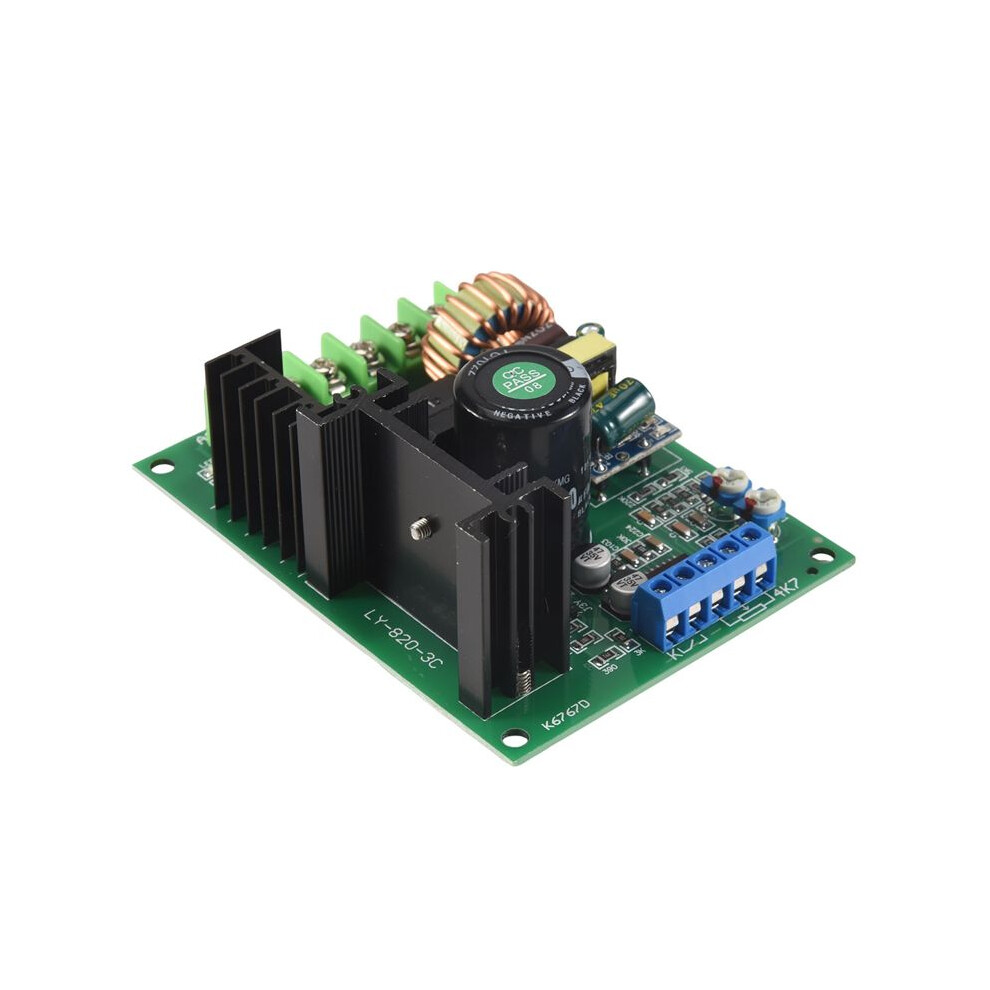

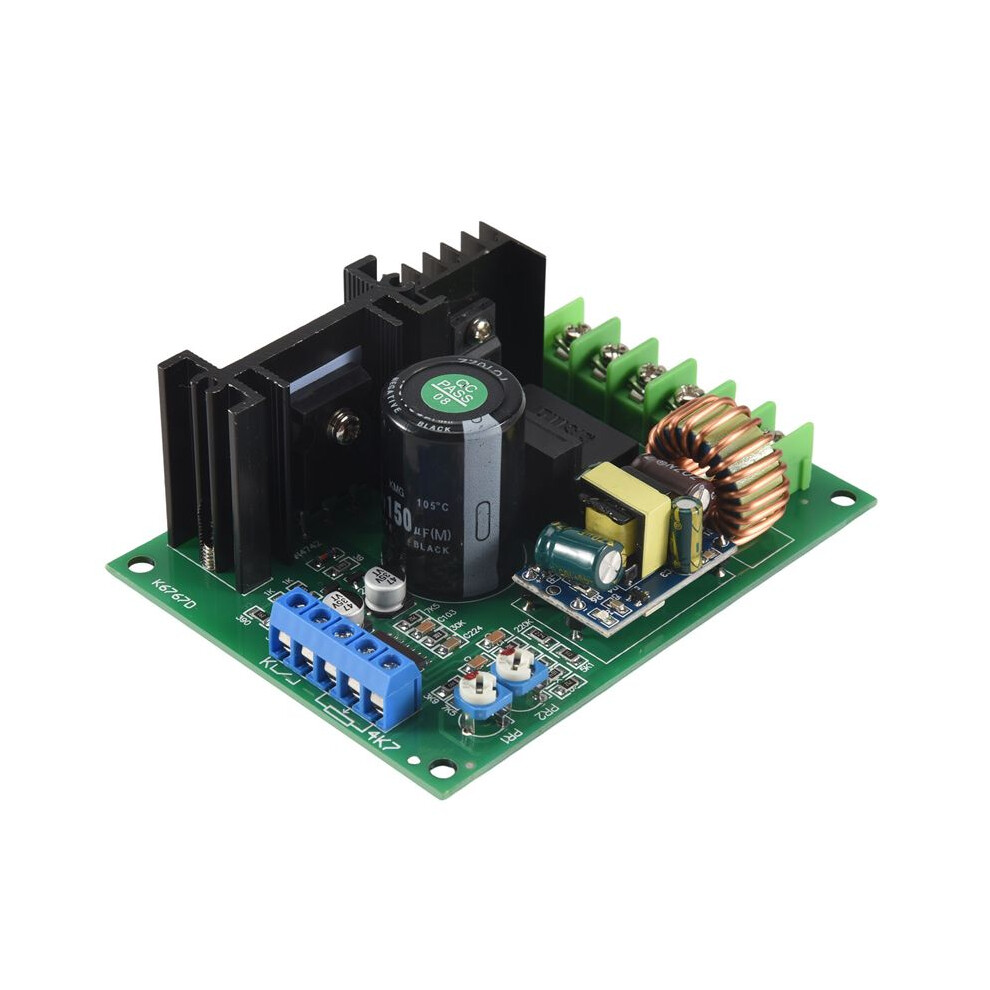

LY-820 PWM 110V220V Permanent Magnet Motor Governor Drive Module Controller Board

LY-820 PWM 110V220V Permanent Magnet Motor Governor Drive Module Controller Board Beskrivelse

Scope of application: less than 750W permanent magnet, excitation motor motor universal
input voltage: AC 110V-220V 50/60Hz
output power: 750W when AC 220V input; 300W when AC 110V input
excitation voltage: when AC220V input, excitation terminal L+ L- is 205VDC
When the AC 110V is input, the excitation terminal L+ L- is 95VDC.

armature voltage: When AC220V input, the armature end M+M- is arbitrarily adjustable from 0-220VDC
When AC110V is input, the armature terminal M+M- is arbitrarily adjustable for 0-110VDC.
potentiometer matching value: 4.7Kohm 2W

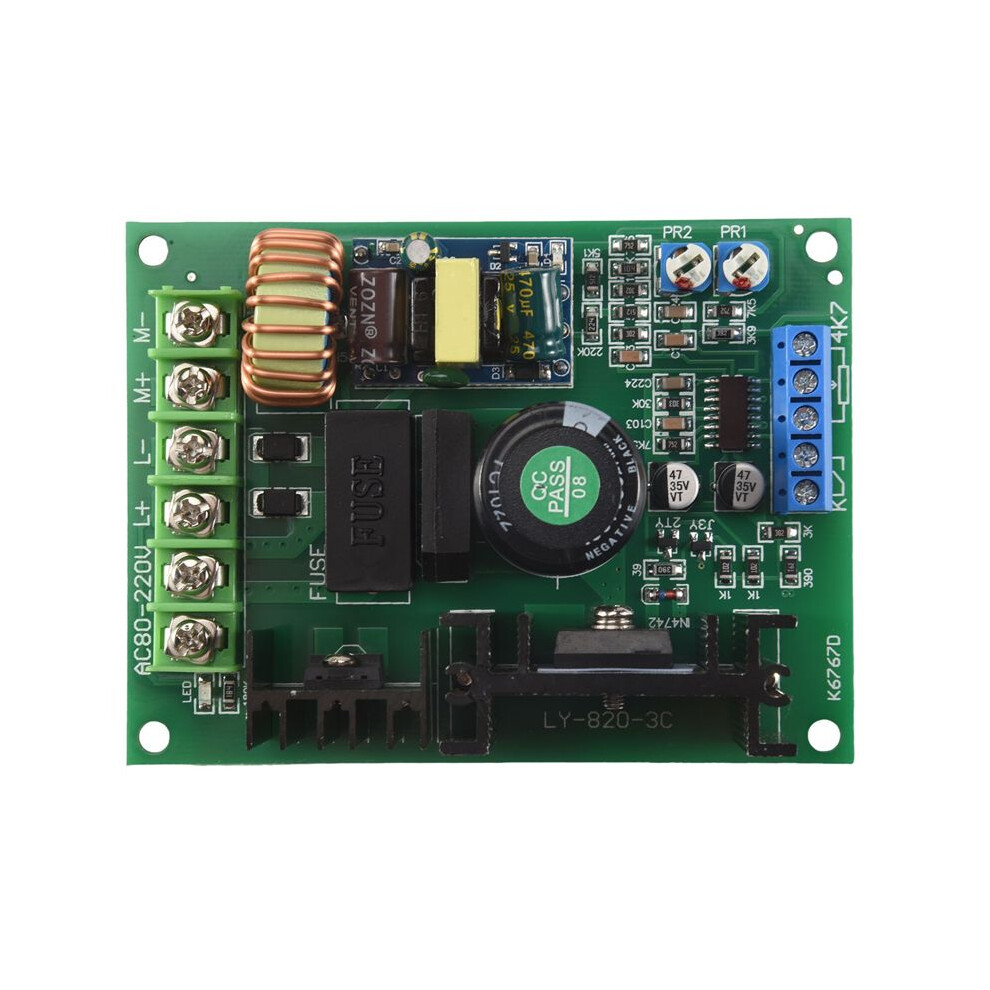

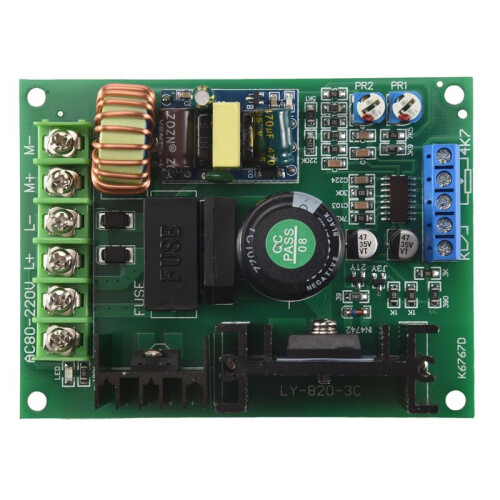

the terminal is marked as K: character K two terminals, is the start and stop , no need to try direct wire connection

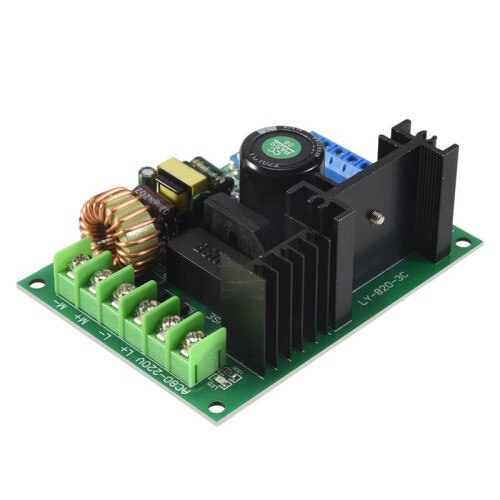

the wiring is used:
1, permanent magnet motor motor (motor lead wire is 2 lines):
Controller, M+M- is connected to the motor; at this , L+L- is empty, remember not to connect any other .
2, excitation motor motor (motor lead wire is 4 wires):
Controller, M+M- is connected to the motor armature; L+ L- is connected to the motor excitation. Note that the two are not reversed.
Colour:green
Material:plastic

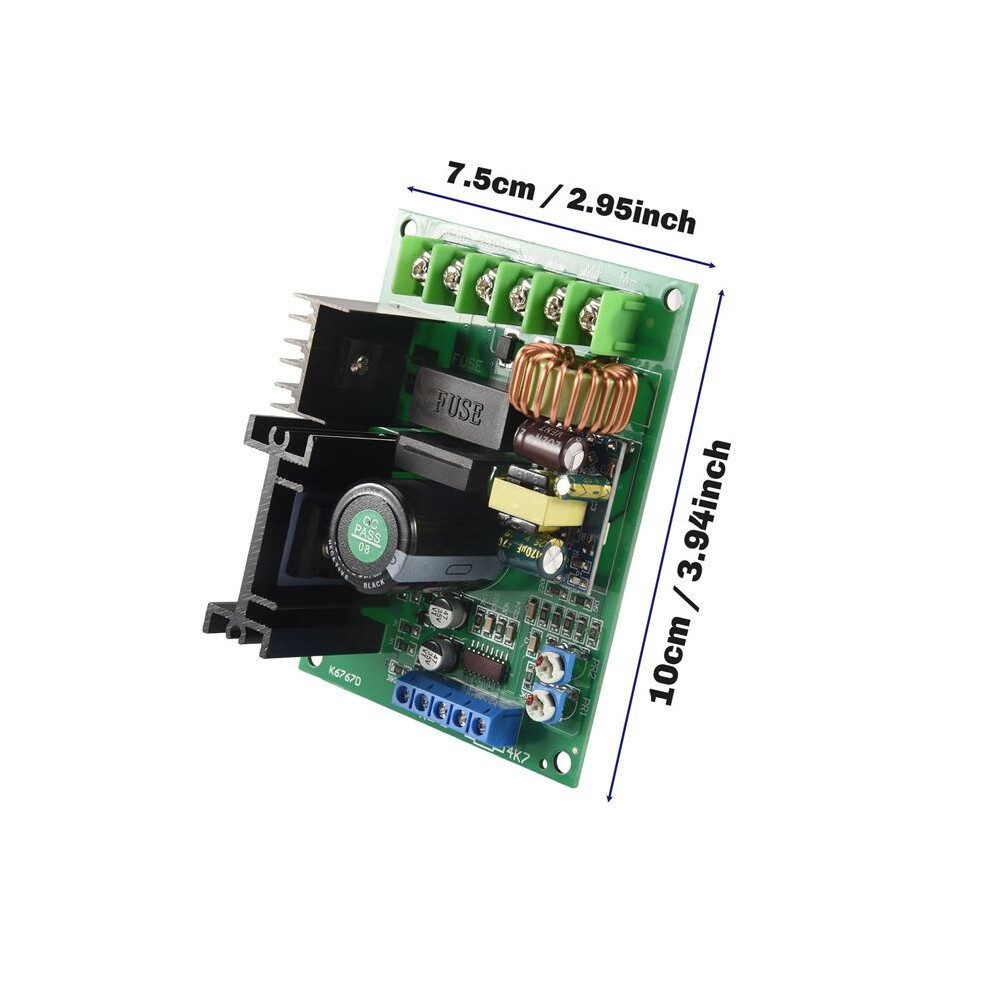

Size:100 x 75mm

Package Contents:
1 x drive module(Some accessories:random colors, don't accept the specified color)
