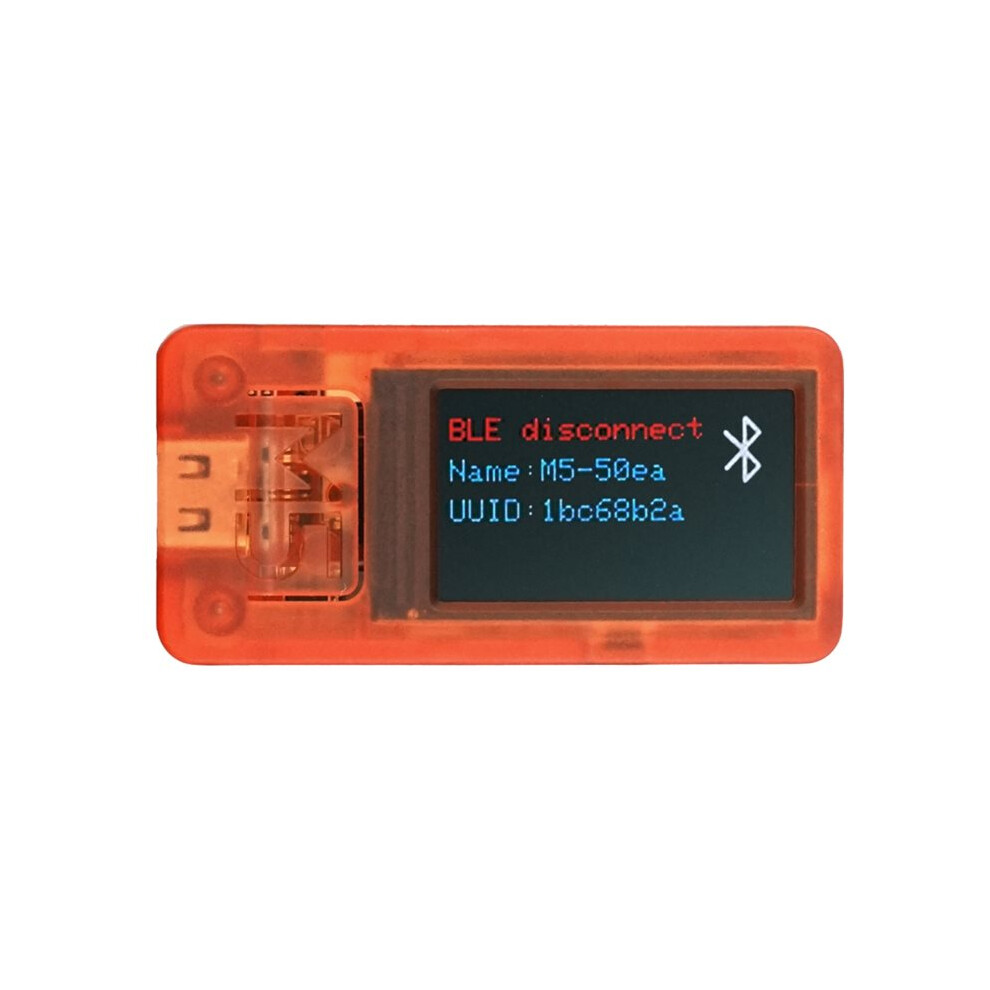

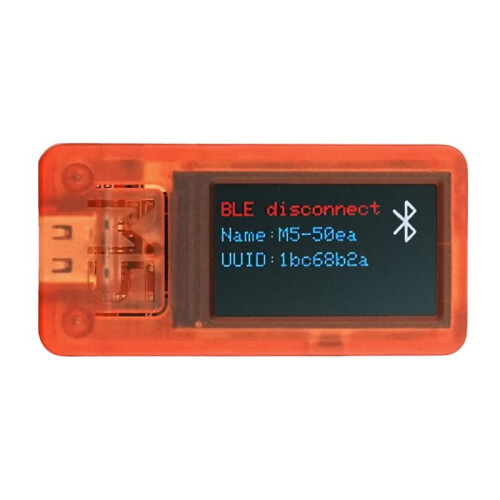

M5StickC- SE IoT Development Board 2.4G WiFi Onboard ESP32--D4 1.14-Inch Color LCD 6-Axis IMU Sensor
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 136,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 23. - ons. 28. okt.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Oversigt
- StickC-Plus SE is a lightweight version of StickC-Plus. It retains the core features while removing the onboard 6-axis IMU sensor, offering better cost efficiency. The enclosure features a new transparent orange design with a distinctive translucent appearance.
- Powered by the ESP32-PICO-D4 module, it supports 2.4 GHz Wi-Fi and integrates an infrared transmitter, RTC, onboard microphone, status indicator, customizable buttons, passive buzzer, and power management unit (PMU).
- It features a 1.14-inch color LCD with a 135 x 240 resolution for clear, detailed visuals. The built-in 120mAh battery and compatibility with Hat and Unit series expansion products provide flexible extensibility.
- This product is suitable for lightweight IoT development and simple creative projects that do not require motion sensing and prioritize cost efficiency.
- StickC
M5StickC- SE IoT Development Board 2.4G WiFi Onboard ESP32--D4 1.14-Inch Color LCD 6-Axis IMU Sensor Beskrivelse
StickC- SE is a version of StickC-. It retains the core features while removing the onboard 6-axis IMU sensor, offering better cost efficiency. The enclosure features a new transparent orange design with a distinctive translucent appearance.
Powered by the ESP32--D4 module, it supports 2.4 GHz Wi-Fi and integrates an infrared transmitter, RTC, onboard microphone, status indicator, customizable buttons, passive buzzer, and power management unit (PMU).
It features a 1.14-inch color LCD with a 135 x 240 resolution for clear, detailed visuals. The built-in 120mAh battery and compatibility with Hat and Unit series expansion products provide flexible extensibility.
This product is suitable for IoT development and simple projects that do not require motion sensing and prioritize cost efficiency.
Features:
ESP32--D4 main controller
4MB Flash
520KB
2.4 GHz Wi-Fi
Onboard red status indicator
Integrated infrared transmitter
Built-in RTC module
Onboard microphone
Customizable buttons, LCD, power button, and reset button
Built-in 120 mAh lithium battery
Integrated passive buzzer
Magnetic back; transparent orange enclosure
Development Platform:
For UiFlow1
For UiFlow2
For IDE
For ESP-IDF
For PlatformIO
Applications:
wearable devices
IoT controllers
Simple DIY projects
Compact home control terminals
Specifications:
SoC: ESP32--D4 32-bit LX6 dual-core processor, clock frequency 240MHz
Flash: 4MB
: 520KB
Wi-Fi: 2.4 GHz Wi-Fi
Antenna: 2.4G 3D Antenna
Input Voltage: 5V@500mA
Battery: Built-in 3.7V 120mAh lithium battery
Power Management: AXP192
Expansion Interface: HY2.0-4P x 1, Hat-Bus
Detaljer
| OPC | PY6VFG7 |
|---|---|
| Mærke | Typecat |
| Koder | 4713427165288 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 6.5cm |
| Length | 11cm |
| Weight | 0.085kg |
| Colour | Orange |
| Material | PC+ABS |
