Mechanical Hygrostat Humidity Controller Connect Fan Heater for Cabinet MFR012

Mechanical Hygrostat Humidity Controller Connect Fan Heater for Cabinet MFR012 Beskrivelse

The electromechanical hygrostat MRF012 is designed to control enclosure heaters, so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.
difference:4% RH (3% tolerance)
Permissible velocity:15m/sec
Contact type:change-over contact
Contact resistance:100 000 cycles

Min.switching capacity:20V AC/for 100 mA
Max.switching capacity:250 VAC, 5 (1) A for 20W
EMC:acc.to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:3-pole terminal for 2.5mm2;, clamping torque 0.5Nm max.: rigid wire 2.5mm2;,stranded wire (with wire end ferrule) 1.5mm2;
Mounting:clip for 35mm DIN rail, EN50022
Casing:plastic according to UL94 V-0, light grey
Fitting position:variable
Operarting/Storage temperature:0 to +6(+32 to +140)/-20 to +80(-4 to +176)
for Protection type:IP20
Note:Due to different production batches, there may be slight color difference or difference in the actual product, which will not affect the use.
Colour:As Shown
Material:Plastic

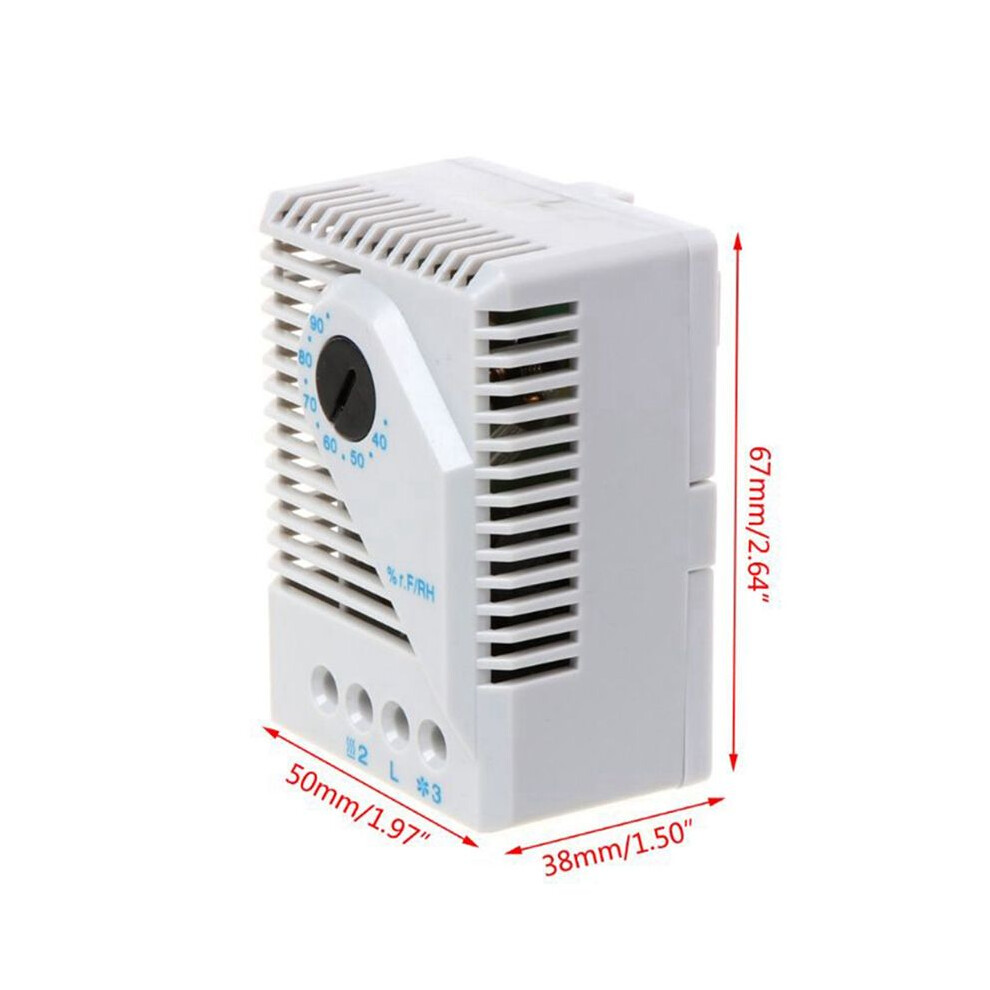

Size:67x50x38mm

Package Contents:
1 * Humidity Controller
