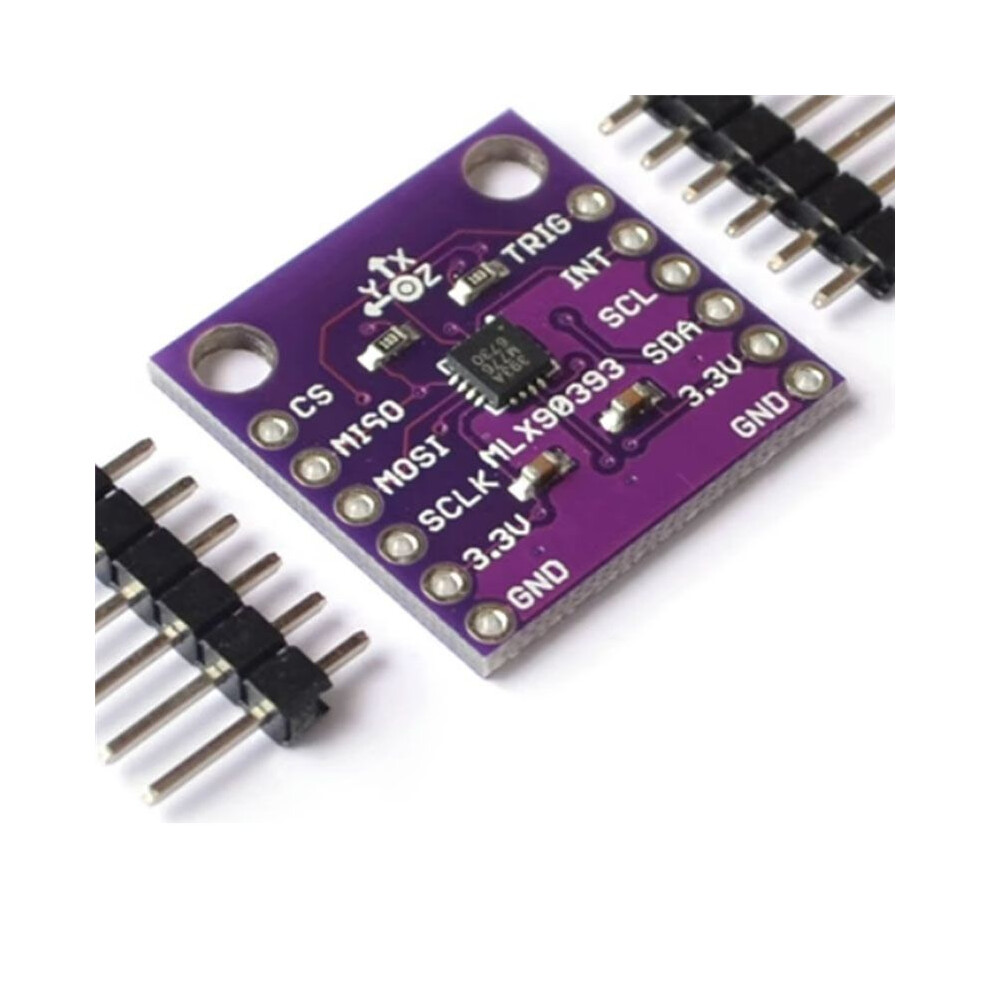

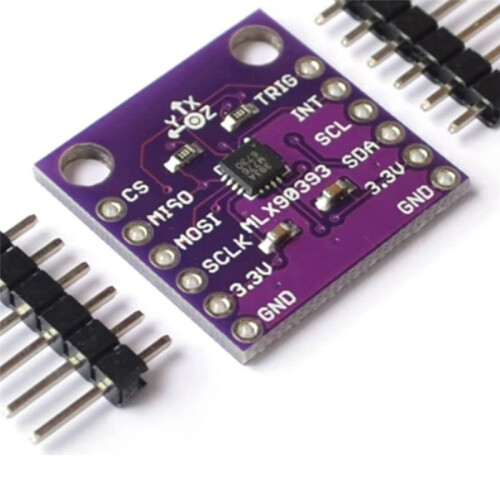

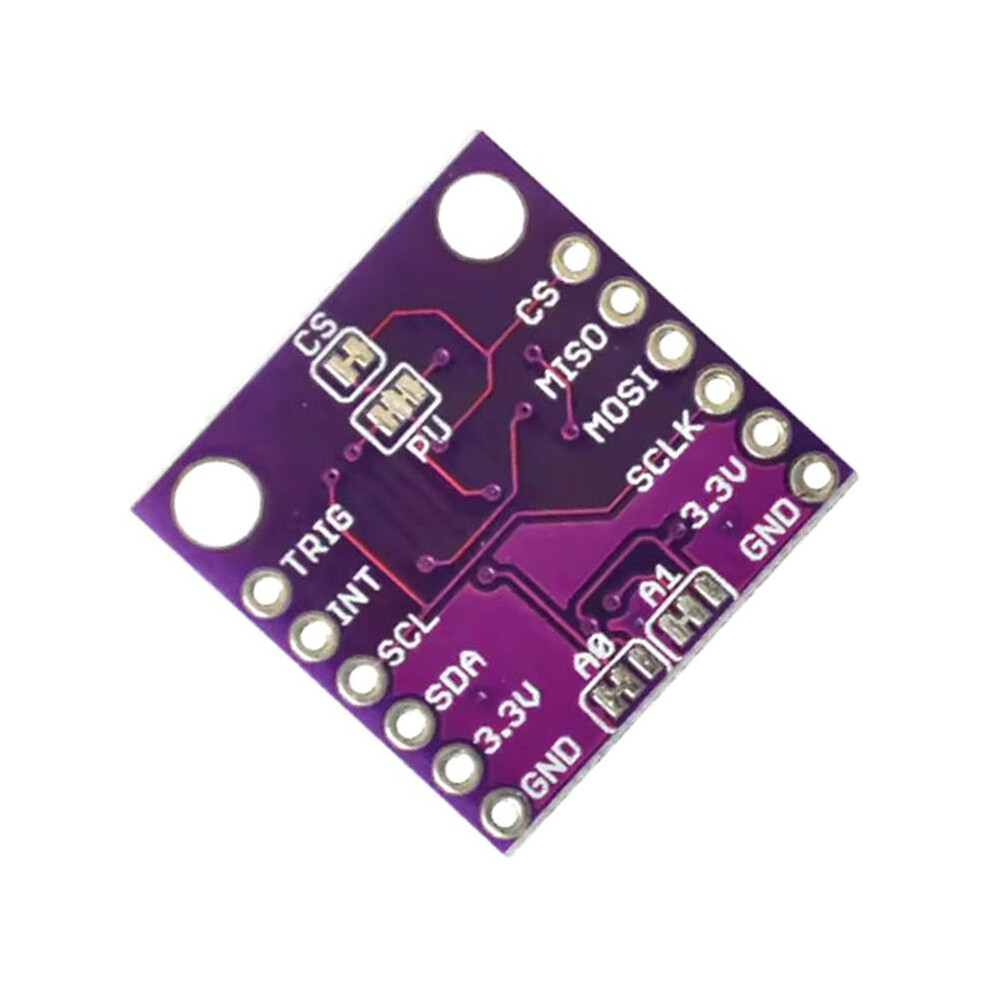

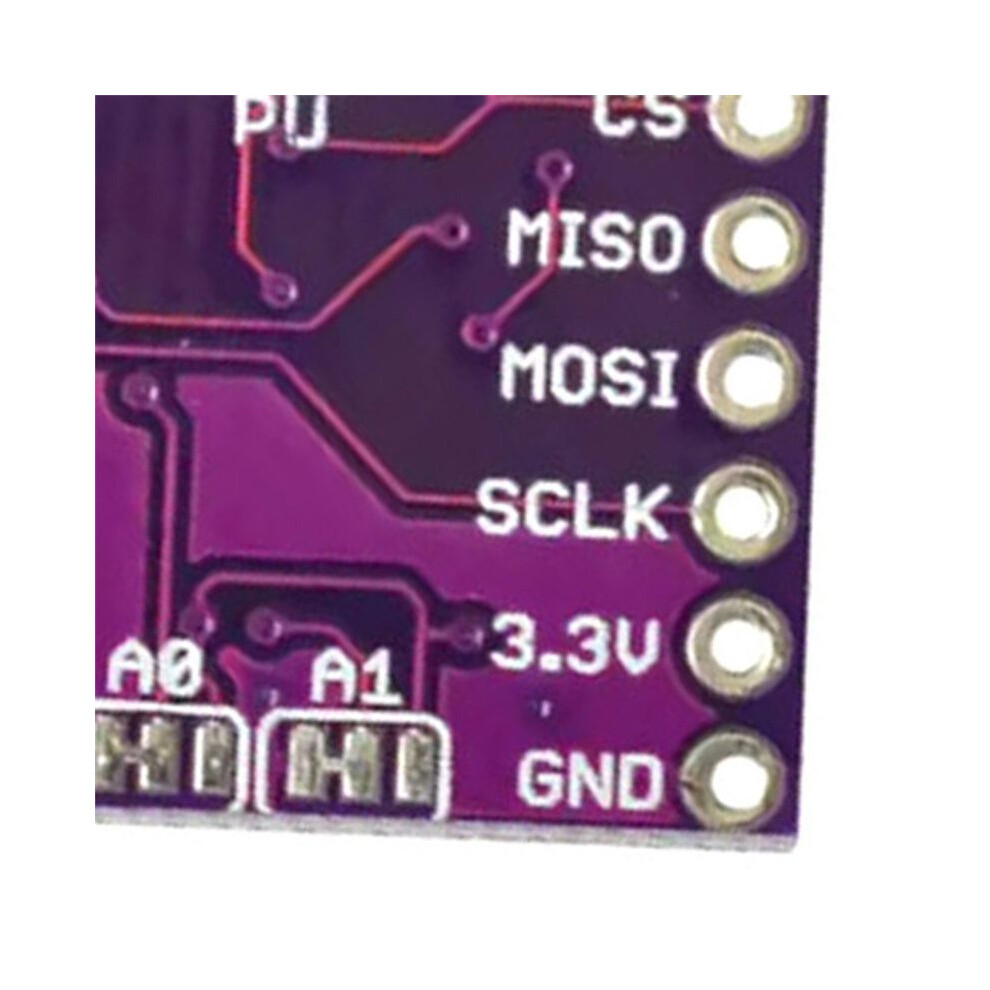

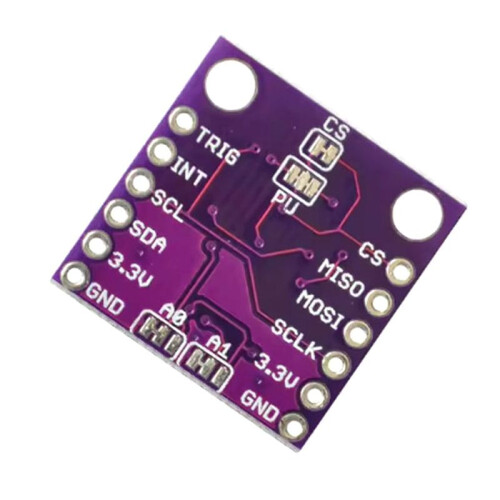

MLX90393 3D Digital Hall Sensors 3D Position of the Rotational Angular Displacement Sensor Board Contactless

MLX90393 3D Digital Hall Sensors 3D Position of the Rotational Angular Displacement Sensor Board Contactless Beskrivelse

1.QFN3 x3mm ultra small package size, customer structure without restriction requirements;
2.16-bit AD / highly integrated digital, micro-power;Wide around
3.2.2 - 3.6V low voltage;
4.I2C & SPI (10MHz) output;
5.XYZT (may first select) the absolute three-dimensional position output;

CJMCU-90363 is an ultra-small size for consumer applications versatile, general-purpose, non-contac t three-Wei Huoer sensor; measuring linear displacement can be achieved, and the rotational angle position detecting 3D applications.
The latest three-Wei Huoer sensor products brought progress third product, to challenge three Wei Huoer technology smaller size, it has proven to be a mainstream solution in a variety of position detection.
MLX90393 is the latest generation 3 Wei Huoer technology products. By application of the six support and lessons learned successful cases, two high-performance design of the chip, may be applied to all linear displacement, angle, and position of non-contact measurement of 3D. MLX90393 provides output I2C and SPI.
MCU can communicate directly, very simple application
low-cost integrated design
Colour:As Shown
Material:PC

Package Contents:
1 x digital Hall sensors(Due to different product batches, the appearance may vary, which does not affect the use)
