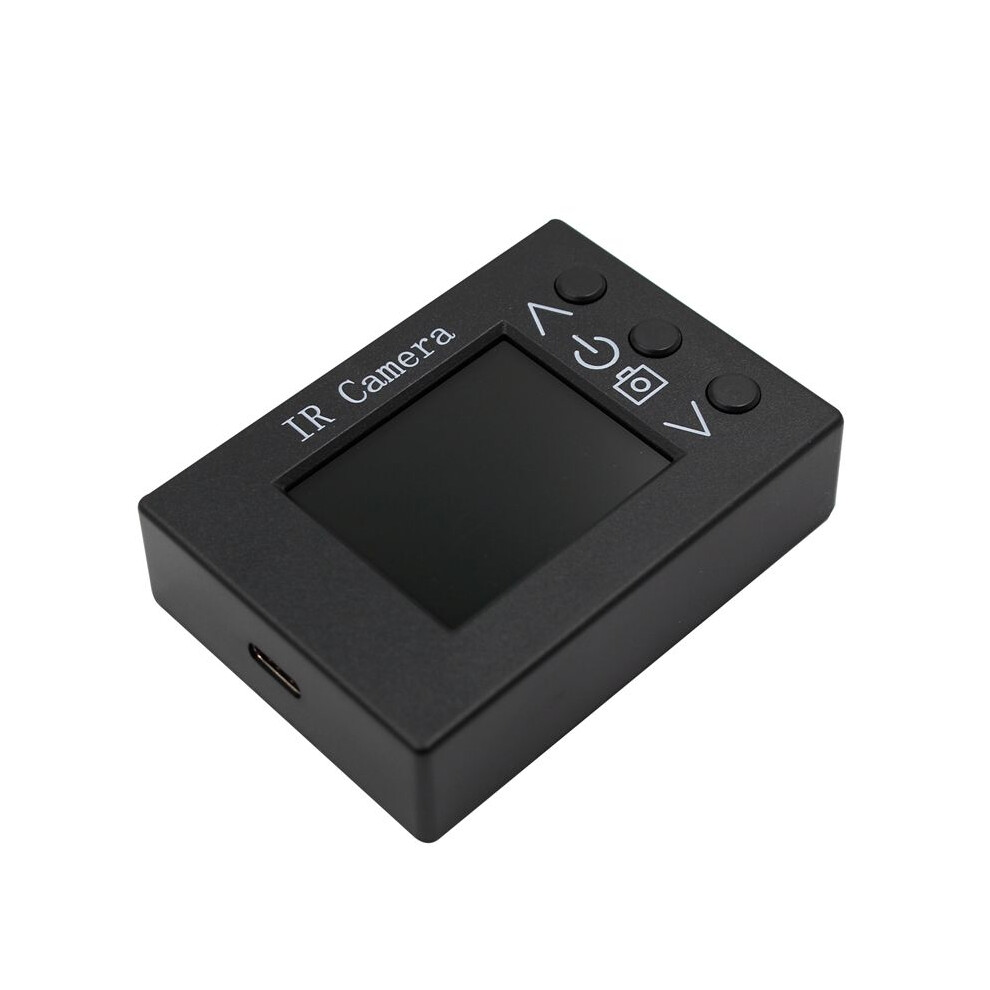

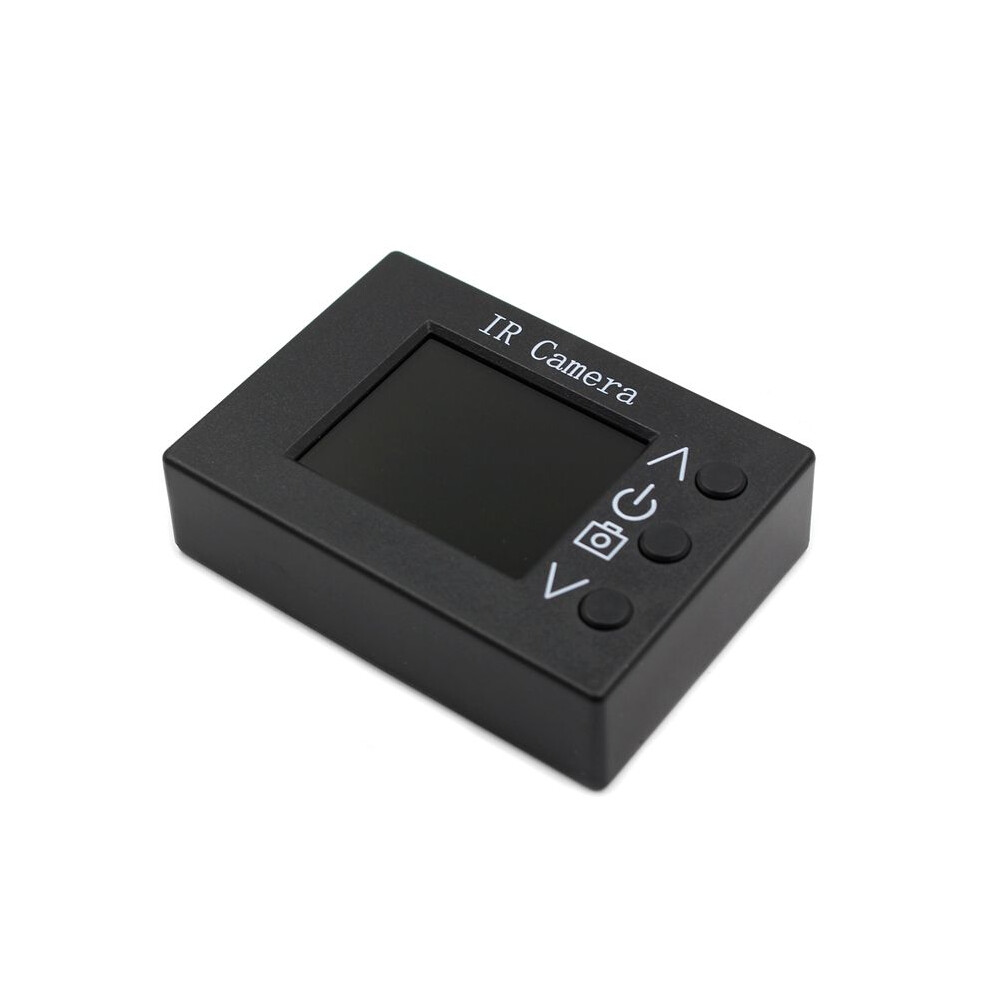

MLX90640 Infrared Temperature Sensor Simple Thermal Imager 1.8Inch LCD Screen Handheld IR Thermograph Camera

MLX90640 Infrared Temperature Sensor Simple Thermal Imager 1.8Inch LCD Screen Handheld IR Thermograph Camera Beskrivelse

This device adopts an integrated design, which can work without external devices.
MODULE: JM_MLX90640_CSB
Use mlx90640ESF_BAB infrared sensor
Resolution: 32x24
Temperature measurement range: -40 ~ 300 .

Measurement accuracy: +/-2 (central area, 0 ~ 100 ).
Operating temperature: 10 ~ 50
Operation humidity: Less than = 70%
refresh rate: 8Hz
No calibration is required
Vision: 55 x35
Display center points, maximum and minimum temperatures

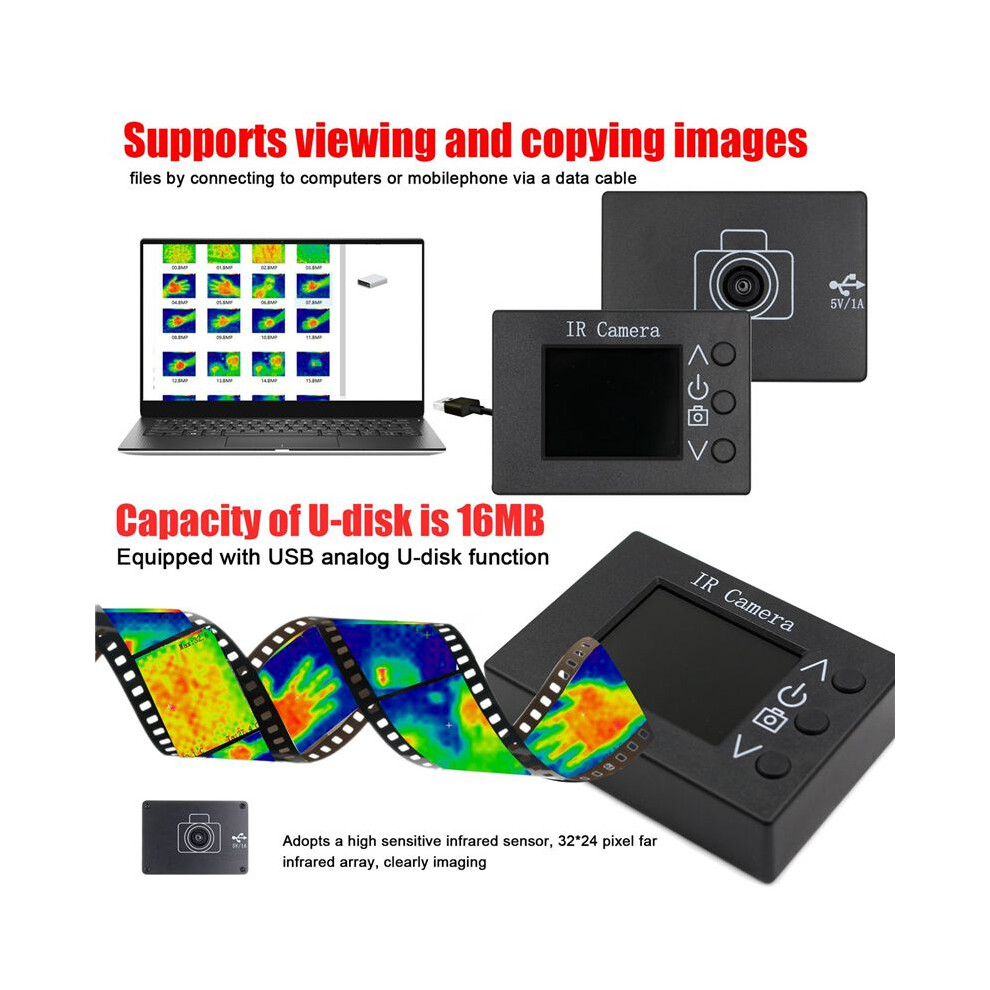

Take a photo (90 photos can be saved, you can connect to the computer, you can copy and delete it)
Can recharge the battery (200 mAh)
TFT size: 1.8 inches (display resolution: 160x128)

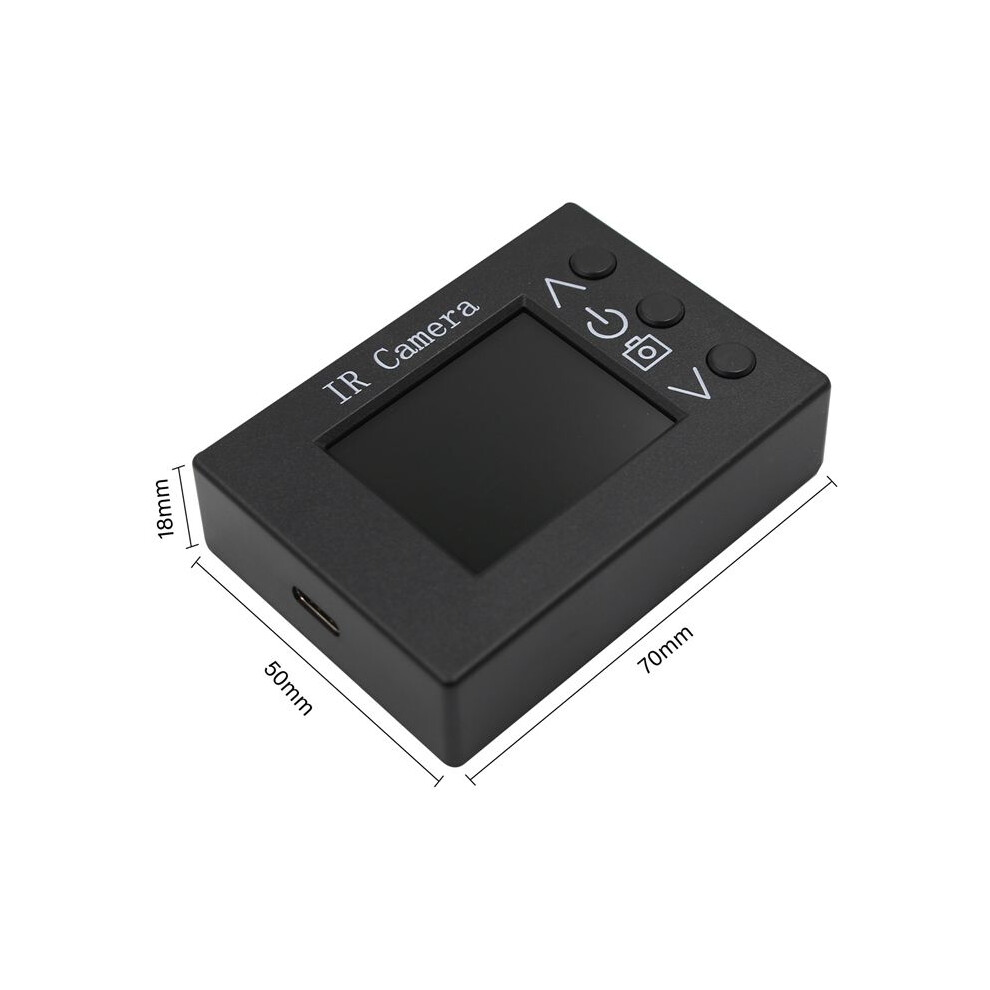

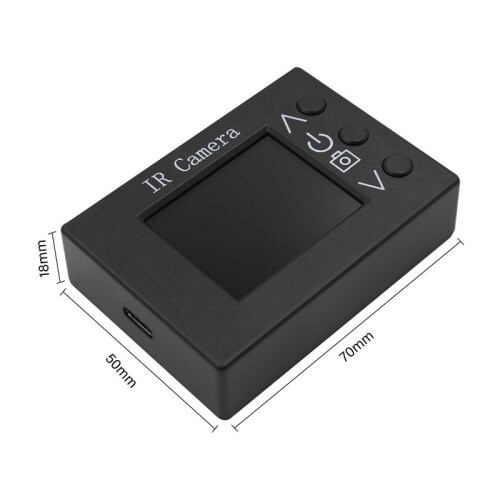

Product size: 66 x 46 x 20mm

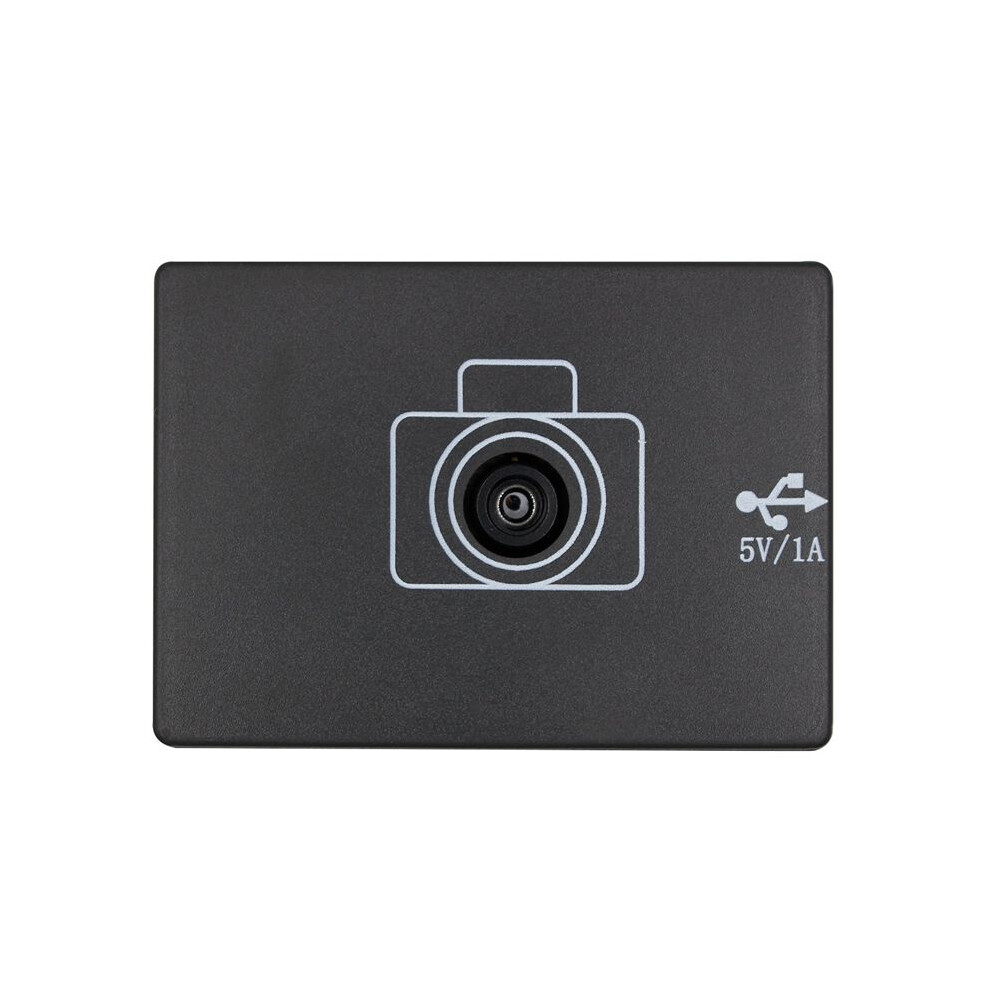

Power port: USB Type-C 5V/1A
working hours: 4 hours

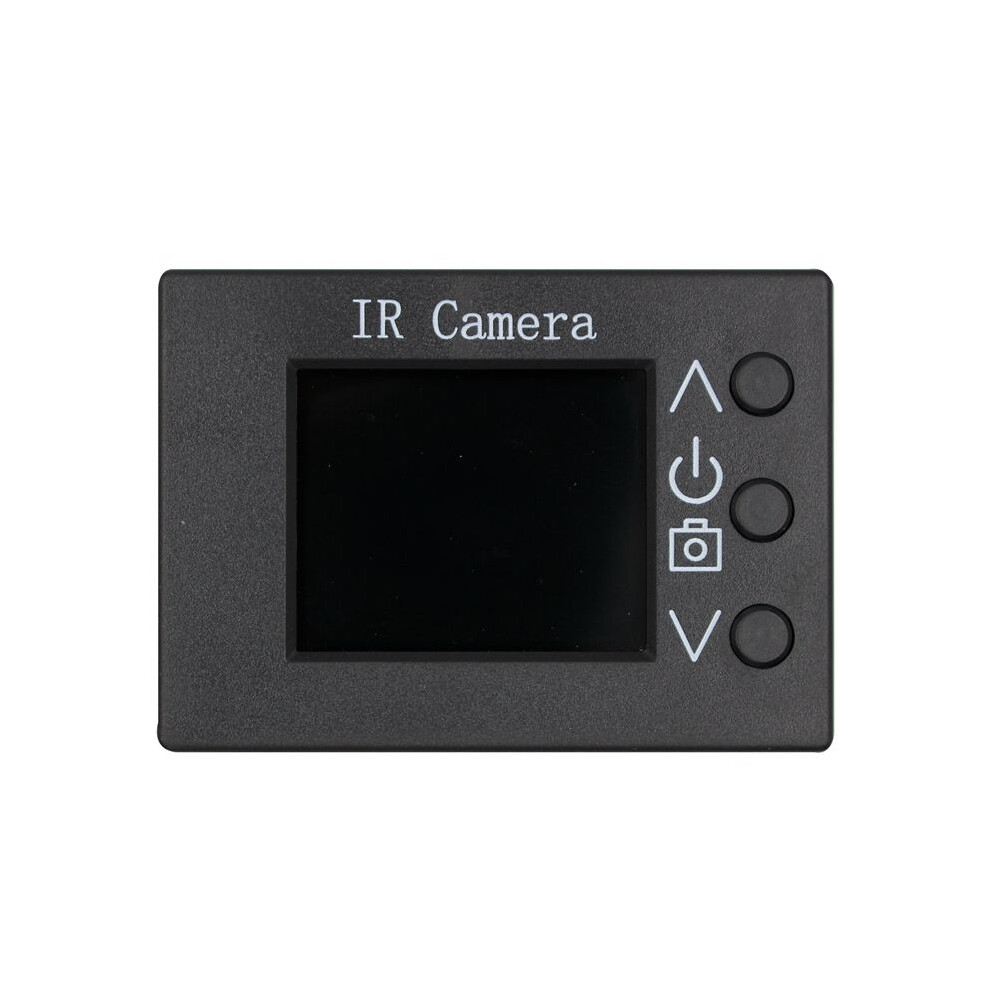

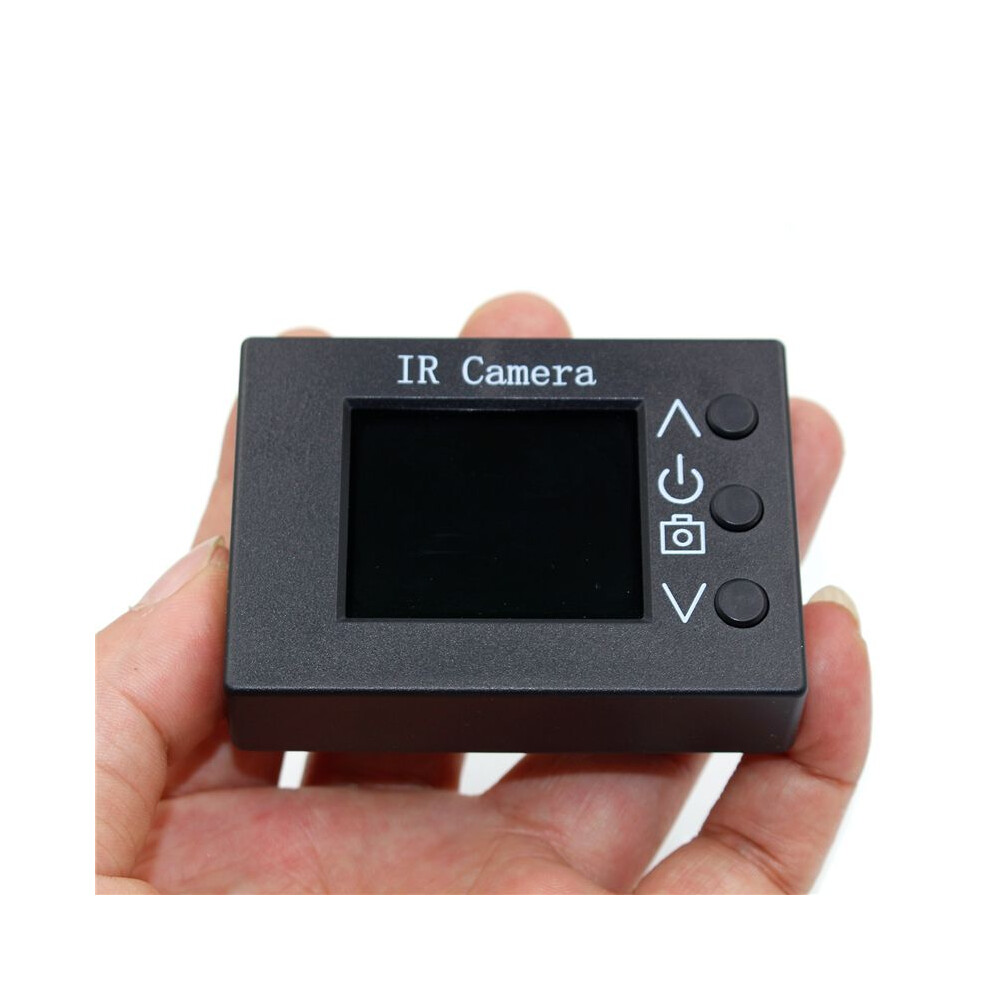

Instructions:
1. Charging: Use the USB Type-C , 5V/1A.
2. Open/turn off: long button in the middle
3. Photo: button mid -key
4. View photos: Press the upper or lower keys
5. Exit photos: Long press the upper or lower keys
6. Copy photos: Connect the computer with a USB cable, and the computer will get a disk.
Note: Do not change the photos in the disk or put other files in the disk. exist
Before connecting the computer, please charge and shut down.
Material: plastic
colour: black

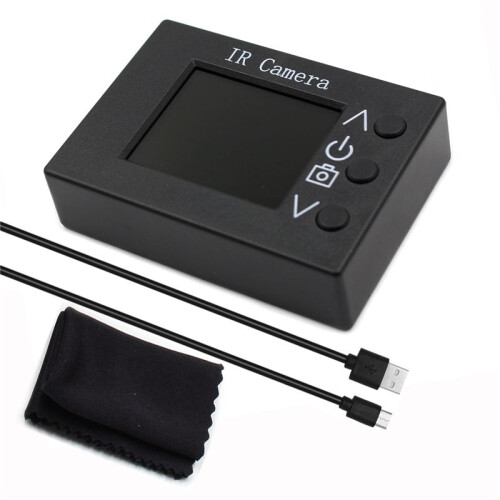

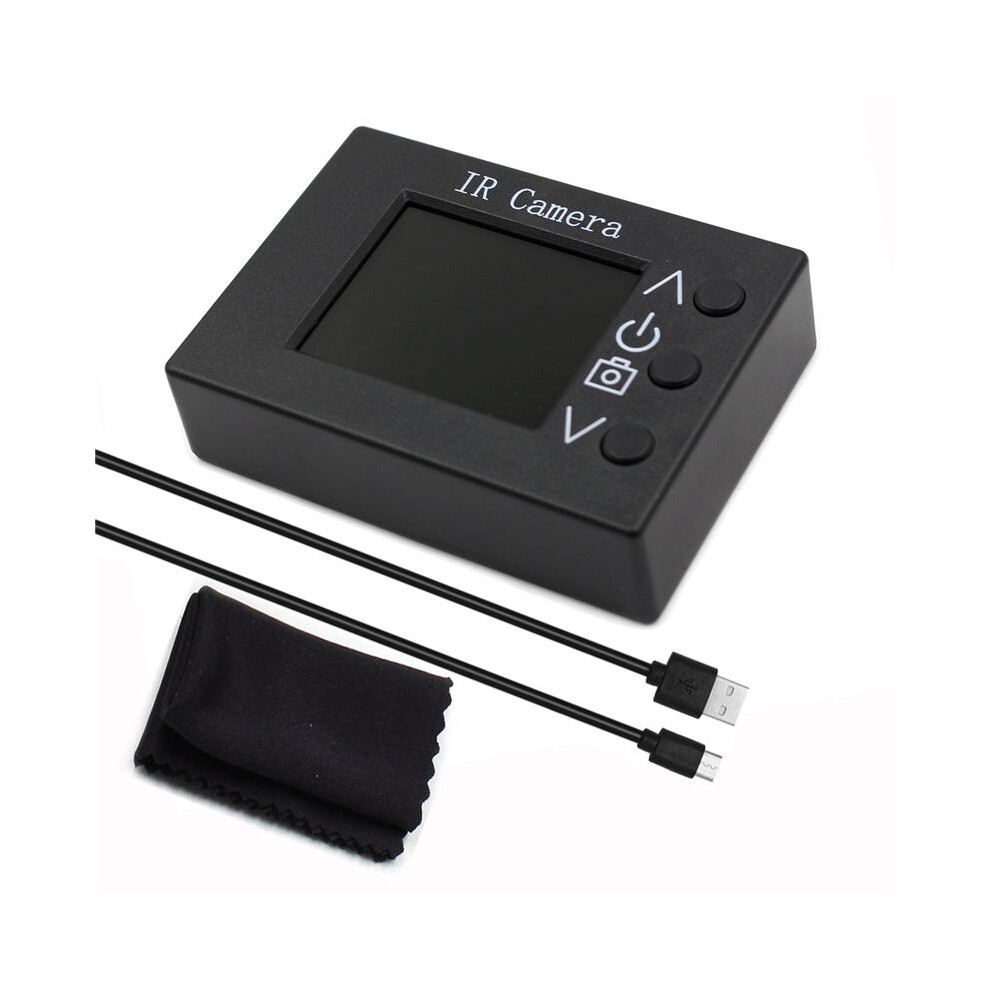

Package Contents:
1 x Infrared Temperature Sensor
1 x USB Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
