MSP430 Emulator MSP-FET430UIF USB Debug Interface Programmer JTAG/BSL/SBW Software F149 Development Board IAR Version

MSP430 Emulator MSP-FET430UIF USB Debug Interface Programmer JTAG/BSL/SBW Software F149 Development Board IAR Version Beskrivelse

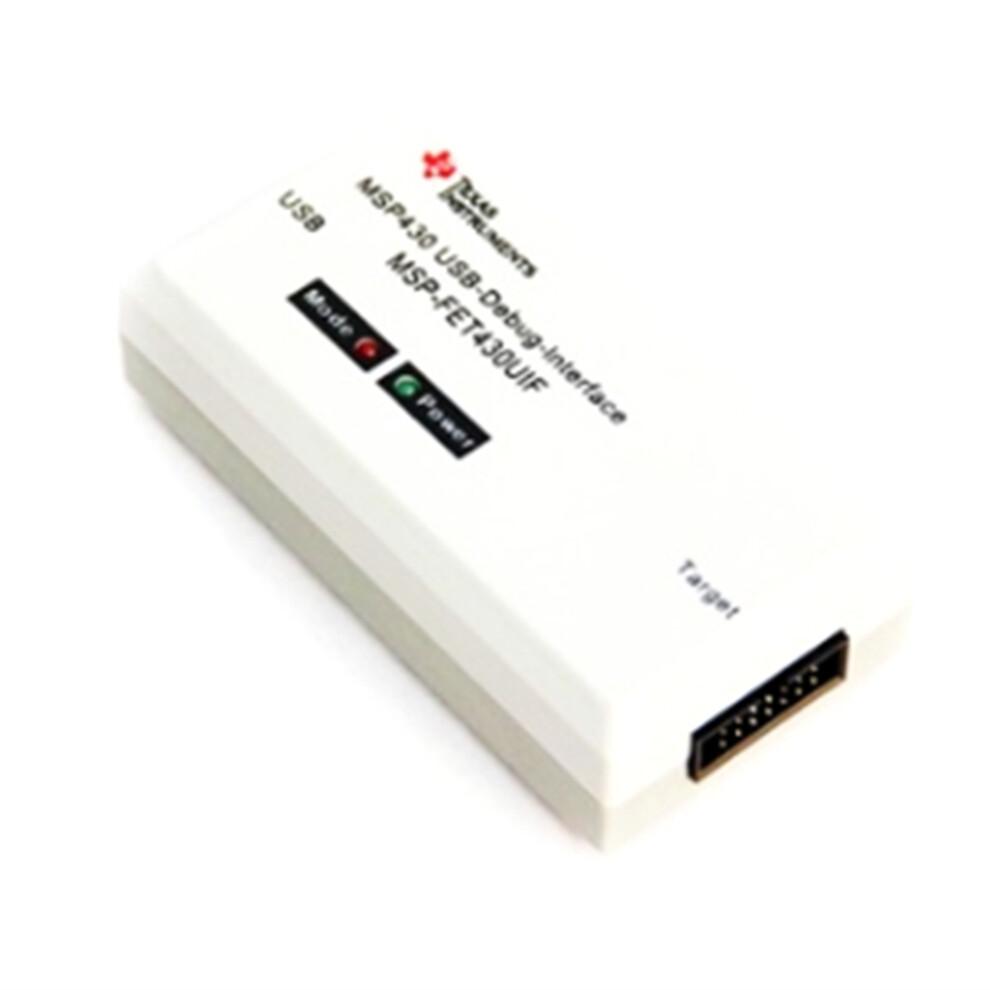

This MSP LSD-FET430UIF is a powerful flash emulation tool to get started with application development quickly the MSP430 MCU. It includes USB debugging interface used to program & debug the MSP430 in-system via the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The flash memory can be easily erased and reprogrammed in seconds with only a few keystrokes. The MSP430 flash is ultra-low power, so no external power supply is required.
This debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start your design immediately. The MSP LSD-FET430UIF development tools supports development with all MSP430 flash devices.
The USB Debugging Interface is compatible with IAR Version 3.21 or higher.
Via USB debugging interface (MSP-FET430UIF), a flash-based MSP430 MCU can be connected to a PC for real-, in-system programming and debugging
Operating system: it can support Windows XP, Windows Vista, Windows 7 (32 & 64-bit)

Technical Specifications:
Software configurable supply voltage: between 1.8 and 3.6 volts at 100mA
Supports JTAG Security Fuse blow to protect code
Supports all MSP430 boards with JTAG header
Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols
Material: plastic
colour: As shown

Package Contents:
1 x MSP 430 debugger
1 x USB cable
1 x 14-pin Flat cable
1 x CD
