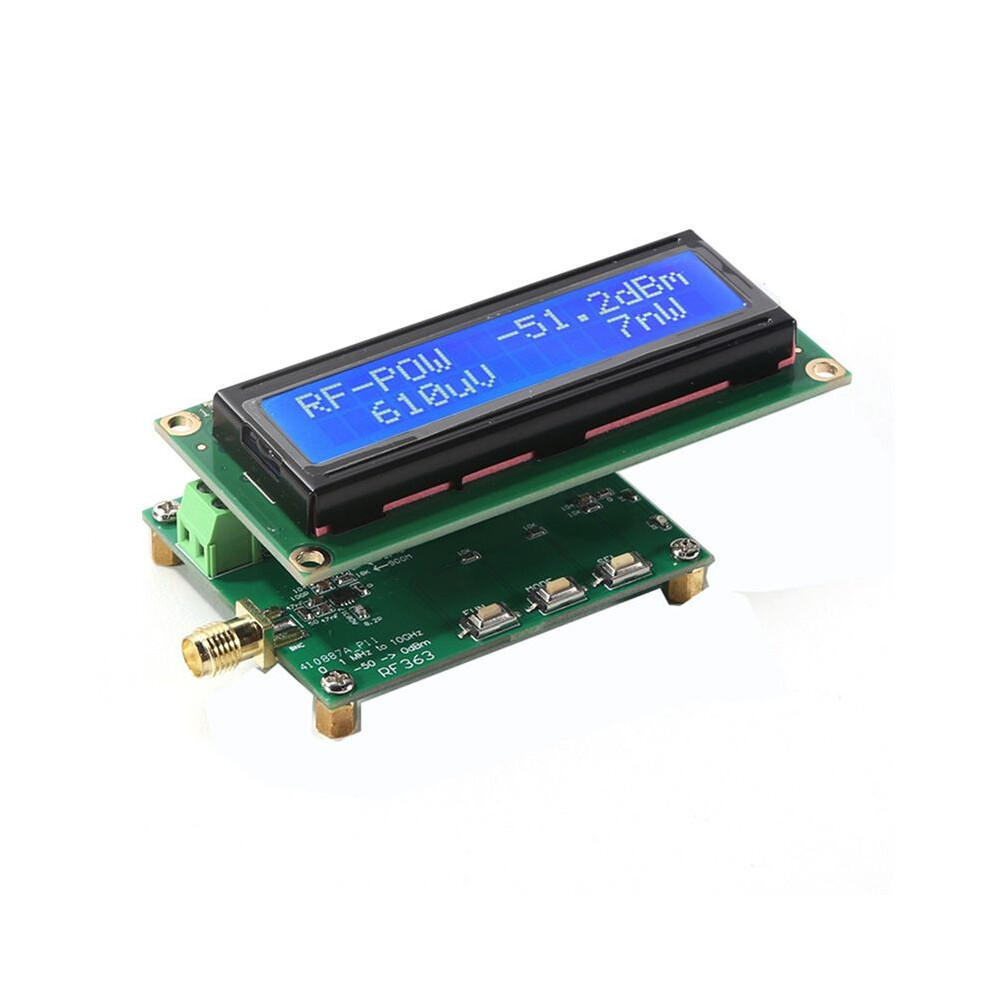

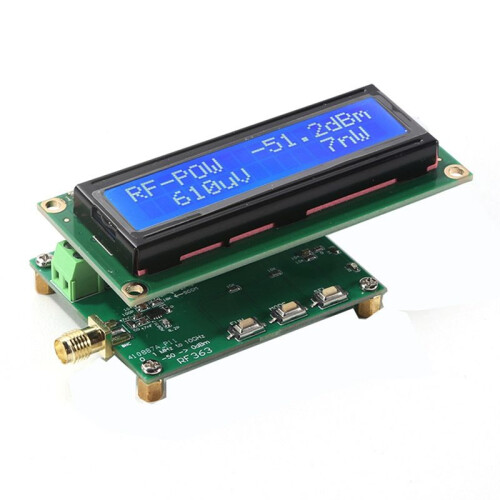

Multi-Function Convenient 1MHz-10GHz -50-0DBm Power Meter Programmable RF Power Attenuation Value RF Power Meter

Multi-Function Convenient 1MHz-10GHz -50-0DBm Power Meter Programmable RF Power Attenuation Value RF Power Meter Beskrivelse

1. This Is A Power Meter, Operated By Buttons.
2. Advantages: Simple Structure, Convenient Use, Stable Performance, High Reliability, High Sensitivity And Fast Measurement Speed.
3. Application: Power Measurement, Instrument Calibration;
4. Measurement Power Range 1MHz~10GHz -50~0dBm (External Rf Attenuator Can Be Extended To 100dbm); Measurement Power Resolution: 0.1 Dbm
5. Convenient, Fast And Easy To Use

Unit: dBm
[FUN]: Function button; [MODE]: interface; [SEL]: Automatic addition and subtraction button
Display measurement data
Screen display character interface

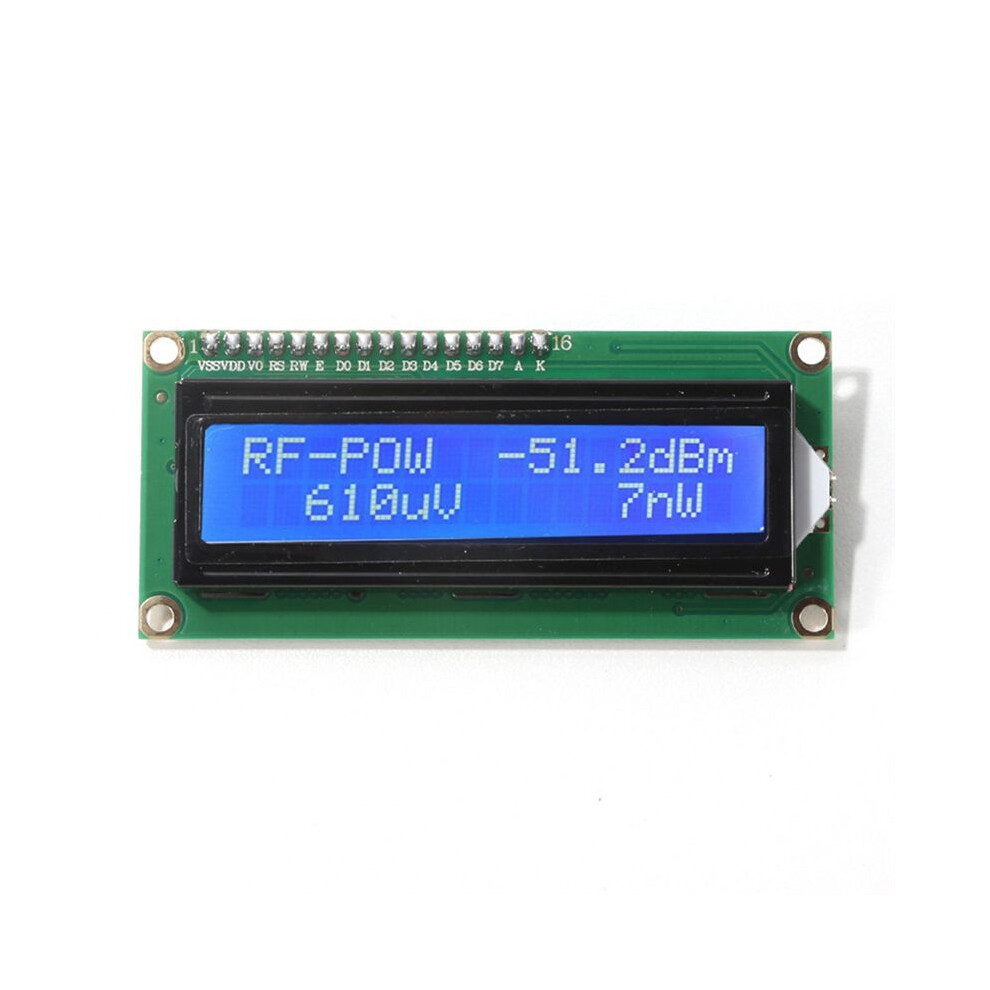

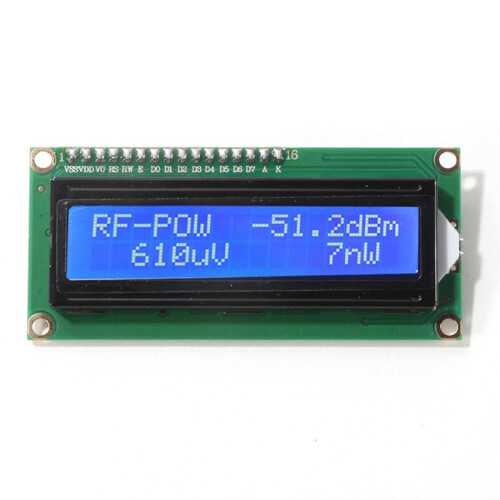

First : "RF-POW -51.2 dBm"
Second :"610uV 7nW"
Note: -51.2dBm is the dBm signal value; 610uV refers to the input voltage value; 7nW refers to the input power value.
Adjust the RF power attenuation value
Screen interface character display:
1: "RF Attenuator"
The second : "SUB 000dB"
Button operation:
[Entertainment]: Function button, select the add or subtract option. If SUB is displayed, it means subtraction; if add is displayed, it means add value. Long press the FUN key to save the preset dB value.
SEL: Automatic addition or automatic subtraction button
By adding different RF attenuators and the user setting the relevant attenuation values, the RF power meter can read the correct power parameters.
Colour:green
Material:PCB
Size:about 55 x 45 x 10mm

Package Contents:
1 x RF Power Meter Module
