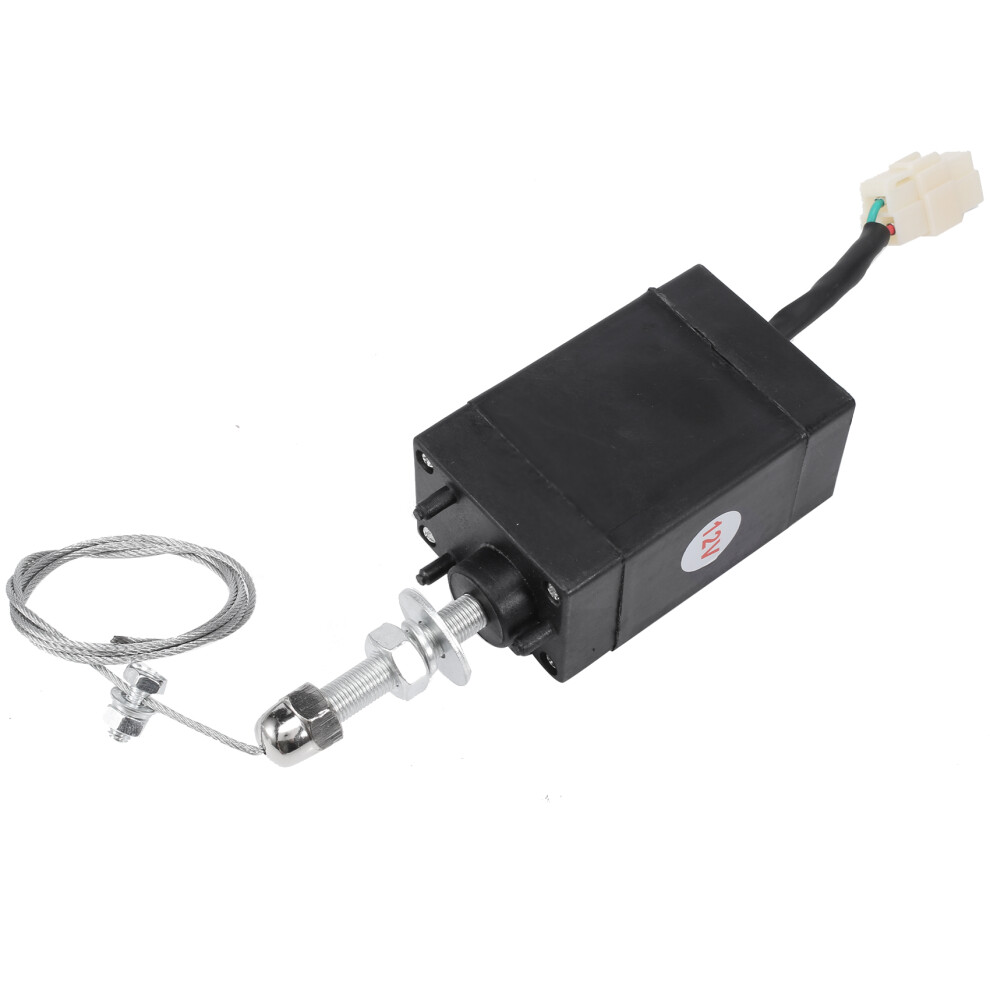

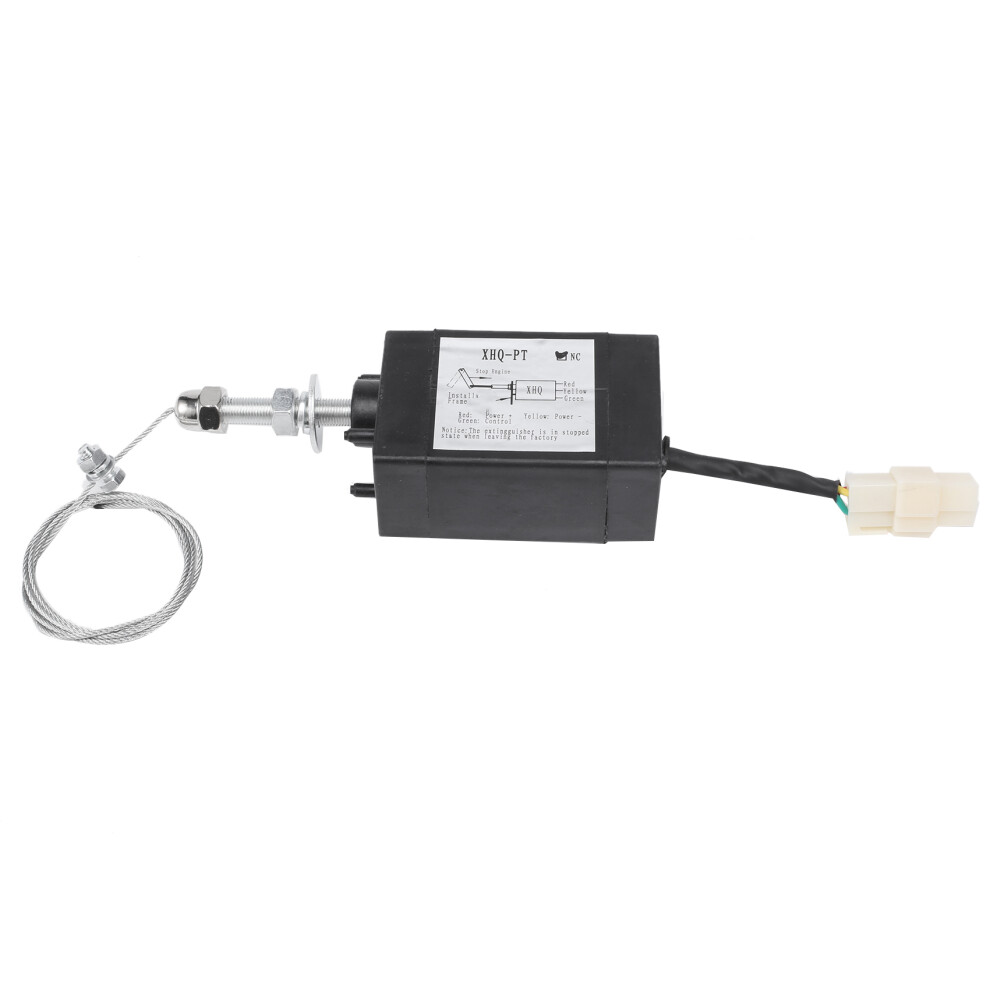

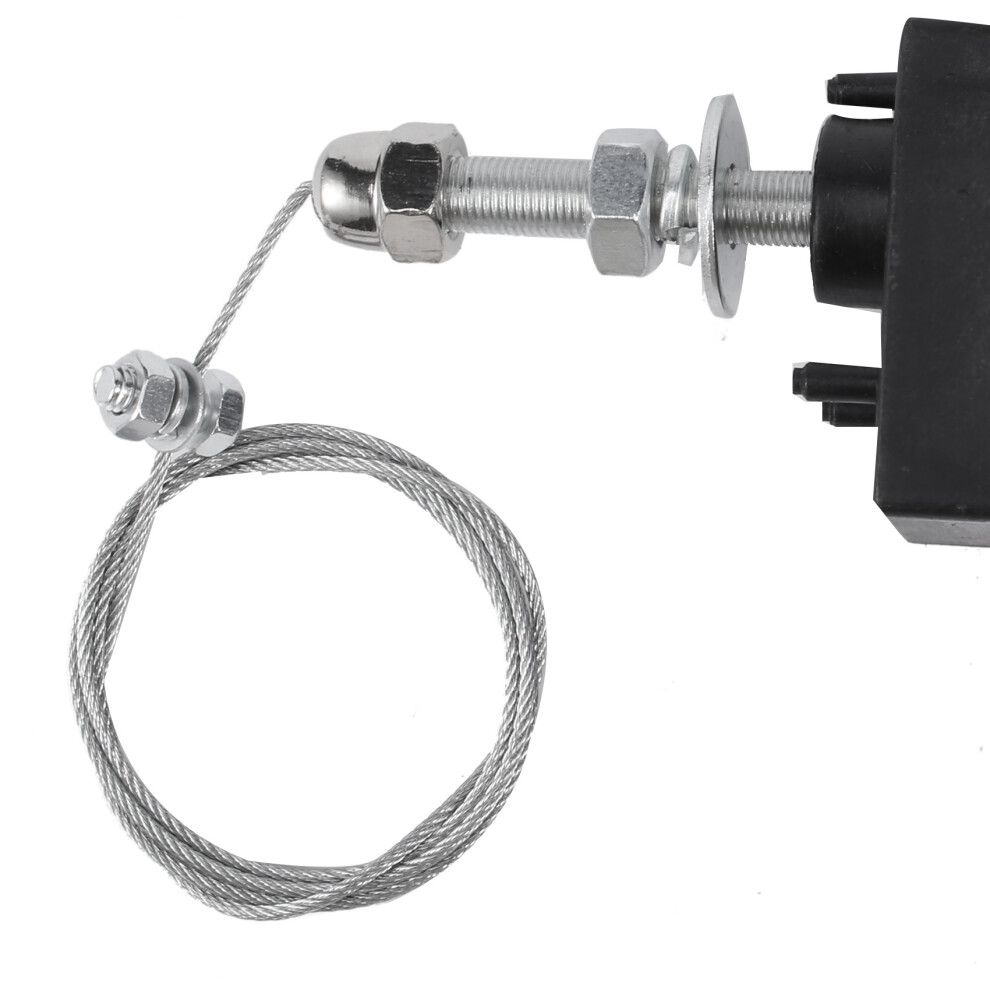

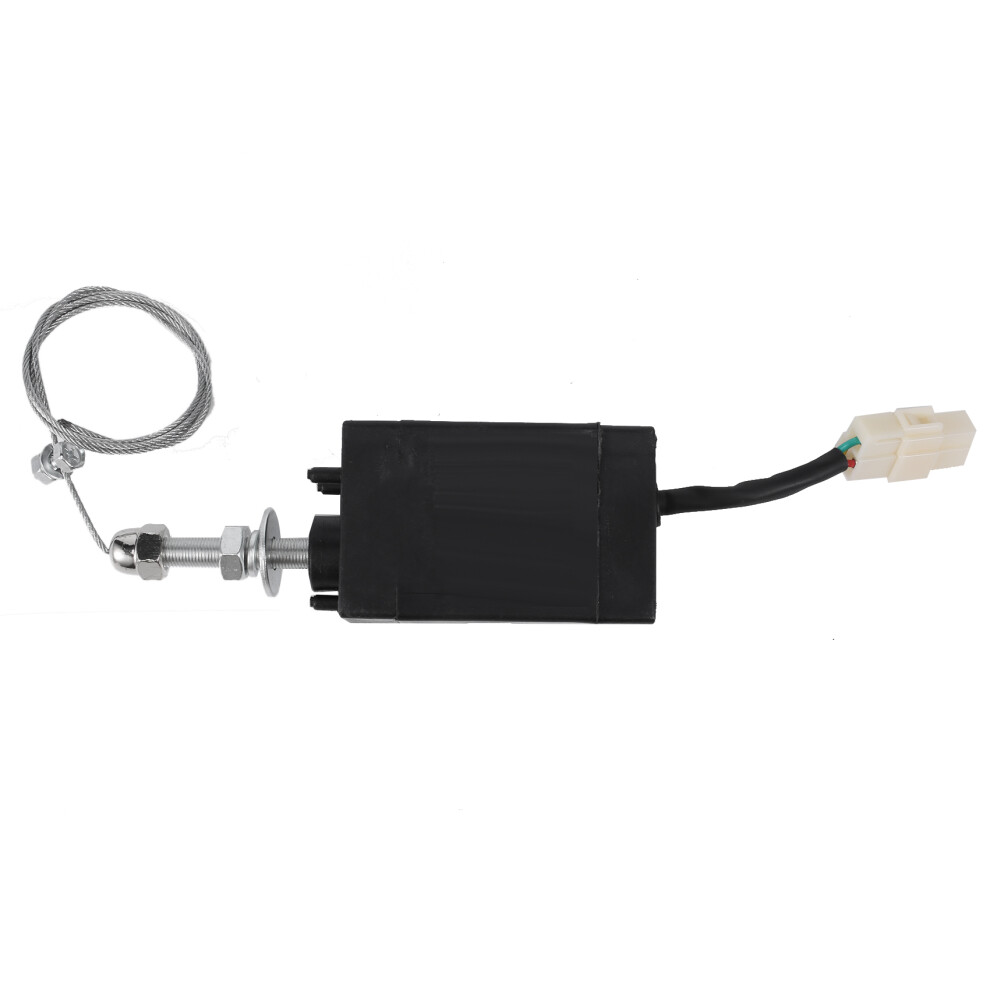

Normal Close NC 12V Engine Flameout Device Off Valve XHQ-PT-NC Normal Close 12V

Normal Close NC 12V Engine Flameout Device Off Valve XHQ-PT-NC Normal Close 12V Beskrivelse

The appearance of normal close and normal close are the same, just difference:
normal close stype:NC,when power off ,it will pull .When power ,it will push.
One: technical parameter. The purpose of working voltage: 12V (9-15V ) 24V (18-30V )
Purpose: 12V-2.0A 24V-1.0A (full of action current moves in place automatically disconnect the power supply, the working current of Less than 15mA)
In the of control working current: Less than 15mA. Travel: 53 + 1mm. The maximum tension: 90N.

Material: Plastic+Metal
Color as shown
An ambient temperature: -30 to 60 DEG C
The action : less than 2 seconds
An overload protection extinguisher: the load is too large or stuck, stop working automatically,avoid flameout device damage. Disconnect the power off after a period of , re power,extinguisher from fault reset, can resume normal work.
Two, flameout device wiring:
The flameout device has 3 lead wires, as follows:
Red: connect the positive power supply: the cathode of a power supply (yellow green or )as the of control:
Closed type: control power extinguisher action, action in place, automatic stop.Release extinguisher power control , automatic stop action in place.
Three, installation and notice
The installation and commissioning should ensure the extinguisher action in place before,Crude Oil engine stop control rod no action to the limit position and the extinguisher stuck,otherwise the extinguisher internal overload protection circuit, automatic flameout device stops working, the extinguisher should disconnect the power, adjust the mounting position, back to the extinguisher electricity, flameout which can resume normal work.

Package Contents:
1X Solenoid Valve
