Phase Tester Rotating Field Measuring Device, 3 Phase El Sequence Indicator Pressure Rotation Meter with LED and Buzzer

Phase Tester Rotating Field Measuring Device, 3 Phase El Sequence Indicator Pressure Rotation Meter with LED and Buzzer Beskrivelse

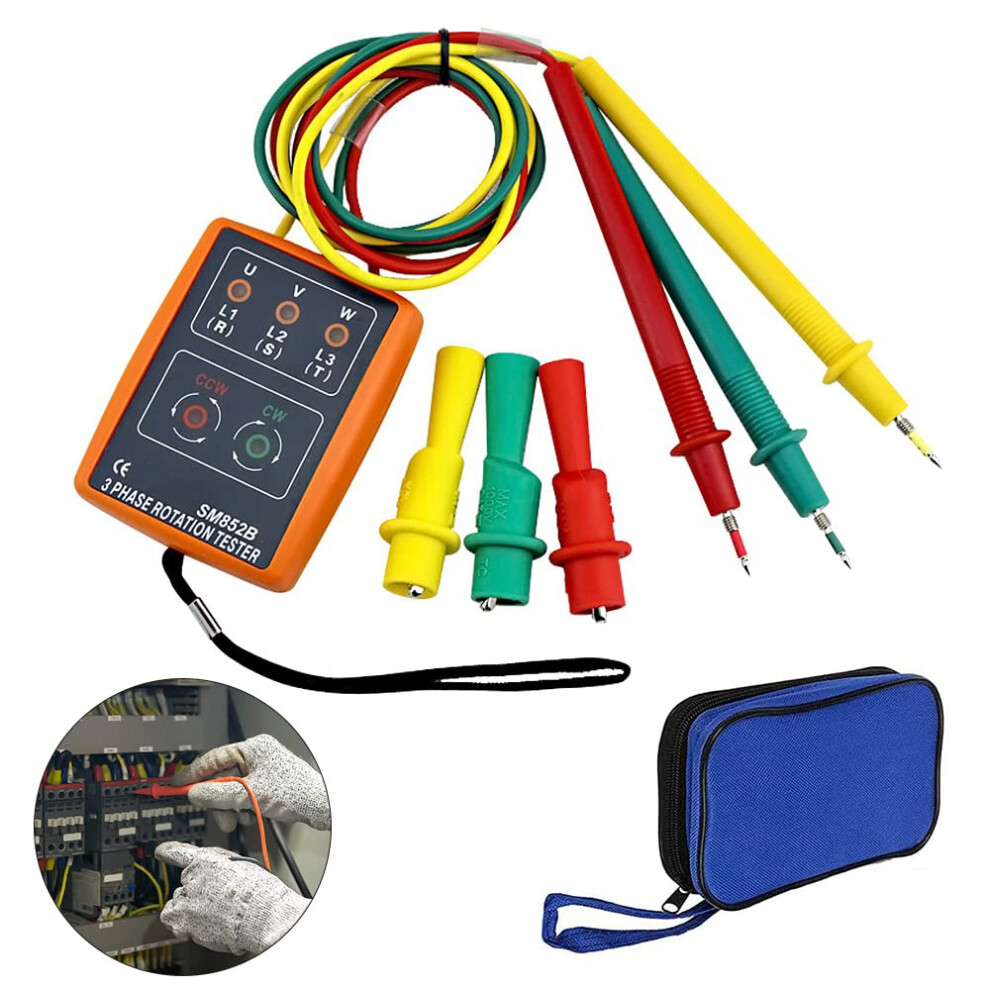

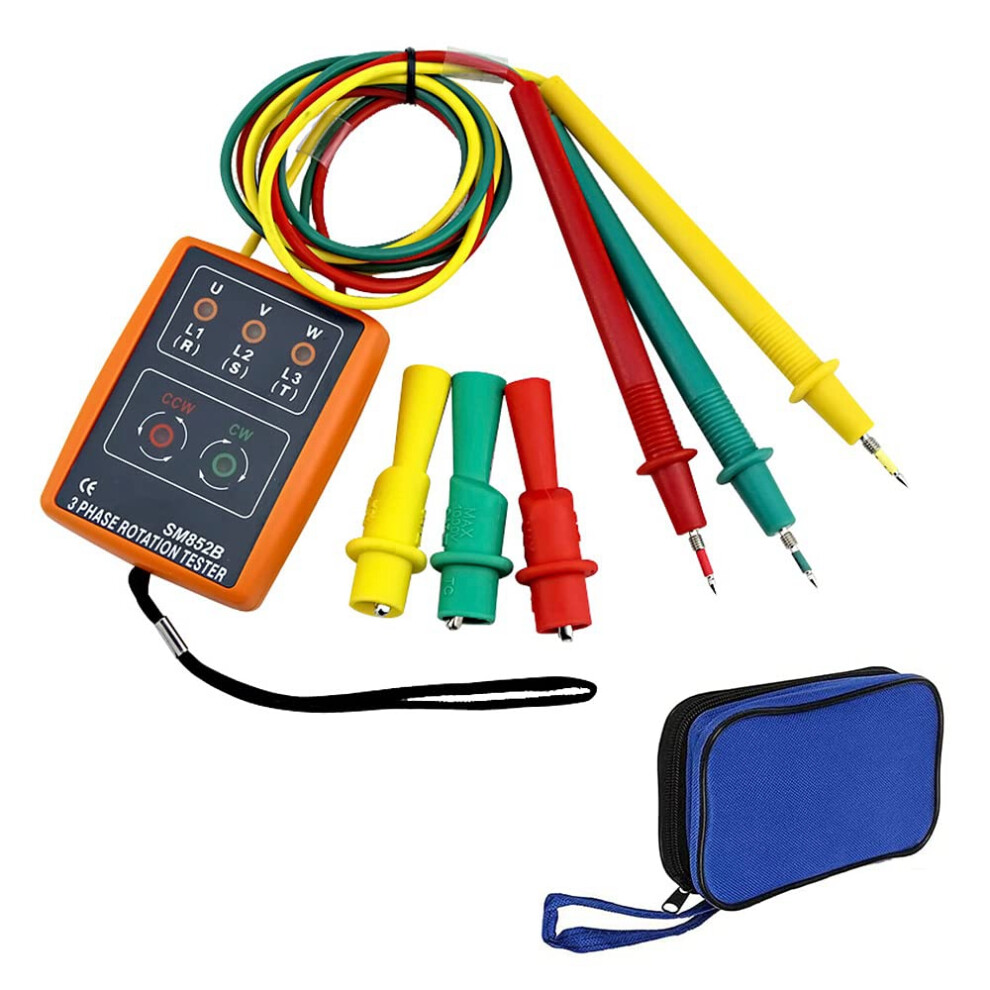

Small and convenient: rotary field tester with instrument storage and transport kit, small size, light weight, easy to carry.
Function: The testable frequency range of the rotary field measuring device, three-phase electricity meter, is from 20 Hz to 400 Hz, efficient, effective, reliable and simple.

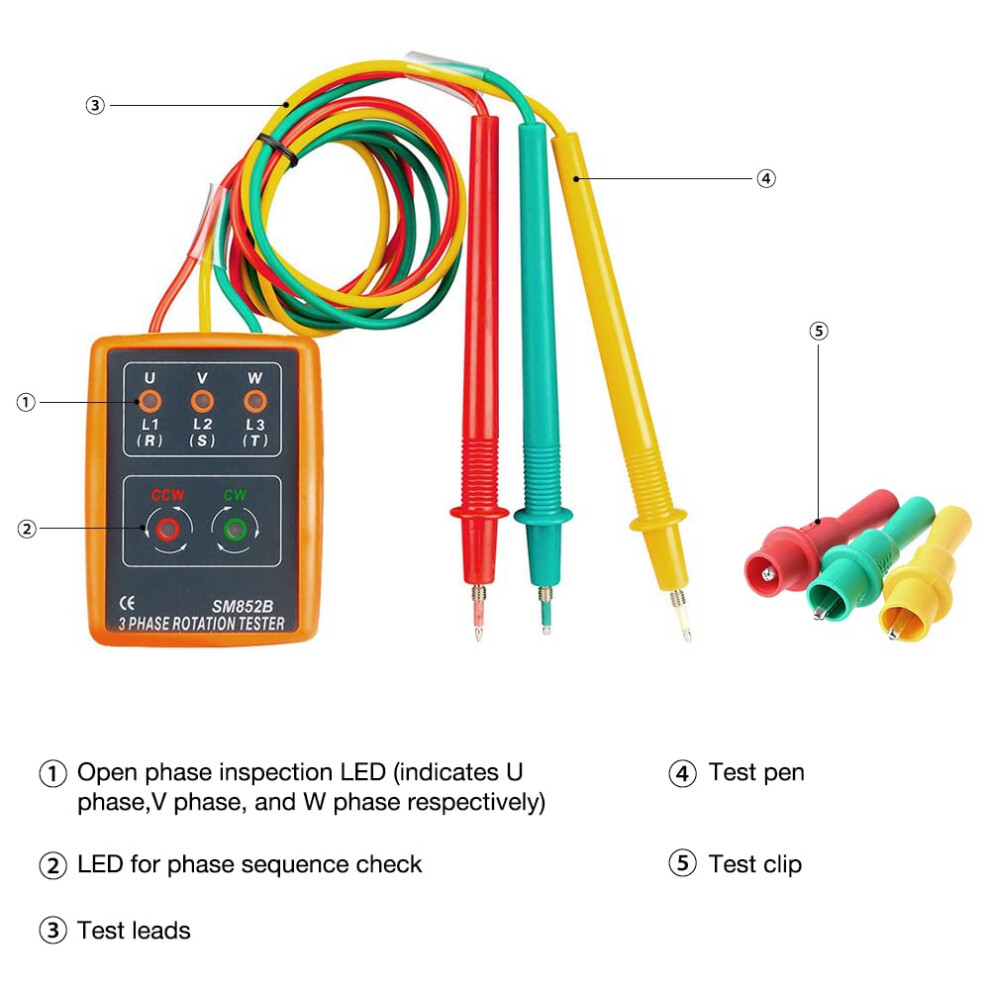

Easy to use: This SP8030 phase tester has two function indicators to check the phase sequence and indicate whether the phase is open.
Wide Voltage Test: This gauge can detect 3-phase AC voltage from 60V to 600V with excellent performance. LED light can indicate whether the phase is and support buzzer indication.
Design: Green LED shows correct phase sequence and beeps intermittently. The red LED shows the sequence reversed and beeps continuously. The tester is equipped with 3 clamp cables for your convenience.

Continuous use: no more than 60 minutes at 200 V ACV, no more than 4 minutes at 600 V ACV.
Specification:
Model: SM852B
Operating voltage: 60V ~ 600V three-phase AC voltage
Maximum dielectric strength: 2000V/min (voltage pulse current 4000 V)
Measurable frequency range: 20 Hz ~ 400 Hz

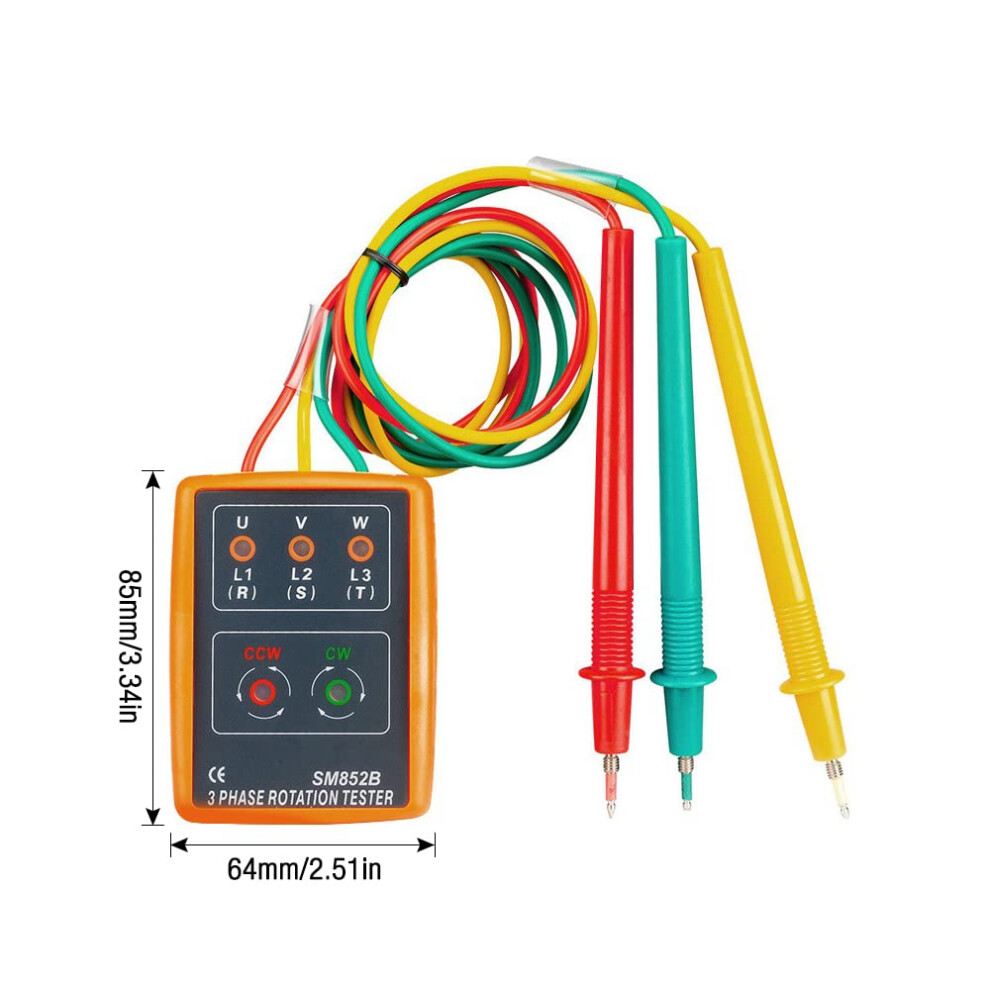

Meter size: 85 X 64 X 23 mm (without test lead)
Weight: about 200 g
Condition: new
Item Type: Hearing Aid Battery Tester
Colour: as shown
Material: Plastic

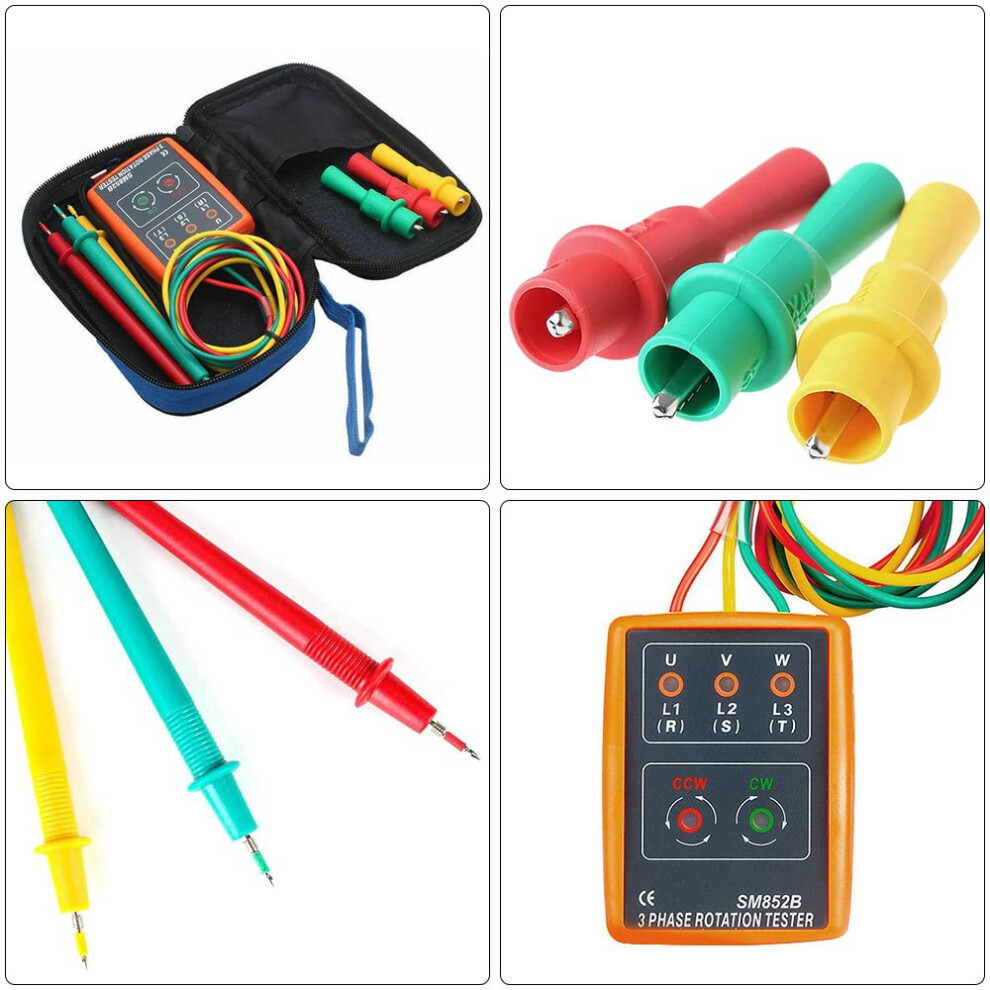

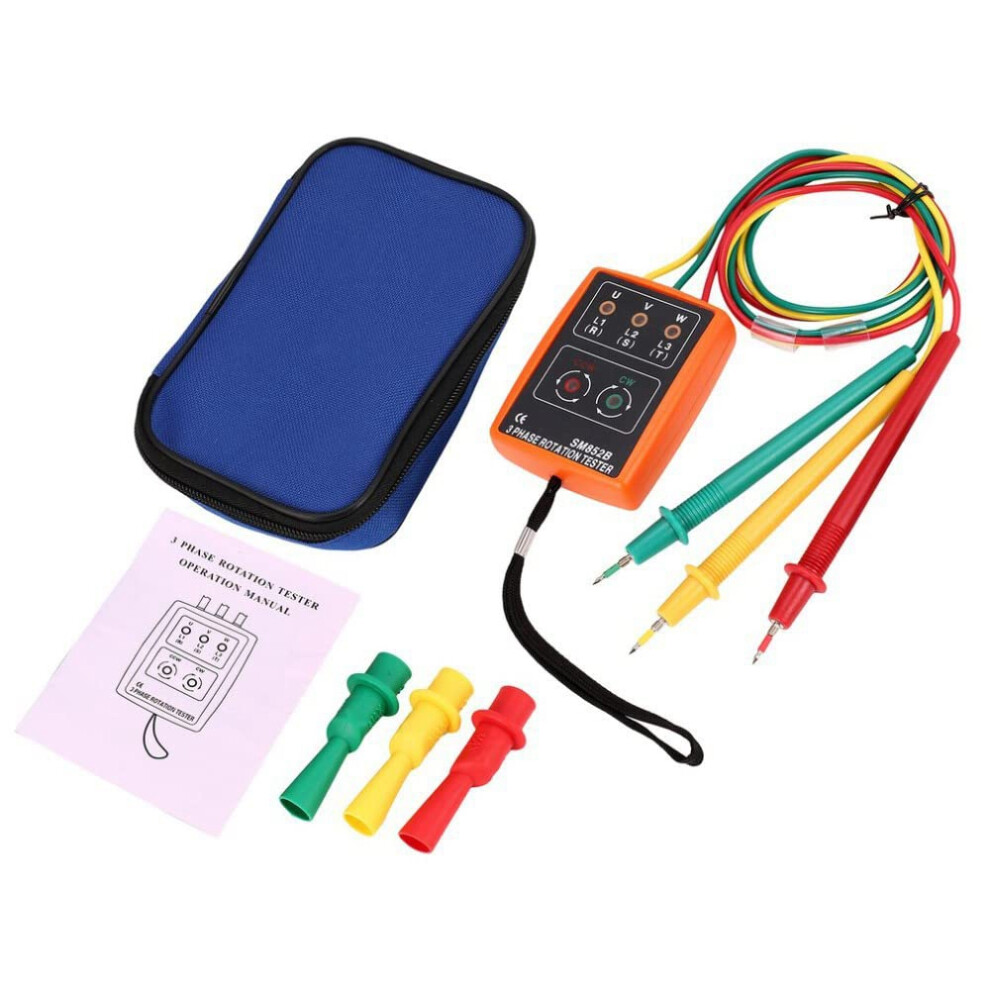

Package Contents:
1 x solenoid tester kit
