Positive Negative Voltage Stabilizing Power Supply Module Low Ripple Linear Adjustable Stabilizing Voltage Regulator

Positive Negative Voltage Stabilizing Power Supply Module Low Ripple Linear Adjustable Stabilizing Voltage Regulator Beskrivelse

Multifunctional, constant voltage, voltage stabilization, voltage rise and fall
- voltage regulator power module, with a large input voltage range supporting 5.5V-35V
Good material, high stability, and high cost-effectiveness
Easy to use and operate
Application scenarios can be applied to home, industrial internet of things, vehicle power and other scenarios

Module name: Output positive and negative pole voltage rise and fall power module

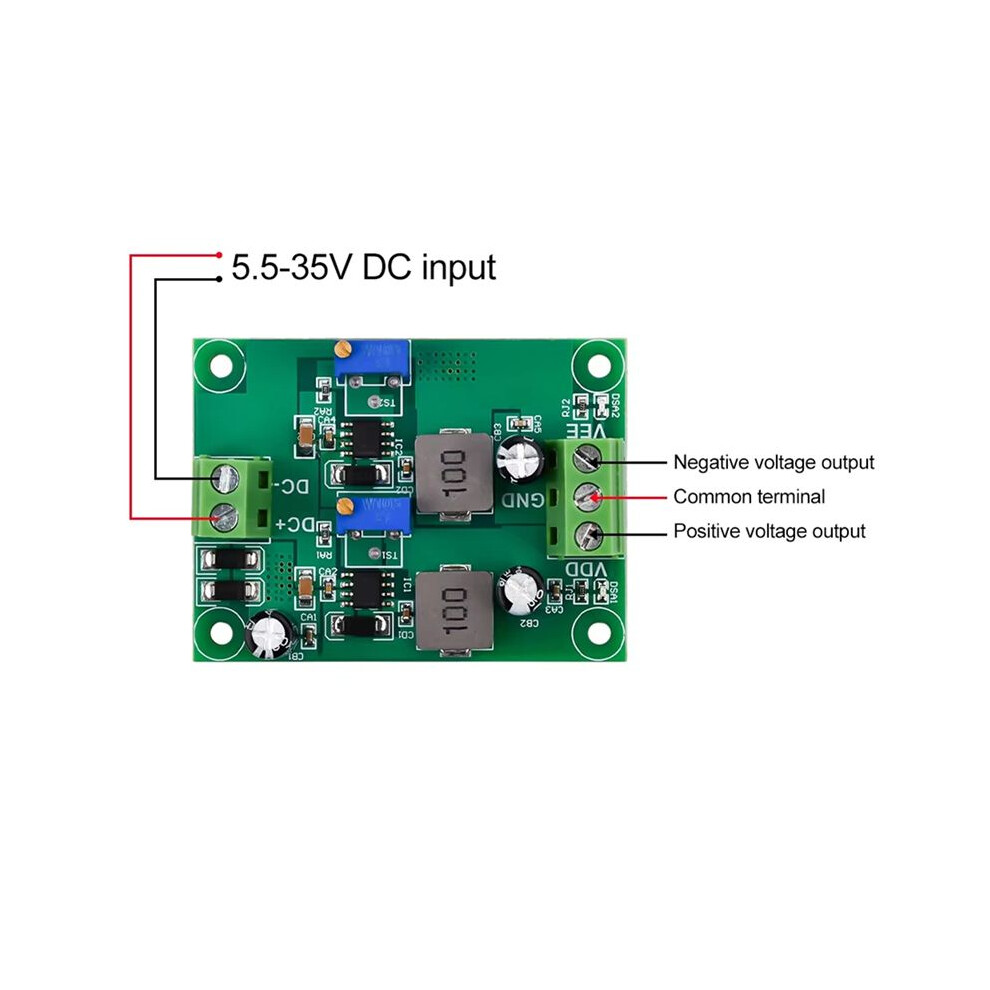

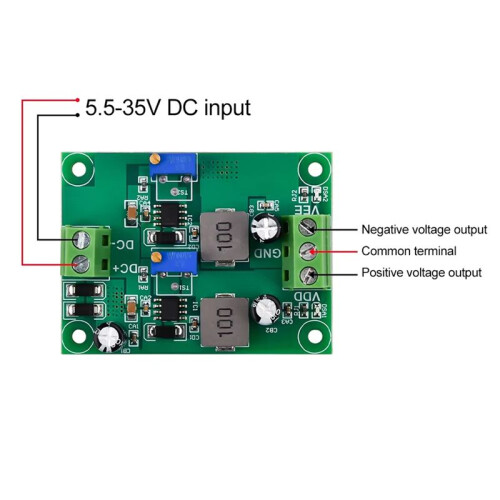

Power supply range: DC5.5V-DC35V (step-down module, input needs to be about 2V higher than output)
Output range: DC1.22-16V precision adjustable, increasing clockwise and decreasing counterclockwise.
Output current: positive terminal 3A (Max) and negative terminal 2A (Max). As the output voltage increases, the output current will decrease. When outputting 16, the positive terminal is about 1A and the negative terminal is about 0.7A.
Product size: approximately 57mm x 42mm x 16mm
Note:due to different production batches, the printed characters are different, which does not affect the use.
Color:As Shown
Material:PCB

Package Contents:
1 * Module
