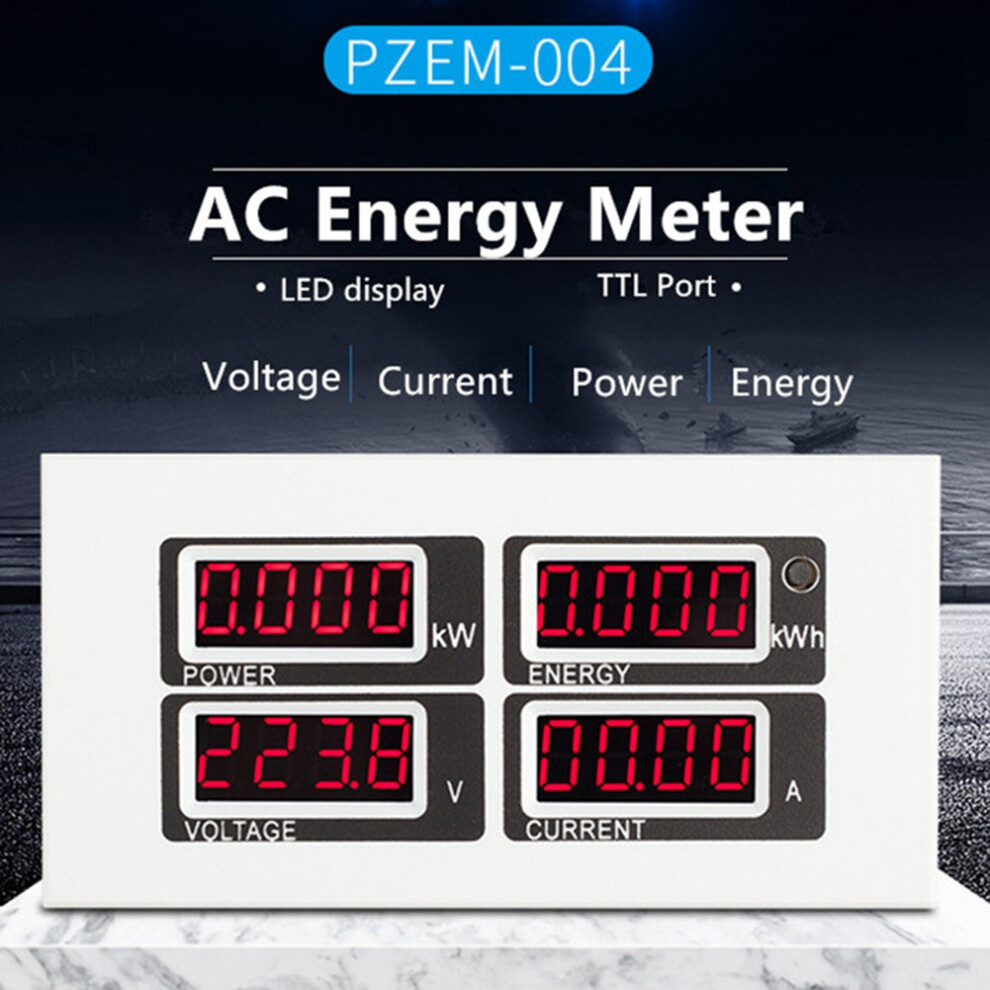

PZEM-004 Single Phase Power Meter Red LED Display Electric Instruments Volt Amp Watt Kwh Indicator TTL Modbus

PZEM-004 Single Phase Power Meter Red LED Display Electric Instruments Volt Amp Watt Kwh Indicator TTL Modbus Beskrivelse

1. Ectrical parameter measurement function (voltage, current, active power, ).
2. Overload alarm function (over power alarm thresholdthepower flash).
3. Power alarm threshold preset function (can set power alarm threshold).
4.The reset function of key.
5. Store data when power off (store the accumulated before power off).

6. Bright red digital display function (display voltage, current, active power, ).
7. Serial communication function (with TTL serial interface itself, can communicate with a variety of terminal through the pin board, read and set the parameters).
DISPLAY FORMAT
1. Power: Test Range: 0 ~ 22kW
Within 0 ~ 10kW, the display format is 0.000 ~ 9.999;
Within 10 ~ 22kW, the display format is 10.00 ~ 22.00.
2. : Test Range: 0 ~ 9999kWh
Within 0 ~ 10kWh, the display format is 0.000 ~ 9.999;
Within 10 ~ 100kWh, the display format is 10.00 ~ 99.99;
Within 100 ~ 1000kWh, the display format is 100.0 ~ 999.9;
1000 ~ 9999kWh and above, the display format is 1000 ~ 9999.
3. Voltage: Test Range: 80 ~ 260VAC
Display Format is 110.0 ~ 220.0.
4. Current: Test Range: 0 ~ 100A
Display Format is 00.00 ~ 99.99.
Colour:Photo Color
Material:plastic

Package Contents:
1 x Power Monitor
1 x Coil CT
