RDK X5 IMU Module for Drones Robotics 6-Axis Inertial Measurement Unit with Advanced 3-Axis Gyroscope

RDK X5 IMU Module for Drones Robotics 6-Axis Inertial Measurement Unit with Advanced 3-Axis Gyroscope Beskrivelse

The RDK IMU module is implemented using the high-performance 6-axis inertial measurement unit (IMU) BMI088 launched by for Sensortec, which includes a three-axis gyroscope and a three-axis accelerometer, both with 16-bit accuracy. BM1088 is designed for applications that require high precision and vibration resistance, especially for use in strong vibration environments such as drones and robots.
BMI088 has an extended range of 24g acceleration and 2000/s angular velocity. BM1088 has excellent temperature drift performance (low TCO/TCS), is factory calibrated, and can achieve high-stability attitude and motion perception. The module uses the I2C interface to connect to the RDK X5.

Communication interface:I2C or SPI
Sensor model:for Sensortec BM1088 16bit 3 Axis Gyroscopes +16bit 3 Axis Accelerometers

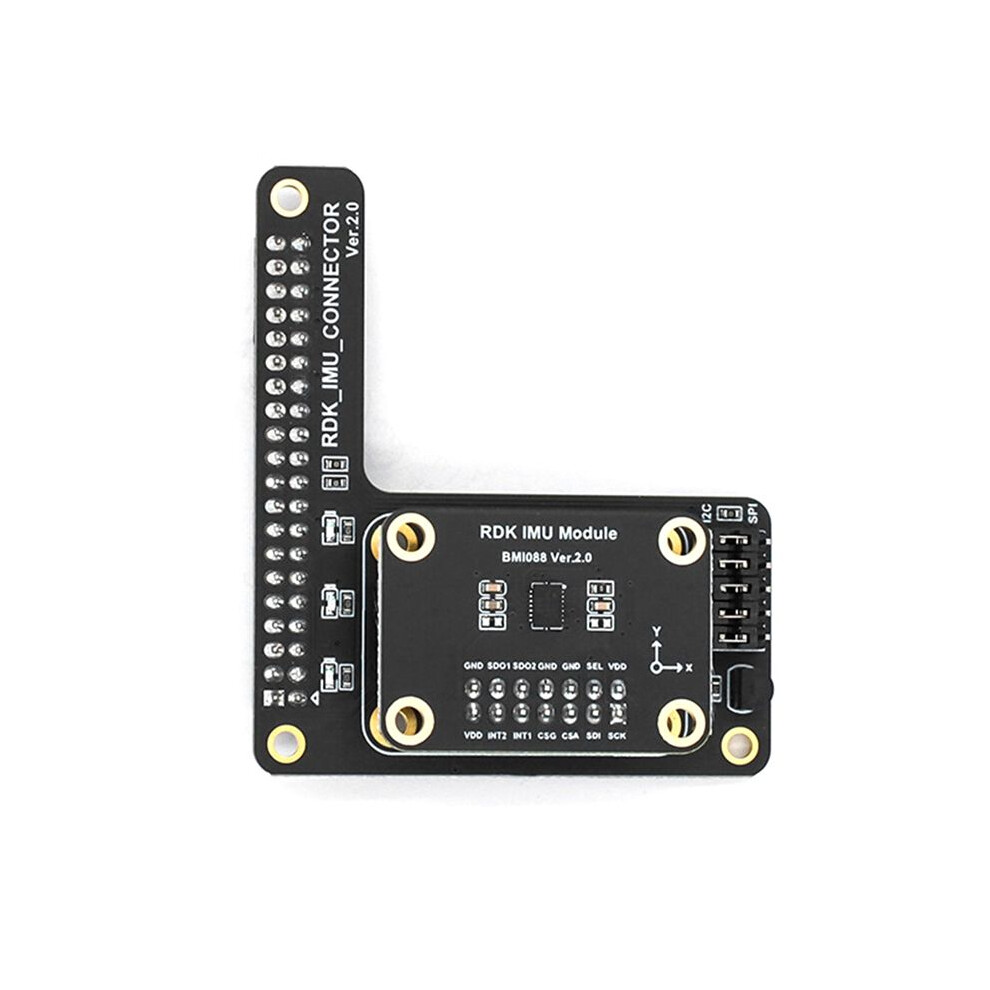

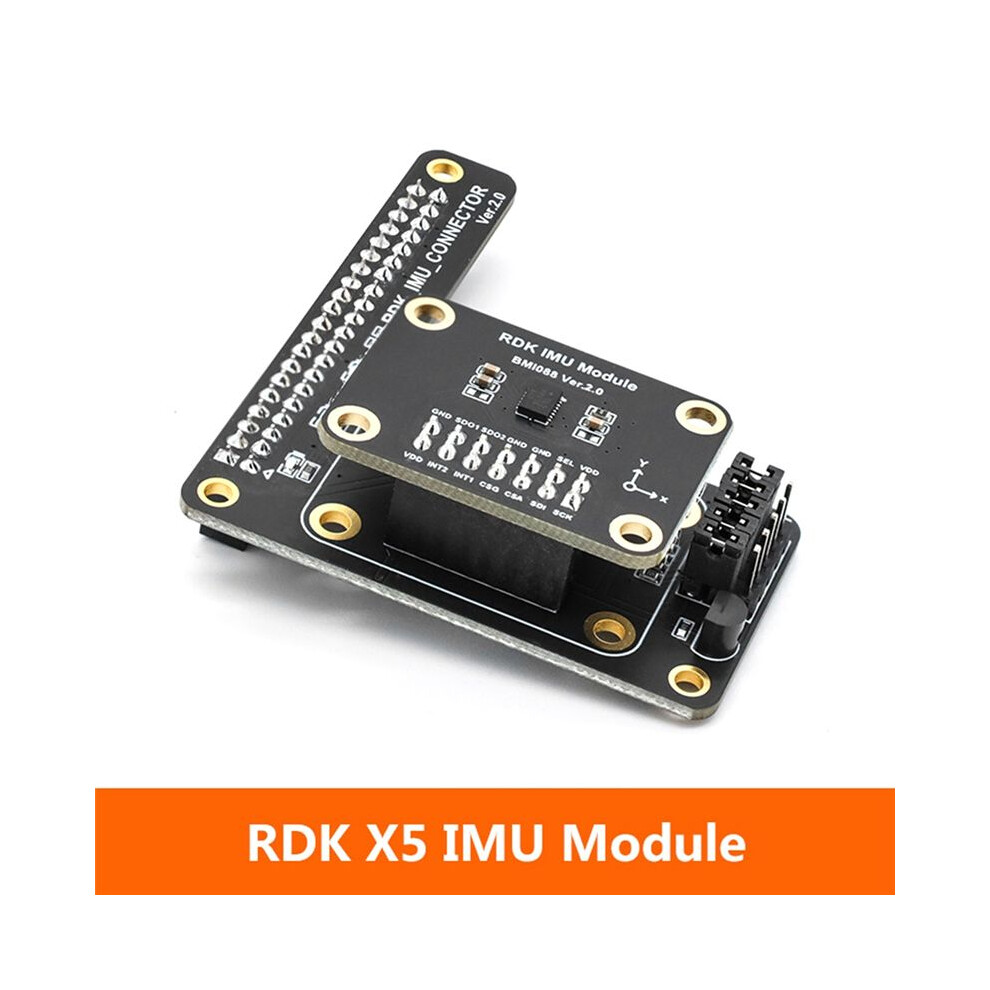

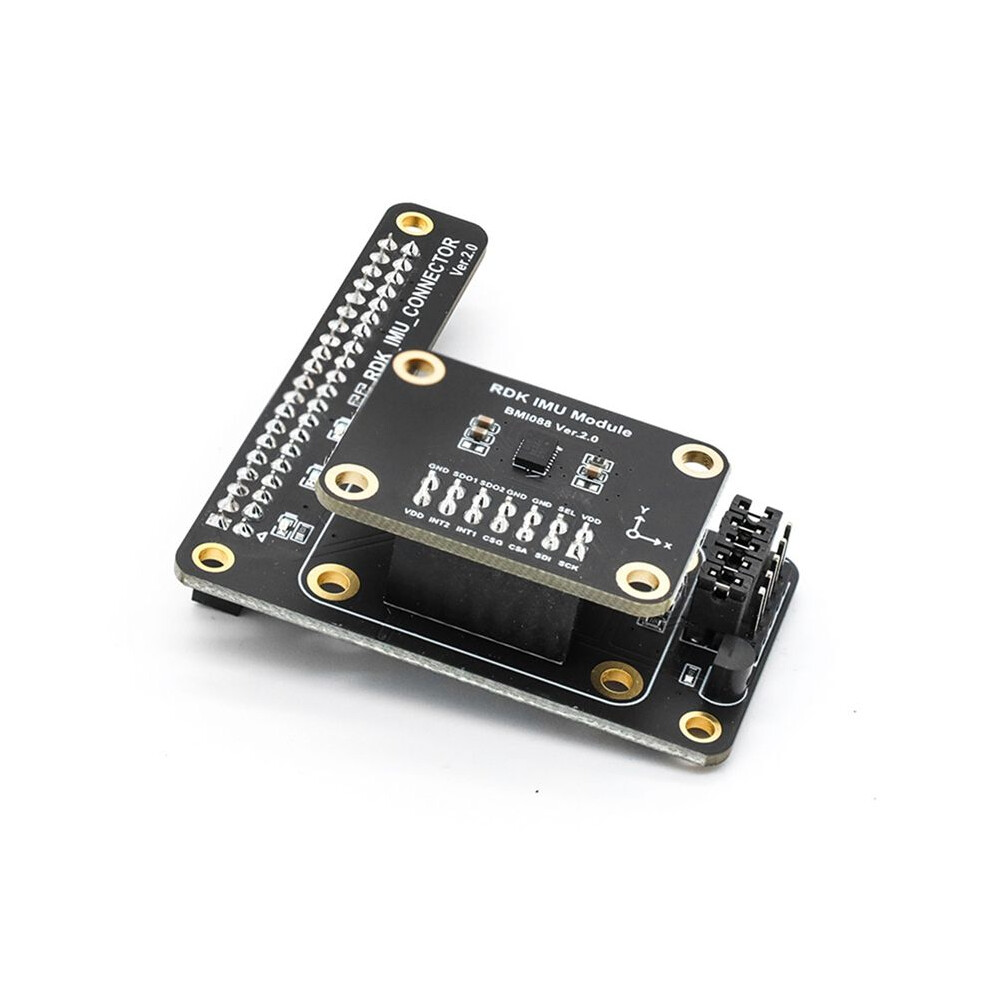

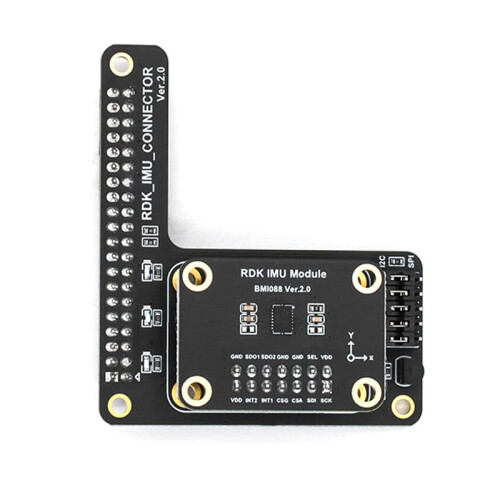

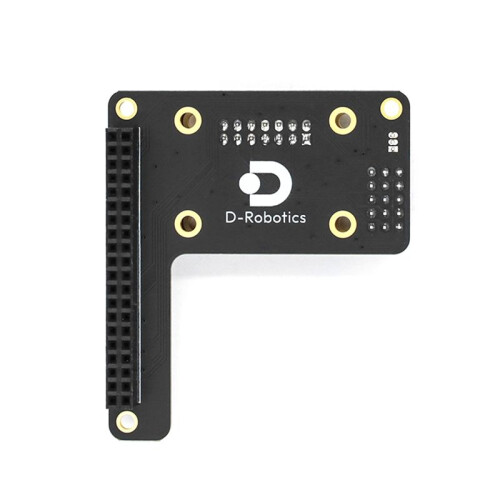

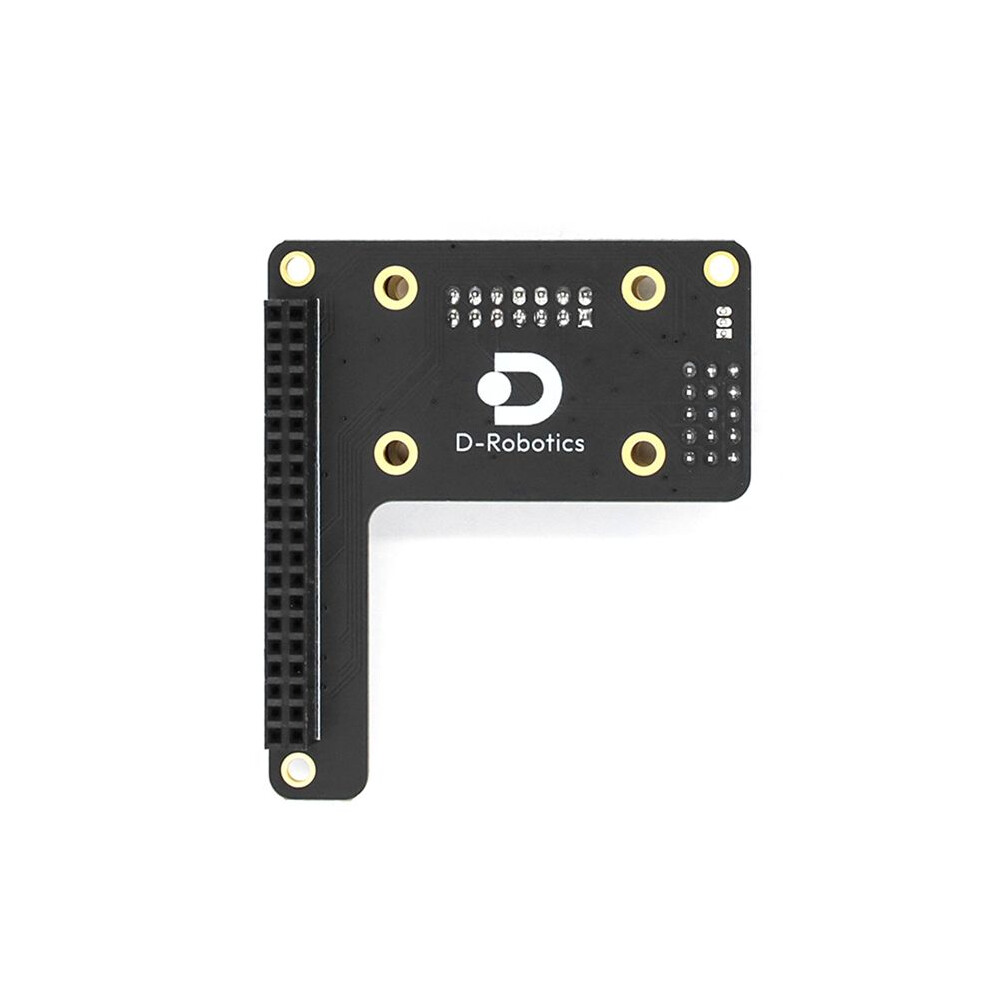

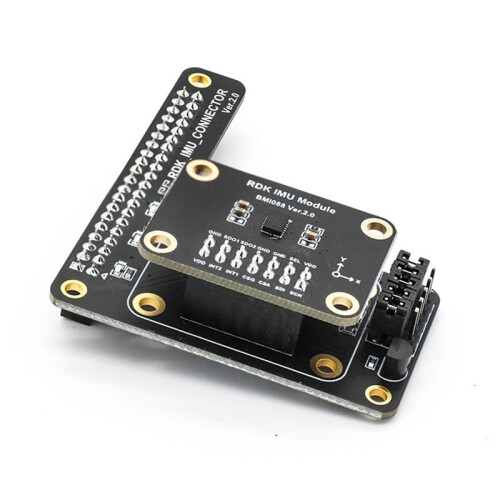

Product composition:RDK IMU Module (Inertial Measurement Unit Module) + RDK IMU Connector (RDK 40PIN Connector)
Working voltage:3.5V
working temperature:-40 to +85
Measuring range:3g/6g/12g / 24g
Output Data Rate (ODR):12.5 Hz-1600 Hz
Zero offset:20
Measuring range:125/250/500/1000 / 2000/s
Output Data Rate (ODR):100Hz - 2000Hz
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:PCB

Package Contents:
1 * RDK X5 IMU Module
