Remote Power Off Remote Battery Disconnect Control 12V 250A Upgraded Long Distance Control

Remote Power Off Remote Battery Disconnect Control 12V 250A Upgraded Long Distance Control Beskrivelse

1. More Convenient: The wireless remote control allows you not to open the hood every to turn off the power, just press the remote control button then your car power system is disconnected.
2. Battery Protection: The battery cut off plays an important role in extending the service life of battery, it effectively prevents the battery from draining while it is not used.
3. Space Saving: Our battery do not have many complicated wires, eliminating the troublesome of cable tangling, and its size is rather small, so it won't occupy much space.
4. Low Consuming: The power consumption of this is 5mA in standby and about 3W in operation, so this product is consumption friendly.

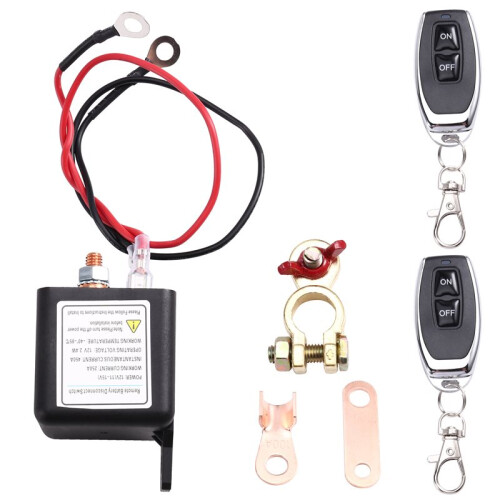

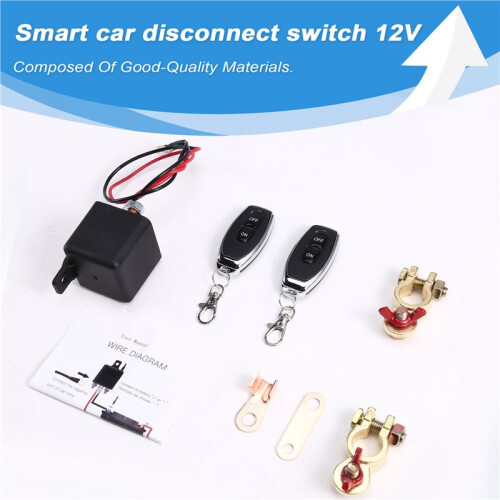

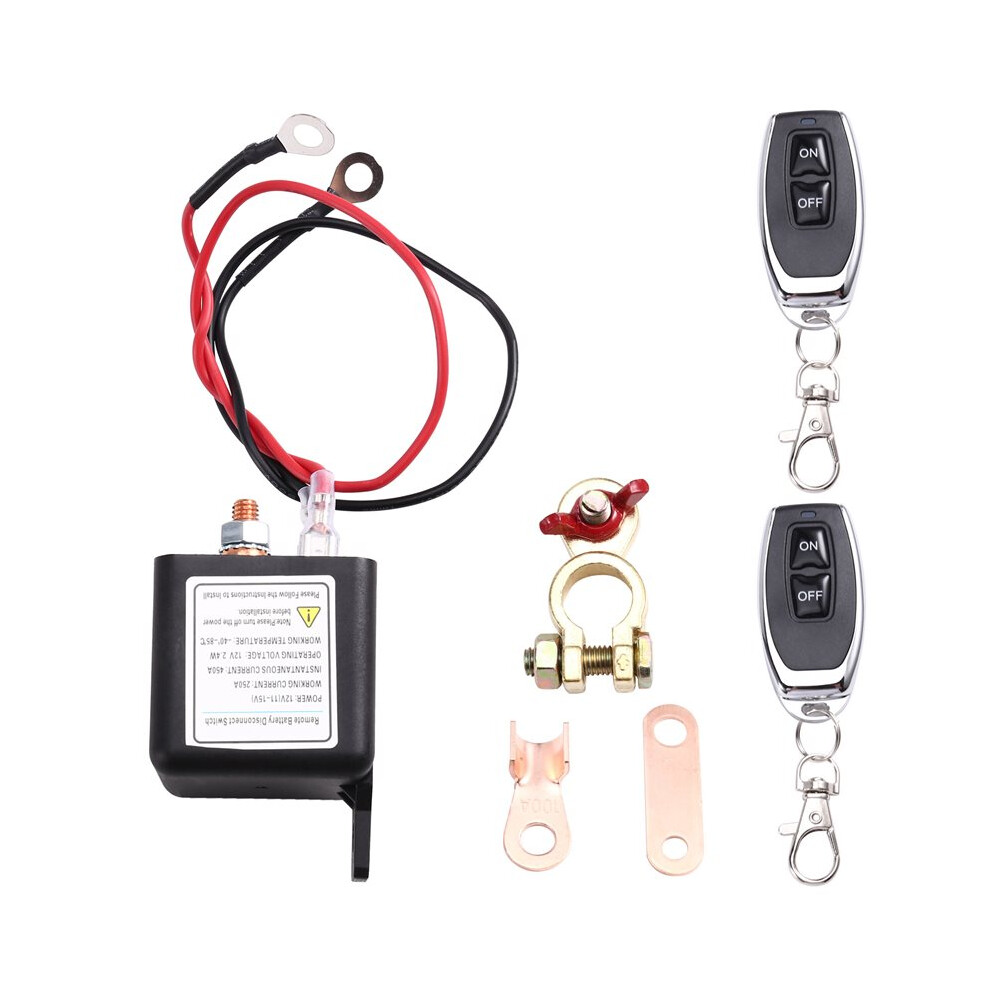

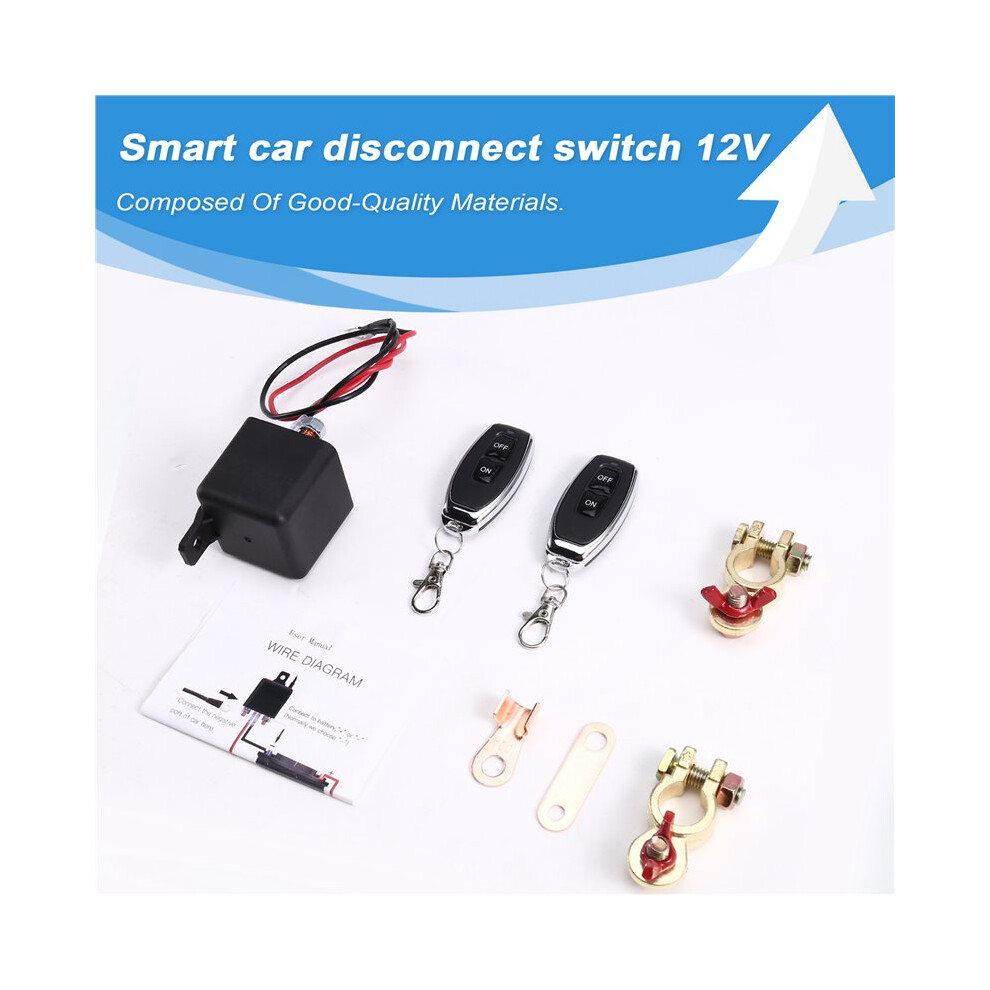

5. Convenient to operate: The battery disconnect kit comes with two copper plates, two metal clamps, and two copper nuts, it means you could install it easily in both positive or negative side.

Item Type: Remote Battery Disconnect
Battery Model: CR2016 ( one battery for each remote , shipped with built in battery )
Battery Capacity: 75mAh
Working Voltage: DC11-15V
Rated Current: 250A
Starting Current: 450A ( less than ten seconds )
Standby Current: 0.005A
Instructions:
Working Voltage: The 12V and 24V remote control power off switches cannot be mixed. 12V is selected for one battery vehicle, and the corresponding voltage shall be selected for most cars, small trucks, agricultural vehicles etc.
How to Use:
1: The thin red wire is connected to the positive pole of the battery, and the thin black wire is connected to the negative pole of the battery, these 2 wires supply power to the , which consumes little power.
2: The 2 large terminals the relay are the main . One incoming and one outgoing , regardless of the order, are
