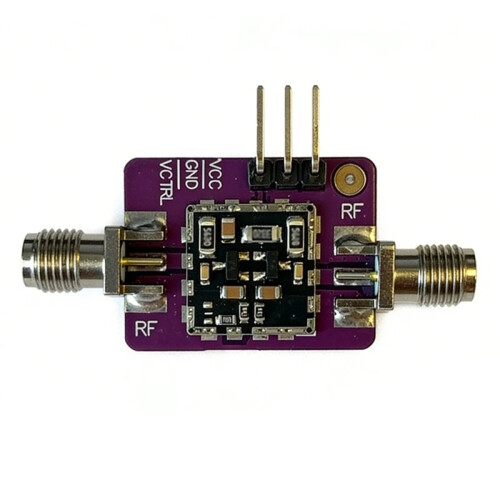

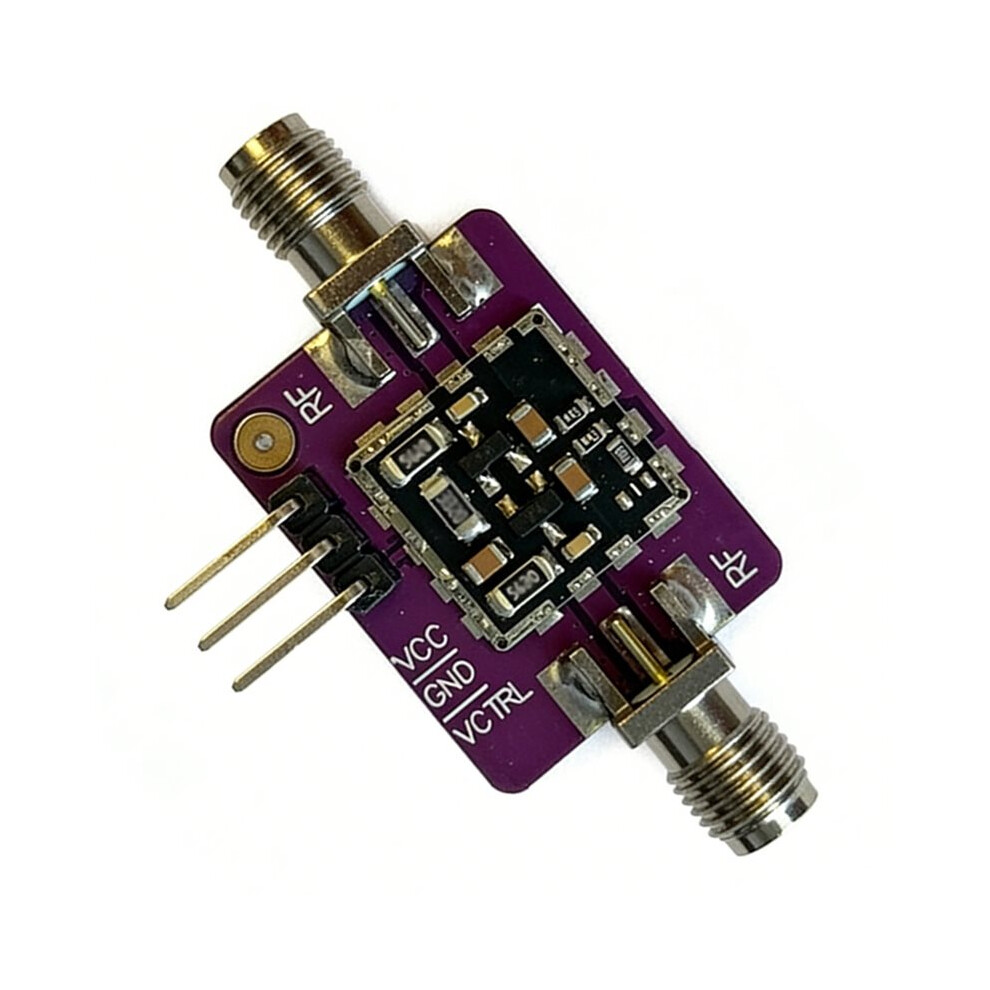

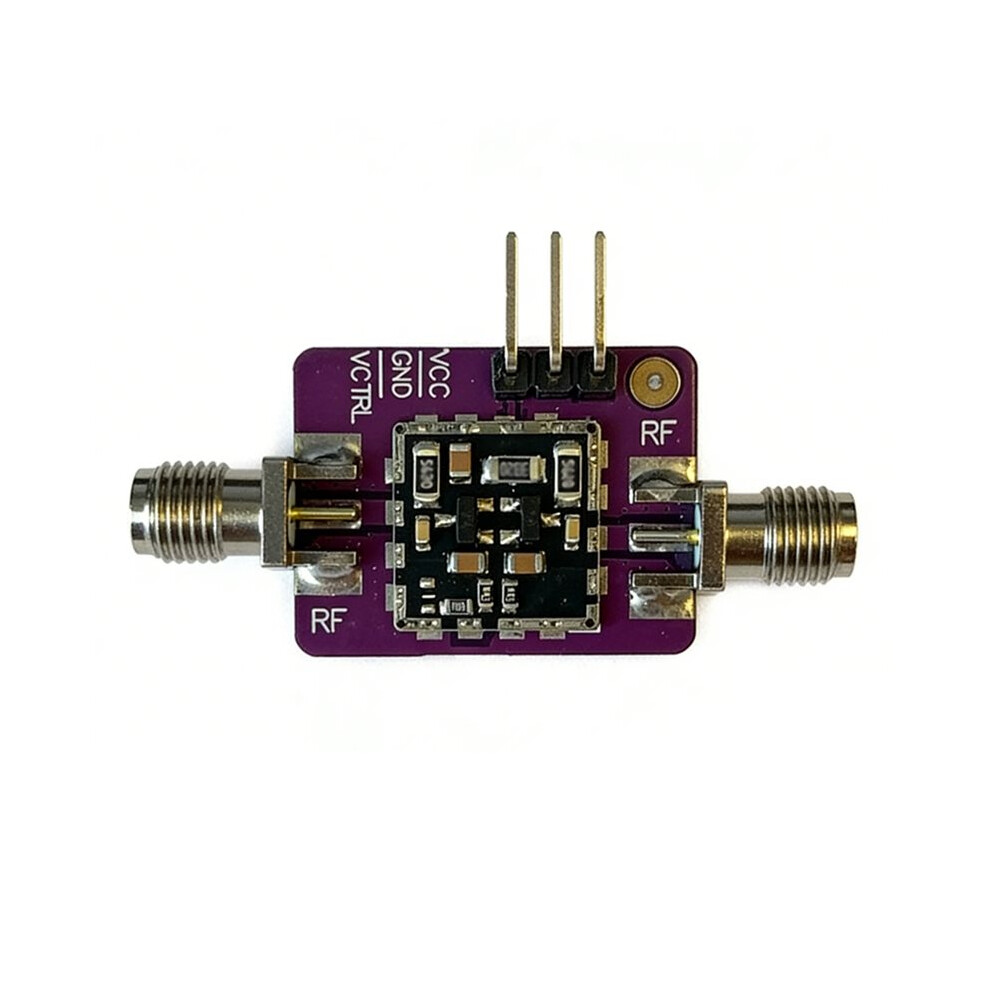

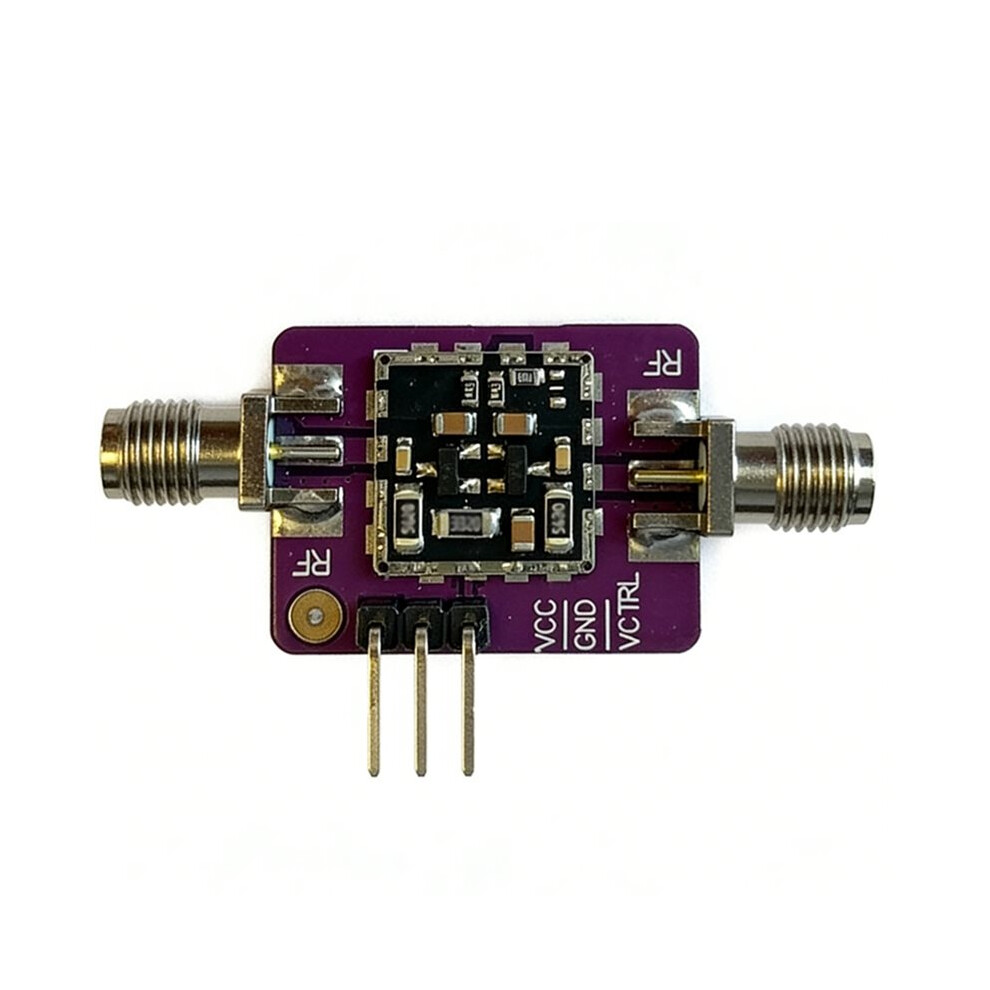

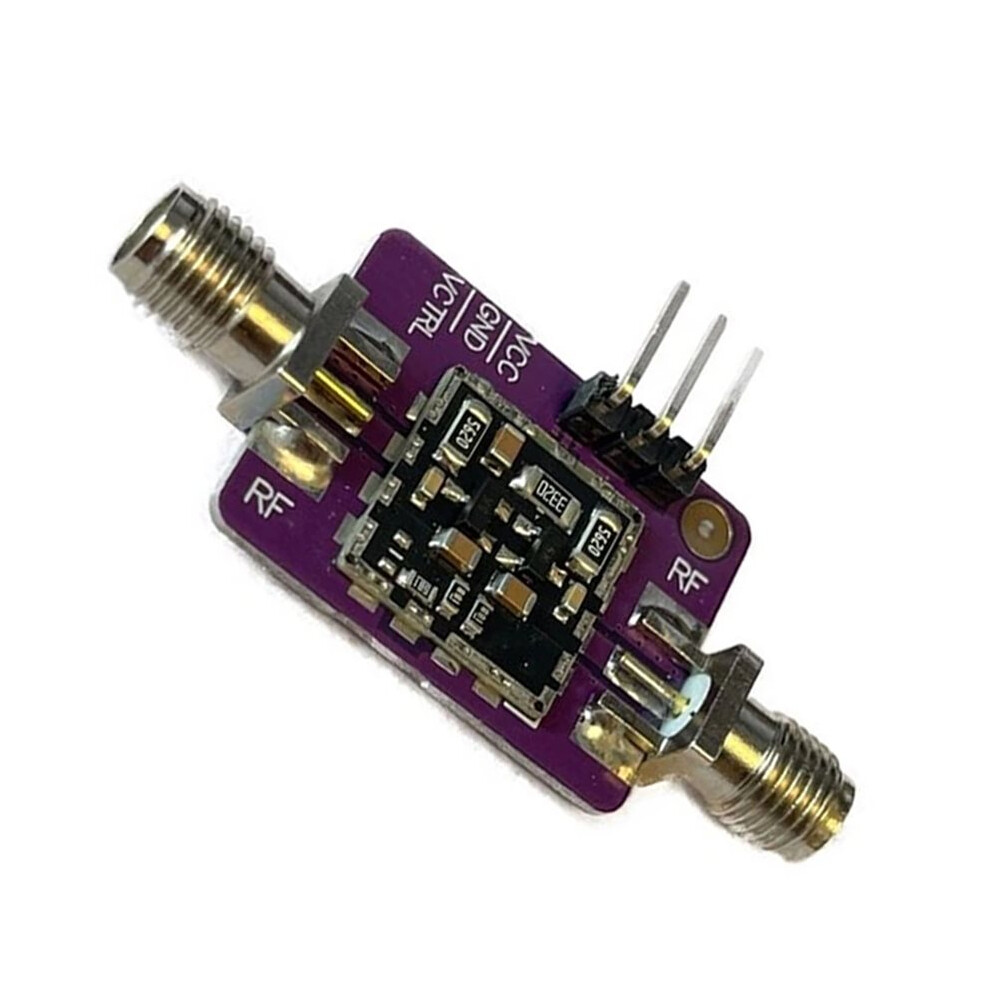

RF Attenuator Module 10MHz-4GHz Voltage Controlled Attenuator Module -3dB Step Accuracy to -25dB Low SWR
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
263,76 kr.
356,08 kr.
Spar 26%!
+32,99 kr. levering
1%
Tjen 2,64 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (32,99 kr.) | fre. 4. - tor. 10. sep.
Solgt af: BUBLBUshop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt
- 25 ~ -40dB total attenuation range, ultra-low -3dB step error, precisely controlling signal strength.
- Supports the full frequency band from low frequency to 10MHz - 4GHz, meeting demanding scenarios such as 5G, radar, and satellite communications.
- Distortion-free processing of high-power signals, ensuring system linearity.
- Wide-range power supply: +3V or +5V single power supply, 5mA low power consumption, compatible with mainstream systems.
- Comprehensive Application Scenarios, including various RF applications and systems.
RF Attenuator Module 10MHz-4GHz Voltage Controlled Attenuator Module -3dB Step Accuracy to -25dB Low SWR Beskrivelse
25 ~ -40dB total attenuation range, ultra-low -3dB step error, precisely controlling signal strength.
Supports the full frequency band from low frequency to 10MHz - 4GHz, meeting demanding scenarios such as 5G, , and satellite communications.
Distortion-free processing of high-power signals, ensuring system linearity.
Wide-range power supply: +3V or +5V single power supply, 5mA low power consumption, compatible with mainstream systems.
Comprehensive Application Scenarios, including various RF applications and systems.
Specification:
Bandwidth: 10MHz - 4GHz
Power supply voltage: 3 - 5V (the maximum voltage can not exceed 12V)
Control voltage: 1 - 17V (the maximum voltage can not exceed 20V)
Maximum RF input power: 20dBm
Adjustment range: -25 ~ -3dB (for range with good flatness, if the requirement for flatness is not so high, it can reach a maximum of about -40dB)
Interface type: SMA female connector
Color: As Shown
Material: PCB
Package Contents:
1*RF Attenuator Module
Detaljer
| OPC | PXSF5RJ |
|---|---|
| Koder | 4713329745489 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Material | PCB |
