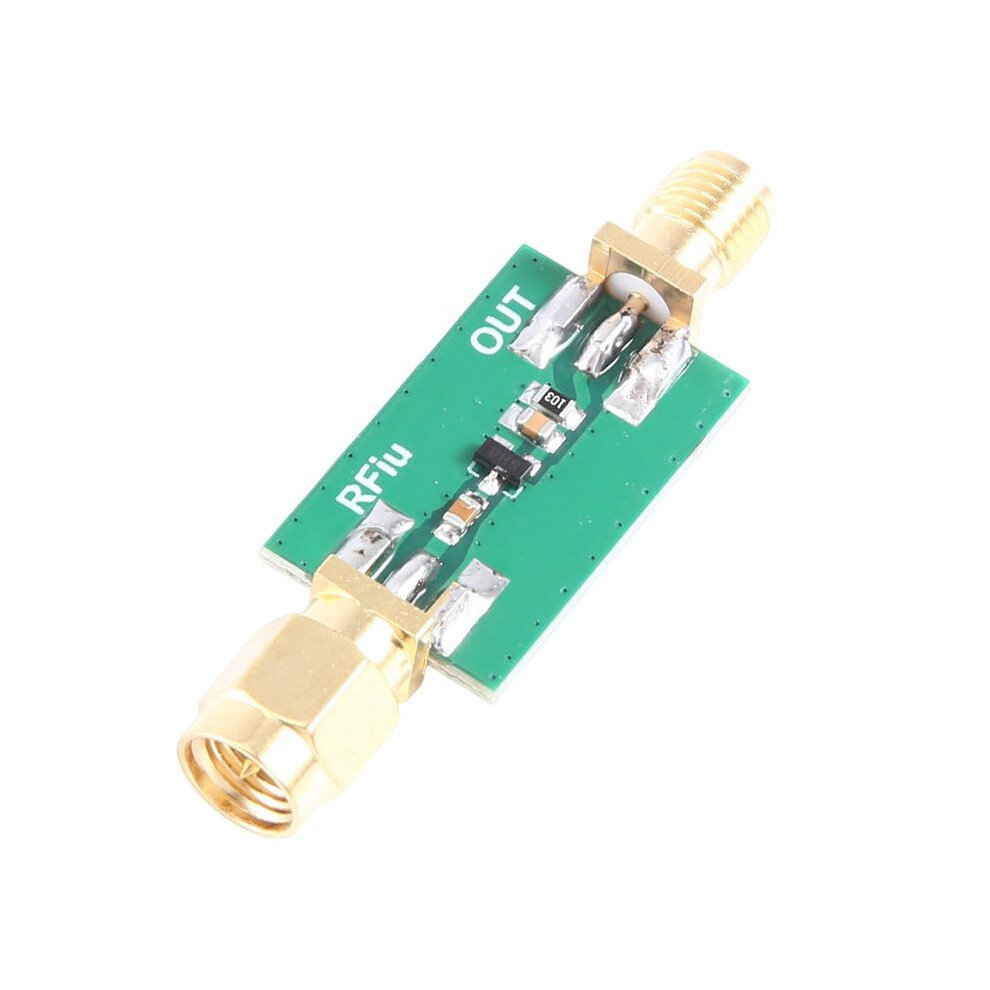

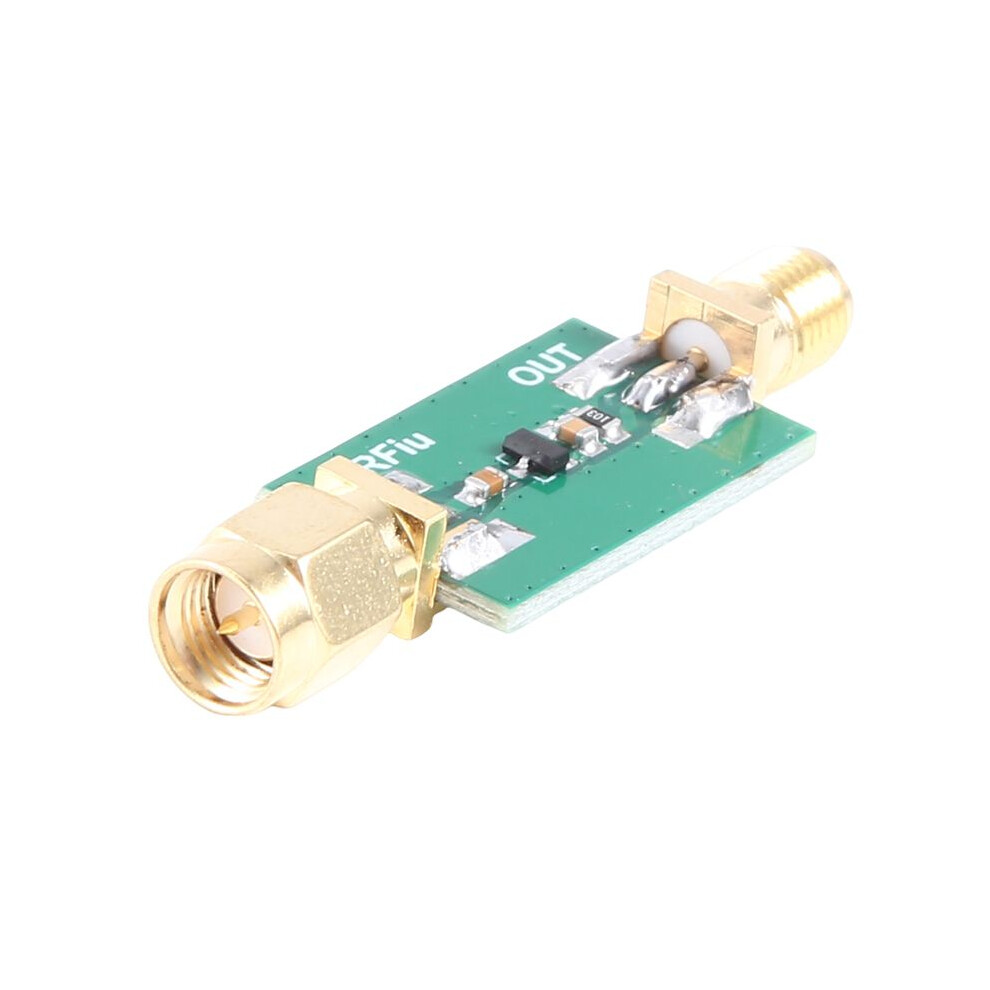

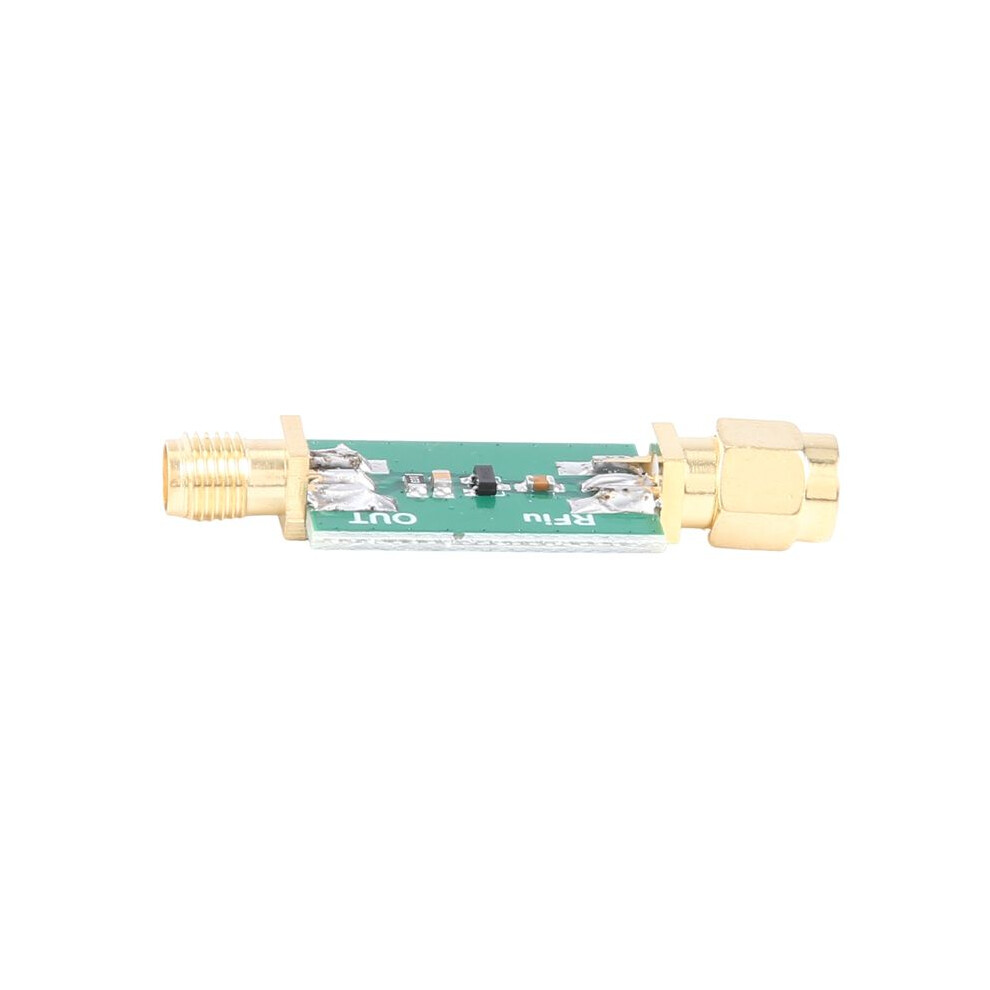

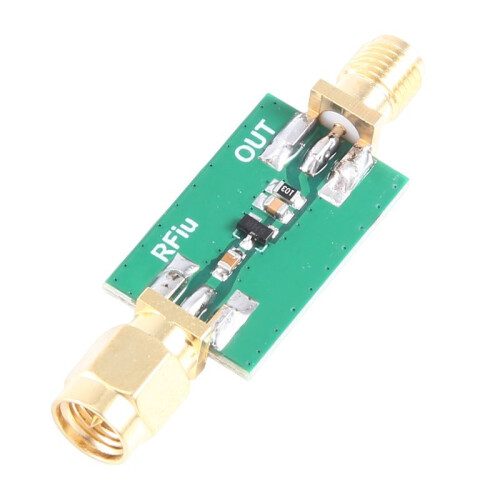

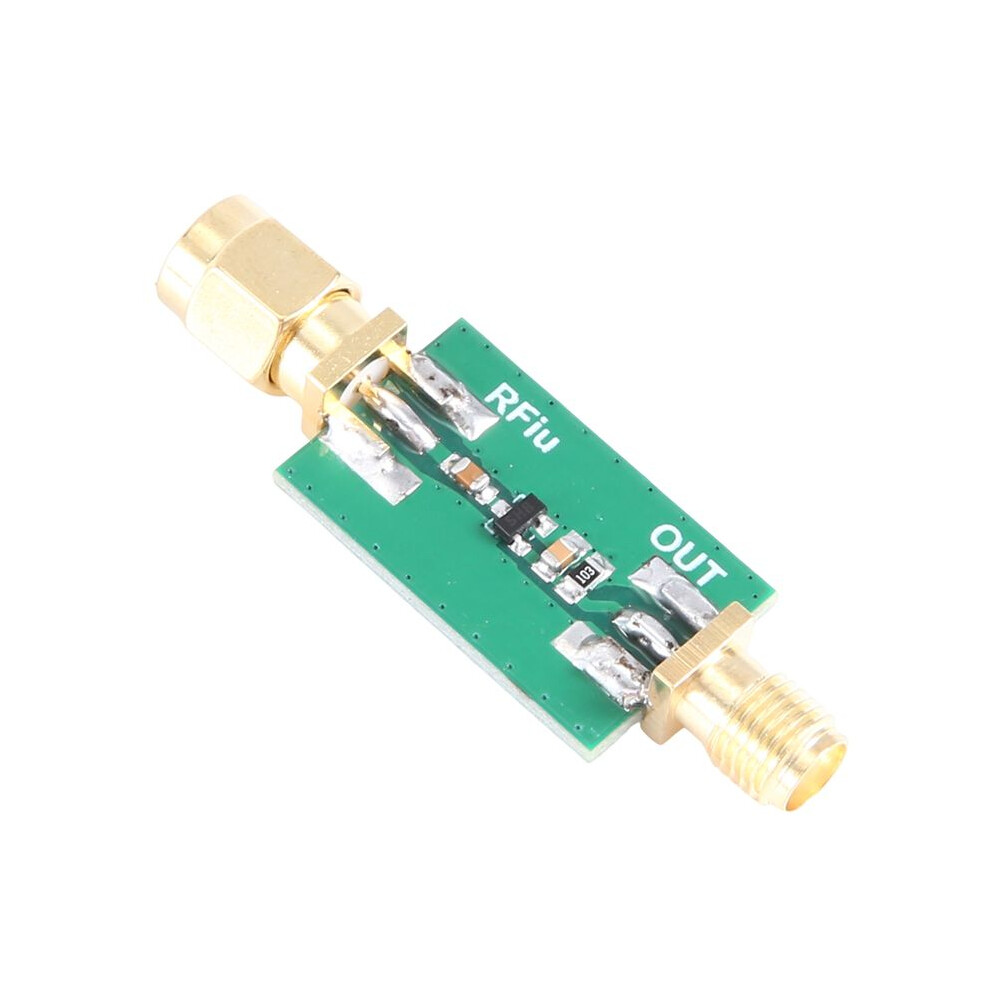

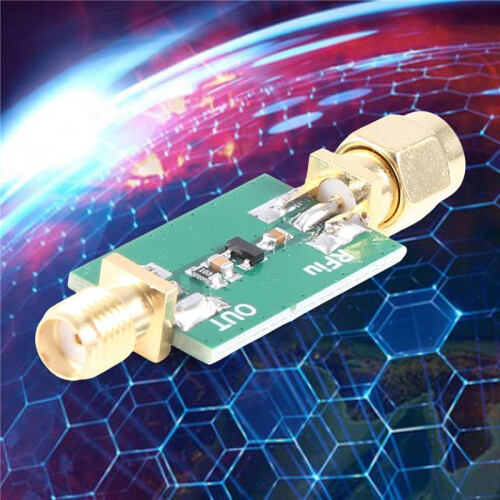

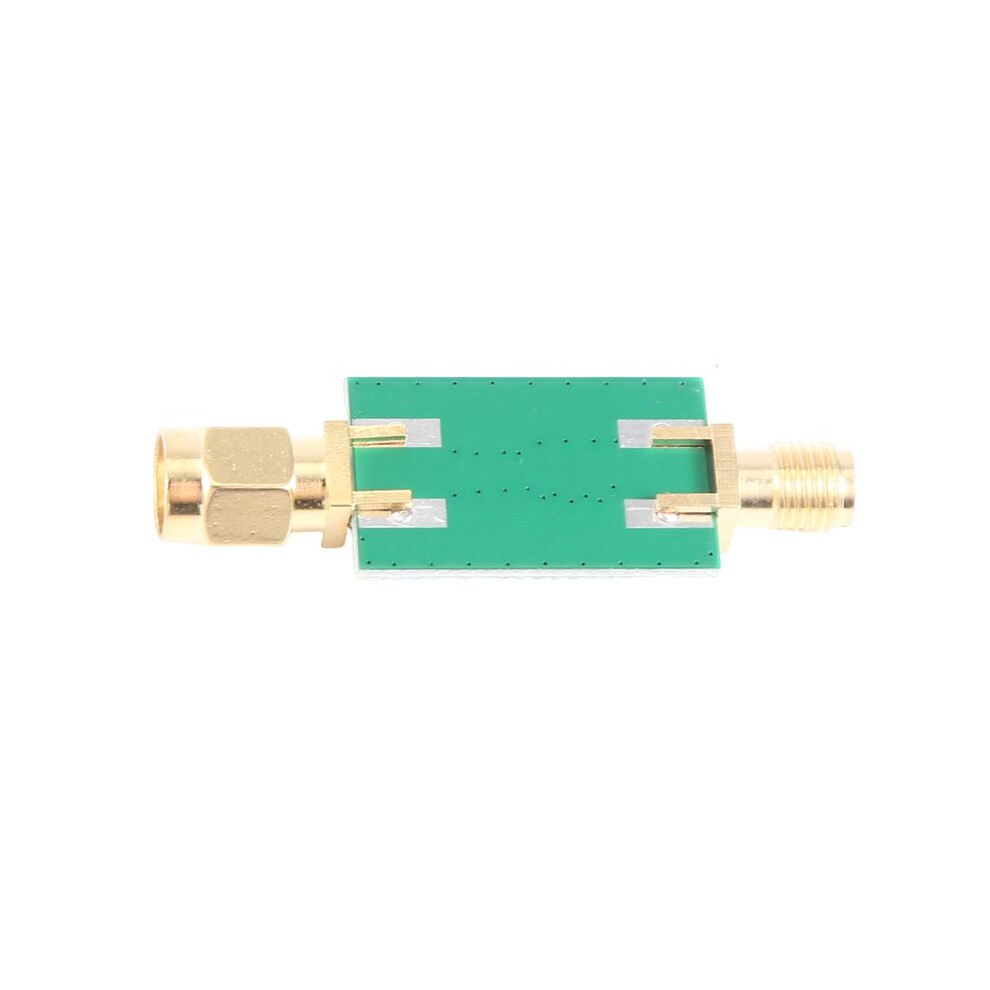

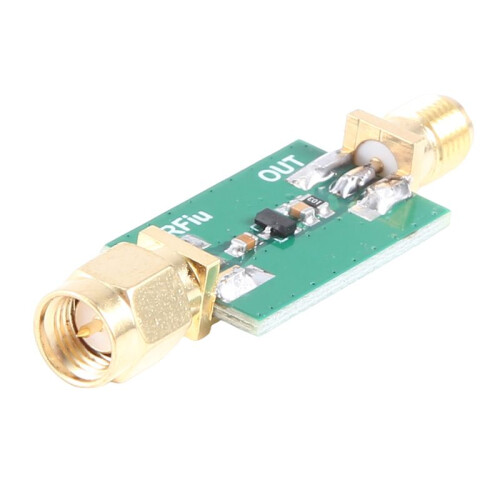

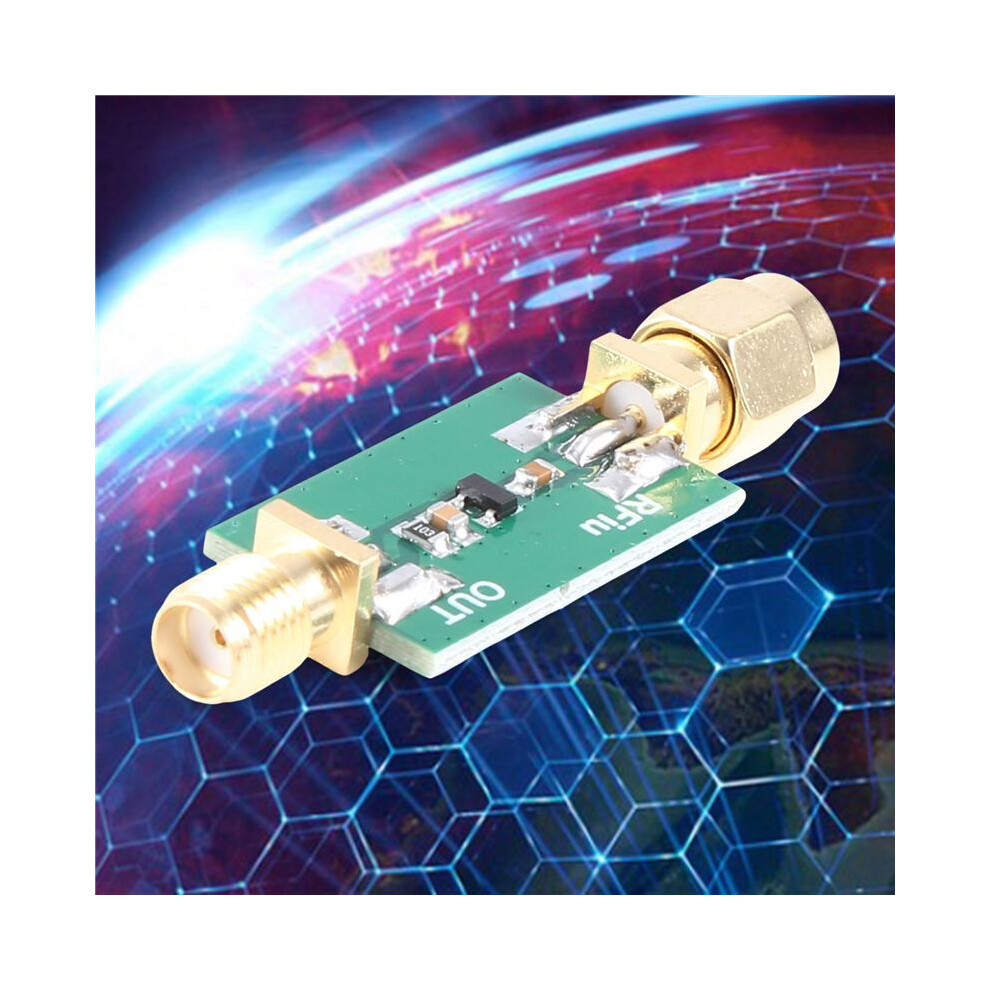

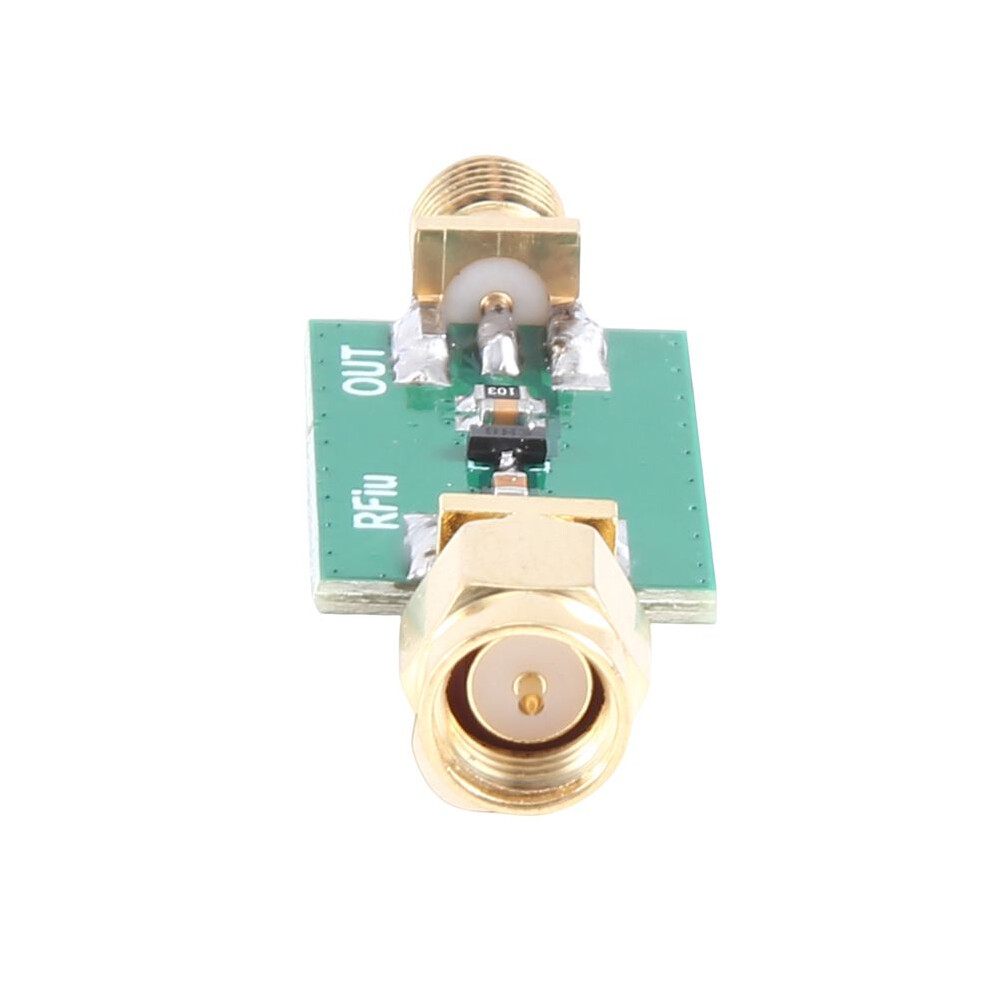

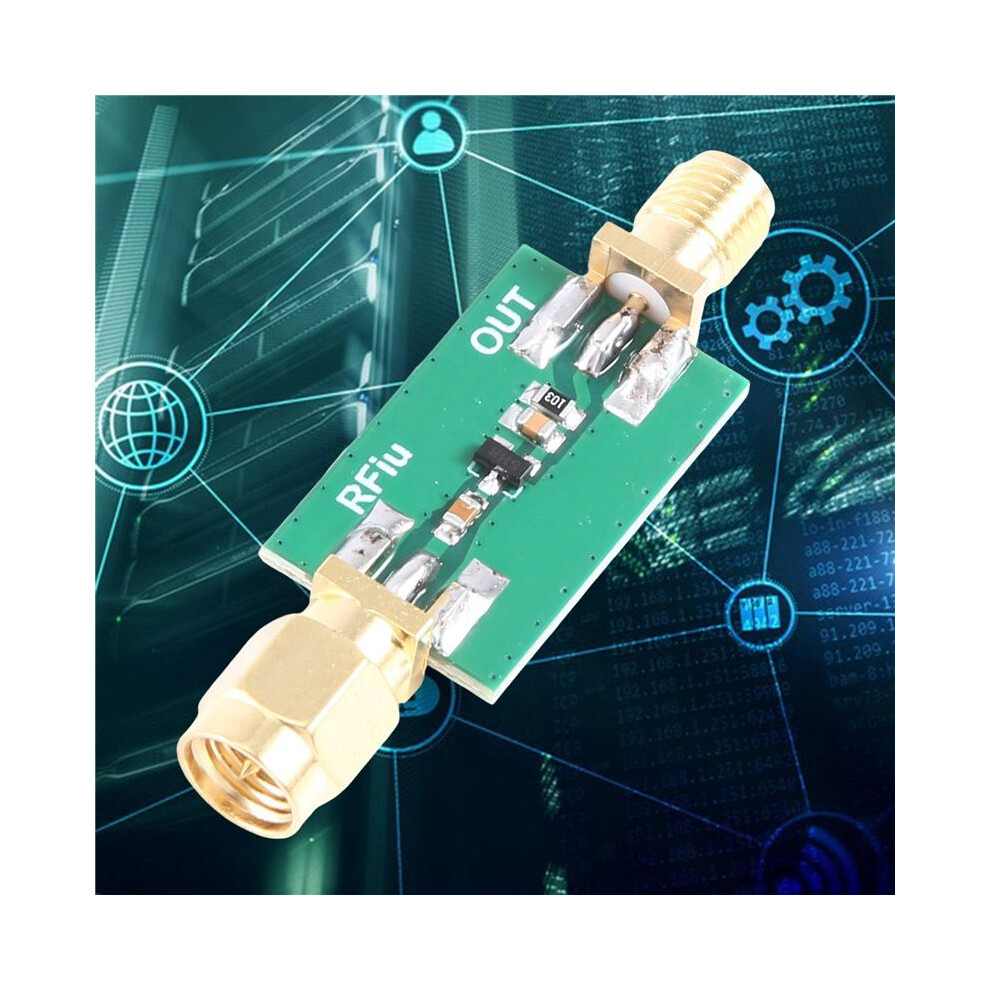

RF Envelope Detector Discharge Detector 0.1-3200MHz Multifunctional Convenient Portable Utility Detector Module

RF Envelope Detector Discharge Detector 0.1-3200MHz Multifunctional Convenient Portable Utility Detector Module Beskrivelse

High Sensitivity: -30DBM--40DBM (First Choice For Radio Production)
Wide Frequency Range: Not Less Than 3200mhz (Discharge Signal Detection)
Fast Response Speed: PS Level, (Pulse Detection)
Tr Component Power Detection
If You Want A Lower Operating Frequency, You Can Increase The Output Capacitance. If You Want A Fast Response, You Need To Reduce The Capacitance. This Is A Contradiction And You Can Configure It According To Your Own Needs.

Product Specifications
1. Maximum Input: 20Dbm (Burned Power) Linear Range Less than 10Dbm
2. Detection Output: The Default Is Positive (If You Need Negative Output, Please Contact The Store)
3. Working Frequency: 0.1--3200Mhz
4.Rc Filter: R=10K, C=1NF; (Two Parallel Components At The Output Port)
Working Principle
1. This Product Uses A Voltage Doubler Detector (Composed Of Two Reverse Microwave Diodes), Which Is 6db More Sensitive Than A Single-Tube Detector. It Has Very High Sensitivity (Typically -30dbm, Even -40dbm), Which Is Not Ordinary. 2ap9 And 1n60 Are Comparable.
2. The Detector Adopts Imported Microwave Diode Design And Has A Very High Operating Frequency (Not Less Than 3200mhz). It Can Be Used For Various High-Frequency And Radio Frequency Signal Detection, Such As Am Detection, 10.7mhz Am Detection, And Discharge Signal 300-1200mhz. Detection, Signal Detection Switching Circuit In Wifi 2.4G Amplifier, Radio Collection In Free Space.
Material: PCB
Color as shown

Package Contents:
1 x RF Detector Module
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
