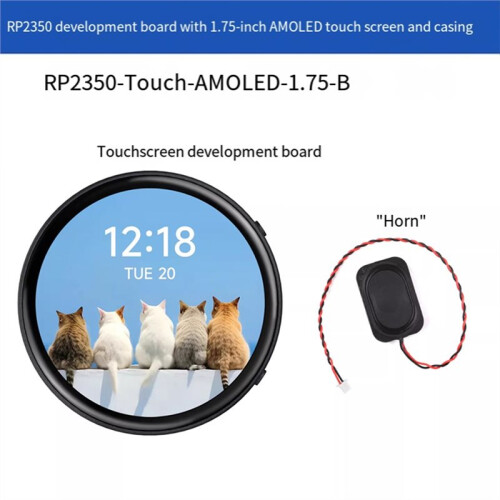

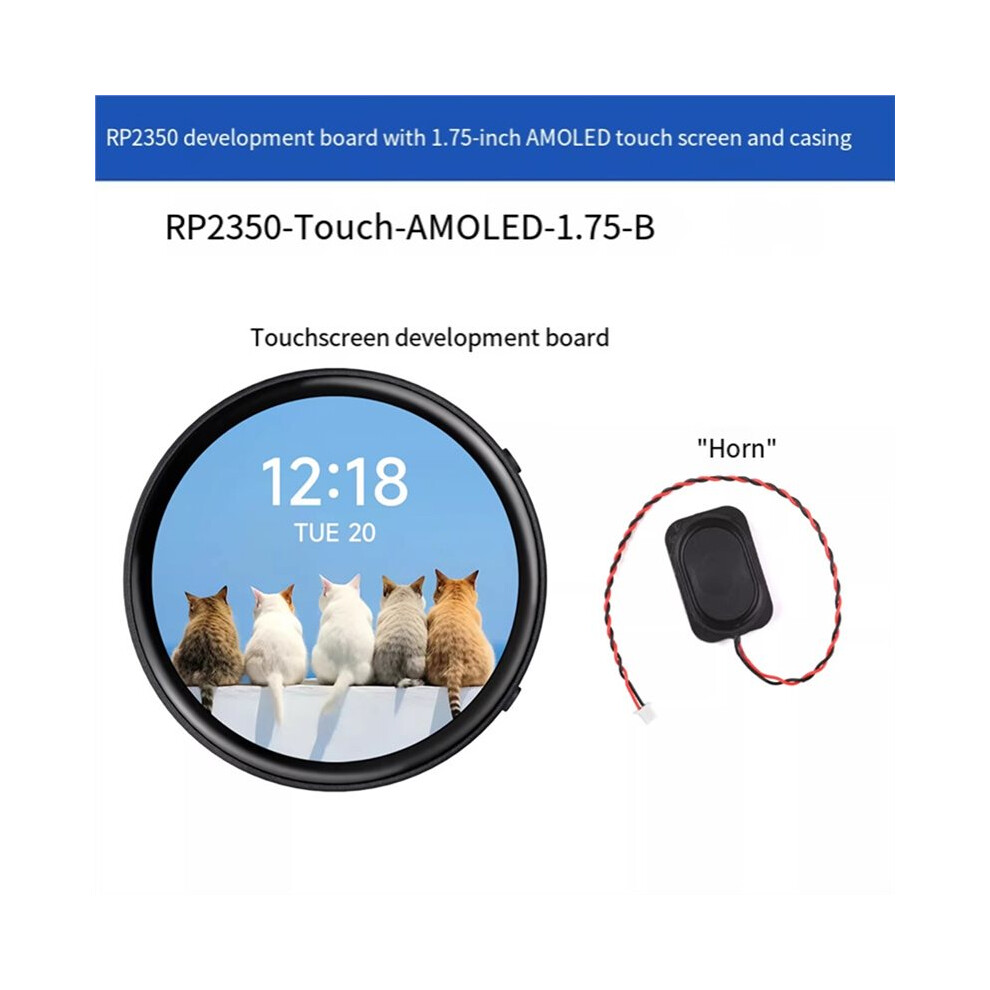

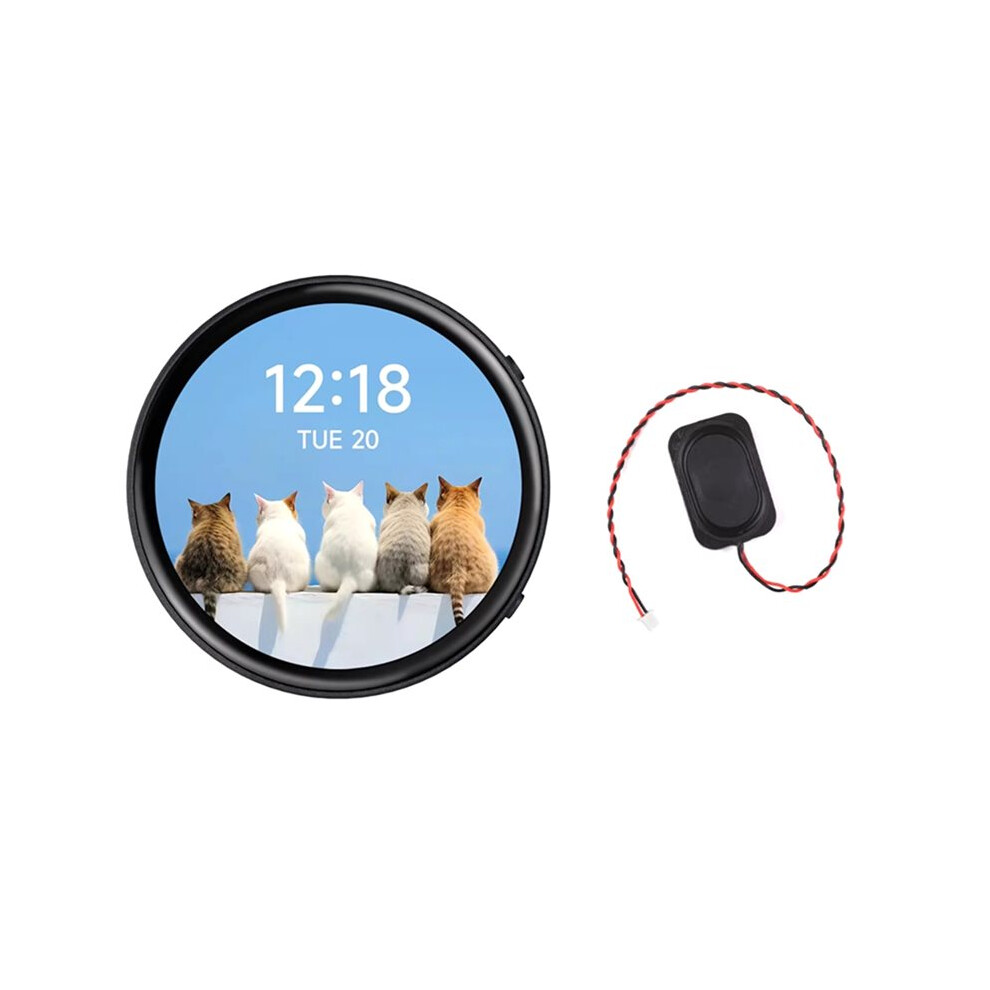

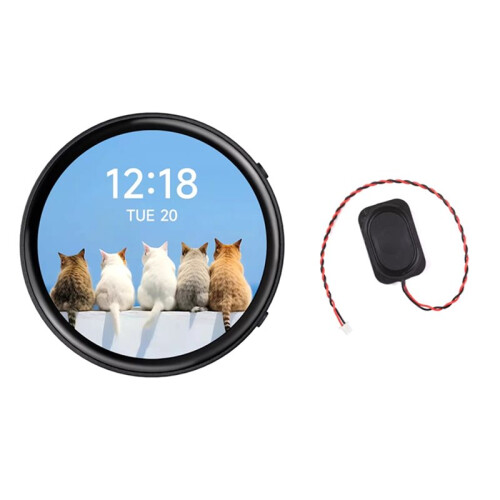

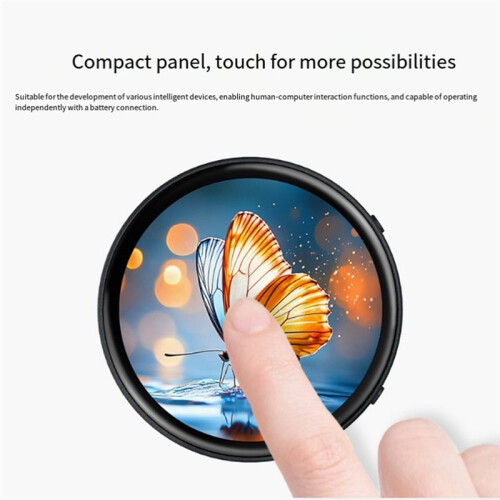

RP2350 1.75inch AMOLED Round Touch Display Development Board 466x466 Capacitive Touch with Speaker B
Brand Jojomino
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
587,92 kr.
946,65 kr.
Spar 38%!
+23,00 kr. levering
1%
Tjen 5,88 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Prioritet (23,00 kr.) | fre. 28. aug. - ons. 2. sep.
Solgt af: BALURE
Returnering: 30 dage
180 dages betalingsbeskyttelse
Beskrivelse og detaljer
Oversigt
- Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both clocked at up to 150MHz, allowing users to flexibly switch between the two architectures
- It has 520KB of built-in SRAM and 16MB of on-chip Flash, and a reserved PSRAM pad

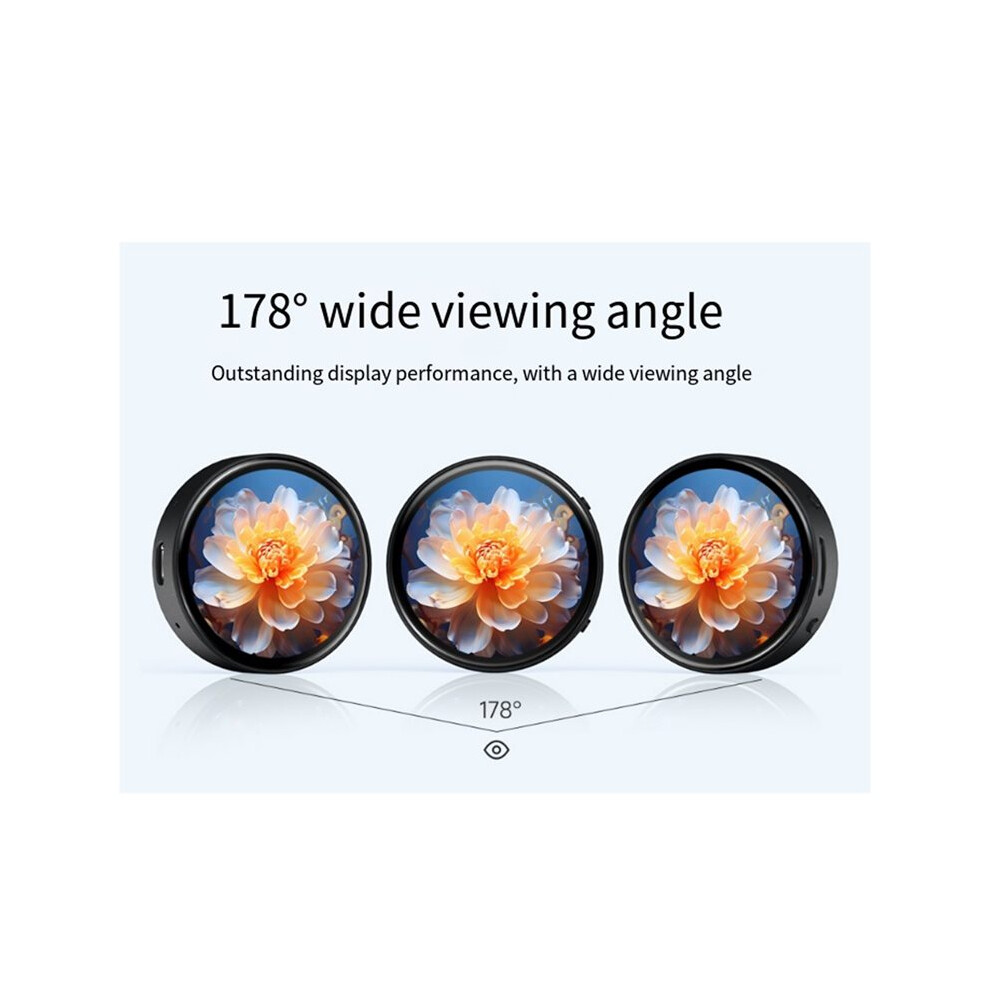

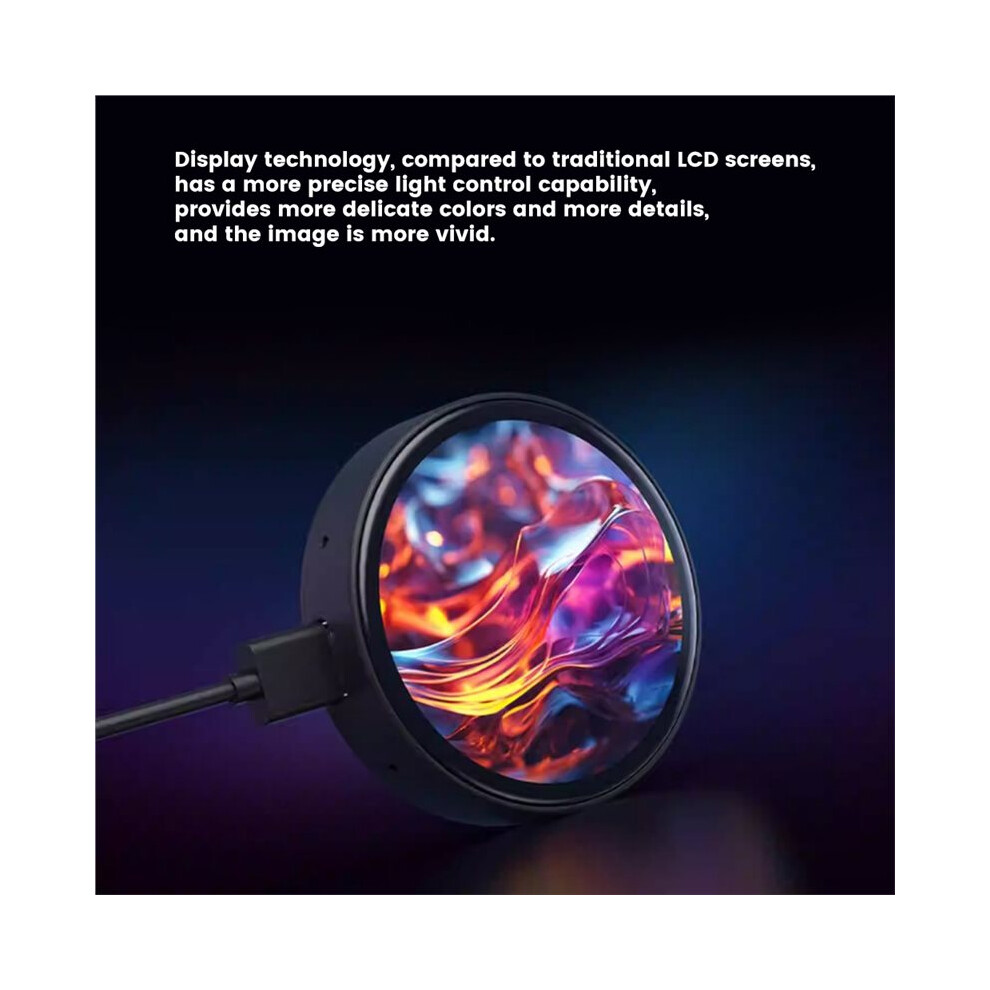

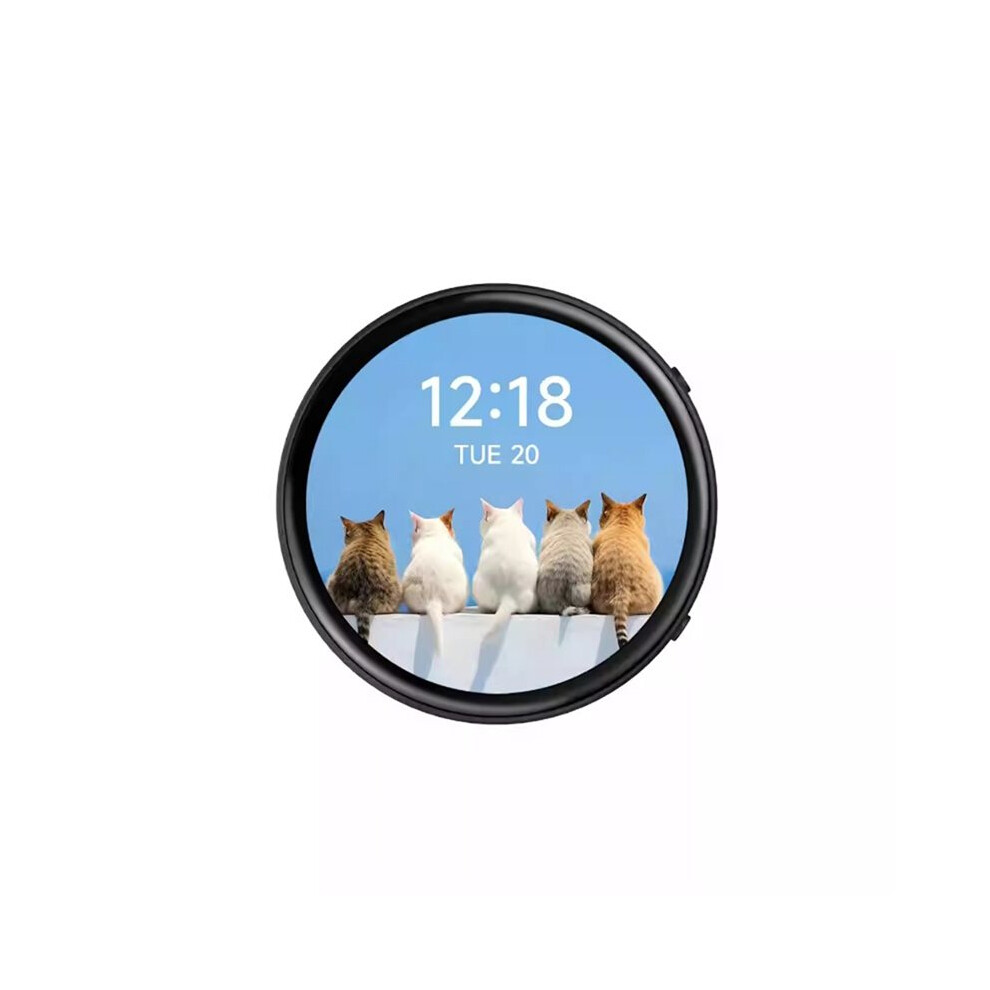

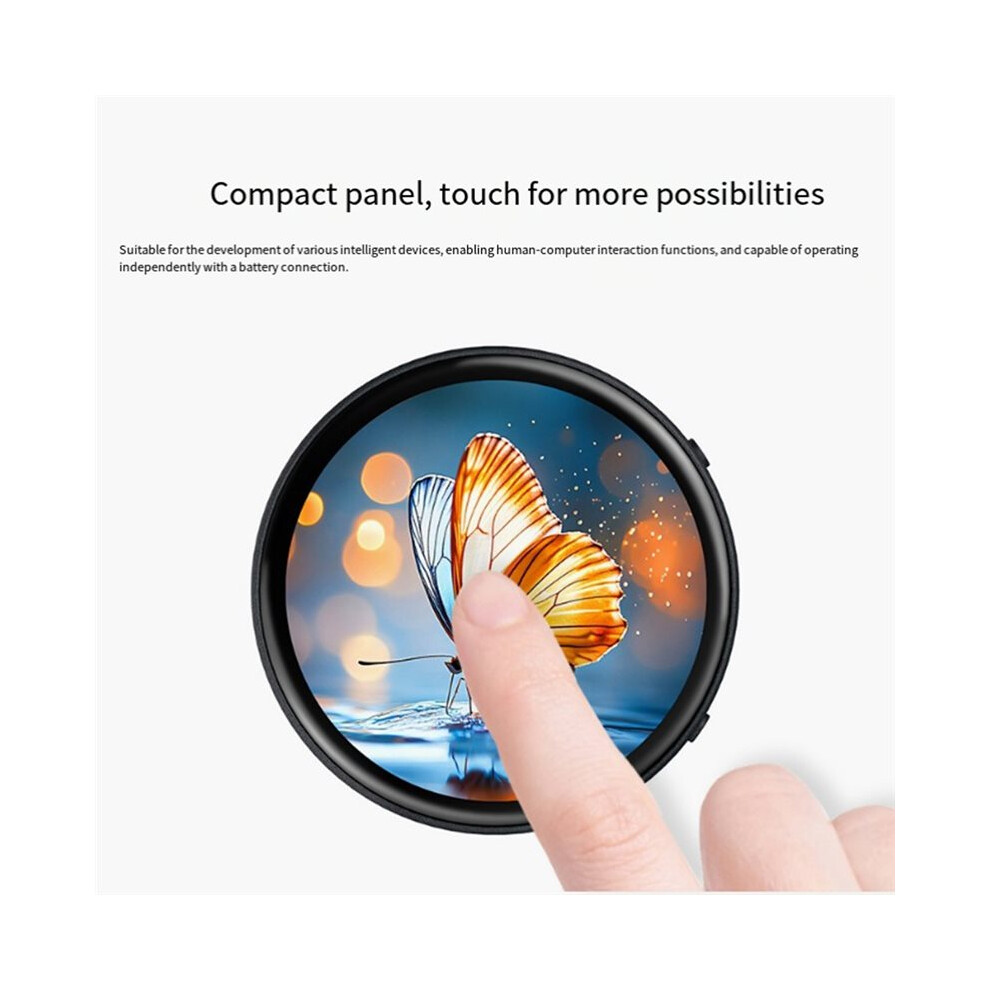

- It features an onboard 1.75-inch capacitive touch HD AMOLED screen with a 466x466 resolution and 65K color depth, capable of clearly displaying color images
- It integrates a CO5300 driver chip and a CST9217 capacitive touch chip, using QSPI and I2C interfaces for communication respectively, without occupying too many interface pin resources
- The onboard 3.7V MX1.25 lithium battery charging and discharging interface is beneficial for use in mobile scenarios
RP2350 1.75inch AMOLED Round Touch Display Development Board 466x466 Capacitive Touch with Speaker B Beskrivelse
Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both clocked at to 150MHz, allowing users to flexibly between the two architectures
It has 520KB of built-in and 16MB of -chip Flash, and a reserved PSRAM pad
It features an onboard 1.75-inch capacitive touch HD AMOLED screen with a 466x466 resolution and 65K color depth, capable of clearly displaying color images
It integrates a CO5300 driver chip and a CST9217 capacitive touch chip, using QSPI and I2C interfaces for communication respectively, without occupying too many interface pin resources
The onboard 3.7V MX1.25 lithium battery charging and discharging interface is beneficial for use in mobile scenarios
USB 1.1 host and slave device support
Supports low-power sleep and hibernation modes
It can be recognized as a mass storage device via USB for drag-and-drop program downloading.
Color: As Shown
Material: PCB+LCD
Specification: No GPS
Package Contents:
1*RP2350 1.75inch Board kits
Detaljer
| OPC | PXFVX9X |
|---|---|
| Mærke | Jojomino |
| Koder | 6031634309720 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 5cm |
| Length | 10cm |
| Weight | 0.2kg |
| Colour | As Shown |
| Size | No GPS |
| Material | PCB+LCD |
