RP2350 4.3inch Touch LCD Dev-Board 800x480 Captive TouchScreen Display Board LVGL with Sensor CAN/I2C/RS485

RP2350 4.3inch Touch LCD Dev-Board 800x480 Captive TouchScreen Display Board LVGL with Sensor CAN/I2C/RS485 Beskrivelse

It has 520KB of built-in , 16MB of -chip Flash, and 2MB of PSRAM

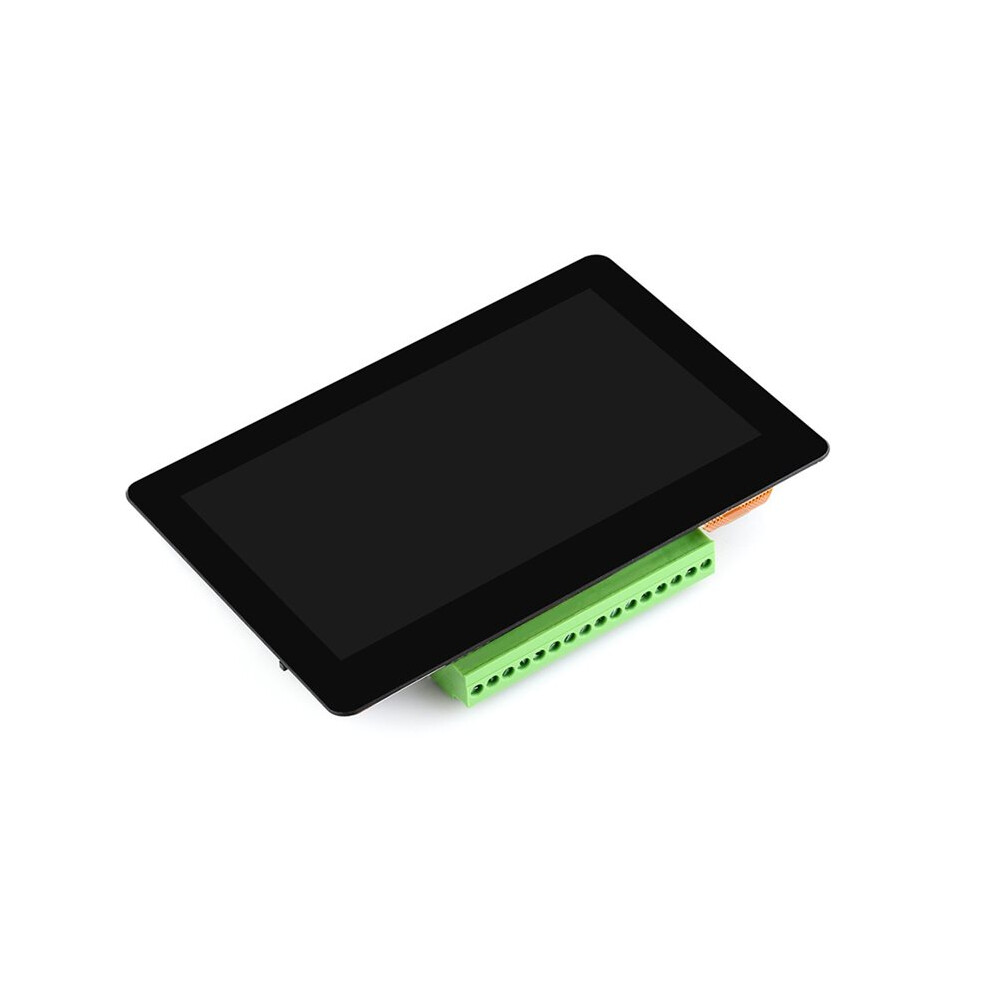

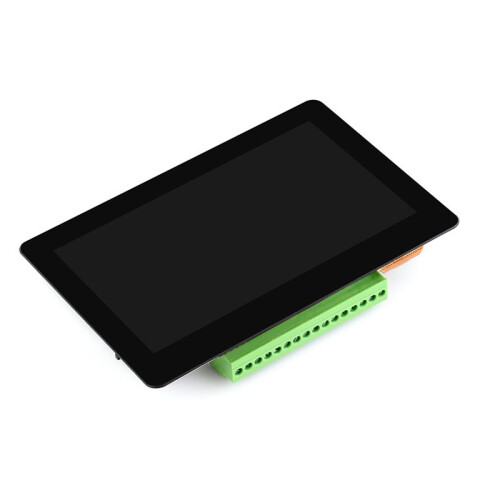

Onboard 4.3-inch LCD capacitive touchscreen, 800x480 resolution, 65K color
Supports I2C interface control of capacitive touchscreen, 5-point touch, and interrupt support

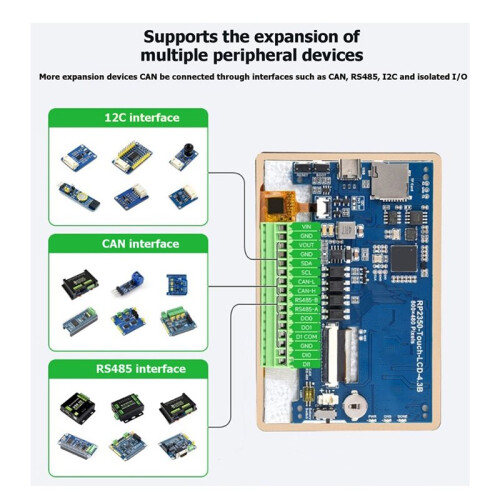

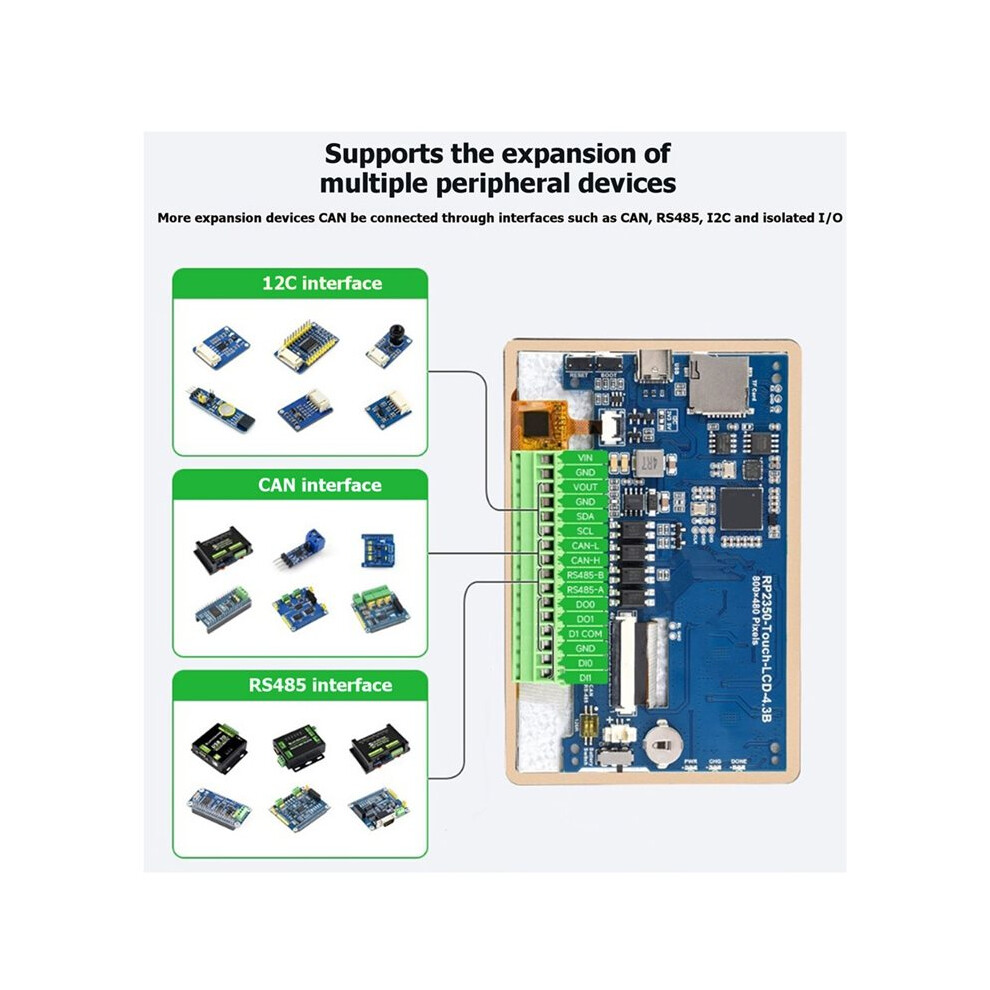

Onboard CAN, RS485, I2C interfaces and digital isolated I/O resources
Onboard voltage regulator chip, supports wide voltage supply from 7V to 36V
The RP2350-Touch-LCD-4.3 is a high-performance, highly integrated microcontroller development board designed independently by Waveshare. It integrates high-capacity Flash and PSRAM, and features an onboard 4.3-inch capacitive high-definition LCD screen, RTC, Micro card slot, and other peripherals. Combined with multiple communication interfaces, it facilitates development and integration into products

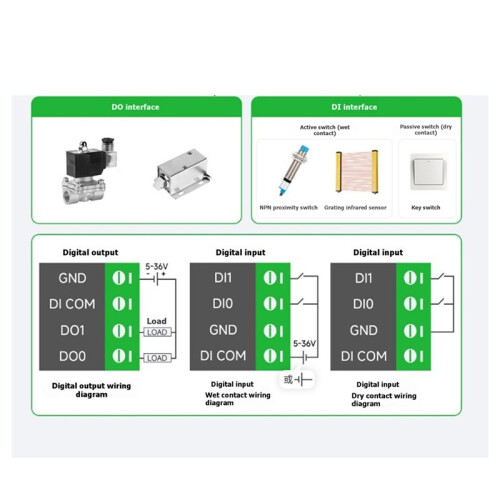

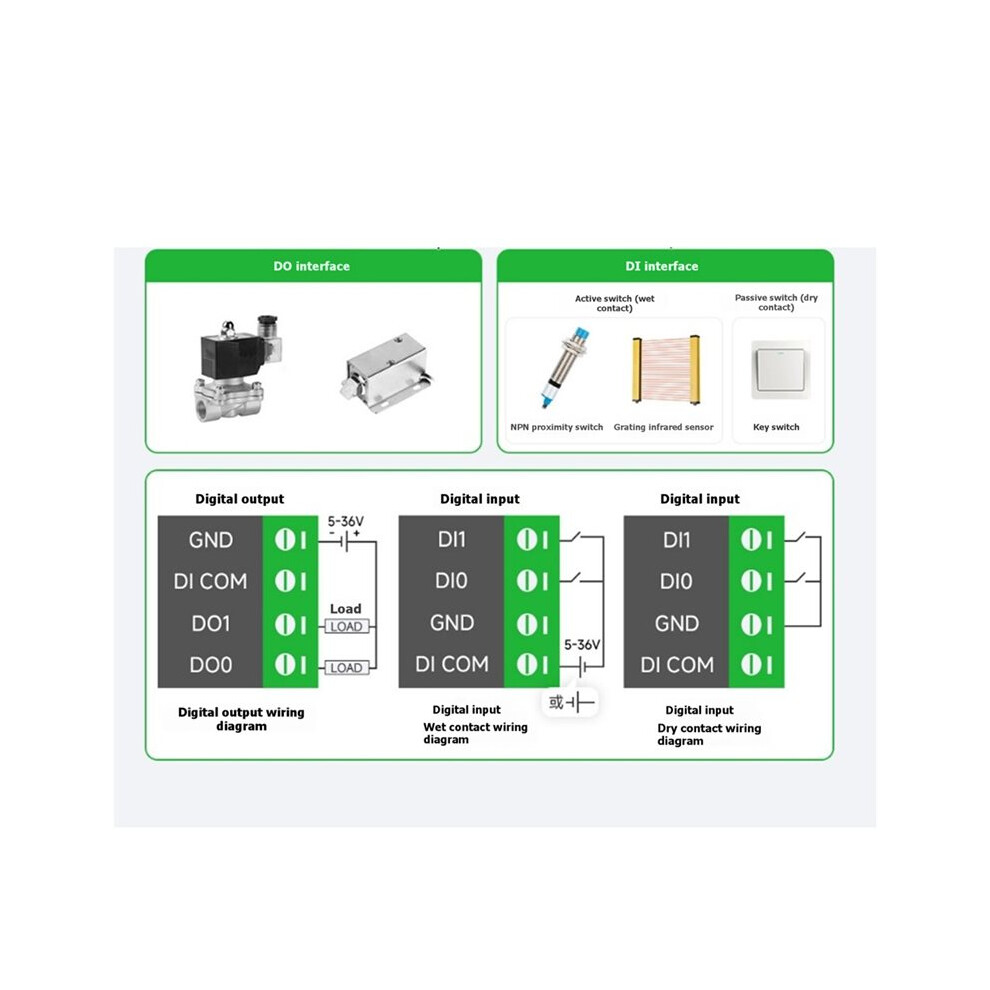

The input features bidirectional optocoupler isolation and supports both passive and active digital inputs. Active inputs support both positive and negative voltages.
The output features optocoupler isolation, providing stronger driving capability and a sink current of to 450mA (MAX).
Color: As Shown
Material: PCB+LCD

Package Contents:
1*4.3-inch touchscreen development board with terminals
