Produktbilleder

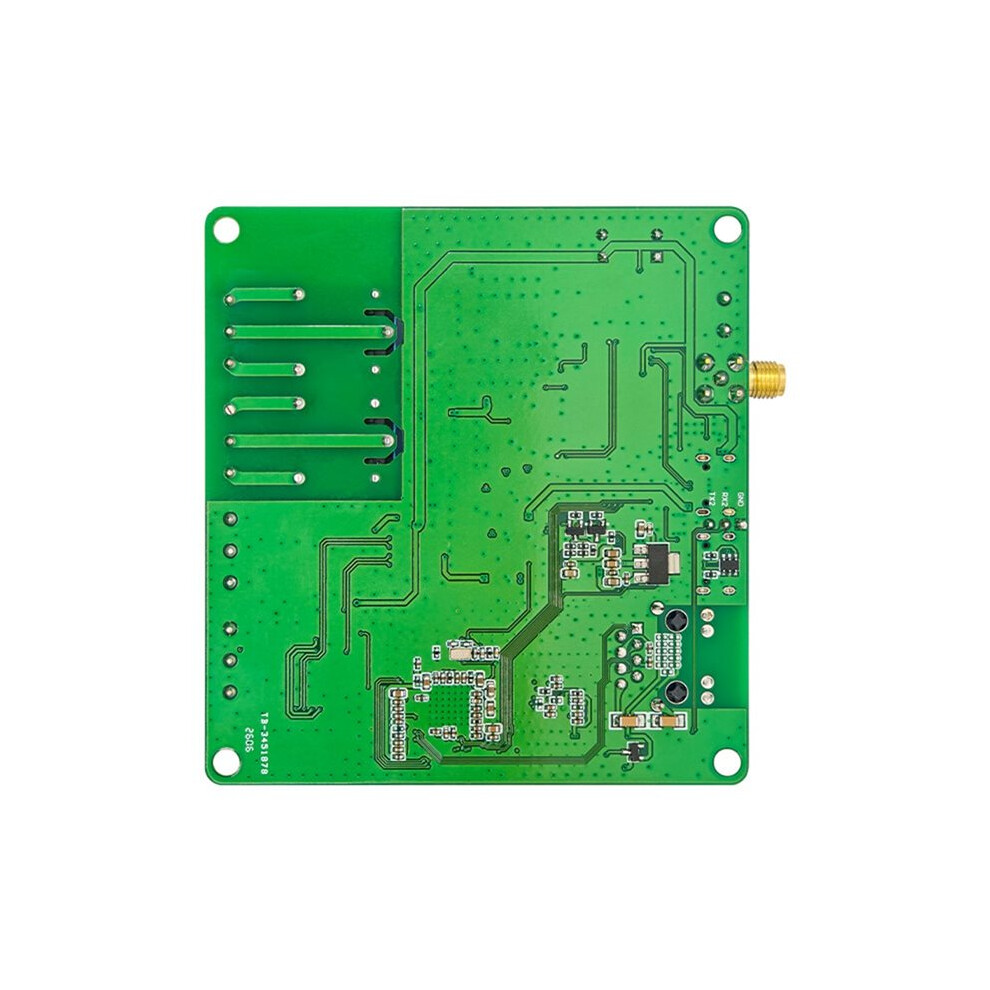

RV1106G3 Industrial PC Computing Box, 10/100M Ethernet WIFI 4G RS485 2 Inputs 2 Outputs Secondary Development
Brand Exogio
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
735,40 kr.
1.058,16 kr.
Spar 31%!
+31,63 kr. levering
1%
Tjen 7,35 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | fre. 7. - ons. 12. aug.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Computerprocessorer
Beskrivelse og detaljer
Oversigt

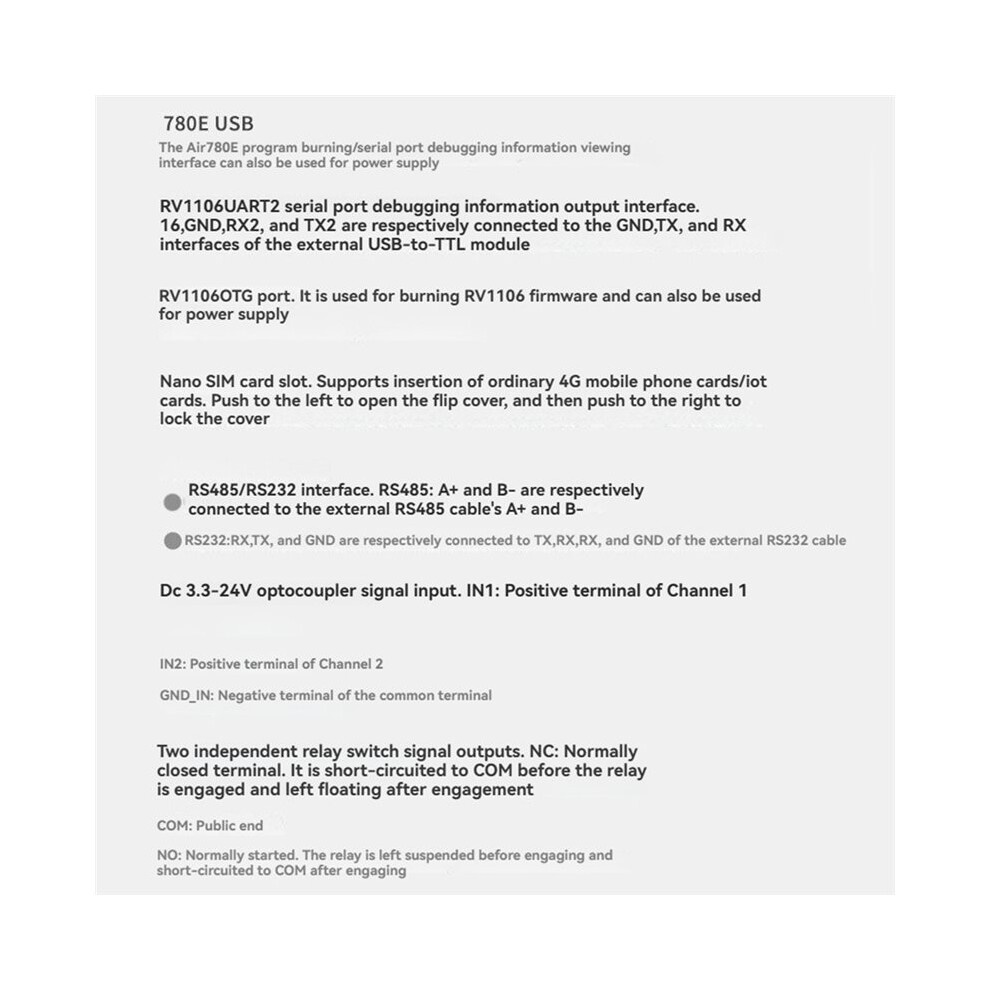

- Integrated 8GB eMMC for system programming, with an exposed Air780E USB programming interface for easy secondary development.
- Supports Type-C USB 5V/DC 8-36V wide voltage power supply.
- Provides a Python Demo test program for Linux development environment and a matching Air780E MOTT test program based on LuatOS, allowing users to further develop various devices for IoT control.
- RV1106G3 Dev board
- Edge Computing Box
RV1106G3 Industrial PC Computing Box, 10/100M Ethernet WIFI 4G RS485 2 Inputs 2 Outputs Secondary Development Beskrivelse
Integrated 8GB eMMC for system programming, with an exposed Air780E USB programming interface for easy secondary development.
Supports Type-C USB 5V/ 8-36V wide voltage power supply.
Provides a Python Demo test program for Linux development environment and a matching Air780E MOTT test program based LuatOS, allowing users to further develop various devices for IoT control.

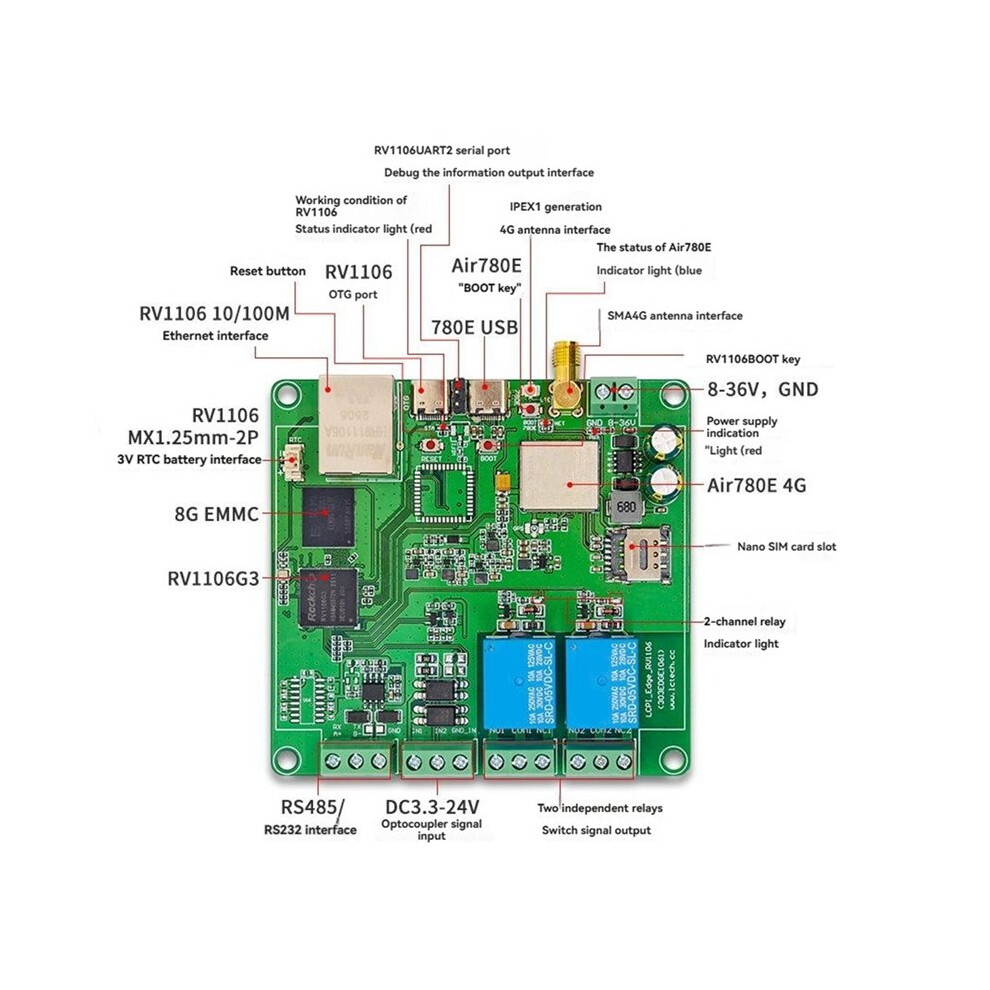

Features:
CPU: Single-core ARM Cortex-A7 32-bit core, 1.8GHz, integrated NEON and FPU processor
4G Network:
Air780E 4G-Cat.1 Full Network Compatibility Module
Onboard flip-type SIM card slot, supports ordinary 4G SIM cards/IoT cards
Supports AT firmware and LuatOS development methods, easy for secondary development, LuatOS development is recommended
Also reserves IPEX antenna and SMA antenna interfaces (choose one)
Wired Network: 10/100M RJ45 Ethernet interface
Wireless Network: SKI.WB800DCS.2 2.4G single-band WIF16 module
Supports BT5.2
IPEX 1st Generation Antenna Interface
RS485/RS232: Onboard RS485/RS232 serial communication chip (selectable from 2)
NPU: 1 TOPS, supports mixed INT4/INT8/INT16 operations
Memory: RV1106G3 built-in 256MB DDR3L
Onboard Storage: 8GB EMMC
2x DO: Onboard 2-channel 5V, 10A/250V AC10A/30V relays, capable of 100,000 consecutive cycles, with diode current leakage protection and short response
2x DI: Onboard 2-channel optocoupler isolated digital input detection circuits
Supported voltage input range: DC3.3-24V
Power supply: Supports power supply from Type-C USB 5V or 8-36V from the connector (choose one)
Color: Green
Material: PCB
Package Contents:
1 * RV1106G3 Industrial PC
Detaljer
| OPC | PWYZYCG |
|---|---|
| Mærke | Exogio |
| Koder | 6033934594905 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.08kg |
| Colour | Green |
| Material | PCB |
