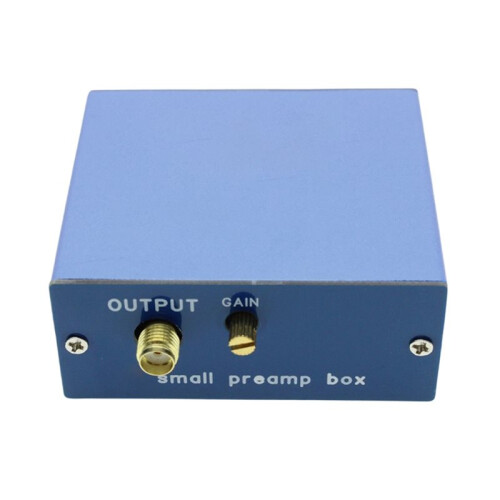

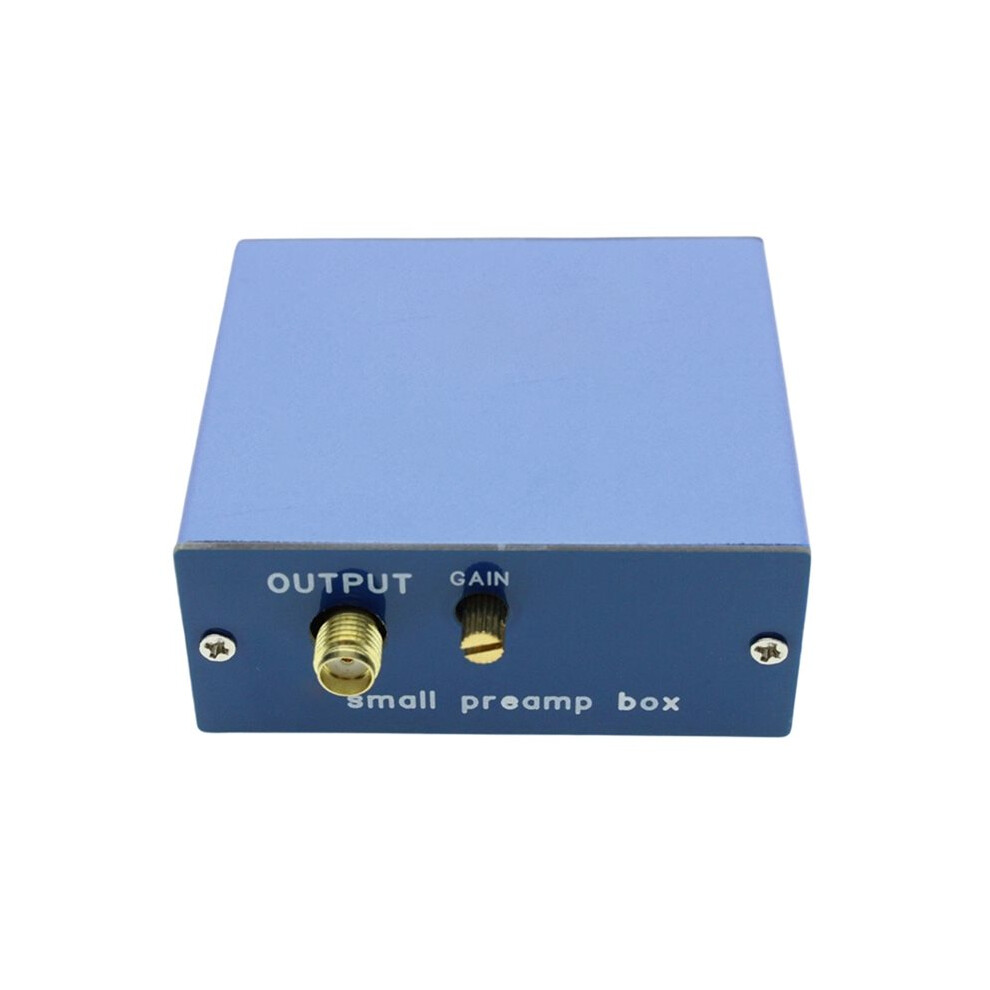

RX Preamplifier Medium Wave and Short Wave Signal Preamplifier 5 V (TYPE-C Model) for RX Antenna

RX Preamplifier Medium Wave and Short Wave Signal Preamplifier 5 V (TYPE-C Model) for RX Antenna Beskrivelse

1. Specifications:


Utilizes: NPN transistor

Supply Voltage: 5 V, 220 mA (actual operating)

Wideband: 0.1 MHz to 60 MHz (11 dB @ 150 MHz)

Gain: to 18 dB

Low Noise Figure (NF) 1.2 dB (20 mA 50 MHz)

Low Noise Figure (NF) < 2 dB (60 mA 50 MHz)

Low Noise Figure (NF) 2.3 dB (20 mA 150 MHz)

IP3 34 dBm

High Output Power to 26 dBm

Variable ATT Gain 0 to 18 dB

2. Applications:

High IP, Low Noise RX Preamplifier - RX Antenna

Buffer Amplifier

Drive Amplifier

3. Operating Frequency:

0.1 MHz to 60 MHz MHz;

4. Power supply: DC5V, 1000MA;

5. Connector: 2*SMA female connectors (external thread, internal hole)

6. Dimensions: 58X52X24mm (excluding connectors)
Color:
Material: Aluminum Alloy

Package Contents:
1*RX Preamplifier
