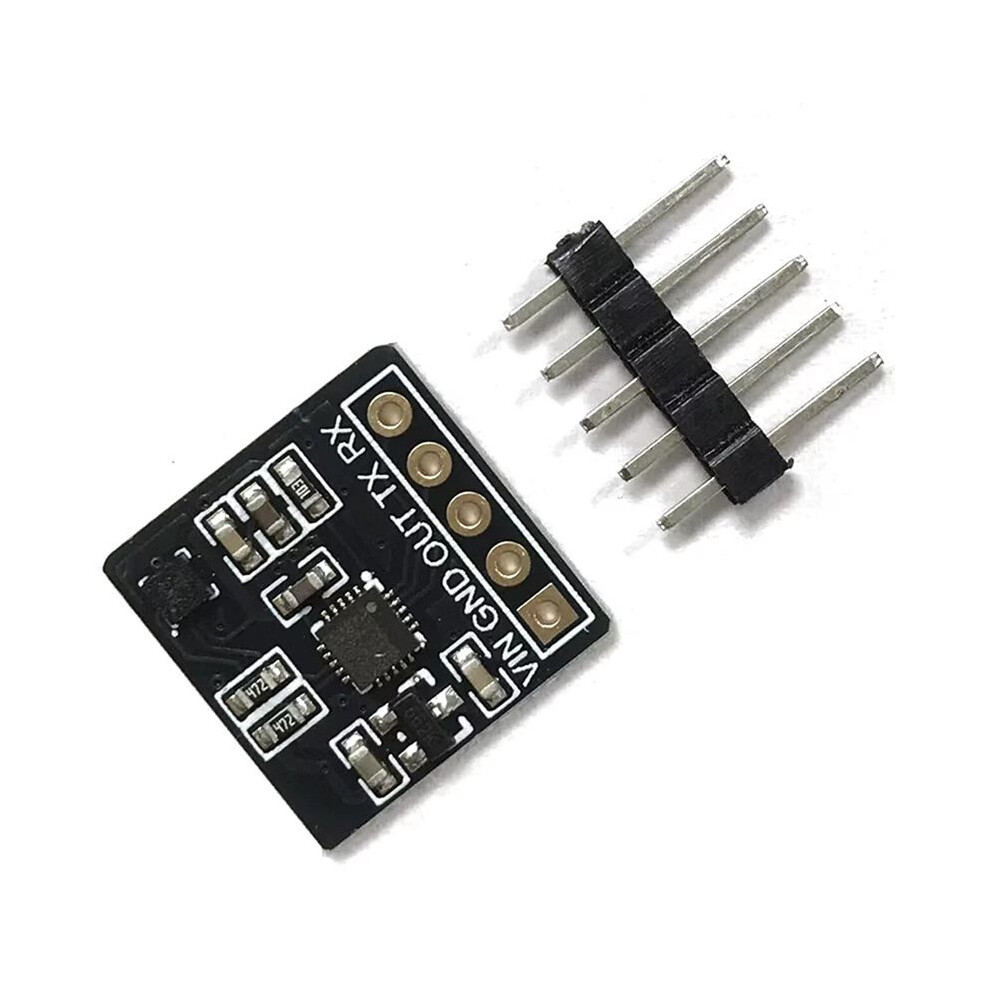

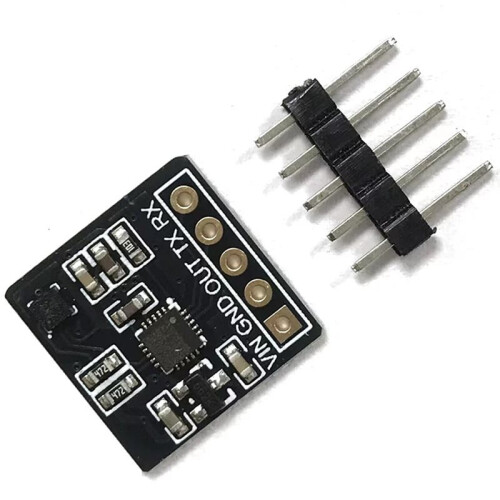

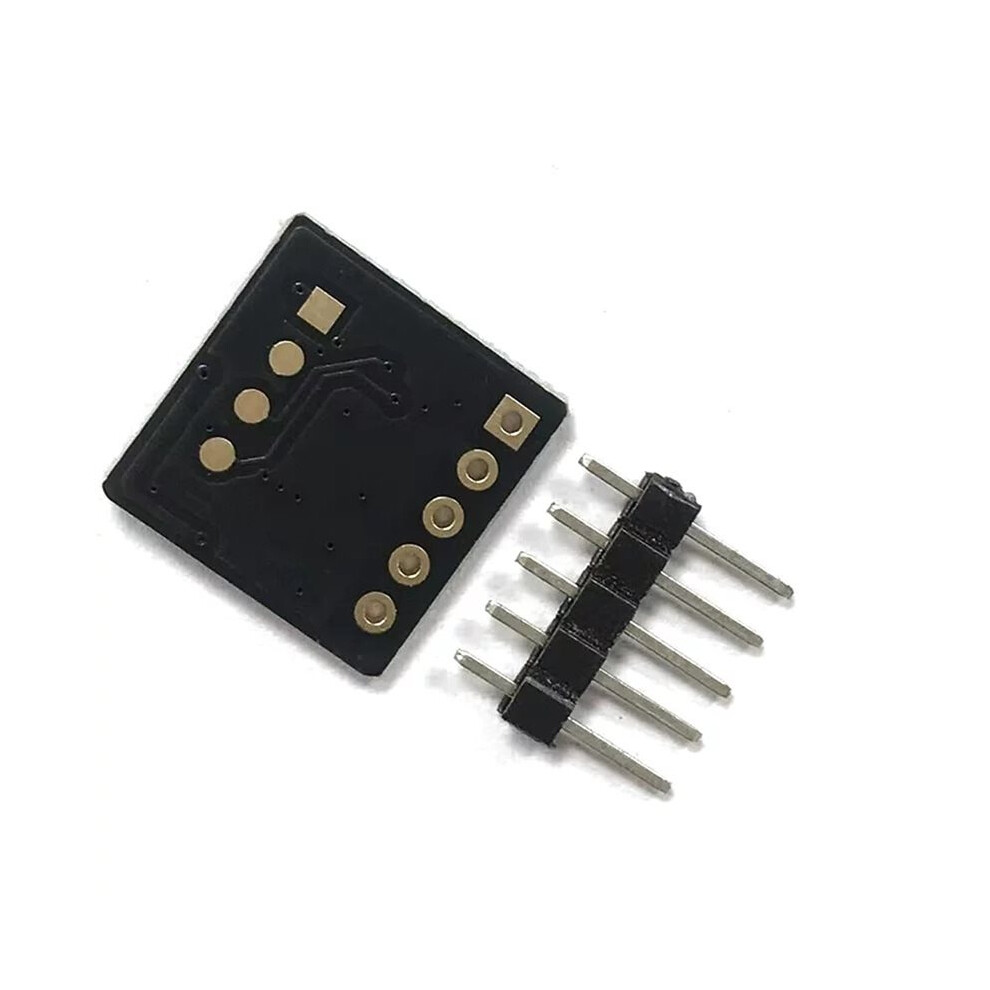

SC7A22H Inclinometer Module, Three-Axis, Serial Port Output, Alarm Point Setting

SC7A22H Inclinometer Module, Three-Axis, Serial Port Output, Alarm Point Setting Beskrivelse

Low-cost tilt angle measurement module with integrated MCU and core algorithms.
Utilizes a three-axis gravity acceleration sensor for accurate data acquisition.
Outputs angle values directly upon power-, requiring no secondary development.
Data calibration and selection are easily achieved through commands.
Module operates a power supply of 3-6V, with an output angle range of 0-180 and an accuracy of 0.10.

This product is a low-cost tilt angle measurement module integrating an MCU and built-in core algorithms. It uses a three-axis gravity acceleration sensor for basic data acquisition, and an ultra-low-power MCU for data processing. The product outputs angle values, requiring no secondary development from the user. Data calibration and selection are achieved through commands, and the angle is output directly upon power-.

Connection Methods:
1. Connect to a computer using a serial port tool. The output data can be directly viewed in the serial port debugging and controlled via commands.
2. It can be integrated into the product and directly connected to the MCU serial port for data reading and control through programming. For both methods, pay attention to the TX and RX wiring; they must share a common ground.
Color: Black
Material: PCB

Package Contents:
1*Module
