SDR-120-24 Switching Power Supply DIN-Rail Switching Power Supply with PFC Function 150% Load Capability

SDR-120-24 Switching Power Supply DIN-Rail Switching Power Supply with PFC Function 150% Load Capability Beskrivelse

Safety protection, always guard. Sufficient power without false standards. Good insulation, high electrical strength, and soft after-current design. Effectively reduce AC input impact

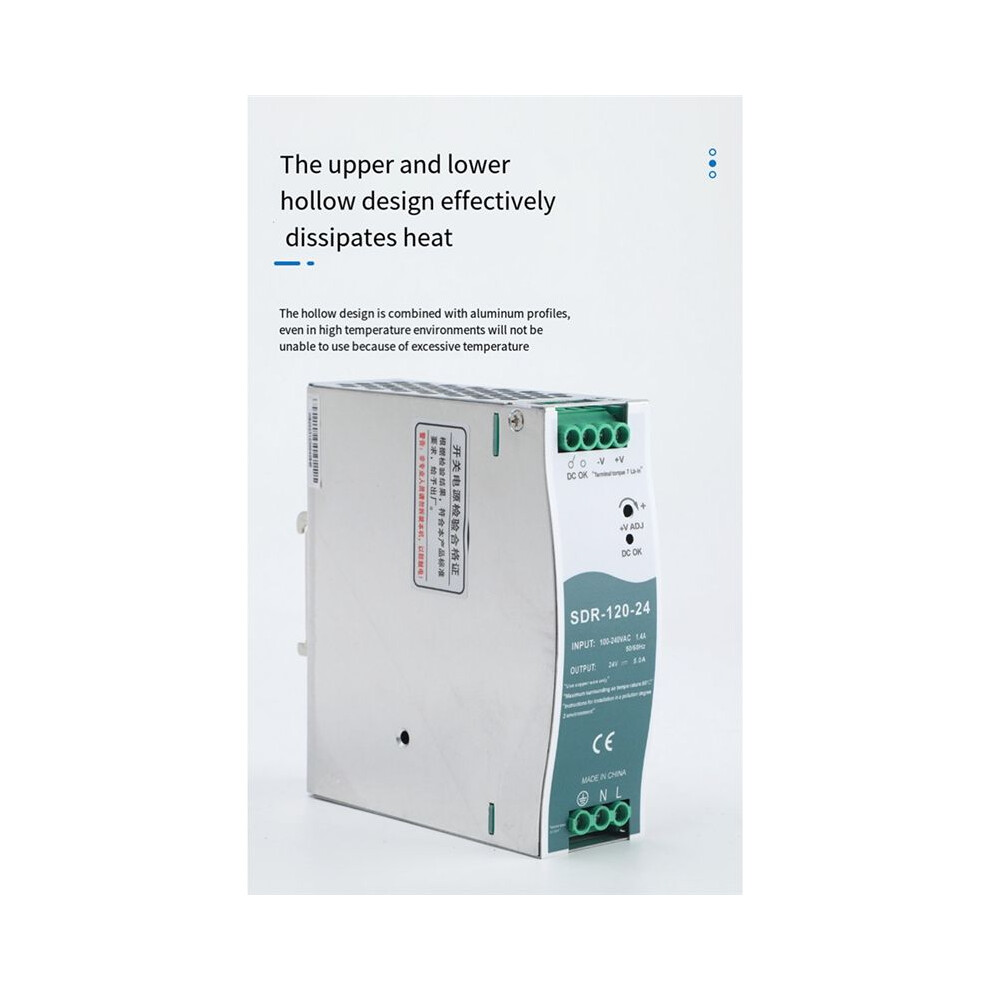

The upper and lower hollow design effectively dissipates heat. The hollow design is combined with the material to prevent it from being unusable due to overheating even in high temperature environments
Can withstand 300VAC surge input for 5 seconds. Comprehensive protection service gives you peace of mind. Defective parts have been screened out and aged tested before shipment of finished products to ensure that all products shipped from the factory have the highest quality specifications

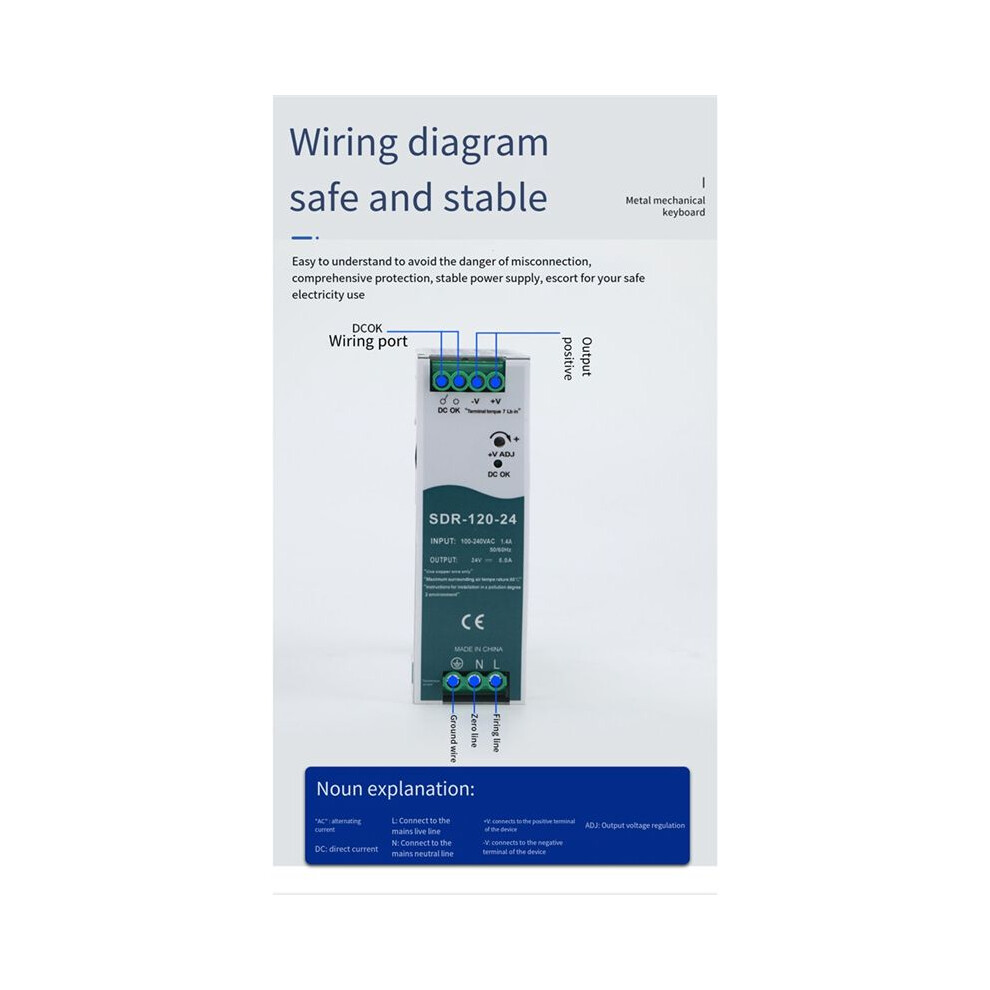

Wiring is one step faster, simple and easy to understand, avoiding the risk of misconnection, comprehensive protection, stable power supply, and ensuring your safe use of electricity
High efficiency 91%, low power consumption, 150% load capacity, built-in active PFC function, PF Greater than 0.93

Model:SDR-120-24
Voltage:24V
Rated Current:5A
Current Range:0 ~ 5A
Rated Power:120W
Current:7.5A
Power:180W (3 Sec.)
Ripple & Noise (Max.):100MVP-P
Voltage Adj. Range 24 ~ 28V
Voltage Tolerance:1.0%
Regulation:0.5%
Load Regulation:1.0%
(Due to different batches, the printed words the product will be different, which does not affect use)
Colour:As Shown
Material:Metal

Package Contents:
1 x Switching Power Supply
