SEQURE 14200 Pro Brushless ESC 5-14S with Multi-Voltage BEC for Drones and Model Vehicles AM32

SEQURE 14200 Pro Brushless ESC 5-14S with Multi-Voltage BEC for Drones and Model Vehicles AM32 Beskrivelse

The SEQURE 14200 Pro is backed by certifications from CE, FCC, and RoHS, ensuring top- quality and safety for your peace of mind while operating your models.

Designed to handle a wide range of voltages from 5-14S, this ESC is perfect for various applications including multi-rotor drones, off-road model vehicles, and model ships, providing flexibility and reliability.
Features a built-in BEC that can be set to output 6V, 7.4V, 8.4V, or 12V, allowing you to customize the power supply according to the specific needs of your model's components.
As a vital component in remote control peripherals and devices, this ESC enhances the performance and control of your models, ensuring smooth and responsive operations.

Specifications:
BEC:6V/7.4V/8.4V/12V, 15A continuous, 35A current
Power and Motor Cables:8AWG and 10AWG silicone wire, 160mm
Product Size: 96*46*38mm L*W*H
Processor: STM32G071
Input Voltage:* 18V-59V (5-14S Lipo)
Continuous Current:200A (with good heat dissipation)
Max Current:350A (with good heat dissipation)
Signal Protocol:Dshot, PWM, Oneshot, Multishot, etc.
RPM Signal:AM32 and ESCape32 supported
Color: As shown
Material: plastic
Specification: AM32

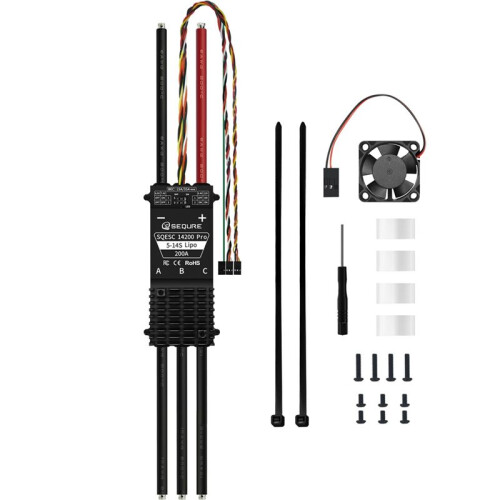

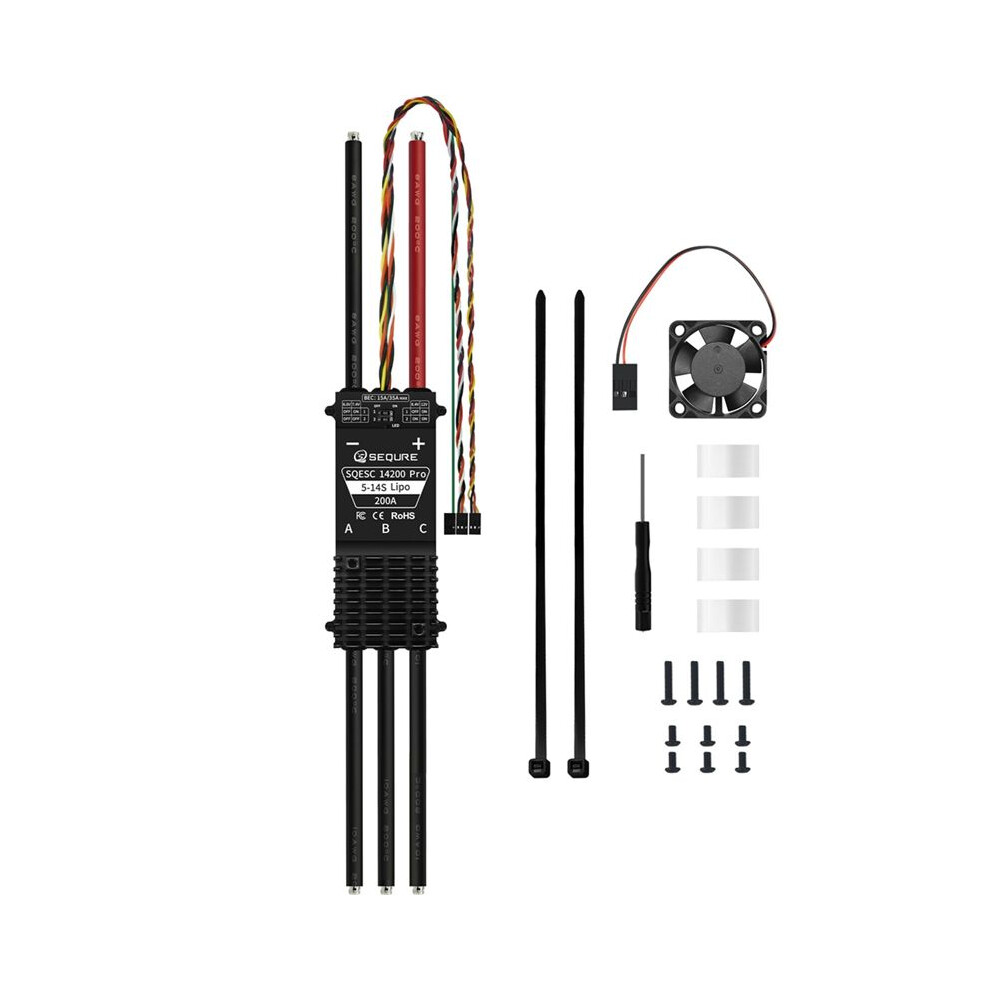

Package Contents:
14200 Pro ESC x1
5V Fan x1
Black Tie Straps (4*250mm) x2
Hexagonal Screws (M3*14) x4
Hexagonal Screws (M3*6) x6
Transparent Heat Shrinkable Sleeve x4
H2 Allen Key x1

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
