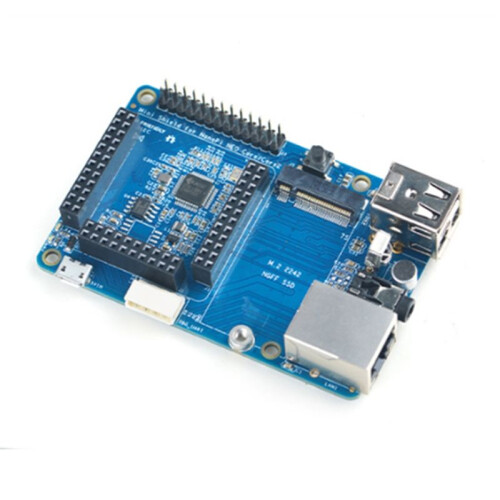

Shield for NanoPi NEO Core/Core2 SDK Carrier Same Form Factor As RPi Can Be Well Fit Into RPi'S Case

Shield for NanoPi NEO Core/Core2 SDK Carrier Same Form Factor As RPi Can Be Well Fit Into RPi'S Case Beskrivelse

The Shield for NanoPi NEO Core/Core2 is a custom SDK carrier board developed for the NanoPi NEO Core and NanoPi NEO Core2. lt has Ethernet port, serial debug port, audio, USB port and etc.
1x Onboard JMS567 USB to IC and1xM.2 SSDinterface for connecting a 2242 SSD.
2x USB Host .
1x Serial debug port for connectinga serial communication board and 1x Ethernet port.
1x Onboard Microphone and 1 x 3.5mm audio jack for audio recording and playing

2 x 13 Pin header which populate the NanoPl NEO Core/Core2's I0 pins.
1x button and 1x IRinterface for working with a remote control
Room for an SPI Flash(SOP8-200mill) Is reserved. Users can solder an SPI flash the board.
Ithas the same dimension and mounting holes as those of a for Raspberry Pi. The whole board can be well fit into a RPi's case.
Same form factor as RPi, can be well fit into a RPi's case
2x USB Host
1x Serial debug port andi1 x Ethernet port
1x audio input and1x audio output
2x 13 Pin GPIO pin-header
1x Button
1x M.2 2242 SSD interface
1x IR recelver interface-PCB dimension(mm):85x56
Color:
Material: PC

Package Contents:
1 x Shield for NanoPi NEO Core/Core2
