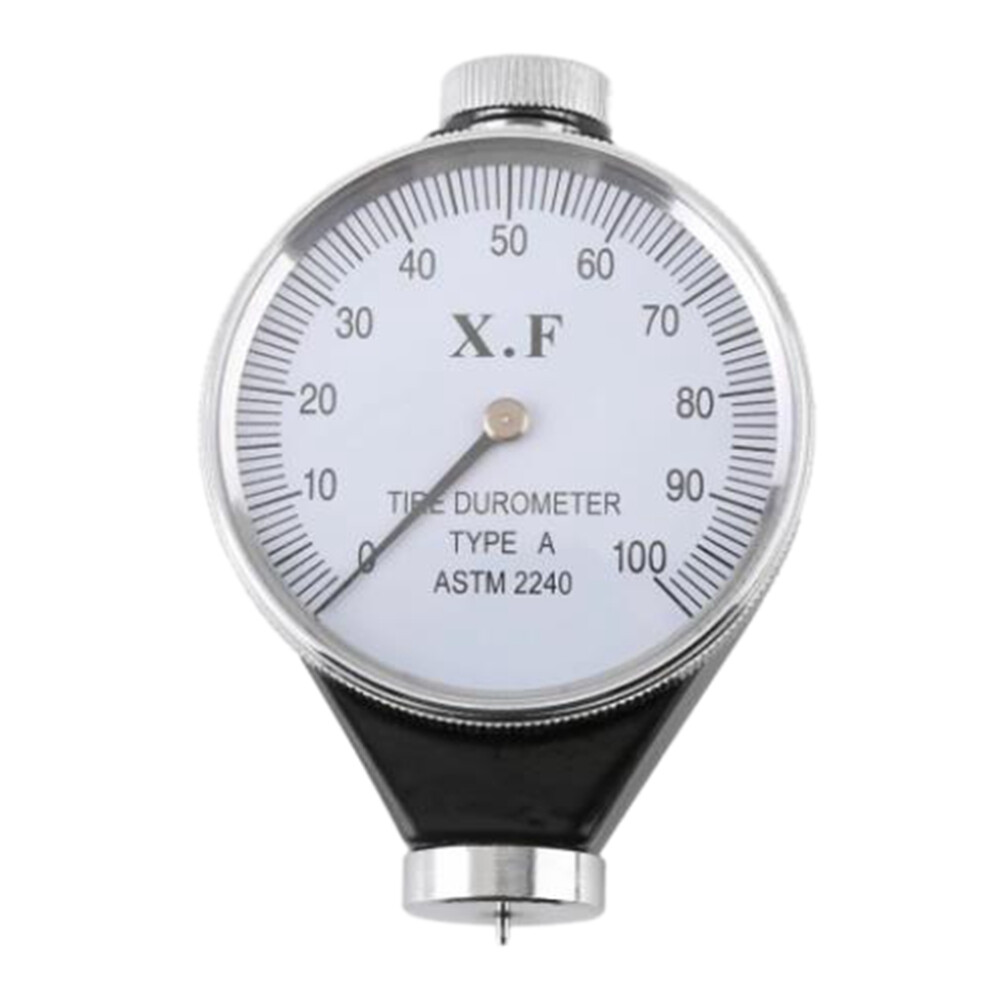

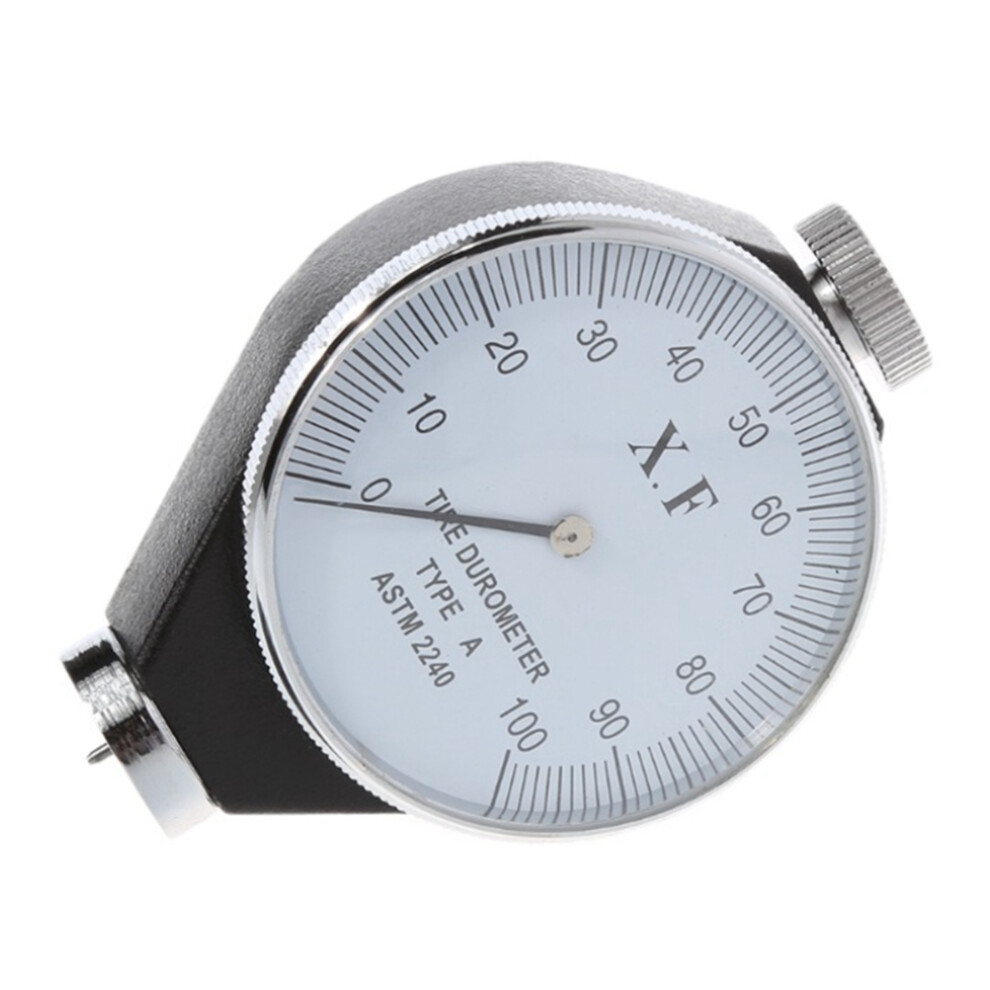

Shore Durometer a Type 0-100 HA Rubber Tire Hardness Tester Meter for Plastic Leather Rubber Multi-Resin

Shore Durometer a Type 0-100 HA Rubber Tire Hardness Tester Meter for Plastic Leather Rubber Multi-Resin Beskrivelse

Easy to use, accurate measurement, easy to carry, durable and stable, practical and strong.
This rubber hardness tester is a measure of sulfur rubber and plastic products of hardness of the instrument.

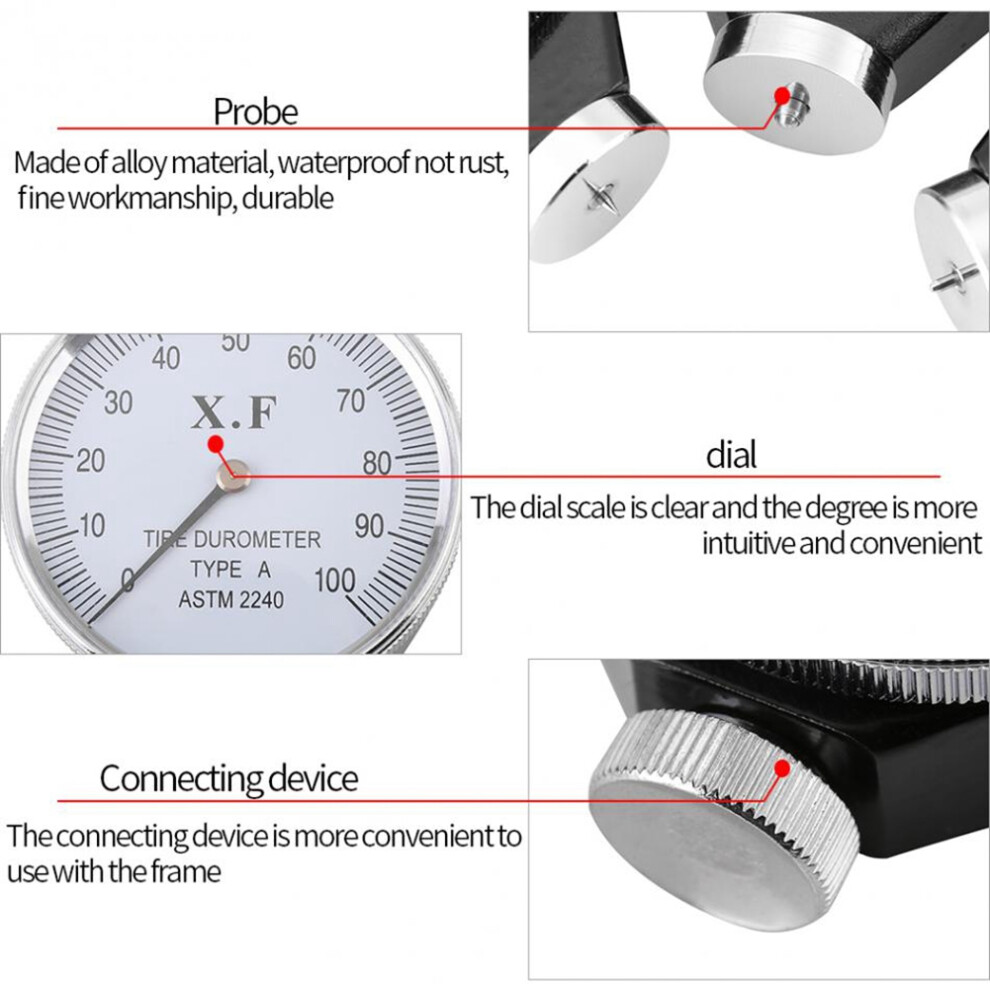

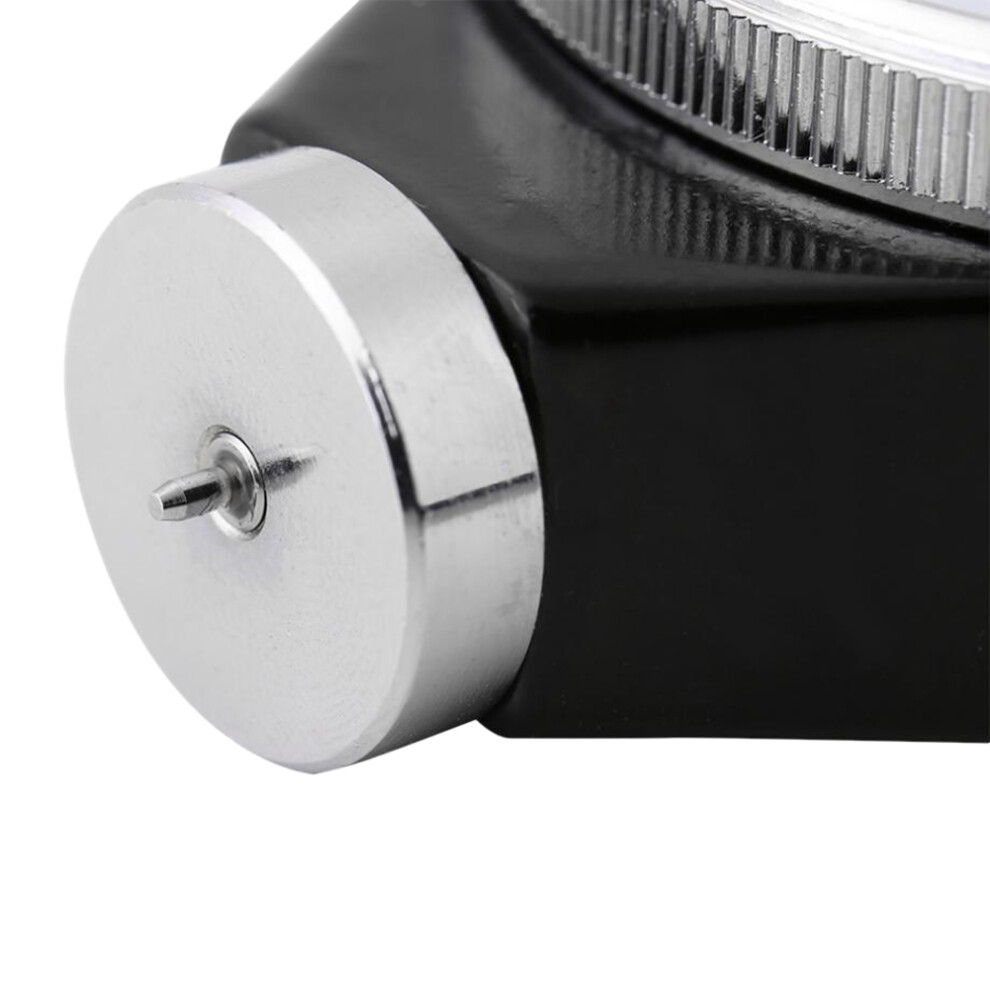

Made of alloy material,waterproof not rust,fine workmanship,durable.
The dial scale is clear and the degree is more intuitive and convenient.
The connecting device is more convenient to use with the frame.

Type A is suitable for general rubber, synthetic rubber, soft rubber, fat, leather, wax etc.
Instructions:
The sample strong plane, take the hardness tester, pressure needle distance sample at least 12 mm smooth put pressure foot pressure in the sample, makes the needle vertical pressure into the sample, until the feet and sample completely contact pressure when within 1 s reading. Measuring at least 6 mm apart in different positions of the measurement hardness value 5 times, take the average (micro-porous materials are measuring at least 15 mm). In order to stabilize determination conditions, to enhance determination accuracy, hardness tester device should be in the same determination supporting producer determination.
Dial value: 0-100 degrees
Pressure needle trip: 0-2.5 mm
Accuracy: 0.1 mm
Test force: 0.5 N
Type: A
A type: 0.55 N - 8.06 N,
Colour:Silver+black
Material:metal
Size:78 x 52 x 22 mm/3.07x2.05x0.87inch
Weight: 200 g

Package Contents:
1 x Durometer
