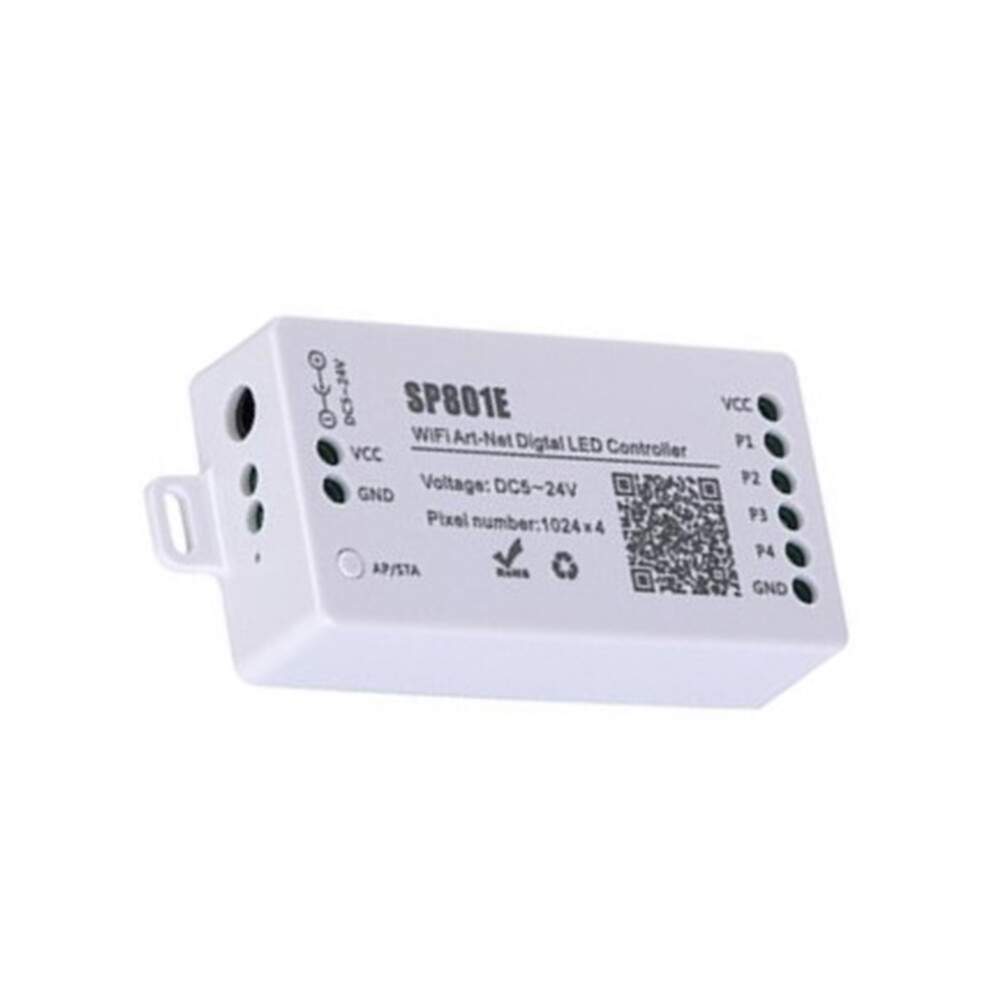

SP801E Wifi Art-Net LED Controller LED Matrix Panel Module WS2812B WS2811 Light Strip Wireless Control DC5-24V

SP801E Wifi Art-Net LED Controller LED Matrix Panel Module WS2812B WS2811 Light Strip Wireless Control DC5-24V Beskrivelse

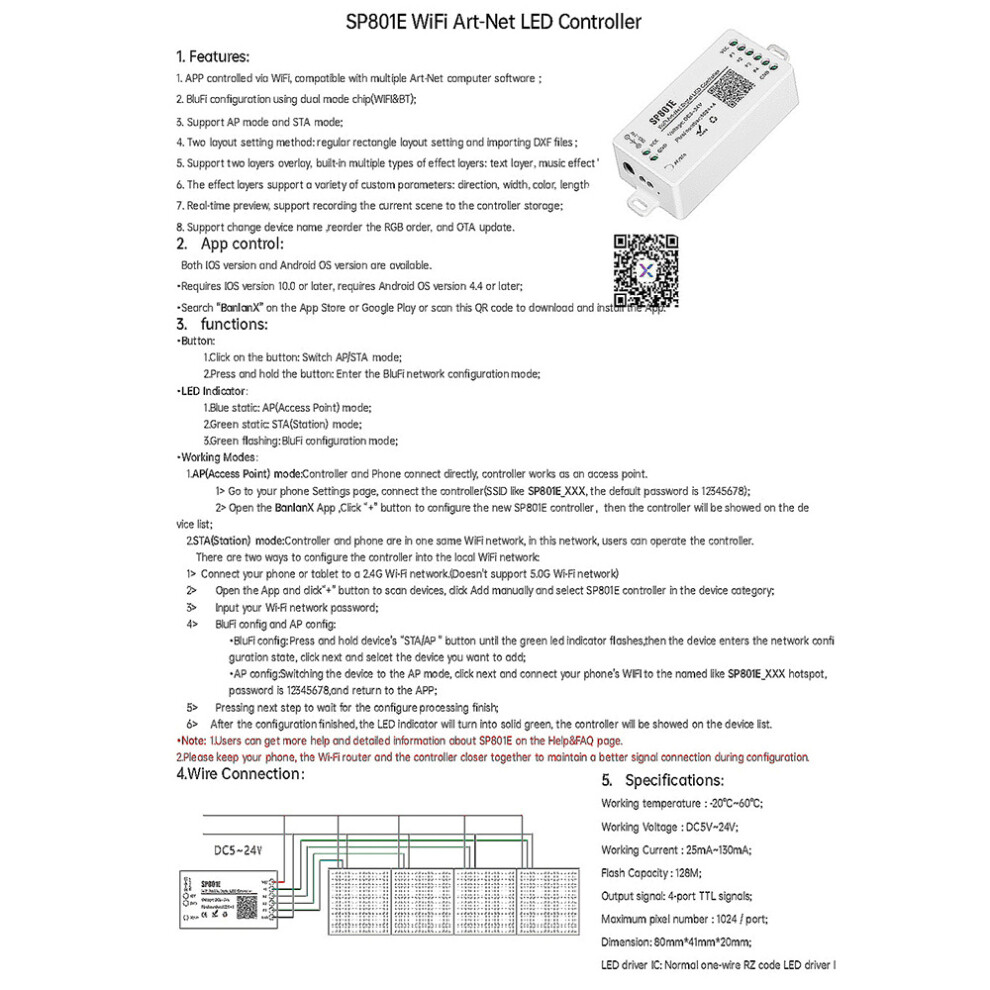

1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;
2. BluFi configuration using dual mode chip(WIFI&BT);

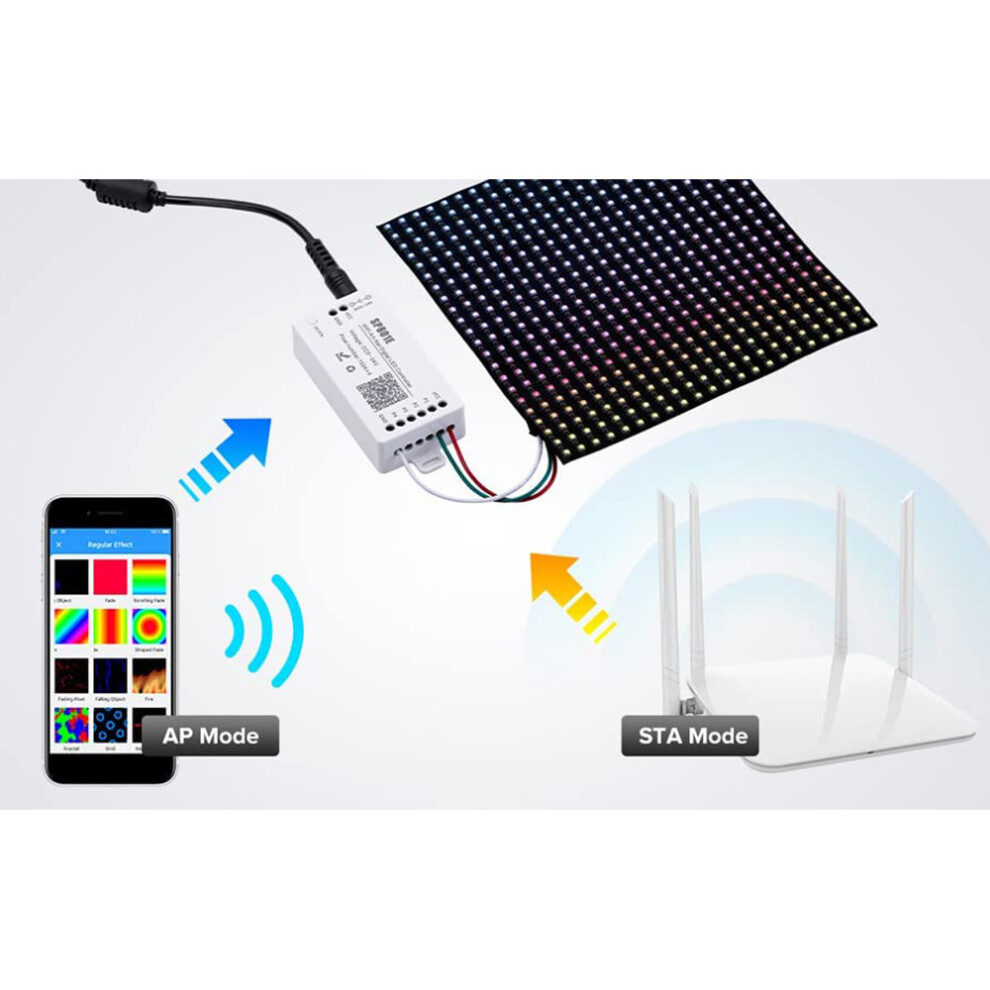

3. Support AP mode and STA mode;
4. Two layout setting method: regular rectangle layout setting and importing DXF files ;
5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;

The effect layers support a variety of custom parameters: direction, width, color, length, shape...;
Real- preview, support recording the current scene to the controller storage;
Support change device name ,reorder the RGB order, and OTA update.

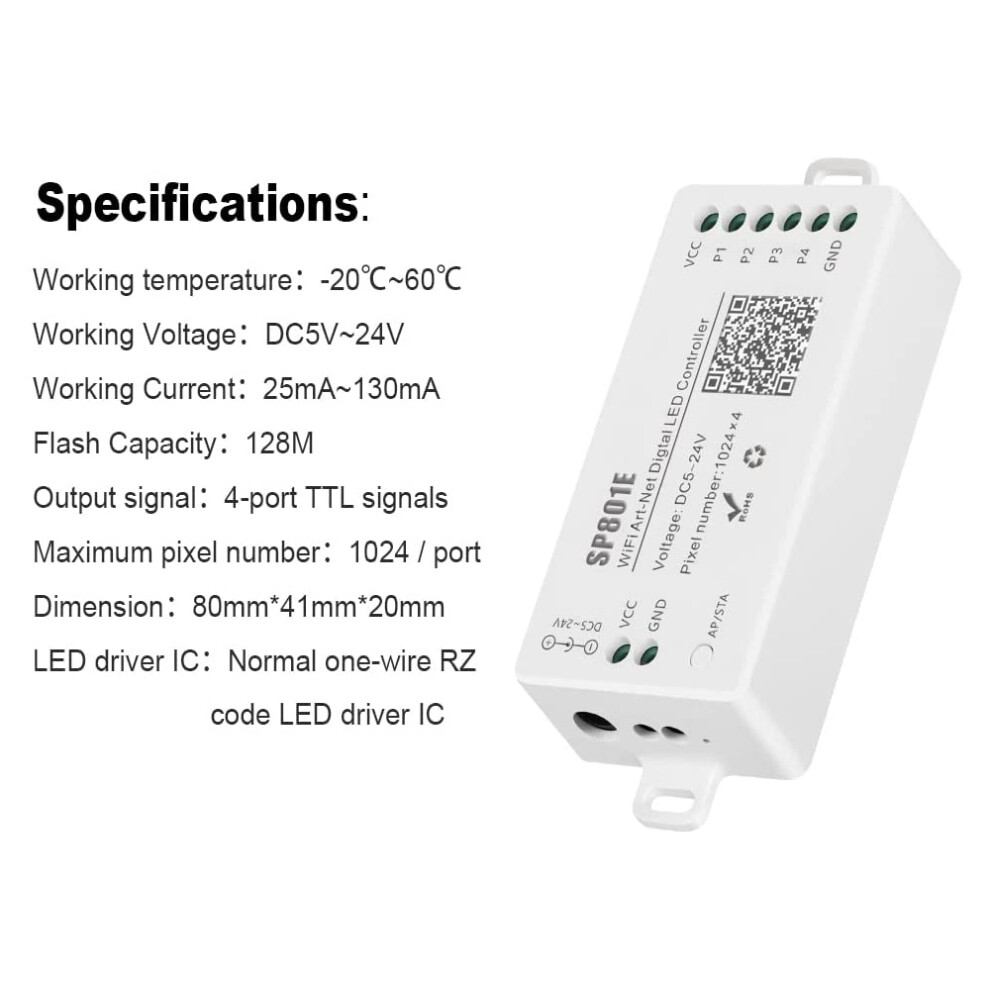

Working temperature : -20Celsius-60Celsius;
Working Voltage : DC5V-24V;
Working Current : 25mA-130mA;
Flash Capacity : 128M;

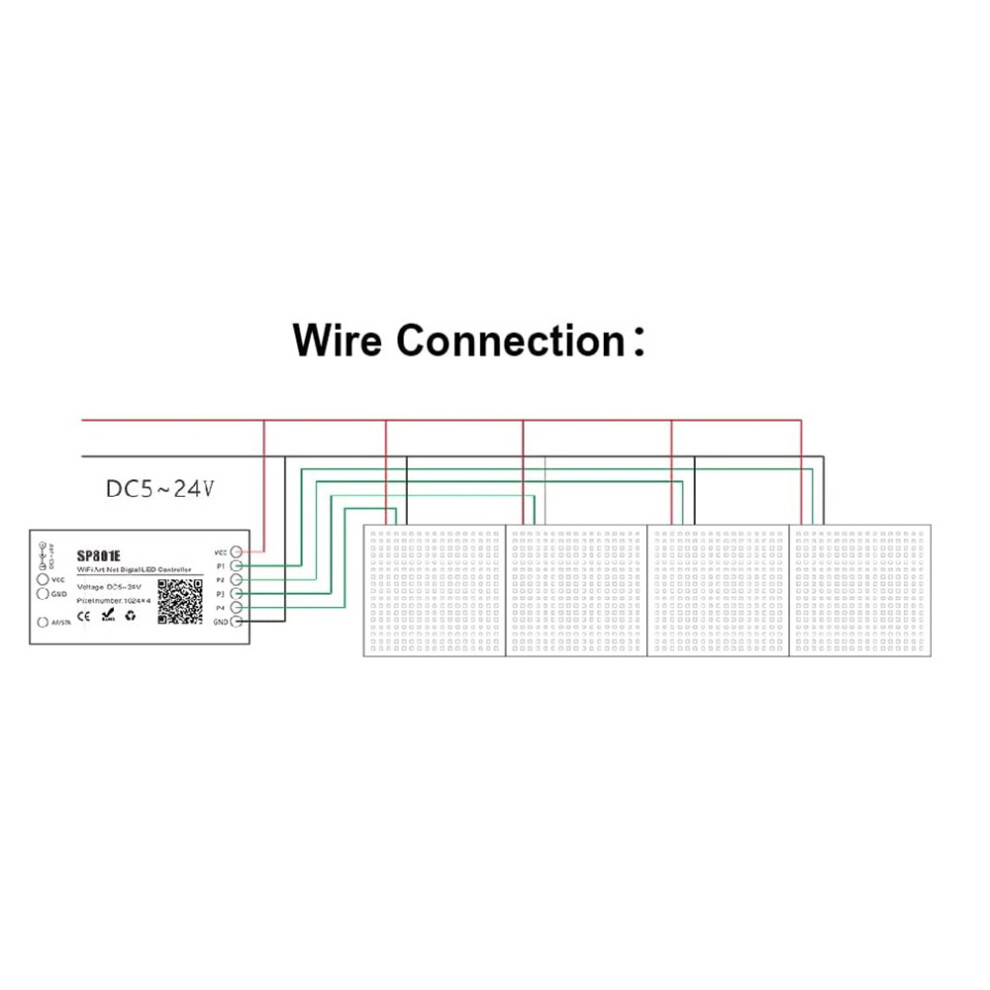

Output signal: 4-port TTL signals;
Maximum pixel number : 1024 / port;
LED driver IC: Normal one-wire RZ code LED driver IC.
Colour:White
Material:plastic

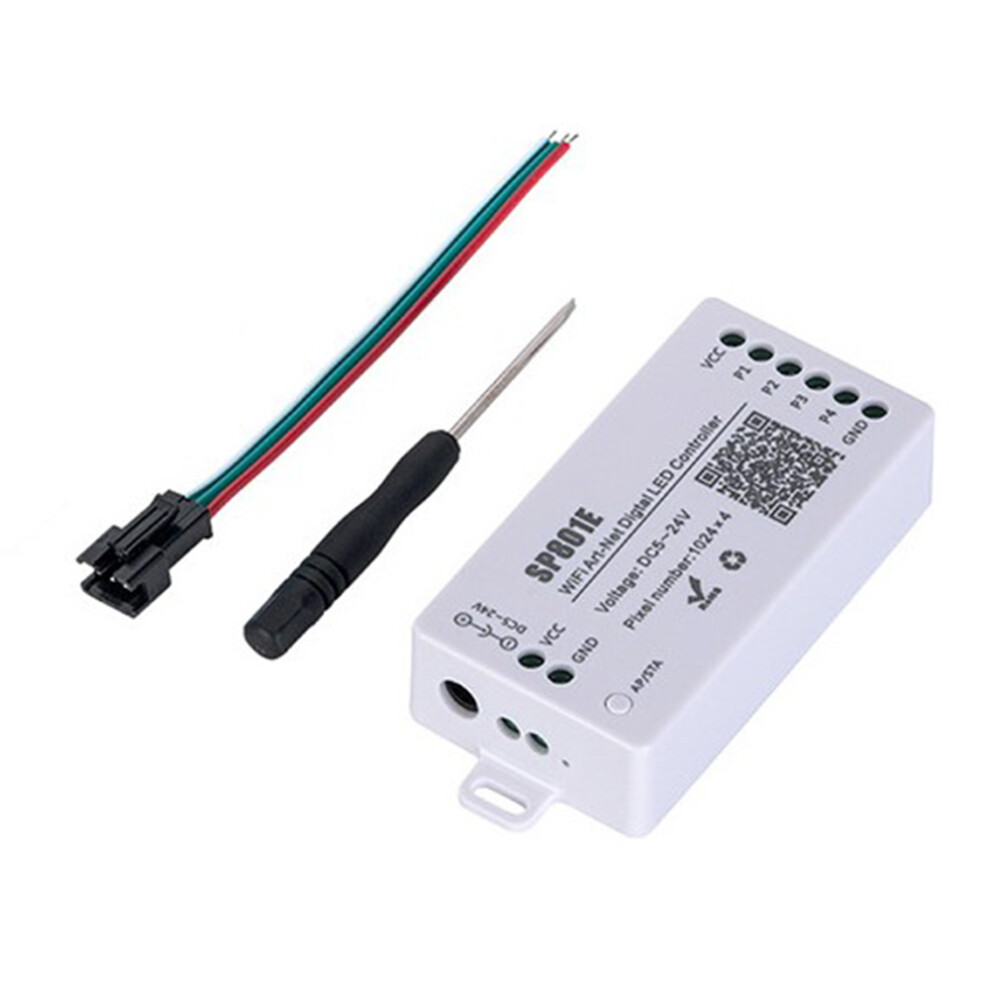

Package Contents:
1 x LED Controller
1 x 3pin connector
1 x screwdriver
