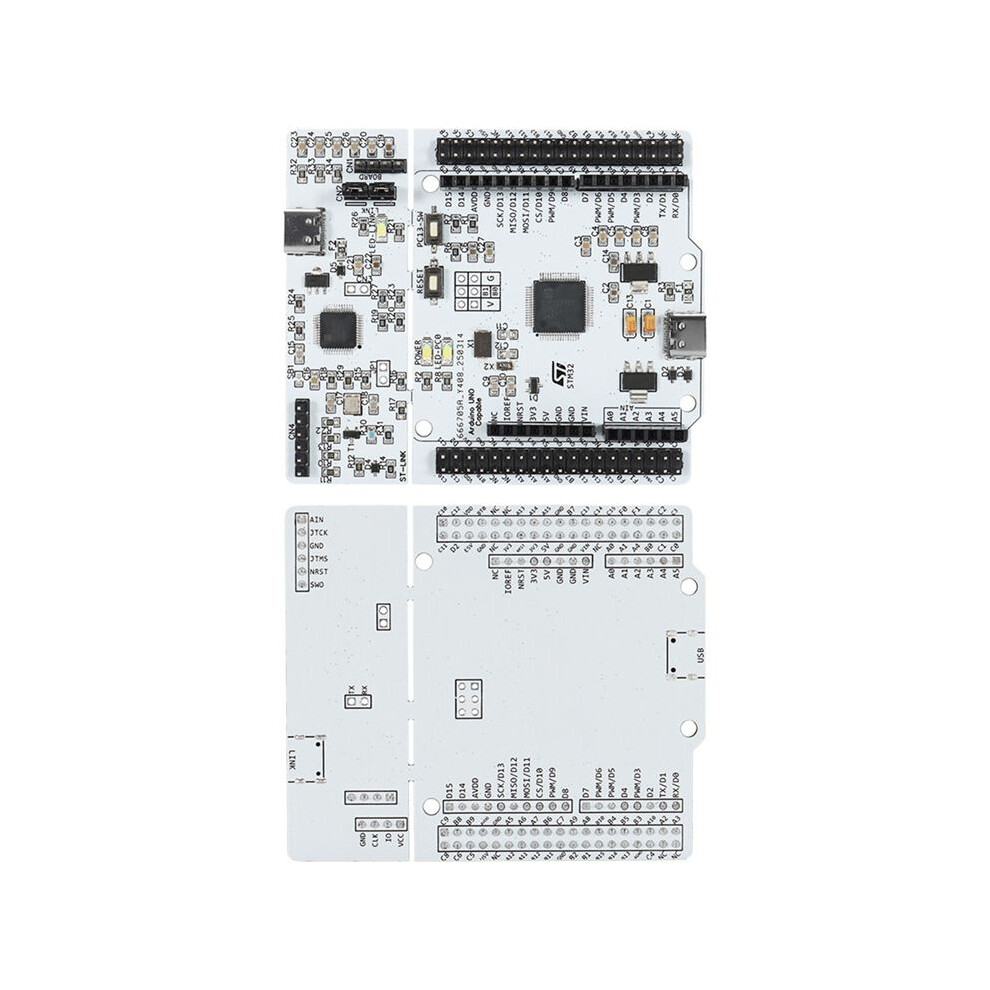

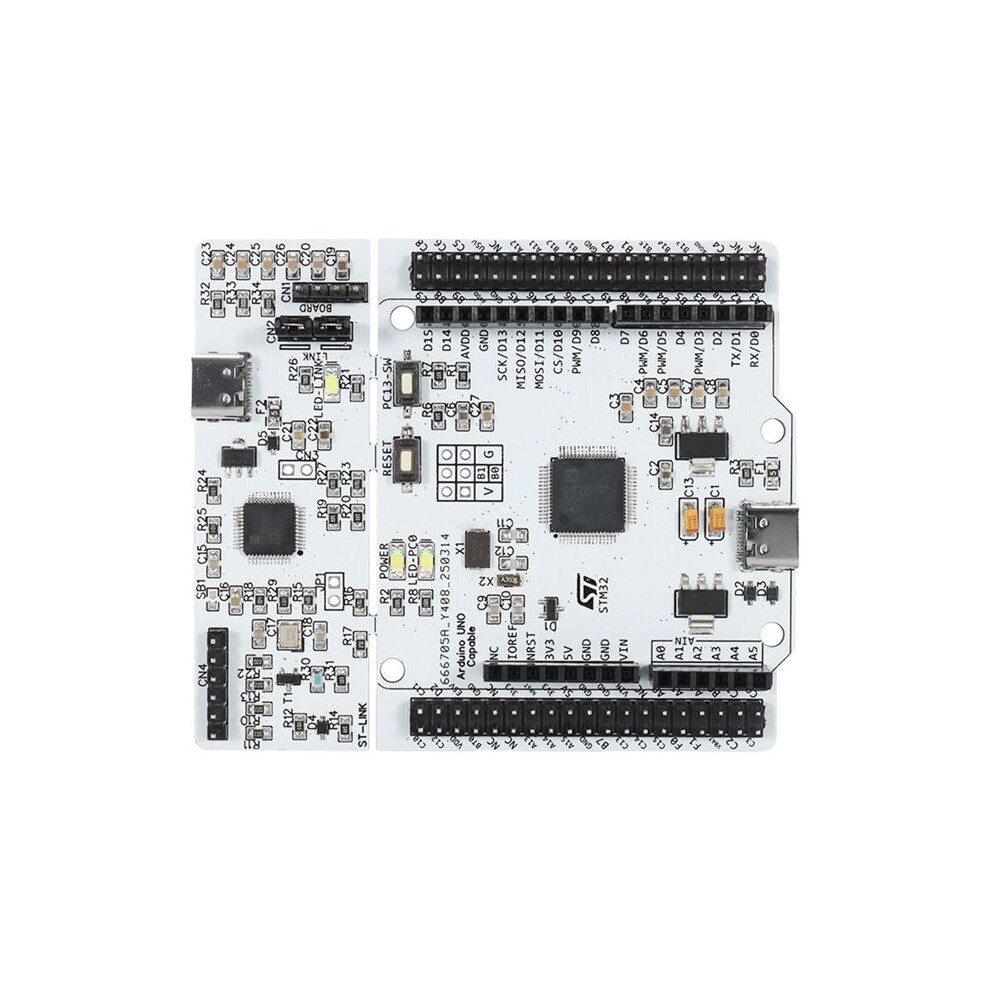

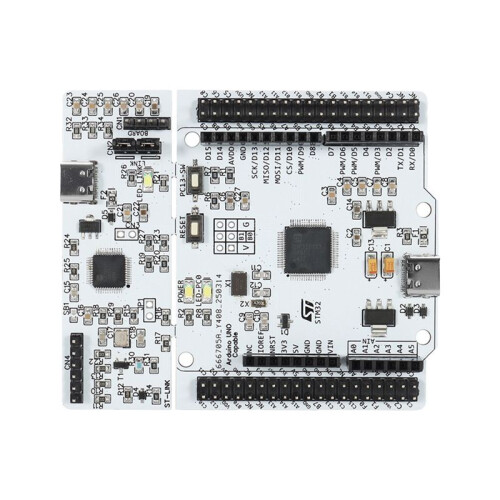

STM32G4 NUCLEO Development Board FOC Algorithm Motor Control Industrial Control Board Programming Motherboard

STM32G4 NUCLEO Development Board FOC Algorithm Motor Control Industrial Control Board Programming Motherboard Beskrivelse

The STM32 Nucleo-64 board provides users with an affordable and flexible way to try out new concepts and build prototypes by choosing from a wide range of performance and power feature combinations available with STM32 microcontrollers. For compatible single boards, an internal or external SMPS significantly reduces power consumption in Run mode.
for V3 connectivity support and ST morpho headers allow the functionality of the STM32 Nucleo open development platform to be easily extended with a wide selection of professional shields.
The STM32 Nucleo-64 board does not require any separate probes as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with STM32's comprehensive free software libraries and examples for use with the STM32Cube MCU package.
STM32 microcontroller in LQFP64 package

1 user LED shared with for
32.768 kHz crystal oscillator
Board connectors:
for V3 expansion connector

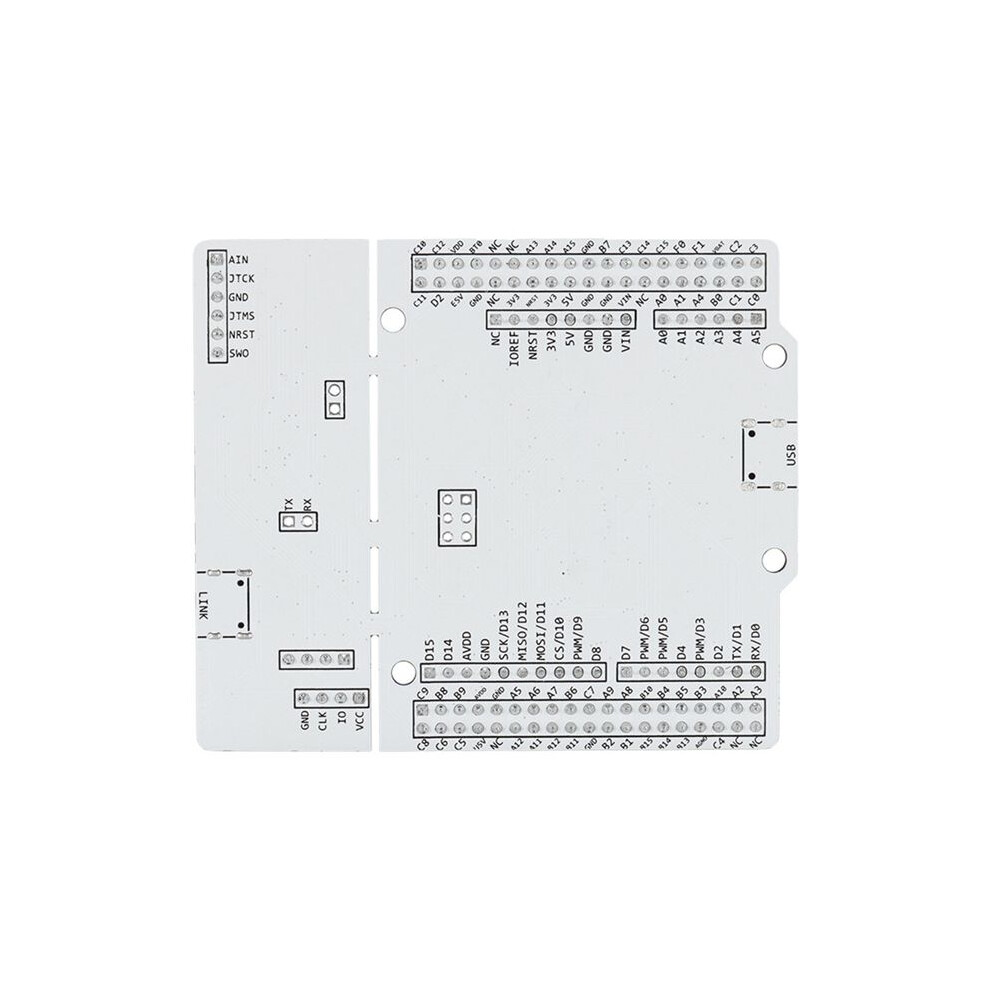

ST Morpho expansion pin header for full access to all STM32 I/Os
Flexible power supply options: ST-LINK USB VBUS or external power
Comprehensive free software libraries and examples work with STM32Cube MCU package
Supports multiple integrated development environments (IDEs), including for IAR Embedded Workbench, for MDK-ARM and STM32CubeIDE
Some board-specific features
Second user LED
External or internal SMPS generates Vcore logic supply
24 MHz or 48 MHz HSE
User USB Device full speed, or USB SNK/UFP full speed
Cryptography
CAN FD transceiver
Board connectors:
Dedicated connector for external SMPS experiments
USB Type-C, Micro-B or -B connector for ST-LINK
USB Type-C user connector
MIPI debug connector
CAN FD header
There are differences in printing between different production batches,
