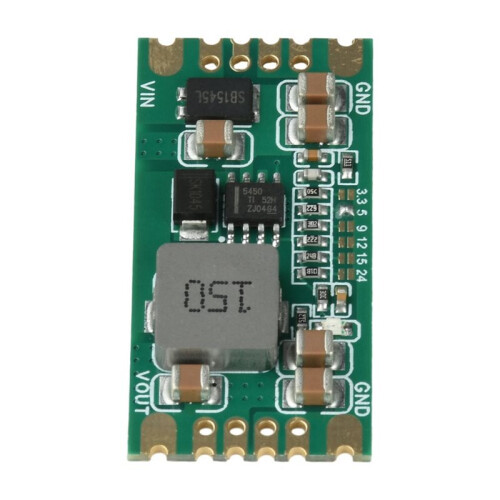

TPS5450 5A Bucks Switching Power Supply Module - DC5.5V-36V Voltage Output Step-Down Board Low Ripple

TPS5450 5A Bucks Switching Power Supply Module - DC5.5V-36V Voltage Output Step-Down Board Low Ripple Beskrivelse

Supports wide voltage input, 5A high current output, and conversion efficiency to 95%
High-quality materials, low ripple, convenient and practical power output, flexible and practical
Equipped with enable pin, overcurrent and thermal protection, and power consumption of only 18µA in off-state
Immersion gold half-hole process, supports both through-hole and surface mount applications, suitable for competitions and project development
Wide range of applications, suitable for electronic competitions, industrial control, instrumentation, and communication equipment

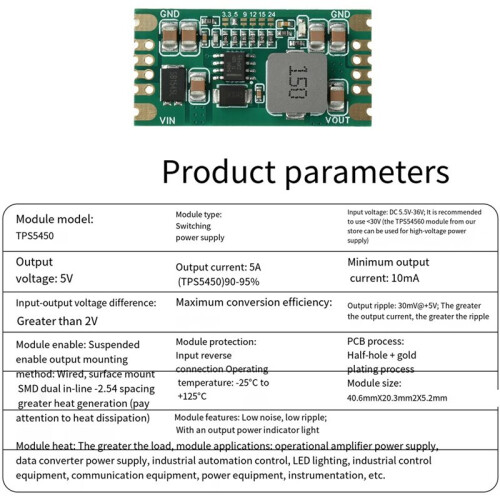

Module model:TPS5450
Output voltage: 5V
Input-output voltage difference: greater than 2V
Module type: Switching power supply
Output current:5A (TPS5450)
Maximum conversion efficiency: 90-95%
Input voltage: 5.5V-36V; Recommended for use with voltages below 30V (for high-voltage power supplies, our TPS54560 module can be used).
Minimum output current: 10mA
Output ripple: 30mV@+5V; the higher the output current, the greater the ripple.
Color: As Shown
Material: PCB

Package Contents:
1*TPS5450 5A Switching Module
