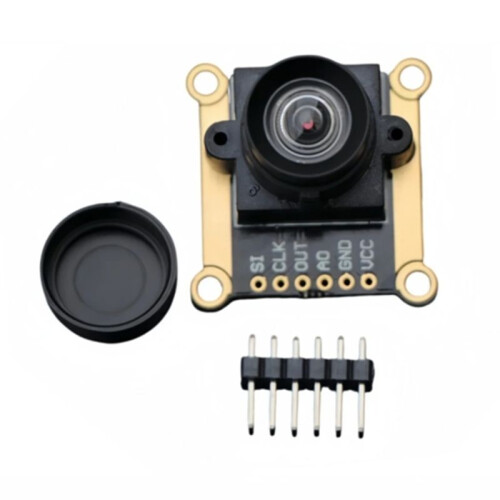

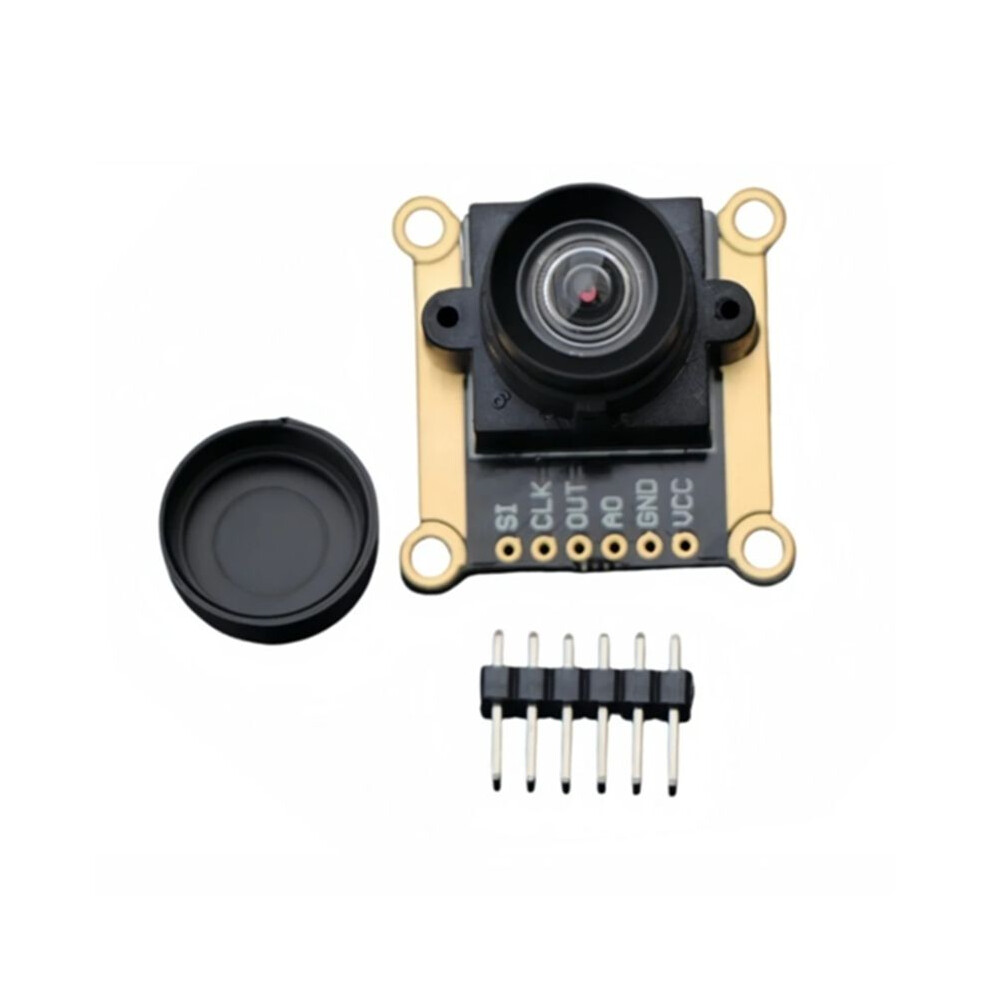

TSL1401CL 128x1 Linear CCD Camera Sensor Array Ultra Wide-Angle Lens 120 Degrees 128x1 Black and White Tracking
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 129,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (26,20 kr.) | tor. 23. - tir. 28. jul.
Solgt af: Kulemip
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Kameraobjektiver
Oversigt
- TSL1401CL linear CCD module is a reliable quality products, after continuous testing, continuous improvement, and absorb a little bit of similar products in one, making our products more outstanding.
- At the same time TSL1401CL using foreign import TSL1401 chip, the signal processing circuit design is more perfect. Signal processing, low-pass filter; signal feedback level processing, high-pass filter; signal output stage processing, low-pass filter. Anti-interference ability greatly improved, and in the operational amplifier to increase the adjustable resistance, the output signal can be adjusted to improve the practicality.
- Black And White Line Tracking Module
- Tracking Module
- Camera Sensor
TSL1401CL 128x1 Linear CCD Camera Sensor Array Ultra Wide-Angle Lens 120 Degrees 128x1 Black and White Tracking Beskrivelse
TSL1401CL linear CCD module is a reliable quality products, after continuous testing, continuous improvement, and absorb a little bit of similar products in one, making our products more outstanding.
At the same TSL1401CL using foreign import TSL1401 chip, the signal processing circuit design is more perfect. Signal processing, low-pass filter; signal feedback level processing, high-pass filter; signal output stage processing, low-pass filter. Anti-interference ability greatly improved, and in the operational amplifier to increase the adjustable resistance, the output signal can be adjusted to improve the practicality.
Product Specifications:
Voltage:3-5V
Size:29mmx29mm
Weight:10.0 g
Pin Description:
1. VCC power supply is positive
2. GND Power ground
3. AO analog signal directly output
4. OUT analog signal processing output
5. CLK clock input
6. SI serial input, data start
Color:As Shown
Material:PC
Package Contents:
1 * Module
Detaljer
| OPC | PVDRMFD |
|---|---|
| Mærke | Wella Elements |
| Koder | 4712680576619 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.0405kg |
| Colour | As Shown |
| Material | PC |
