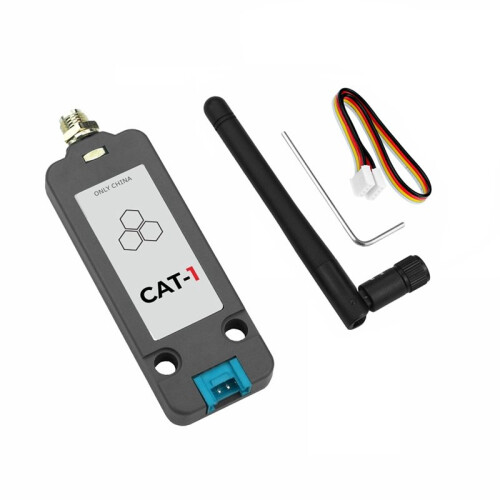

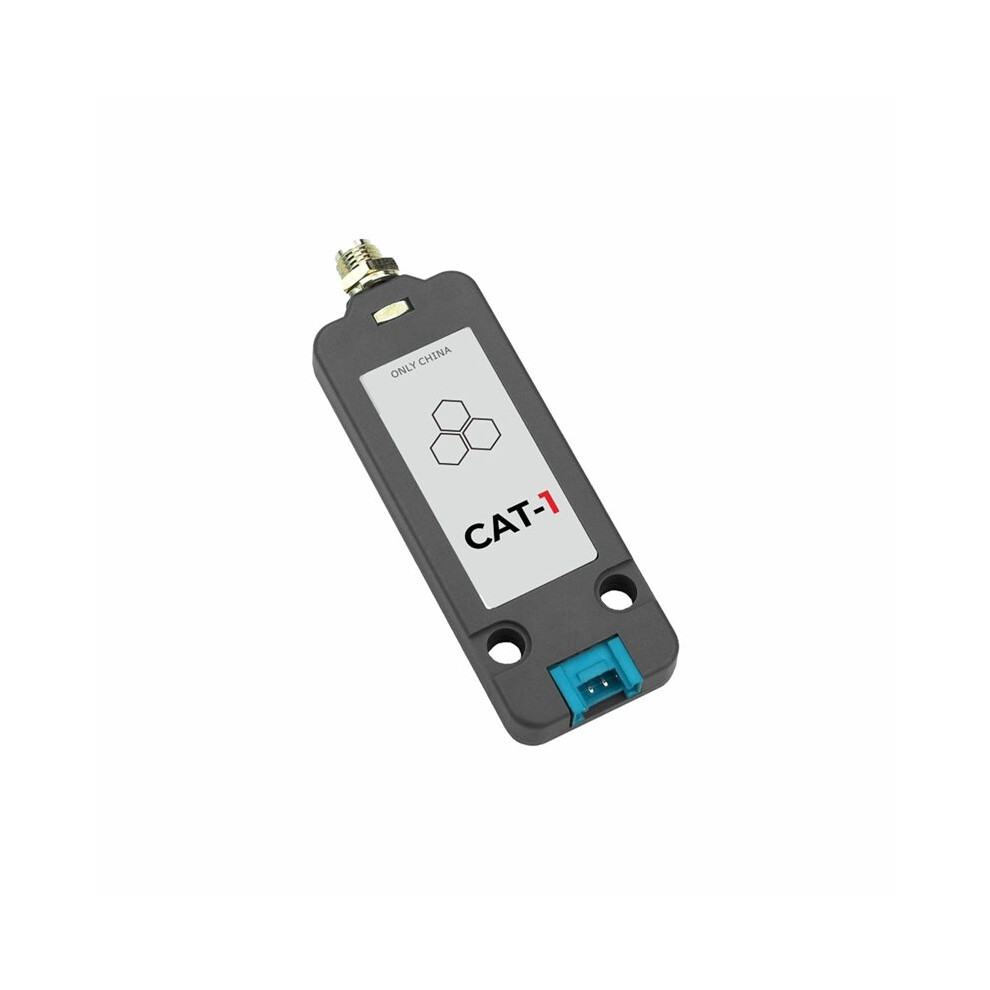

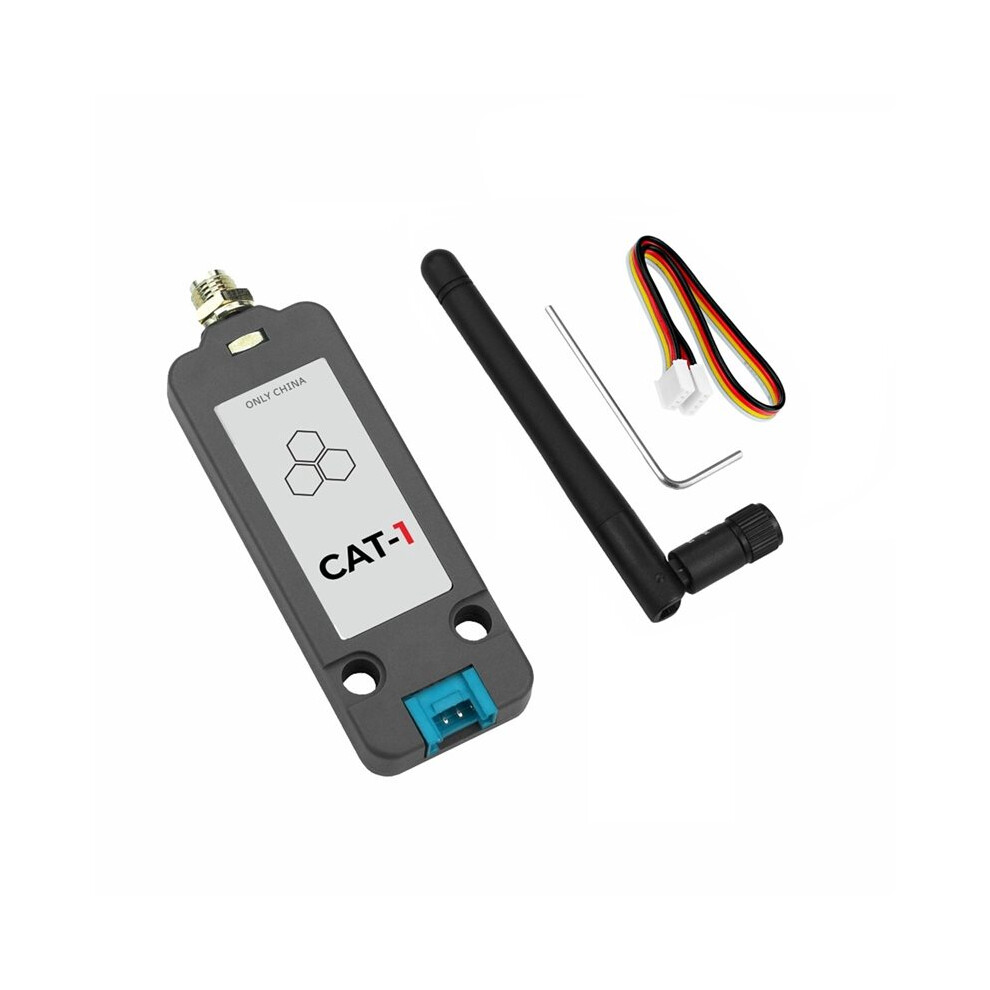

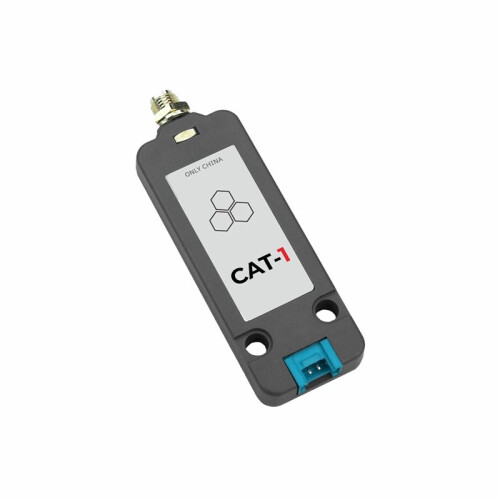

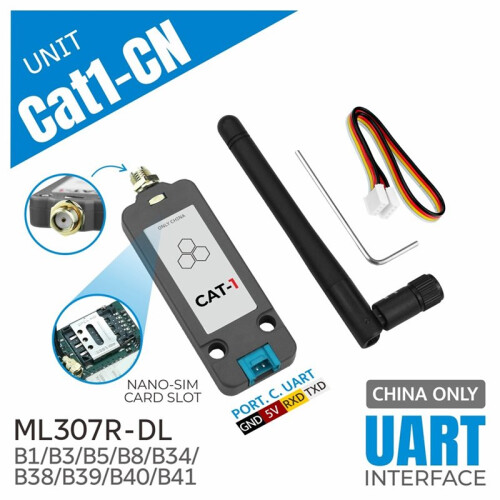

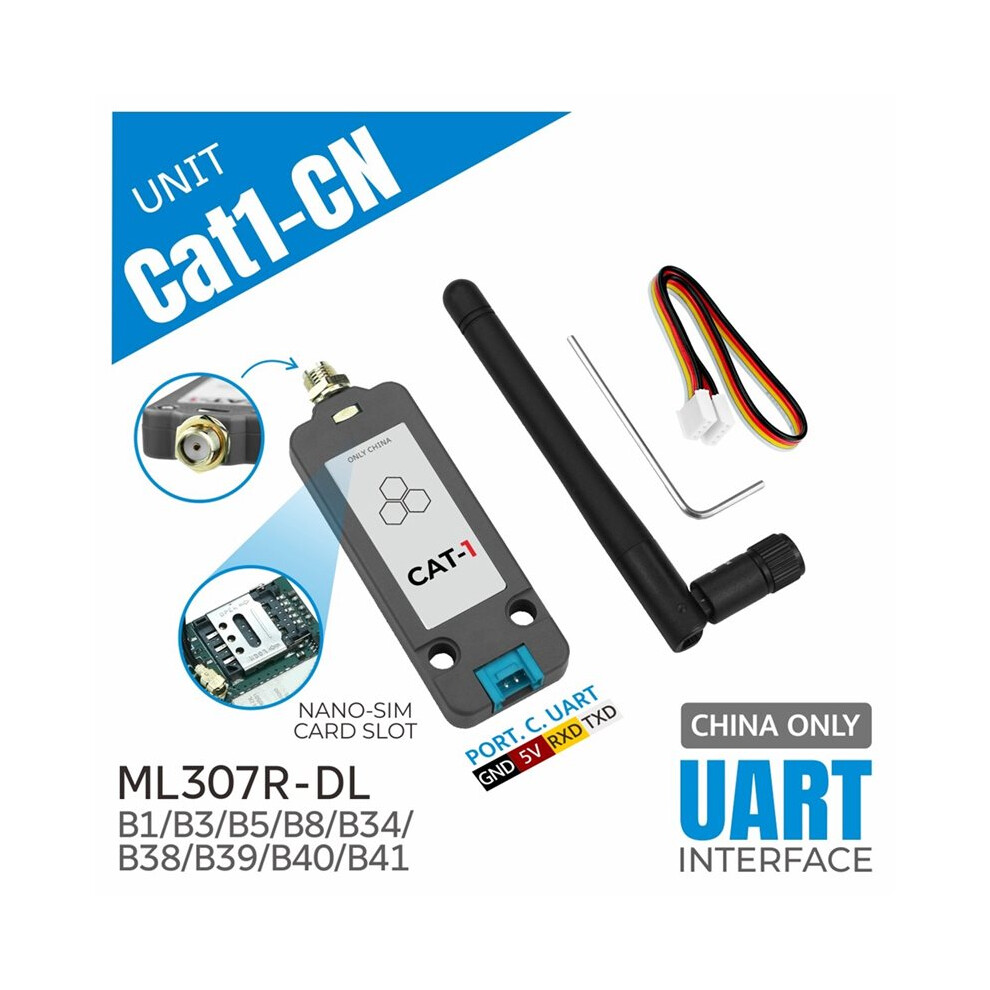

Unit Cat1-CN LTE Cat.1 Wireless Communication Unit with ML307R-DL Module Onboard SMA Interface and -SIM Card Slot

Unit Cat1-CN LTE Cat.1 Wireless Communication Unit with ML307R-DL Module Onboard SMA Interface and -SIM Card Slot Beskrivelse

Unit Cat1-CN is an LTE Cat.1 wireless communication unit equipped with an ML307R-DL module, supporting B1/B3/B5/B8/B34/B38/B39/B40/B41 frequency bands.
This communication unit uses a UART communication interface, is controlled by AT commands, and supports TCP/IP, SSL, HTTP, and MOTT communication protocols.

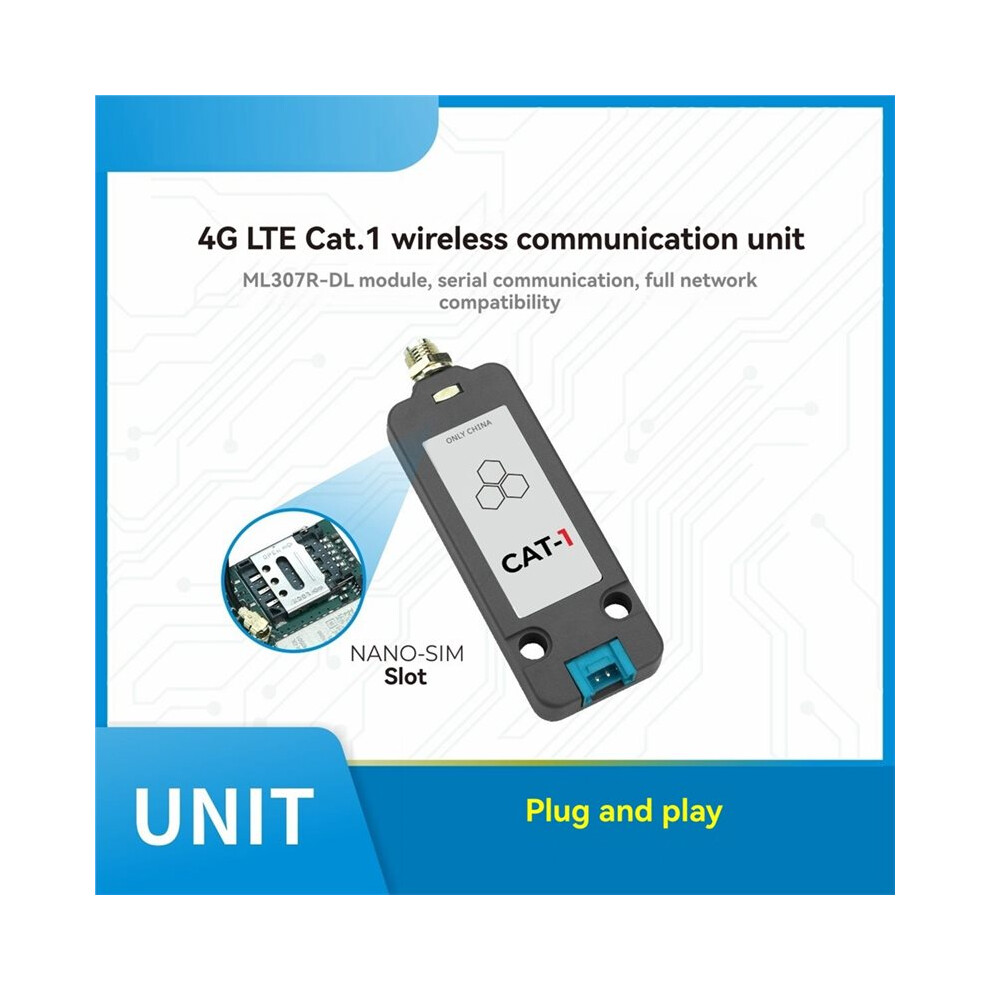

Featuring an onboard SMA antenna interface and -SIM card slot, suitable for IoT applications such as home, industrial control, healthcare, and environmental monitoring.

Utilizes the ML307R-DL module solution.
Supports to 6 concurrent socket communications.
Supports multiple network protocols: TCP/IP, SSL, HTTP, MOTT, etc.
Supports multiple mainstream frequency bands:
·LTE-FDD: B1/B3/B5/B8
·LTE-TDD: B34/B38/B39/B40/B41
UART communication interface

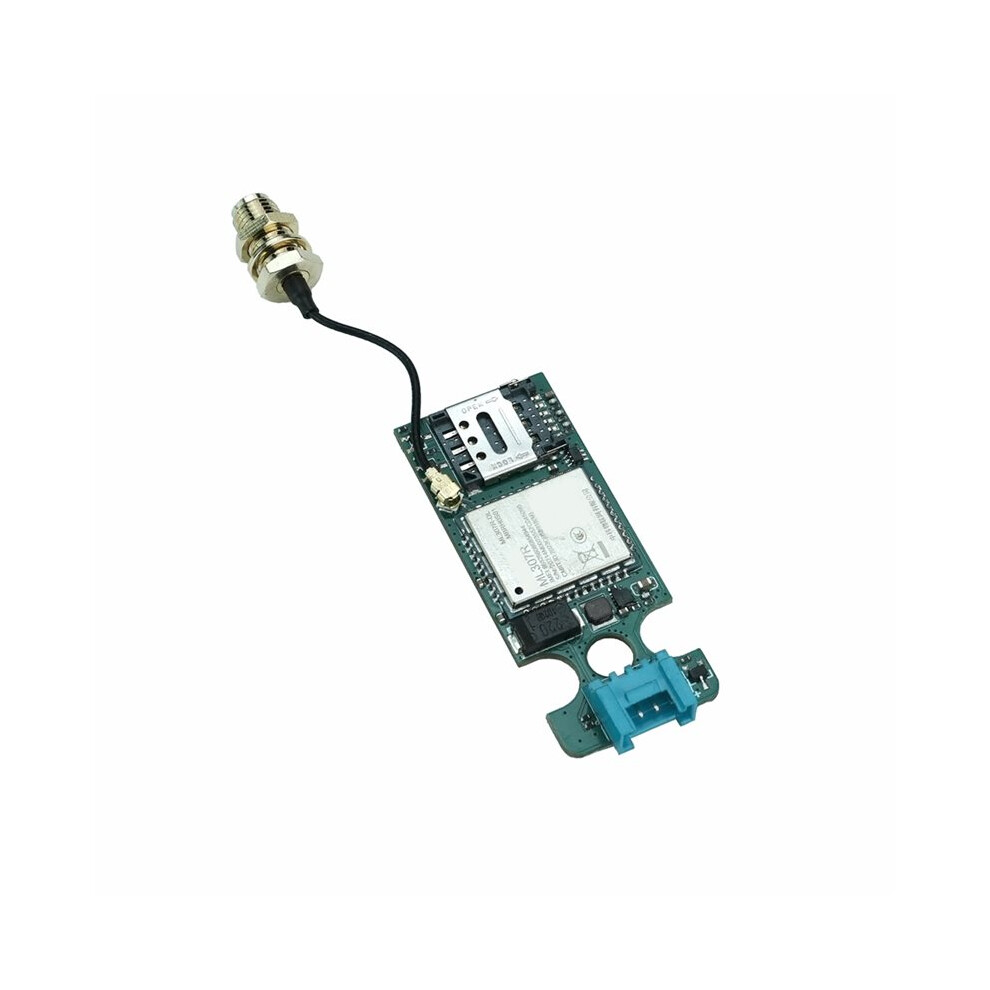

Communication Module: ML307R-DL
Theoretical Speed:
LTE-FDD: Maximum downlink speed 10Mbps, maximum uplink speed 5Mbps
LTE-TDD: Maximum downlink speed 9.010Mbps; maximum uplink speed 3.096Mbps
Operating Frequency Bands:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
Network Protocols: IPv4 / IPv6 / / NTP / DNS / TCP / UDP / HTTP / HTTPS / MQTT / MQTTS
3GPP Standard: R13
Power Supply Voltage: 5V
Communication Method: Default: UART115200 bps@8N1, supports modification
Power Consumption:
TCP Connection: Transmit Mode (Instantaneous Data): CMCC, FDD, B39: [email protected]; CMCC, TDD, B3: [email protected]
Standby Mode: [email protected]
Sleep Mode: [email protected]
Antenna Specifications: Interface Type SMA (Internal Screw), Operating Frequency Band 850-2700 MHz, Gain 3dBi, VSWR
