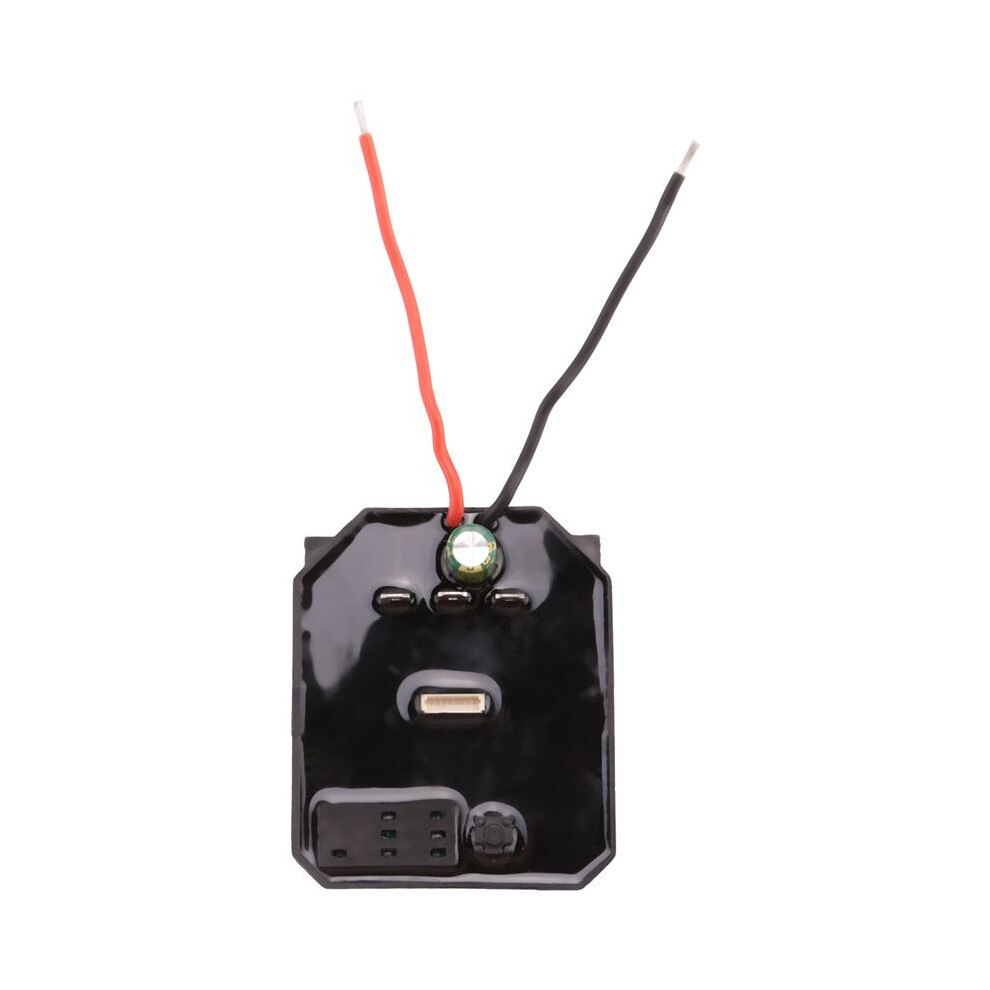

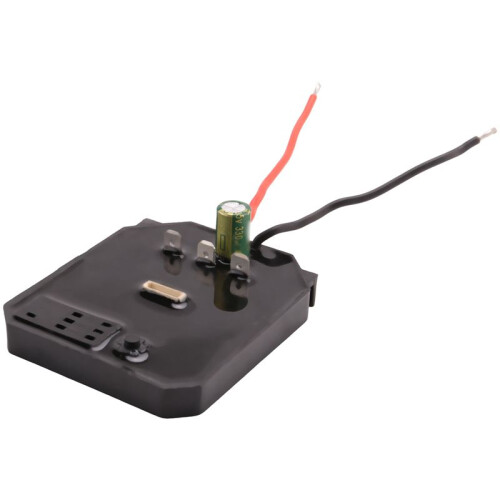

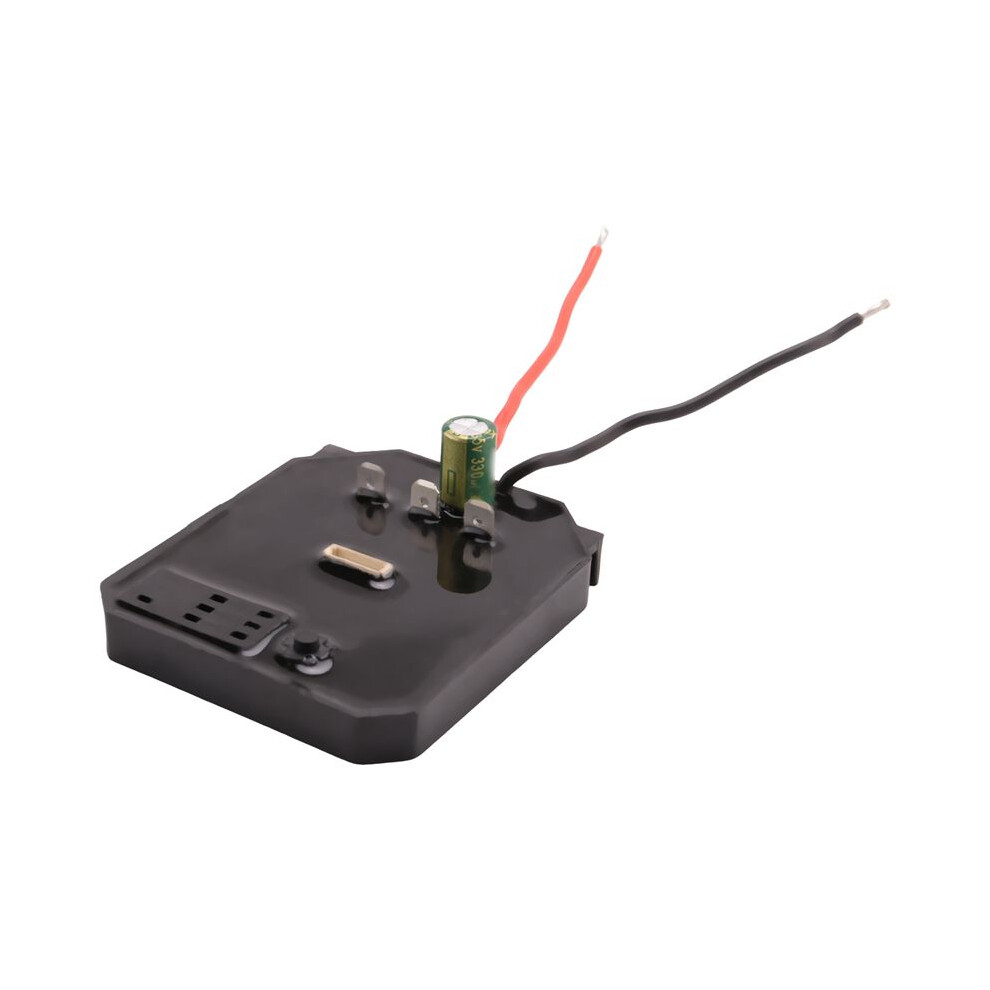

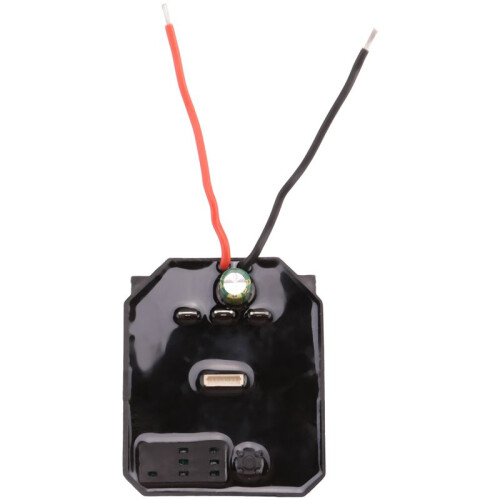

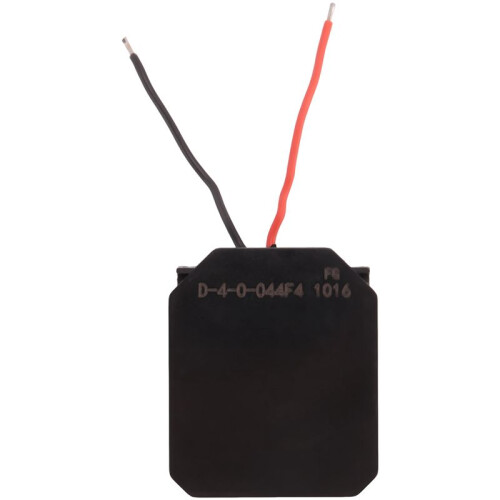

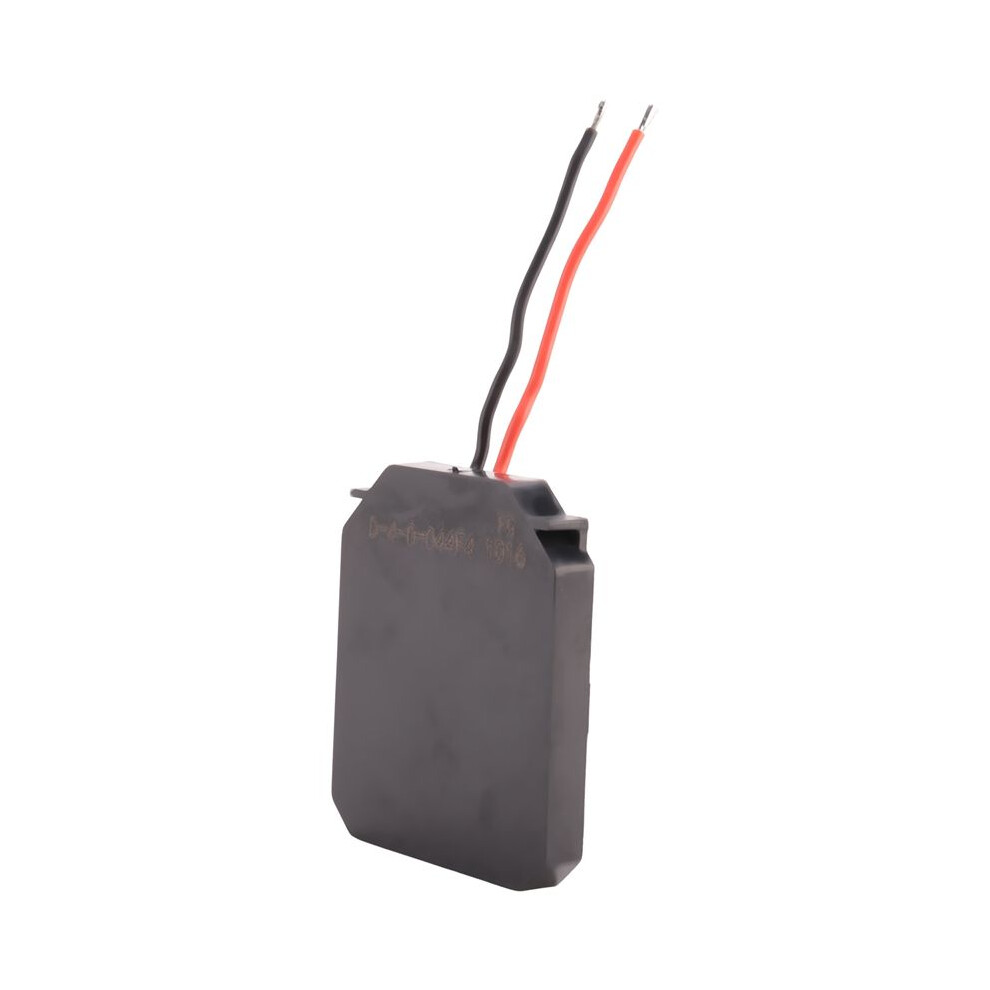

Universal Brushless Electric Wrench Accessories Control Board 18V Lithium Battery Controller Speed Regulation

Universal Brushless Electric Wrench Accessories Control Board 18V Lithium Battery Controller Speed Regulation Beskrivelse

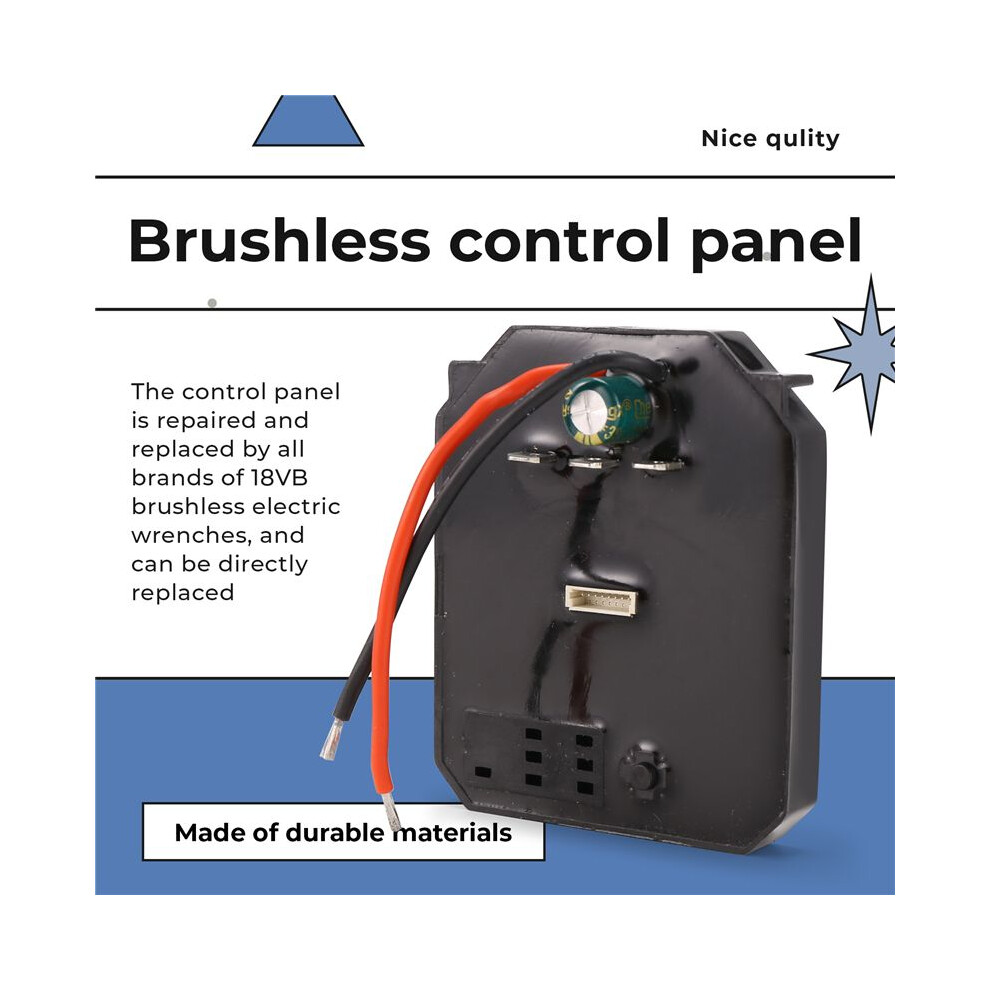

1. The control panel is repaired and replaced by all brands of 18VB brushless electric wrenches, and can be directly replaced
2. Wiring should pay attention to distinguish the positive and negative poles of the power supply (Hong positive and black negative poles), so as not to burn the wrong board!
3. The motor only connects to the three thickest wires, and there is no color option. Wire sequence. If the motor is reversed, just change the two motors at will. If the motor is Hall, the 5 Hall wires are not connected, which has no effect the function.
4. Precautions before commissioning: If the machine is a split motor (the stator and rotor can be separated in this area), you must first install the housing cover and tighten the screws, then gently twist the square shaft. Make sure that the motor is fixed OK, you can press the power .
5.Buy only the control board. When inserting the , you must insert it vertically to avoid bending the pins in the socket the control board with improper force, which may cause the test machine to be unusable. If the board is damaged, the buyer is responsible for it!

Product Name: Brushless Control Panel
Voltage: 18V (5 strings of 2 and 10 cells or 5 strings of 3 and 15 cells lithium batteries).
Power: 300WB brushless full-sensing or non-inductive three-phase motor.
Protection function: battery high and low voltage protection, circuit and over temperature protection, over current protection, self-discharge protection
Colour:black
Material:ABS

Package Contents:
1 x Brushless control board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
