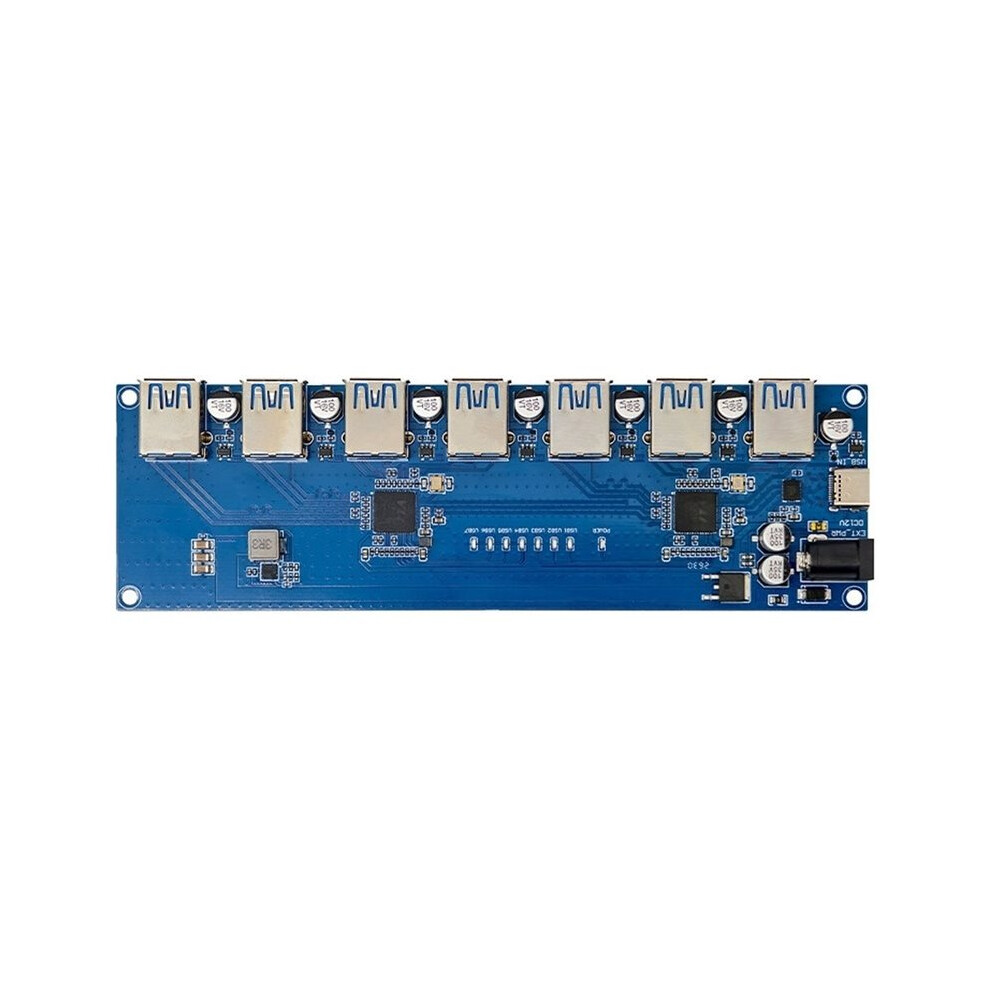

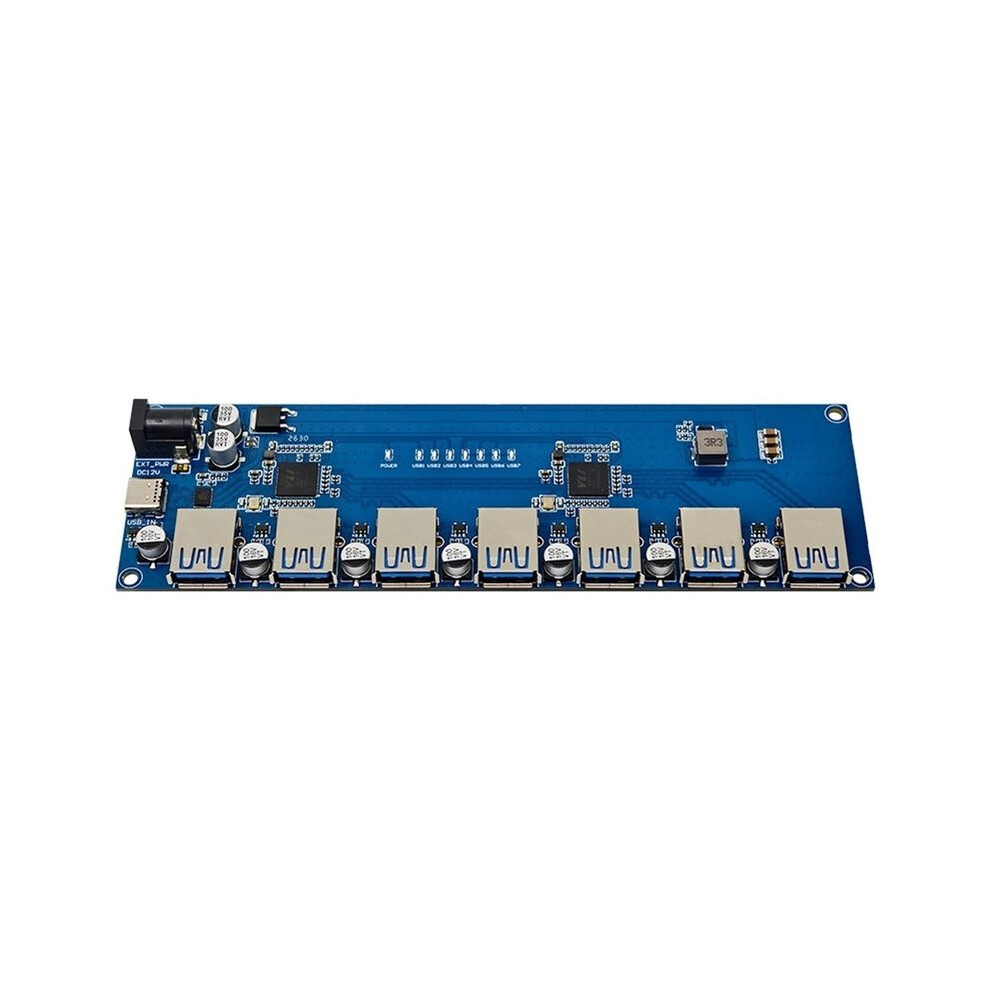

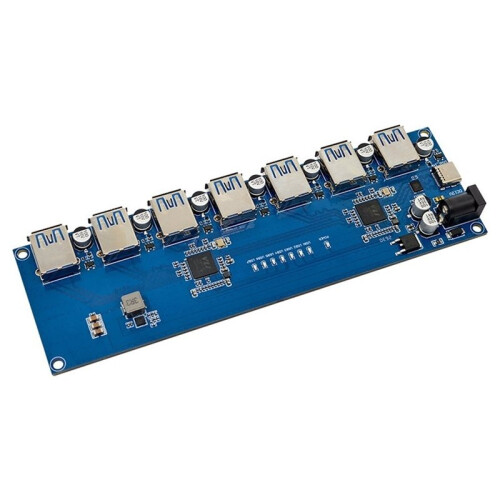

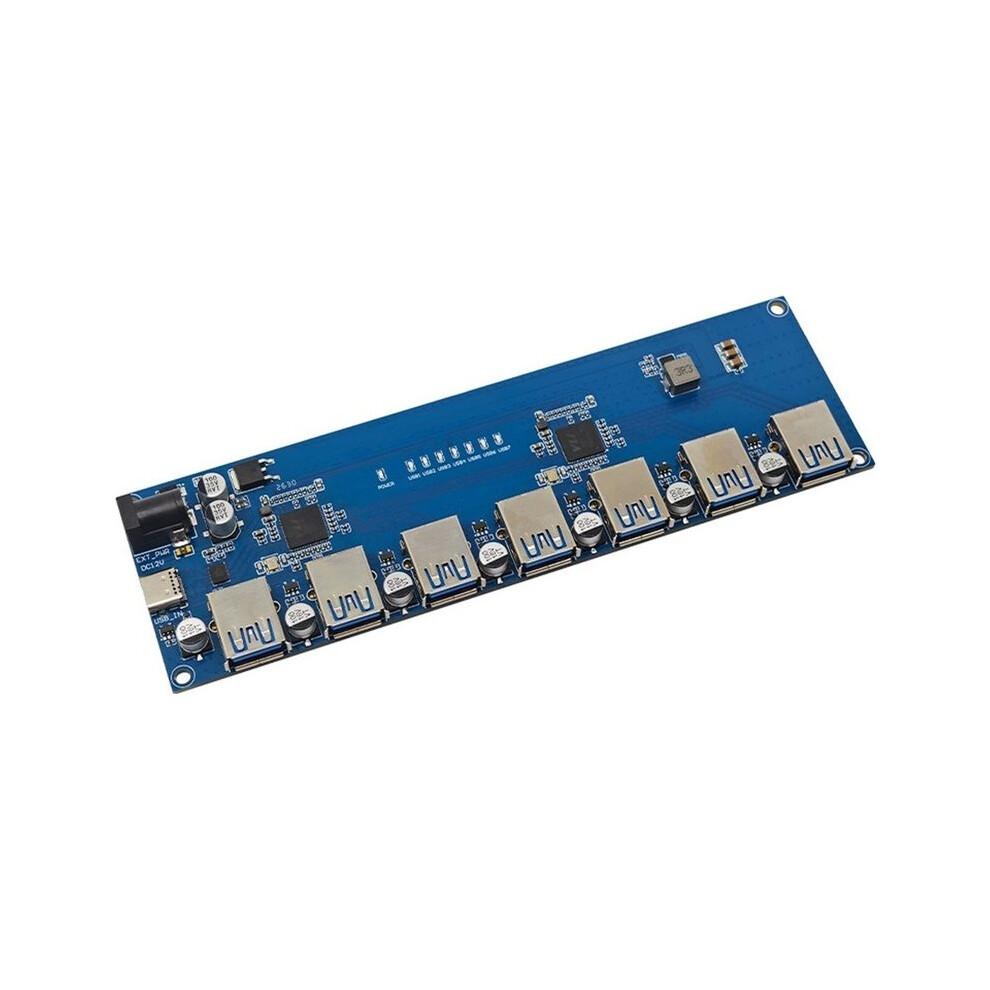

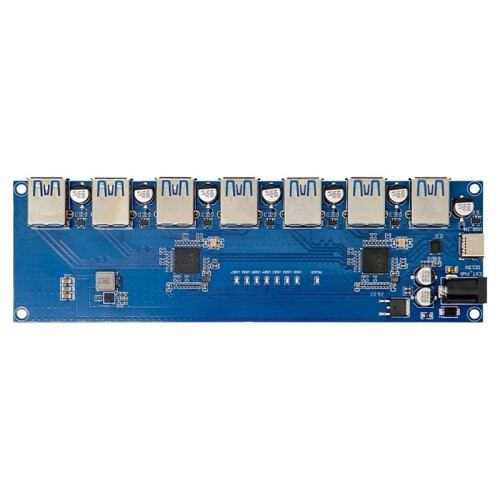

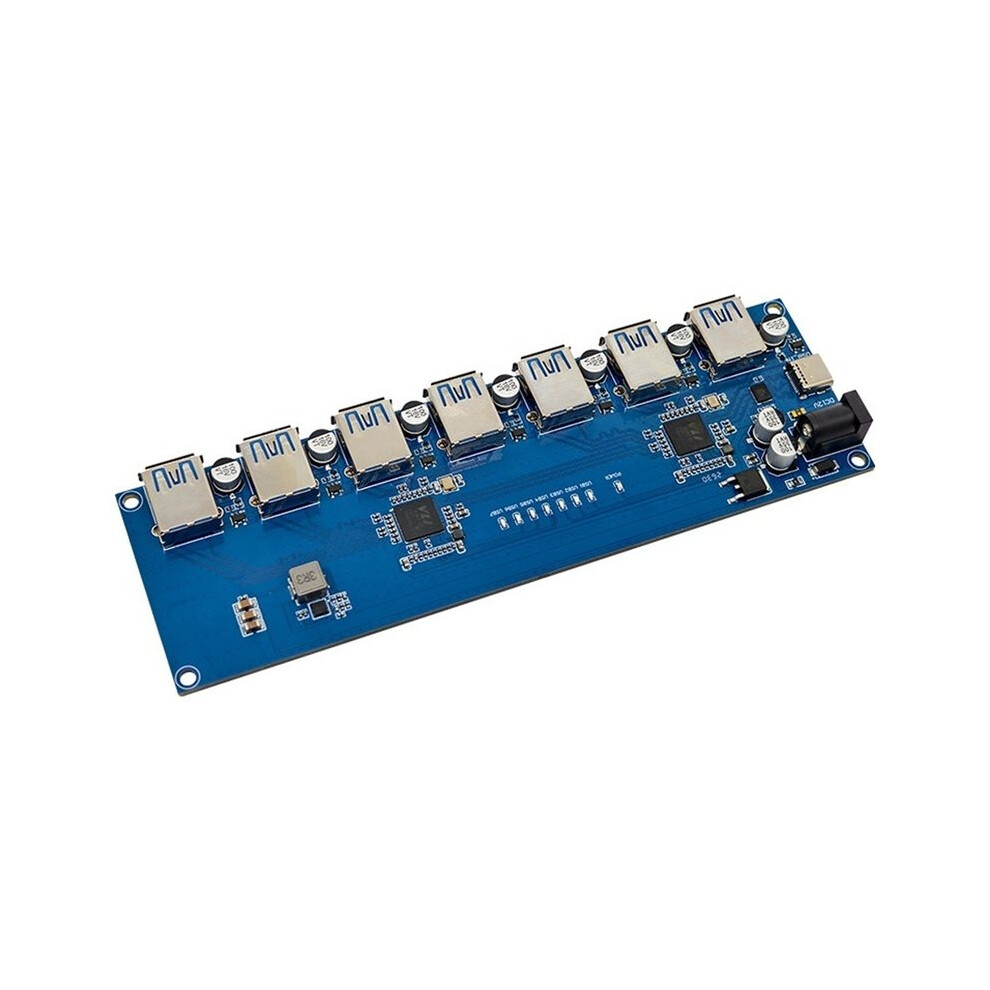

Upgraded VL817 USB3.1 HUB Module High-Speed 5Gbps 1-to-7 Port USB HUB 2A with Current Backflow Prevention Function

Upgraded VL817 USB3.1 HUB Module High-Speed 5Gbps 1-to-7 Port USB HUB 2A with Current Backflow Prevention Function Beskrivelse

1. The VL817 is a USB 3.1 Gen1 hub controller. It supports the simultaneous connection of devices operating at SuperSpeed (5Gbps), High Speed (480Mbps), Full Speed (12Mbps), and Low Speed (1.5Mbps).
2. Features 7 USB supporting various USB specifications and data rates; all can be used simultaneously.
3. Each USB port is equipped with a current-limiting featuring 2A short-circuit protection.
4. Supports an external 12V power supply for full-power output.
5. Includes reverse current protection to prevent damage to the host computer's built-in USB .

Description:

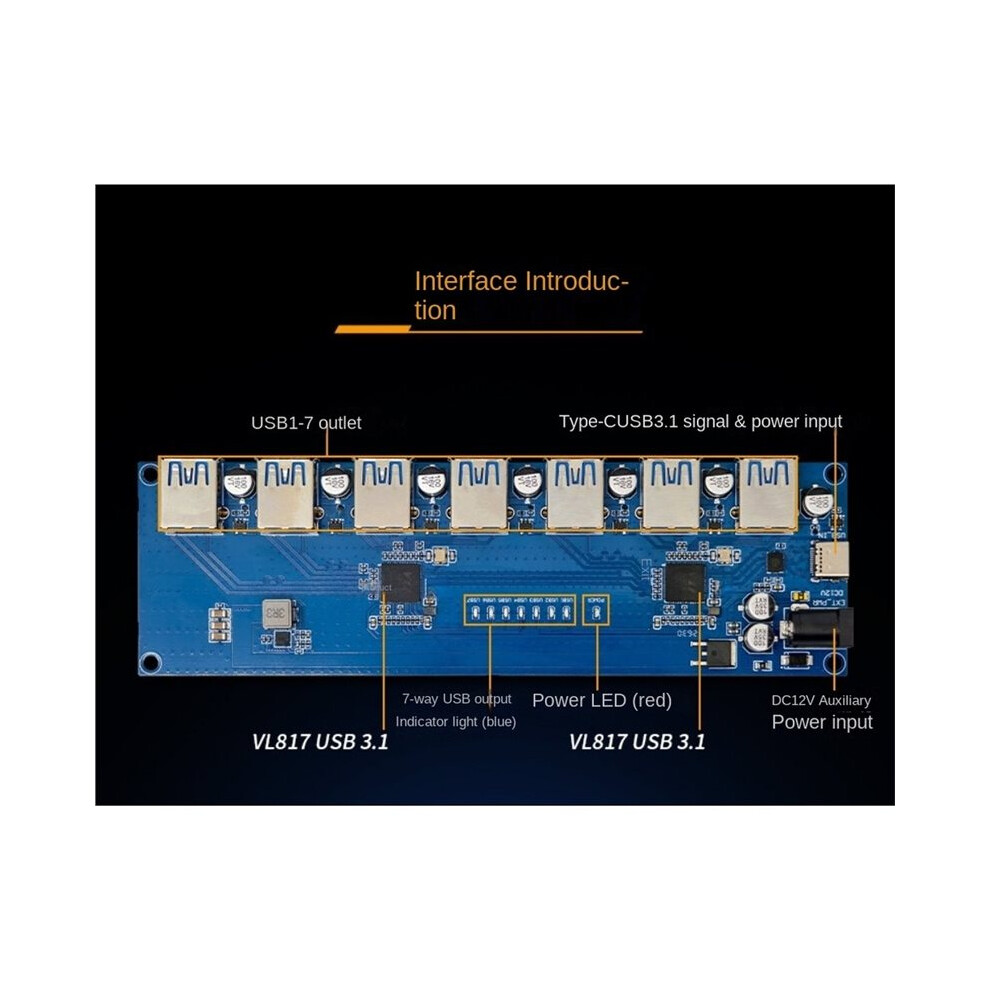

Type-C USB 3.1 Signal & Power Input Port: Connects to a computer's USB 3.0 port using a Type-C to USB 3.0 cable; supports reversible plug orientation.

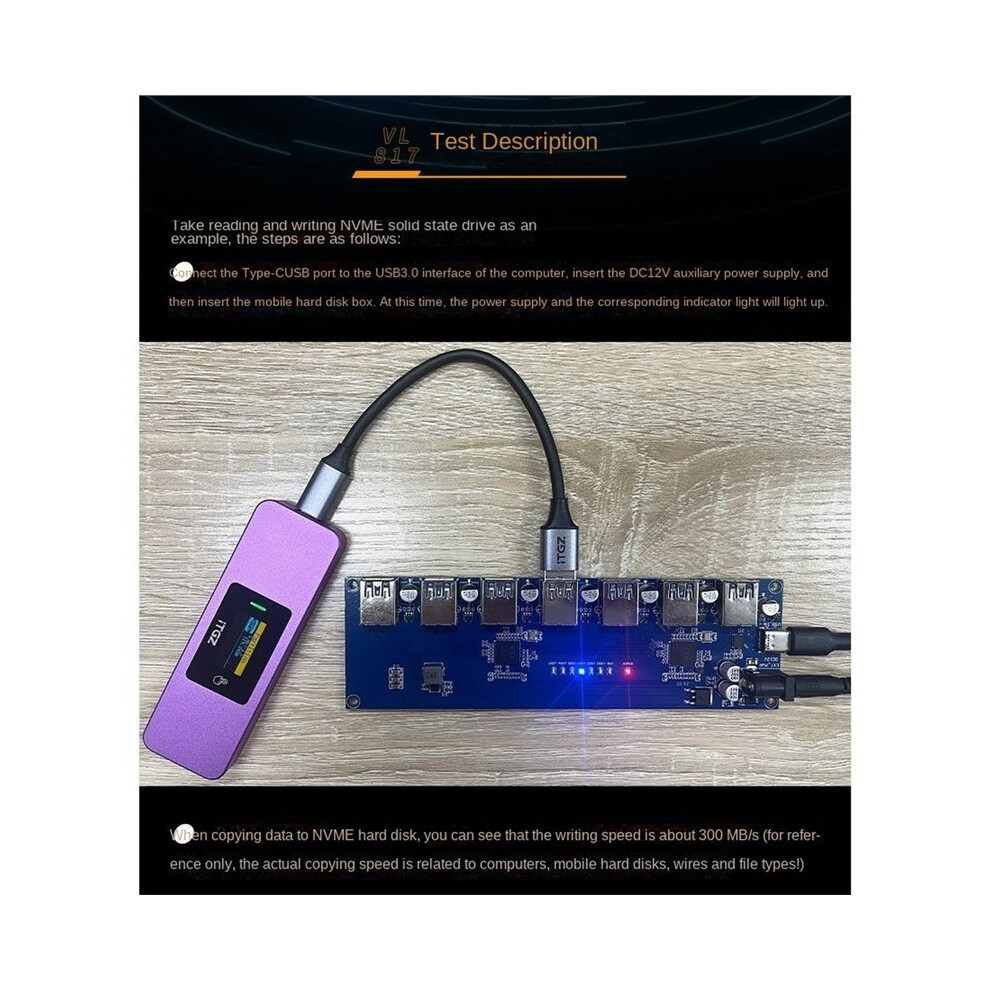

12V Auxiliary Power Input Port: When the connected USB device draws low current (e.g., keyboard, mouse, or flash drive), the device can operate using only the 5V power supplied via the Type-C input without an external power source; however, when connecting high-current USB devices (e.g., portable hard drives), an auxiliary power supply is required (recommended: 12V/2A).
7-Channel USB Output Indicators (): Light when a USB device is correctly detected.
Power Indicator (Red): Lights when power is supplied via the Type-C port or the auxiliary power port.
USB 1-7 Output : Seven USB 3.1 Type-A output ; maximum output per channel is 5V/2A, though the total output power across all channels is theoretically limited to a maximum of 30W.
Color:
Material: PCB+Metal

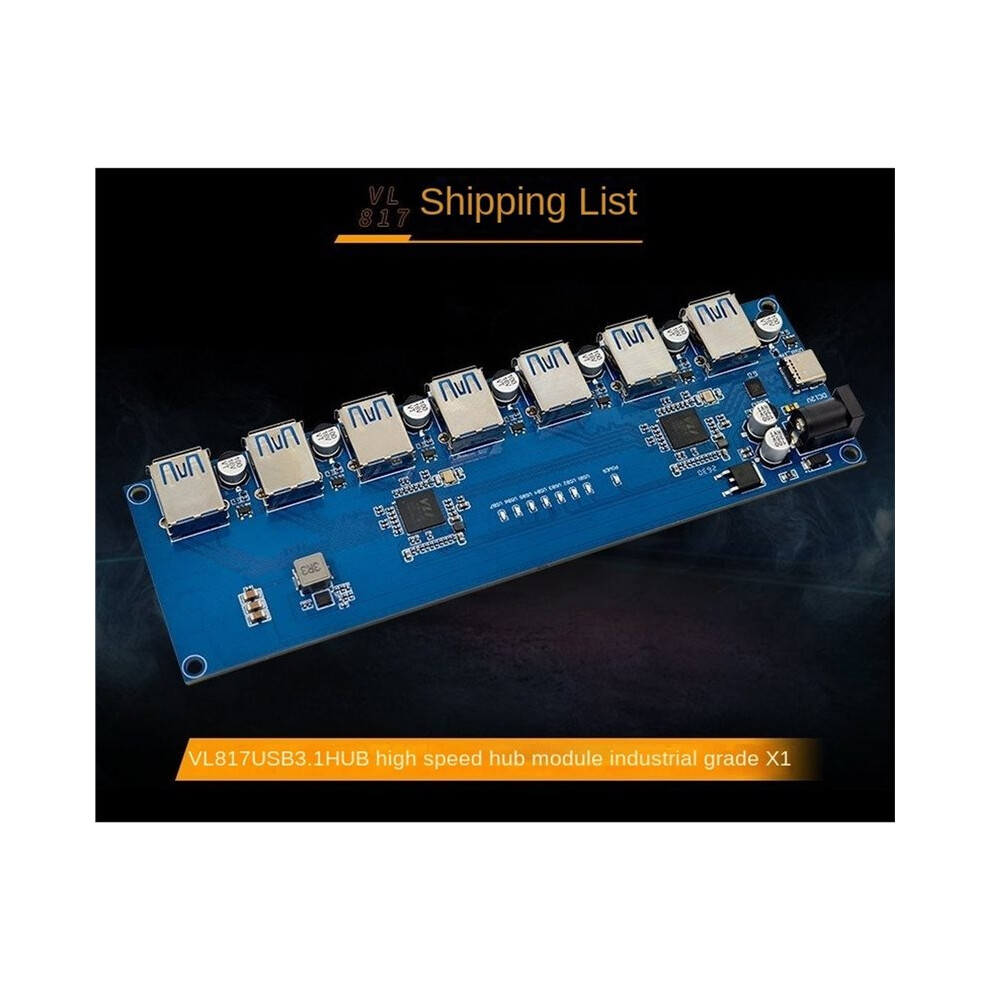

Package Contents:
1 * VL817 USB3.1 HUB
