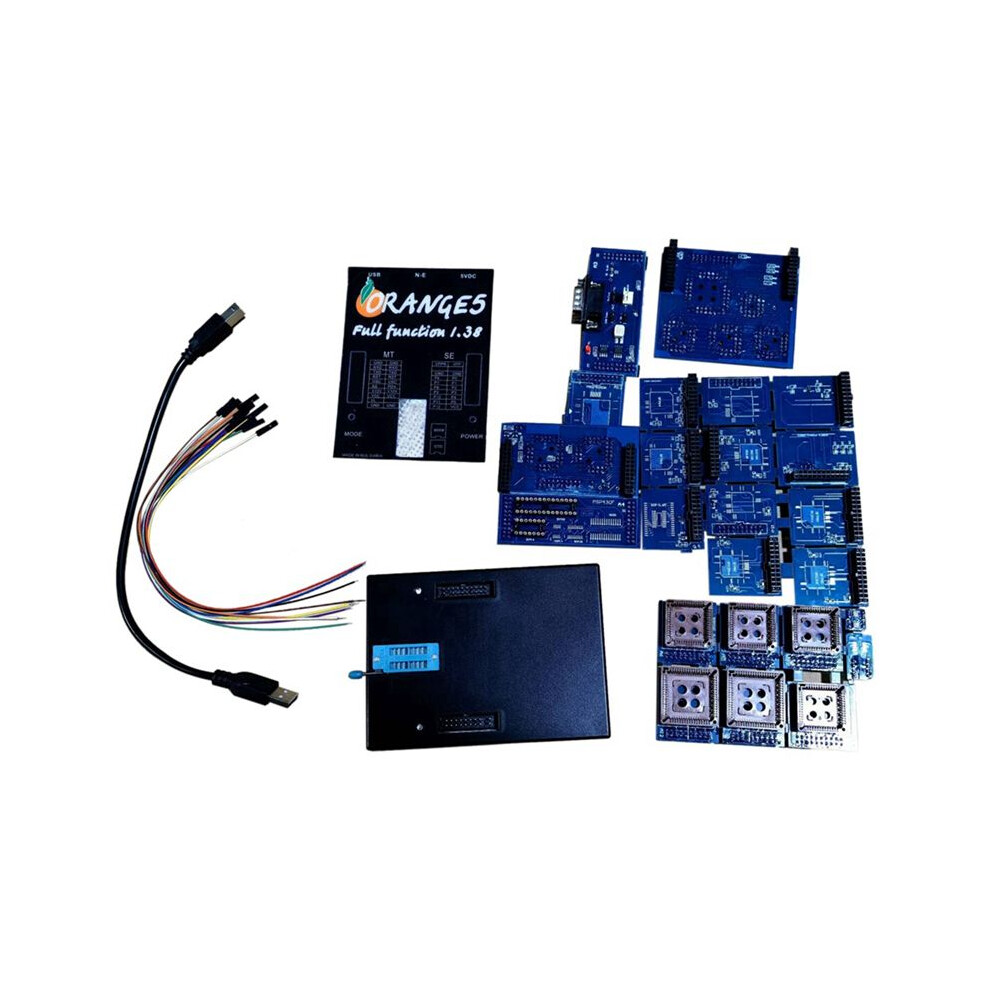

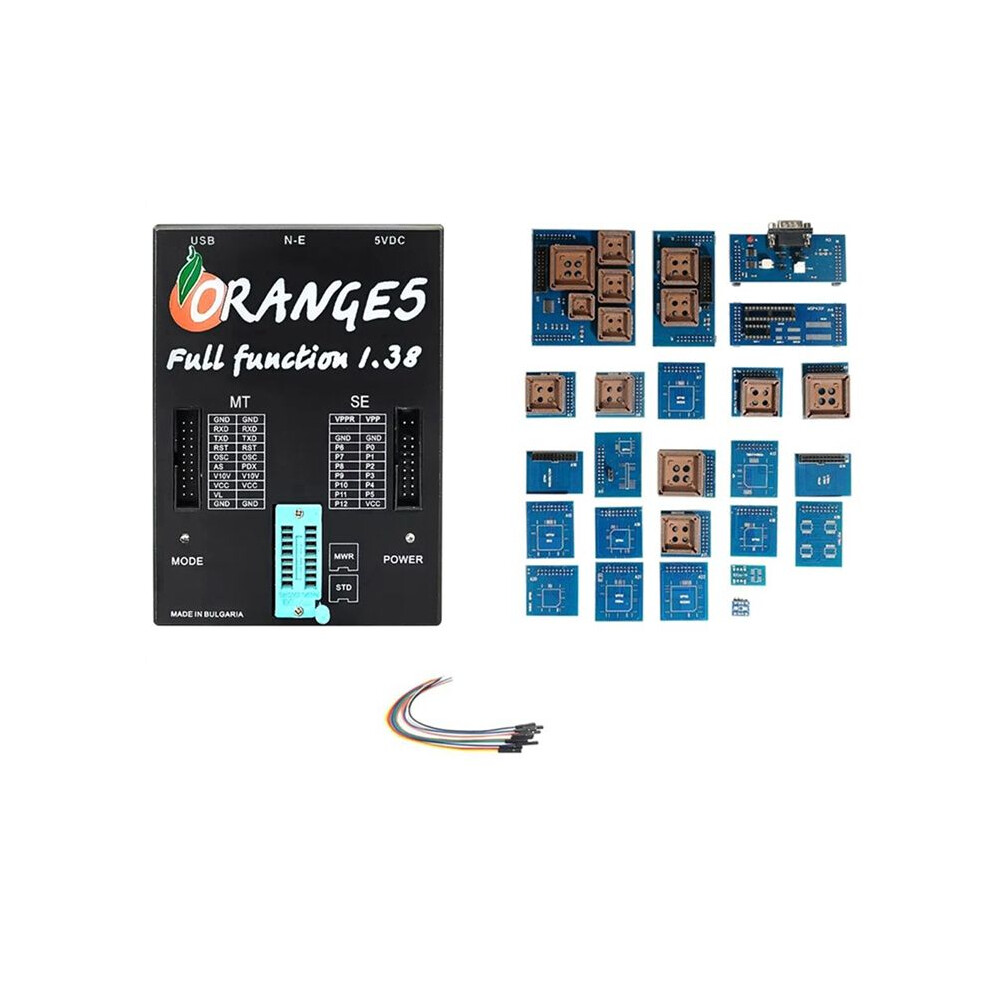

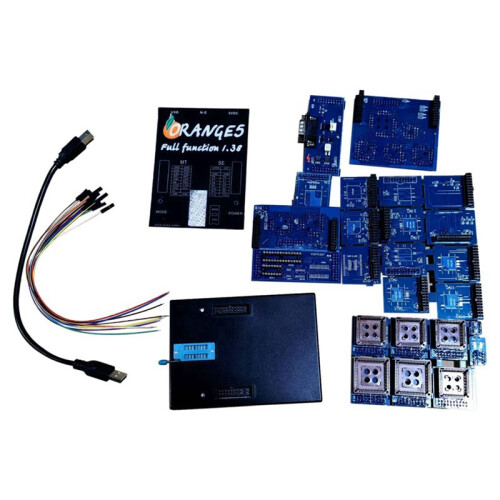

V1.38 Orange 5 Full Adapters Programming Device Hardware ECU Programming Device Activate Full License Full Function

V1.38 Orange 5 Full Adapters Programming Device Hardware ECU Programming Device Activate Full License Full Function Beskrivelse

Orange5 Technical Info:
USB power supply (USB2.0/3.0); Universal easy to plug panel ZIF16 for EEPROM; Control of contacts in the sockets; Two expansions compatible with Orange4 and MTRK
Protection against overcurrent; Overload voltage protection
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V); Wave cycle generator with frequency ( to 24 Mhz) and out voltage(2.0...5.0V) adjustment

Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K- (via adapter), CAN (via adapter)

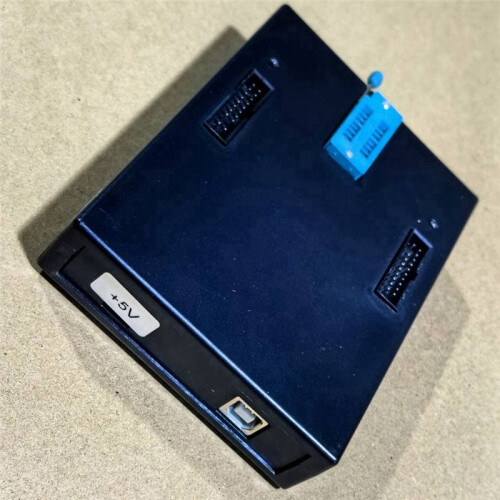

Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM .
Feature:
Supports any COM , incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Supports Orange5 programmer in emulation mode.
Note:
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly, Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
