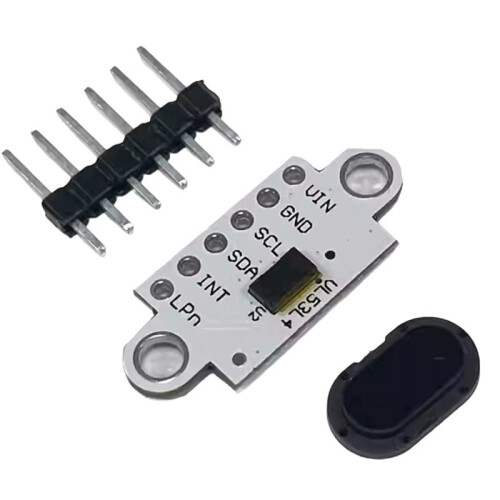

VL53L4CD High-Precision Proximity Distance Sensor and High-Performance Proximity Sensor

VL53L4CD High-Precision Proximity Distance Sensor and High-Performance Proximity Sensor Beskrivelse

Designed specifically for close and short distance measurements, the VL53L4CD is capable of very accurate distance measurements, with a measurement range of only 1 millimeter
to 1300 millimeters. The new generation emitter has an 18 field of view, performs better in ambient light, and has a ranging speed of to 100 Hz.
Due to its autonomous mode and programmable range, the V53L4CD has very low power consumption, making it ideal for use in battery powered devices. It is completely
Embedded -chip processing capabilities help reduce design complexity and lower bill of materials costs, as lower power and more affordable microcontrollers can be used.
Like all -of-flight ToF sensors based ST FlightSense technology, the VL53L4CD records absolute distance measurements regardless of target color and reflectivity.

Features:
High precision proximity distance measurement
High performance proximity sensor
From 0 to 1300 millimeters, with full field of view (FoV)
Short distance linearity can reach 1 millimeter
The field of view is 18 degrees
Autonomous low-power mode with programmable interrupt width, used to wake the host
Fast ranging frequency to 100 Hz
Fully integrated micro module
940nm invisible emitter (VCSEL) and analog driver
Low power microcontroller running advanced digital firmware
The size is 4.4x2.4x1 millimeters
Fully compatible pin to pin with VL53L0X, VL.53L1X, VL53L1CB, VL53L3CX, and VL53L4CX
Easy to integrate
Remeltable component
Single power supply 2V8
Can be hidden behind the cover glass
I2C interface ( to 1MHz)
Complete set of C software drivers (compatible with Linux) for plug and distance measurement
Embedded processing with very low memory usage in the host
Color: As Shown
Material: plastic
