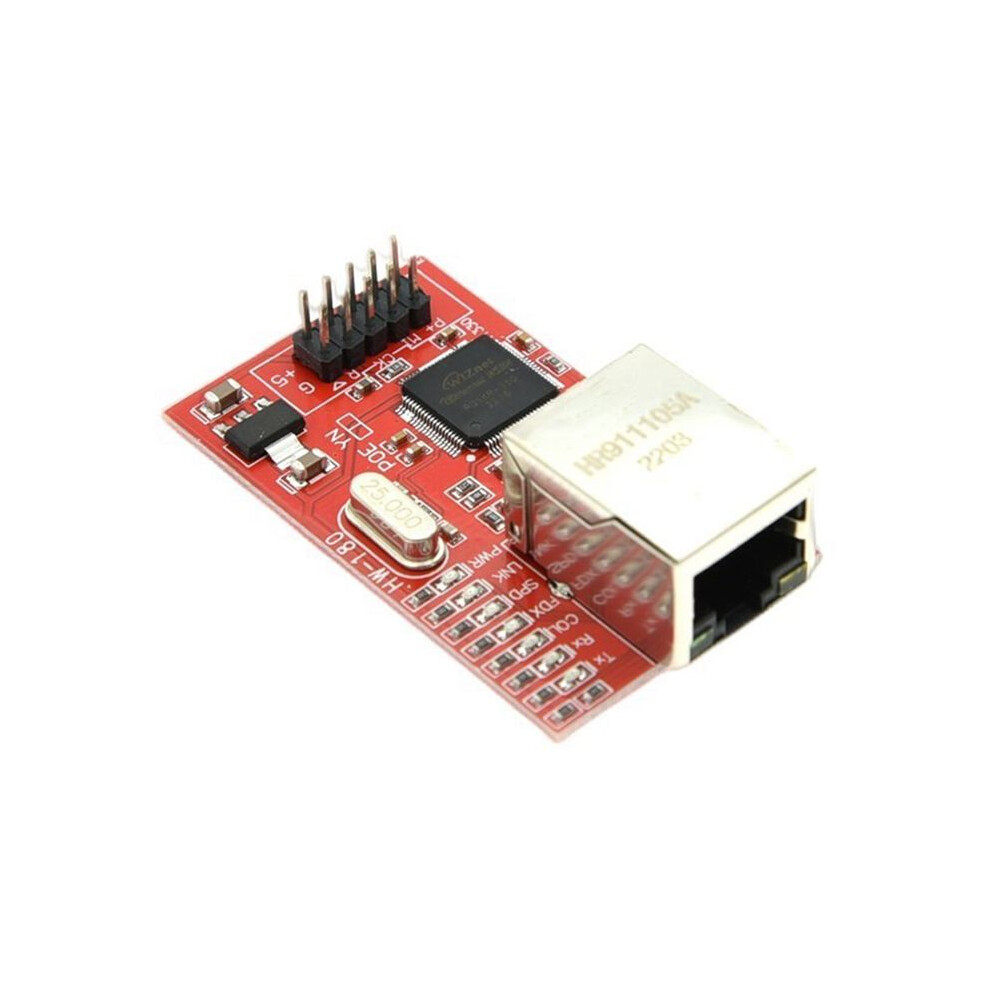

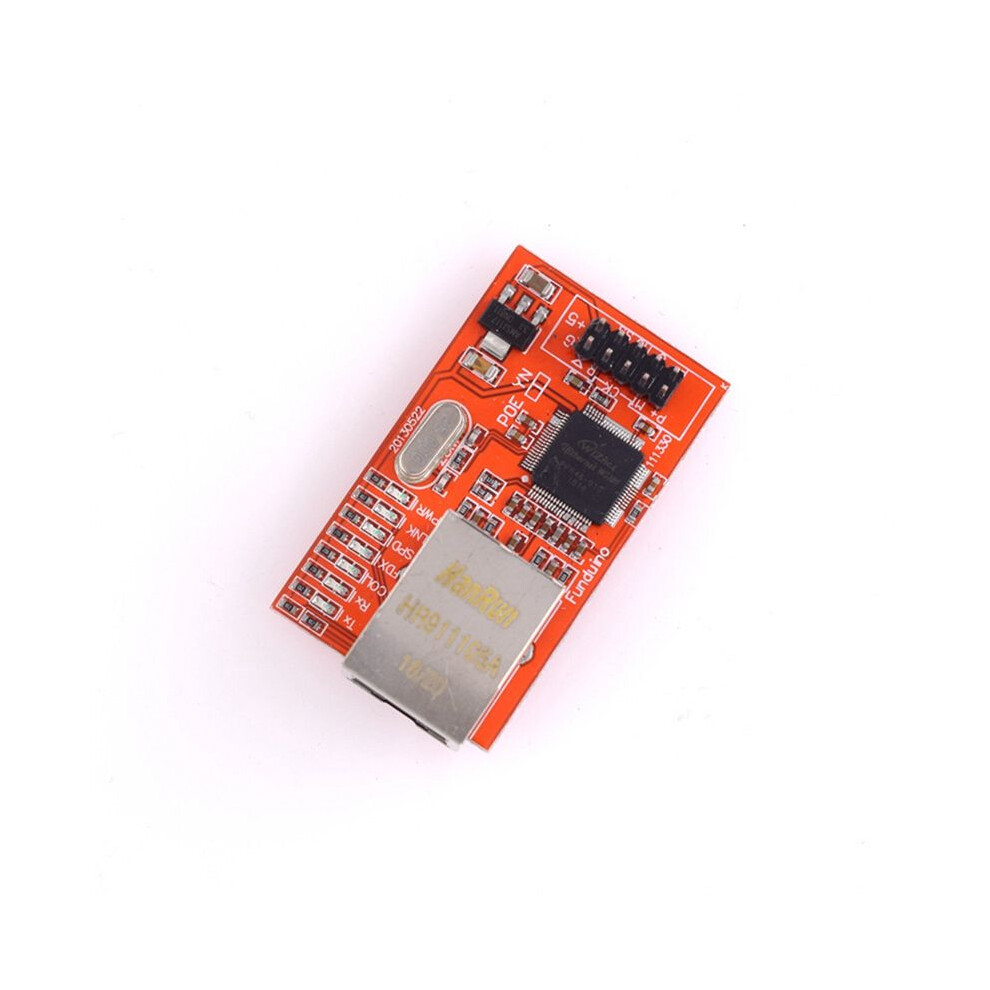

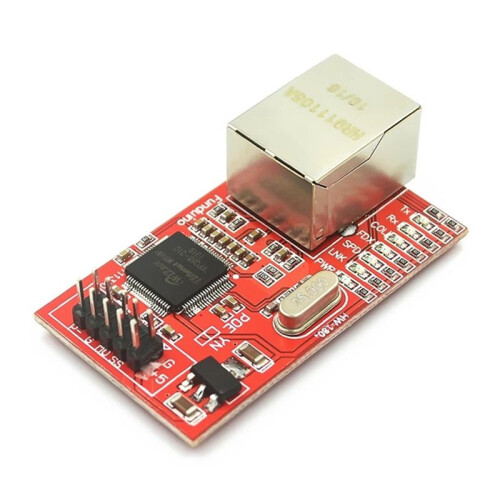

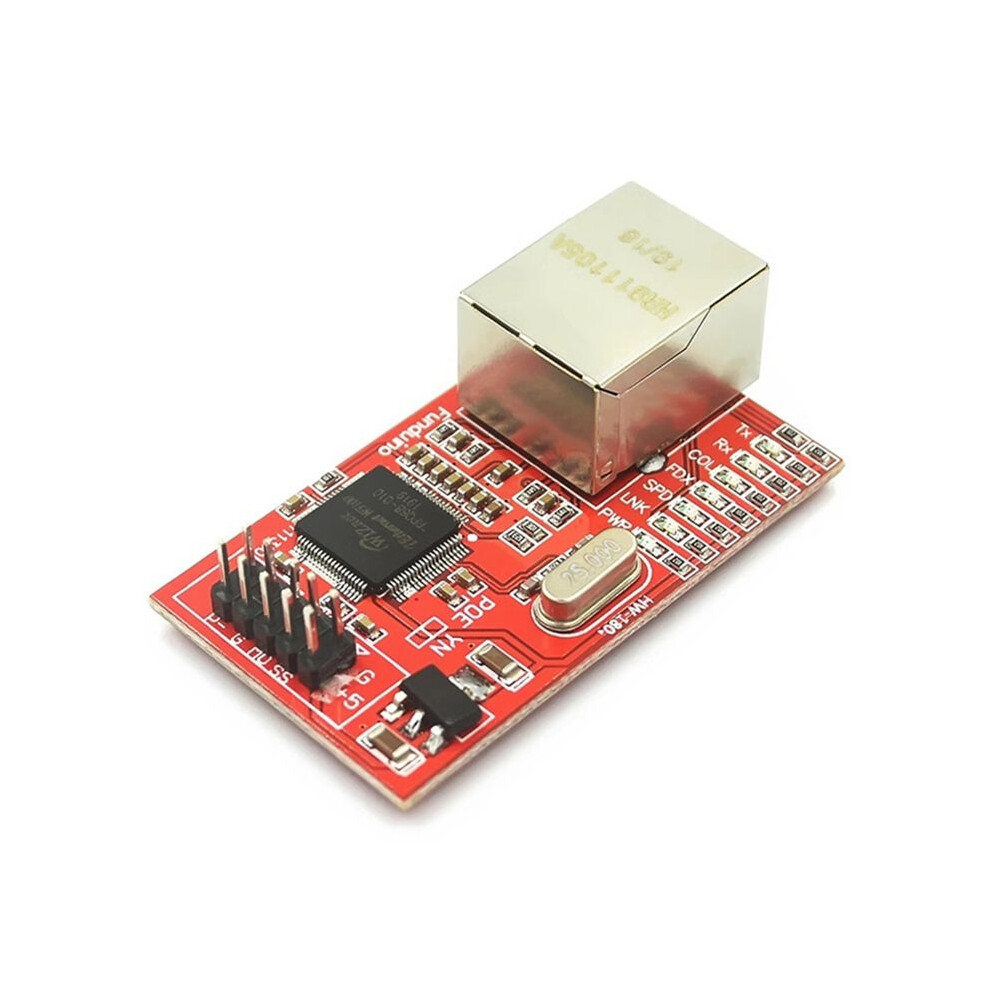

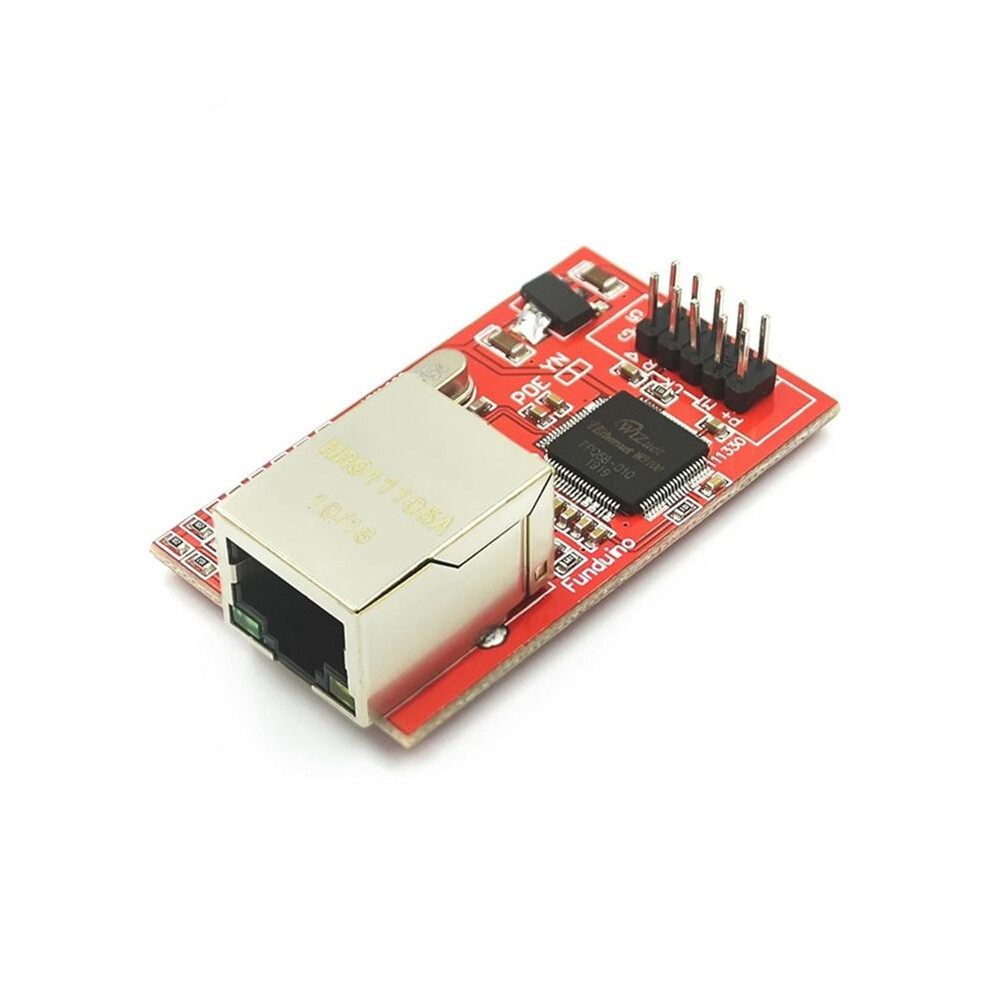

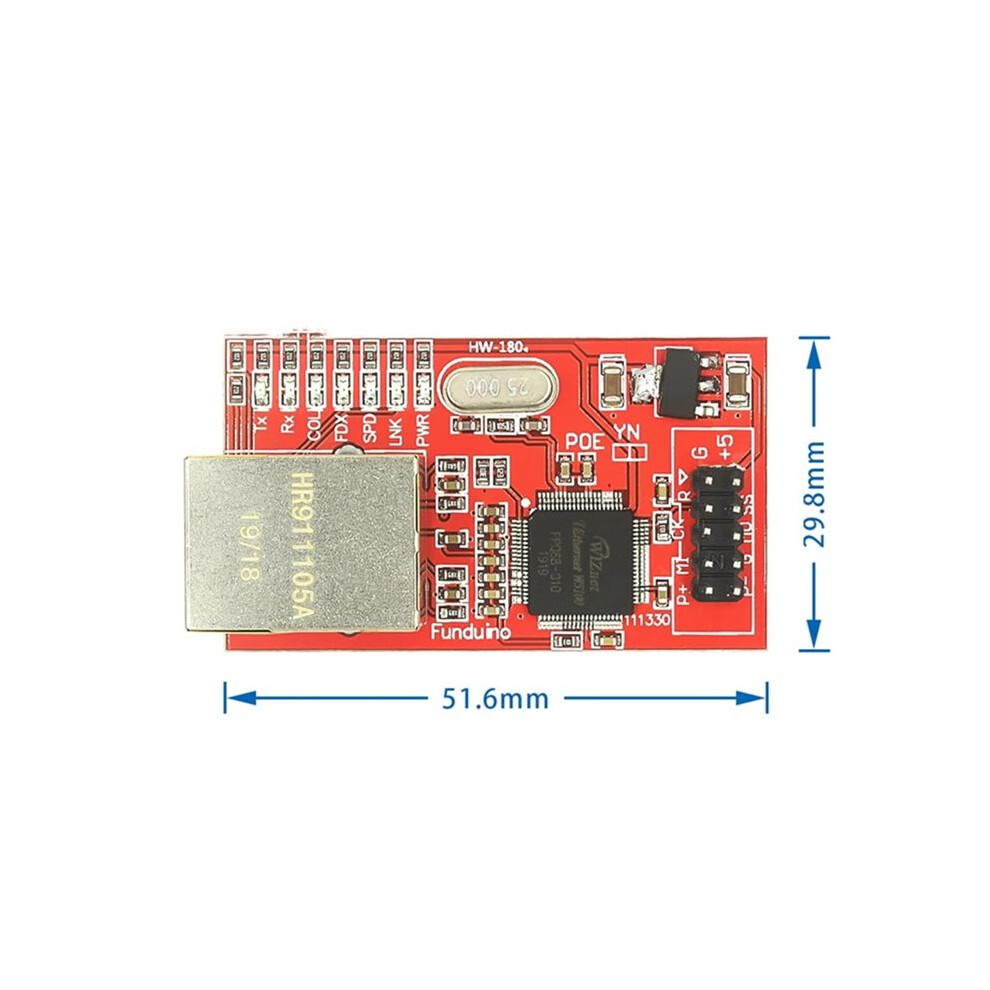

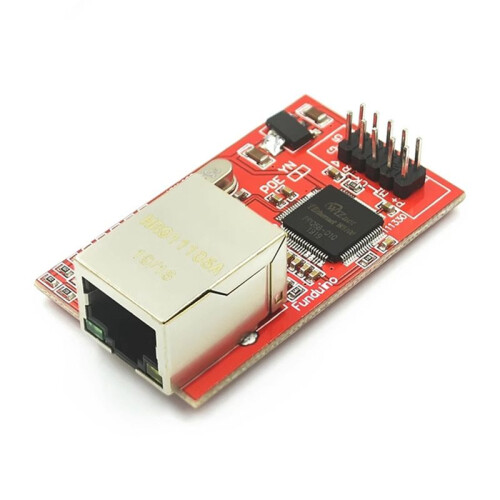

W5100 LAN Ethernet Shield Network Board Module R3 W5100 3.3V Compatible for Ethernet

W5100 LAN Ethernet Shield Network Board Module R3 W5100 3.3V Compatible for Ethernet Beskrivelse

Various interfaces can be selected: direct bus, indirect bus and SPI bus
Support hardware TCP/IP protocol stack, support TCP,UDP,ICMP,IGMP,IPv4, ARP,PPPoE
to 4 independent
Internally integrated 16KBYTE transceiver cache
A variety of information indicates output, including rx, tx, full/duplex, colision, link, speed

W5100 is a multifunctional single-chip network interface chip with 10/100 Ethernet controller integrated inside, which is mainly used in embedded systems with high integration, high stability, high performance and low cost. Using W5100 can realize Internet connection without operating system. The W5100 is compatible with IEEE802.3 10BASE-T and 802.3u 100BASE-TX. W5100 integrates the TCP/IP protocol stack, Ethernet media transport layer () and physical layer (PHY) which are all hardware and have been verified by the market for many years. The use of W5100 does not need to consider the control of Ethernet, but only needs simple Socket programming.
Support automatic polarity conversion (DMI/MDIX)
3.3V power supply, IO signal is compatible with 5V voltage
With its own network port, double rows of 2x14 2.0mm pins
Compatible with for 's official Ethernet library.
Color:Red
Material:PCB

Package Contents:
1 * Module
