Water Dispenser DIY Science Experimental Tool Kit with R3 Development Board for

Water Dispenser DIY Science Experimental Tool Kit with R3 Development Board for Beskrivelse

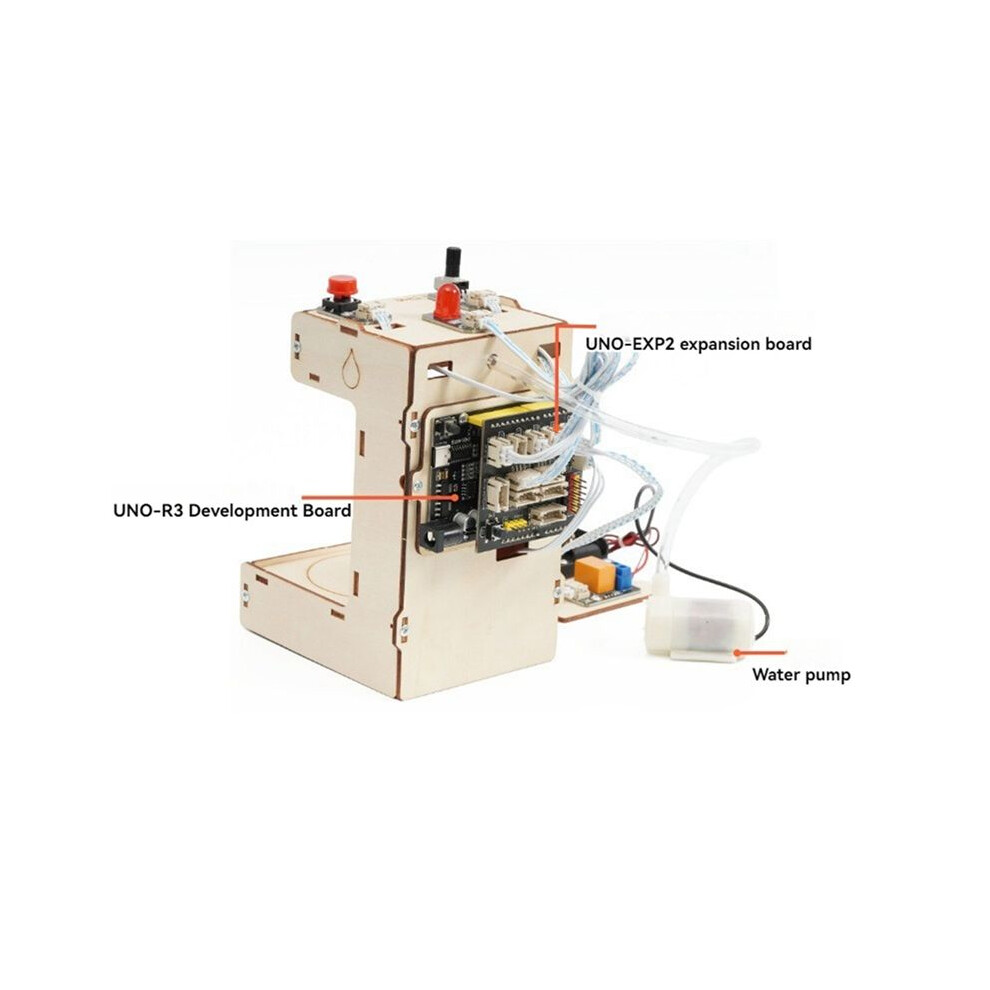

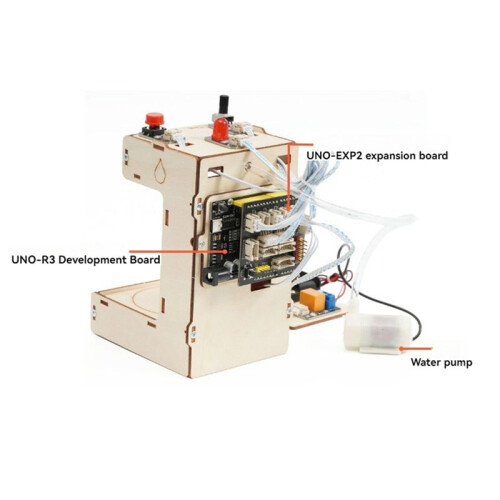

The water dispenser uses for R3 development board as the main control board.
Equipped with exclusive expansion board and PH2.0 sensor, it avoids messy wire connection, makes the project easier and faster to build, assembly and wiring are relatively simple, and the performance is more stable!
This kit can achieve:Potentiometer controls water discharge , touch starts water pump, button emergency stop and LED light working indication. At the same , the water discharge is displayed through a four-digit LED digital tube.
In this water dispenser, we use a potentiometer to control the water discharge . By adjusting the knob of the potentiometer, you can choose the length of the water discharge . Use a touch to start the water pump. When the touch is touched, the circuit will start the water pump to start discharging water.
In addition, a button is also provided to perform an emergency stop function. When the button is pressed, the water pump will stop working immediately. At the same , there is an LED indicator to display the working status of the water dispenser.

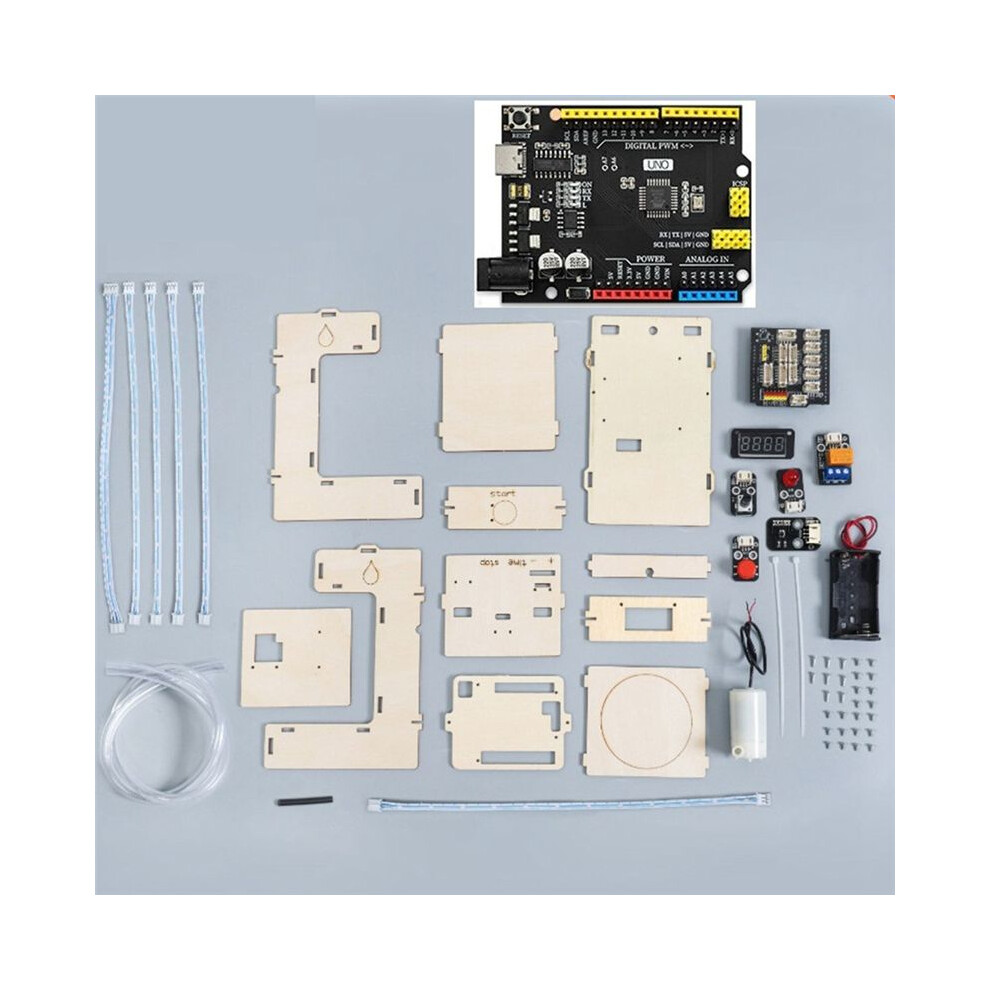

Compatible development board: for development board

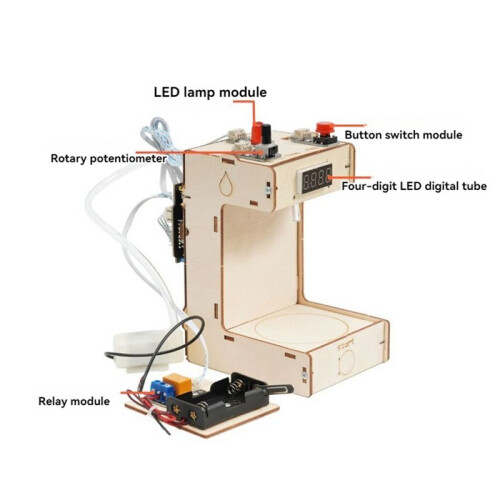

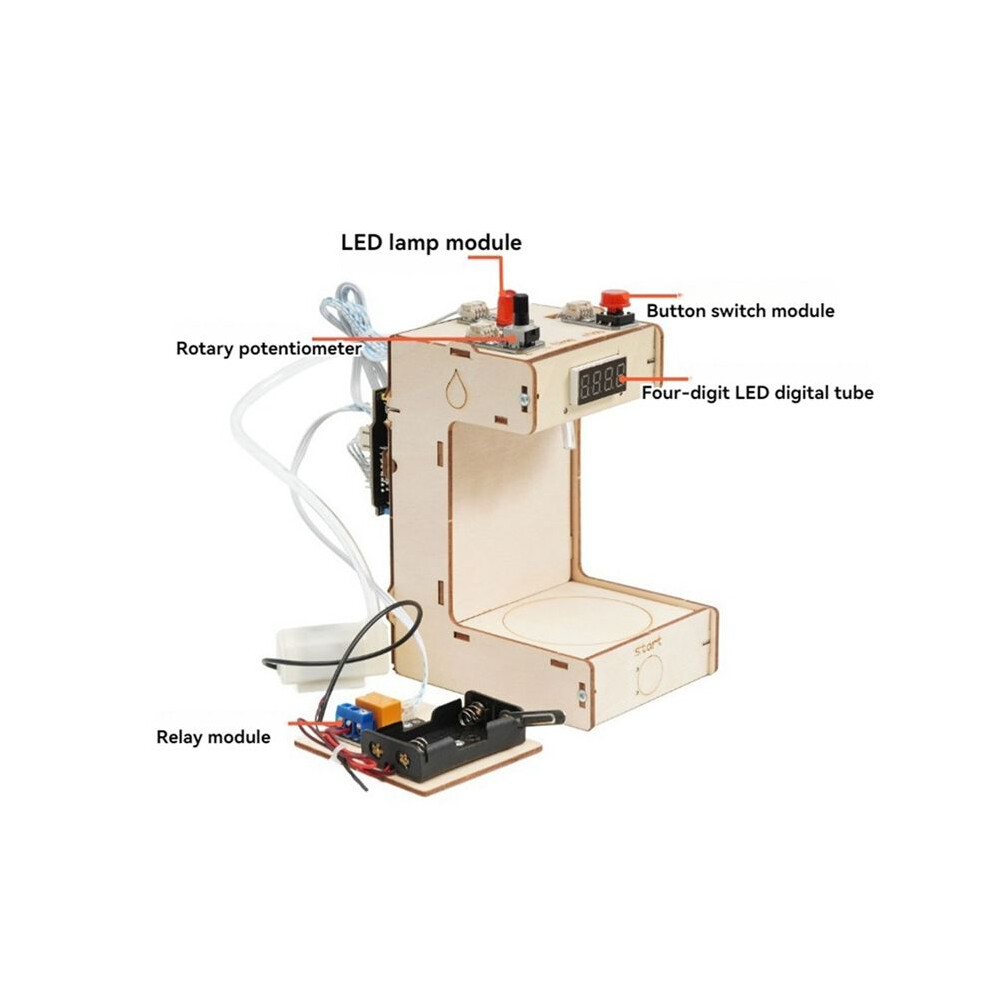

Basic input module: rotary potentiometer x1
Actuator: relay module x1, LED light module x1
Display: four-digit LED digital tube x1
Expansion board: HS--EXP2
Power module output: maximum 5V/800MA
Power interface input voltage range: 6-12V
Power supply method: 1. Use TYPE-C USB port power supply voltage (5V); 2. Use power port power supply voltage (DC7V~12V)
Others: onboard custom function button x1, spare expansion interface x1
Supported programming software: for IDE, for Mixly, for Ardublock, for Scratch
Colour:Wood color
Material:Wood + Electronic Components
2 AAA batteries not include
