Waveshare 4.3 Inch LCD Display for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+ IPS Capacitive Touch Screen Monitor 800X480

Waveshare 4.3 Inch LCD Display for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+ IPS Capacitive Touch Screen Monitor 800X480 Beskrivelse

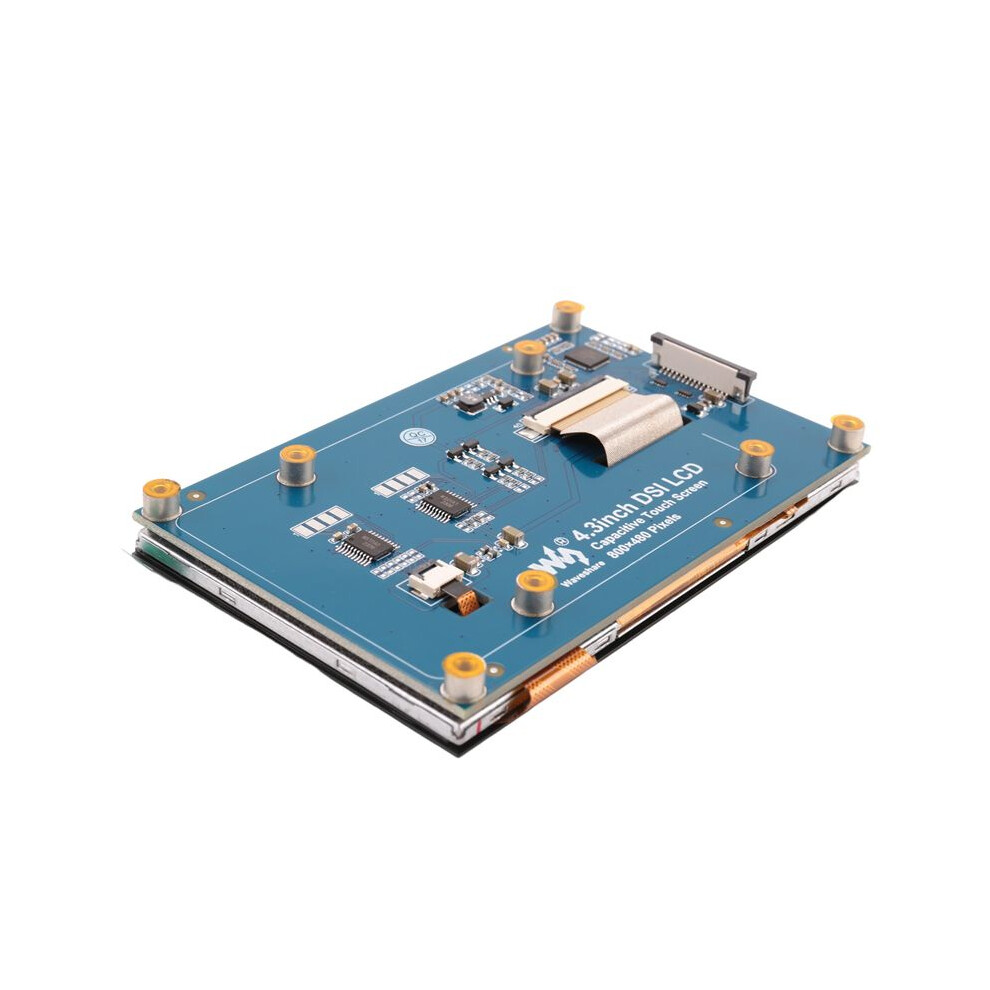

4.3inch LCD Touch Display for Raspberry Pi, 800x480 resolution, IPS screen wide angle
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4(CM3/3+/4 requires extra adapter board)
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

1. Capacitive touch panel, support to 5-point touch
2. interface, refresh rate to 60Hz
3. Tempered glass capacitive touch panel, hardness to 6H
4. When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie, driver free.
5. Supports software control of backlight brightness
Hardware connection
Connect the interface of 4.3inch LCD to the interface of Raspberry Pi.
For easy use, you can fix the Raspberry Pi the backside of the 4.3inch LCD by screws
Software setting
Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems for Raspberry Pi.
1) Download image from the Raspberry Pi website.
2) Download the compressed file to the PC, and unzip it to get the .img file.
3) Connect the TF card to the PC, use SDFormatter software to format the TF card.
4) Open the Win32DiskImager software, select the system image downloaded in step 2, and click 'Write' to write the system image.
5) After the image has finished writing, save, and quit the TF card safely.
6) Power the Raspberry Pi and wait for a few seconds until the LCD displays normally. And the touch function can also work after the system starts.
color:+black
Material:PCB

Package Contents:
1 x 4.3inch LCD
1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)
1 x Screws pack
