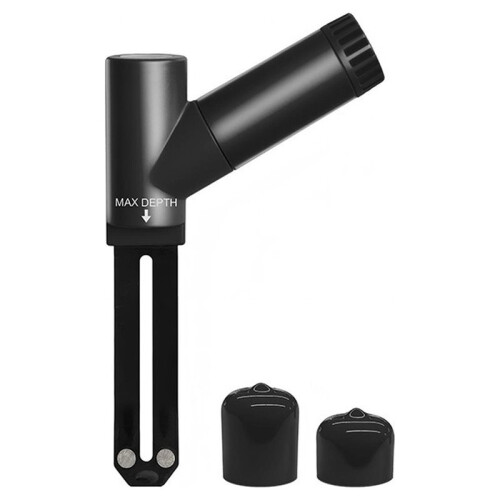

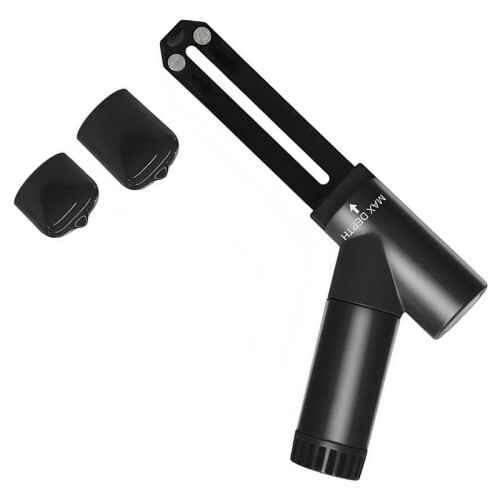

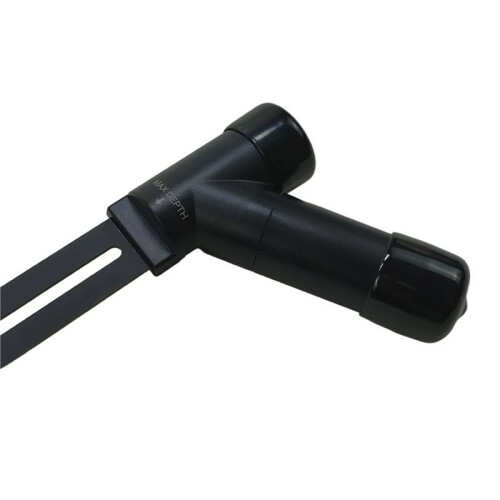

WH52 Soil Sensor 433MHz, Soil Moisture, Temperature, EC, Electrical Conductivity Sensor

WH52 Soil Sensor 433MHz, Soil Moisture, Temperature, EC, Electrical Conductivity Sensor Beskrivelse

IP66 Waterproof:Built to IP66 standards to withstand harsh outdoor environments. Includes silicone protective caps for enhanced water resistance in extreme conditions.
Wireless Transmission & Simple LED Indication: The probe body has no screen; it transmits data via RF signal to a compatible gateway or console for analysis. A simple red LED the body clearly indicates data transmission status and operational faults.
Long Range Wireless Range: Capable of strong wireless transmission to 100 meters under standard conditions (in the open field, no obstacle, no signal interference).
Safe Sensor Installation: To ensure accurate readings and prevent damage, the sensor must be placed in a pre-dug hole; avoid forcing it into hard, compacted soil. For standard use, the probe should be buried to the depth the body.

Model WH52
Measurement Principle:Frequency Domain Reflectometry
Moisture Range:0~
Moisture Accuracy:5%
Moisture Resolution:1%
Soil Temperature Range:-40 ~ 60C(-40 ~ 140F)
Soil Temperature Accuracy:1C
EC Range:0-10000 yS/cm
EC Accuracy:
0-1000uS/cm +100uS/cm;
1-10000uS/cm +15%
Update Interval:Approx.1 minute
Device Operating Range:-40~60C(Values below 0C for moisture and EC are not reliable for reference)
IP Rating:IP66
0%AD setting range:0~200; Initial value: default to factory calibration
AD setting range:0%AD+10~1000; Initial value: default to its factory calibration
RF Frequency:433MHz
Sensor reporting interval:70 seconds
Transmission distance:100m(328 feet) (in the open field, no obstacle, no signal interference)
IP Rating:IP66
Power Supply:1xAA battery (not included)
Battery life:Minimum 12 months
Color: Black
Material: plastic

Package Contents:
1*Soil Sensor
