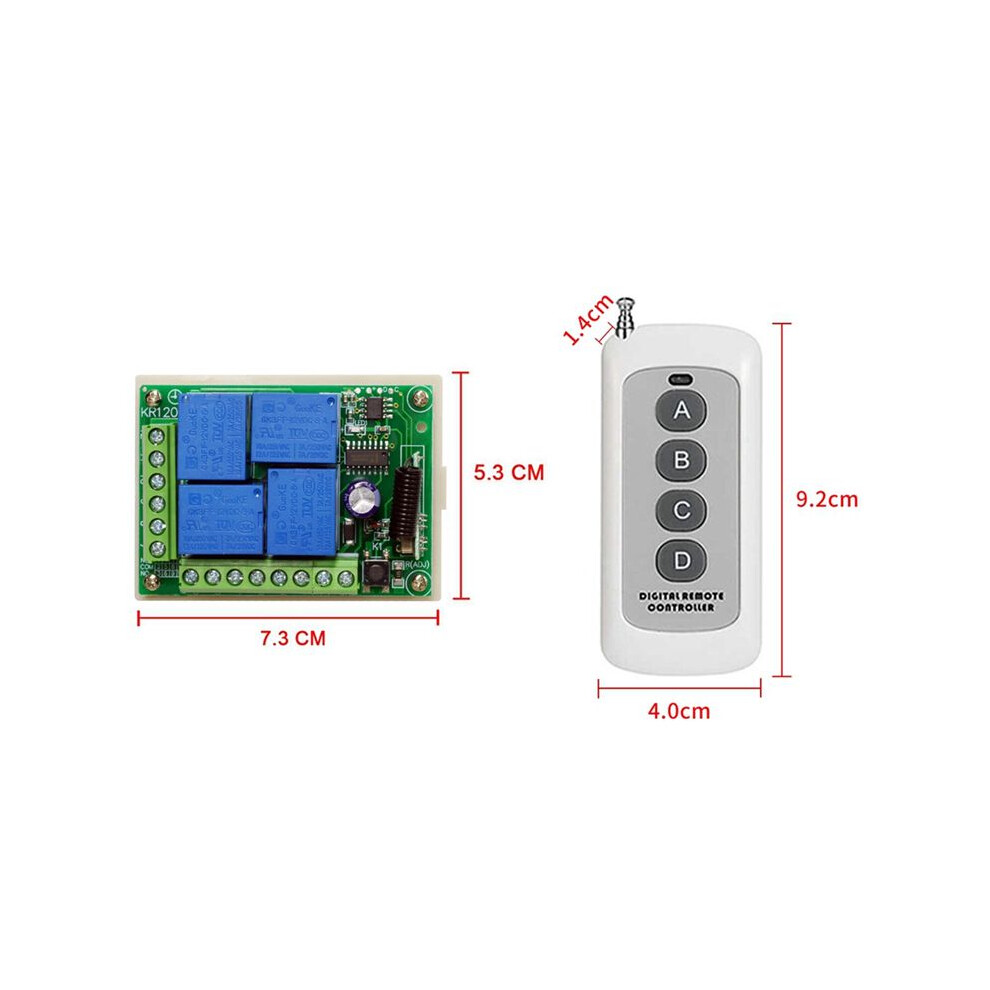

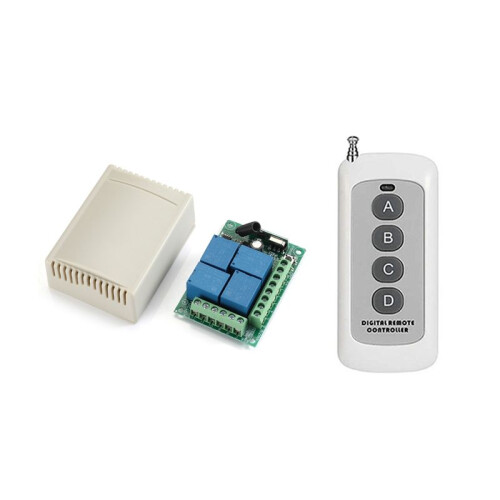

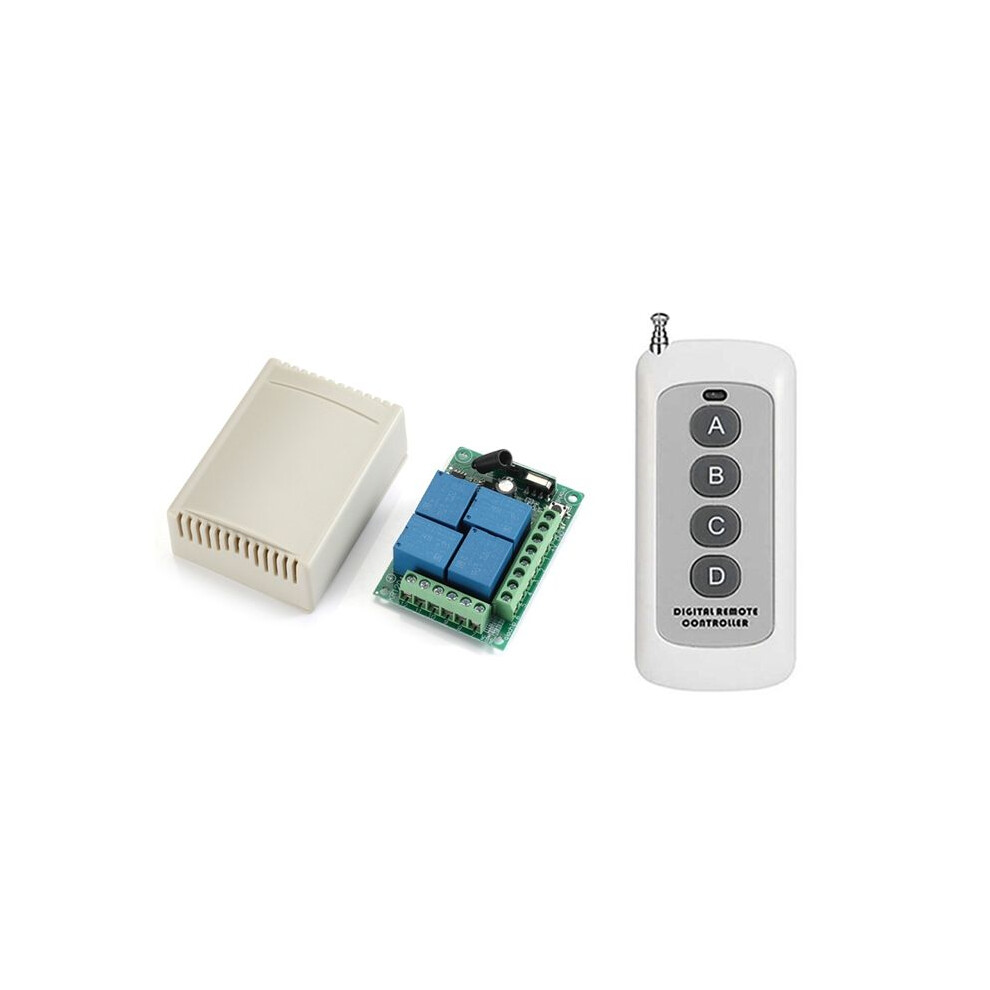

Wireless Remote Control with 4 Channel 433Mhz Garage Remote Control

Wireless Remote Control with 4 Channel 433Mhz Garage Remote Control Beskrivelse

Adopts built-in 1527 working chip, fully compatible with receiving module with common learning code(1527) Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Receiver Module, If the remote control is lost, buy one and pair with the receiver is OK.)
Adopts radio frequency technology and stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenience.

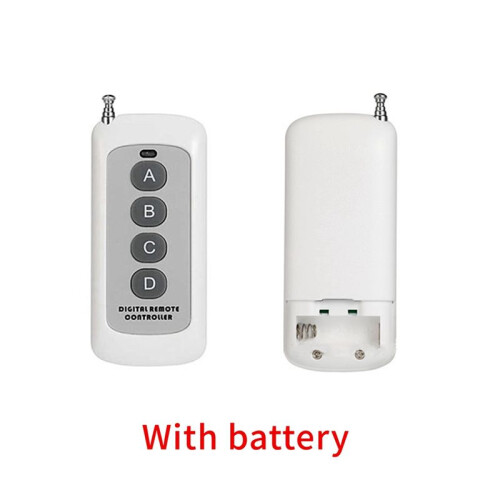

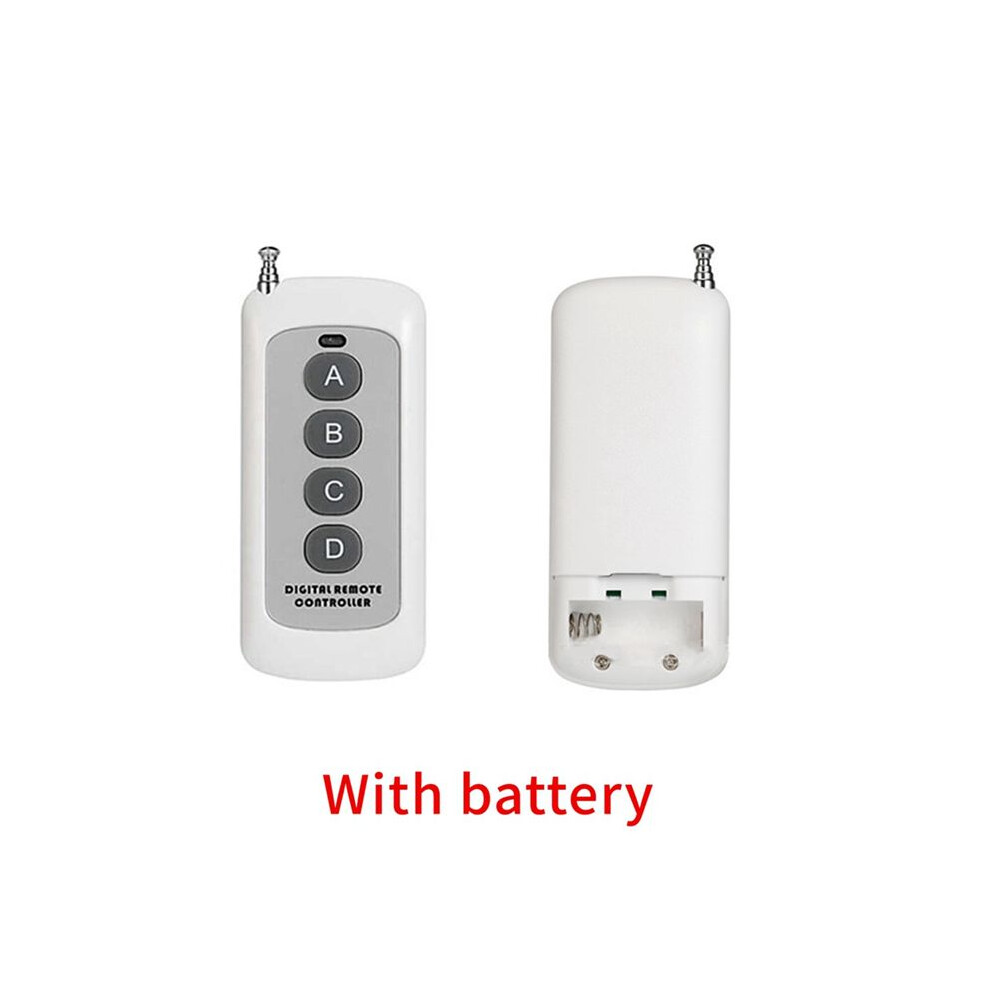

Strong RF signal, high-sensitive and omnidirectional, you can turn /off the receiver by the 433MHz remote control (transmitter) from any place within a reliable distance (150m open area). (The wireless RF signal can pass through walls, floors and doors.).
Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.

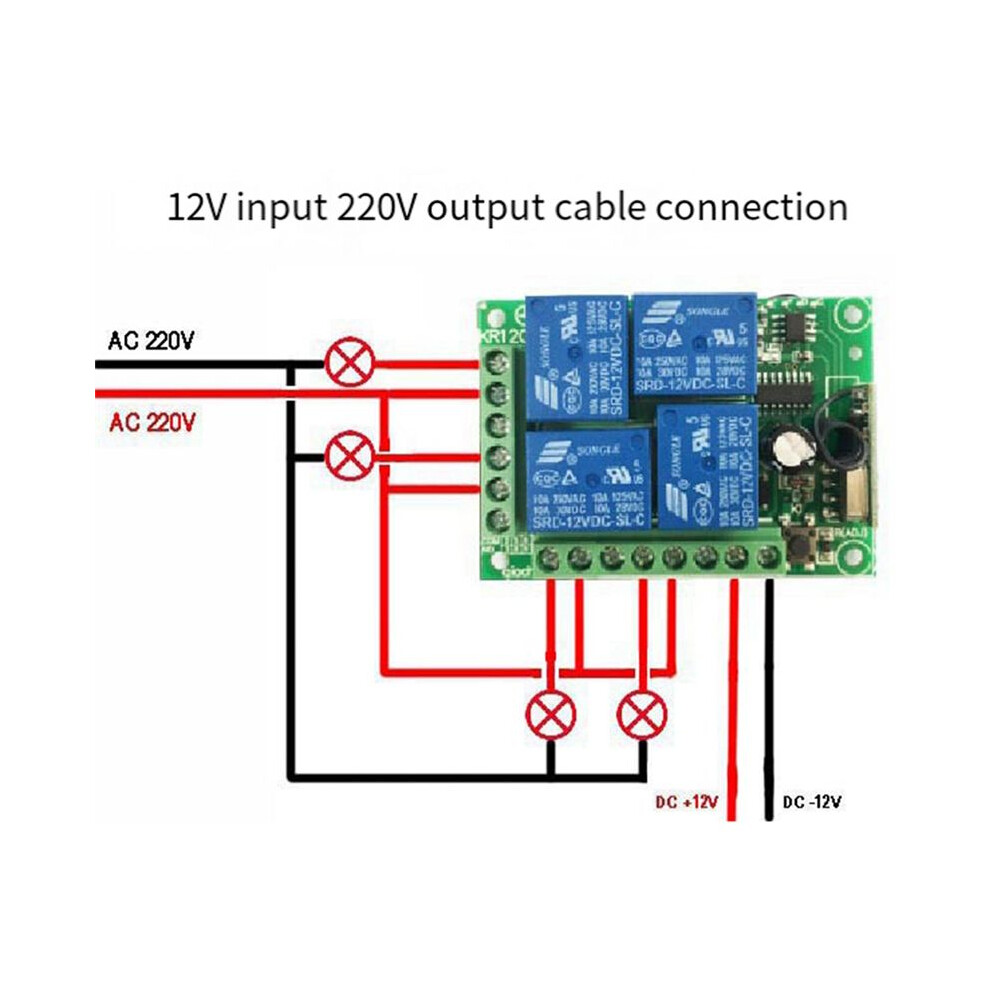

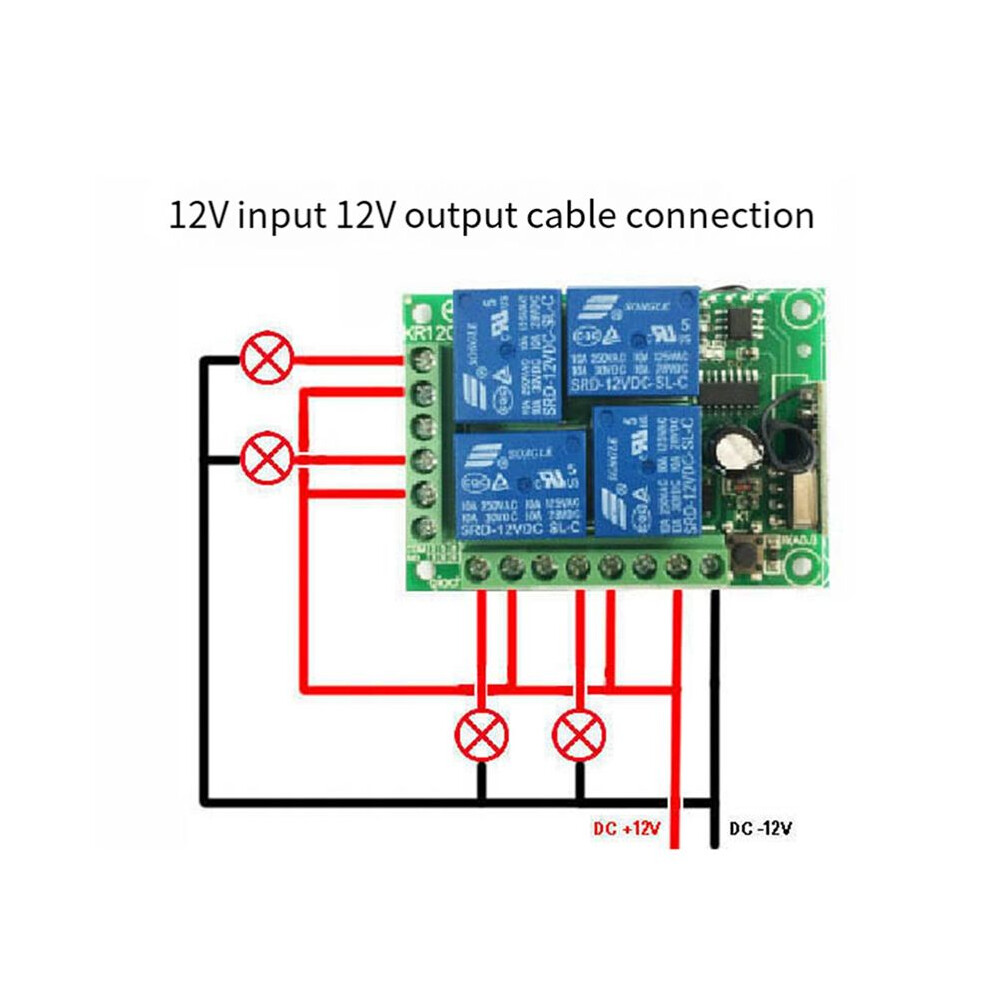

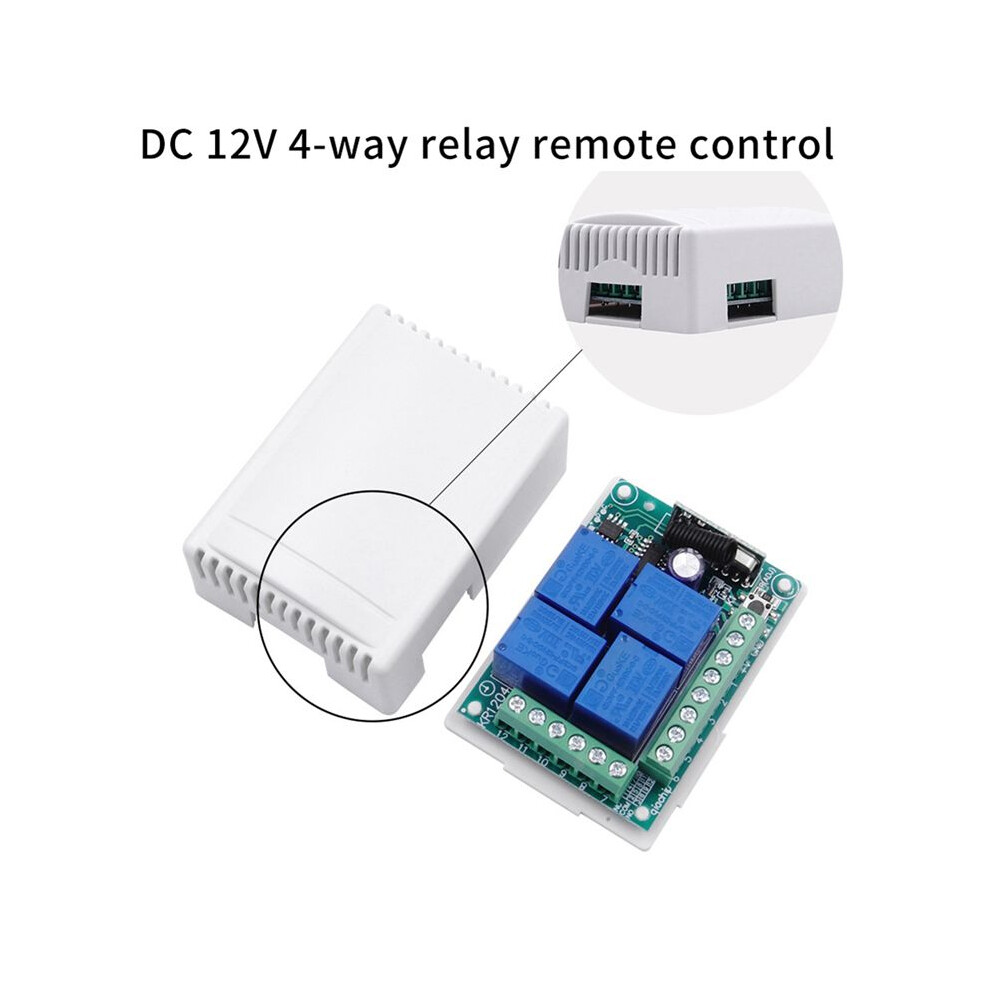

Widely Use: It can connect to the electronic control lock, light, fan, window, curtain, motor, car, lifting appliance, motor control, lifter control or other appliances with DC12V. So that it can remote unlock the door, close the light, open or close the curtain, etc.

Press and hold button "A" , relay will turn ; Release the button, this relay will turn off. Same effect as other buttons.
Support APP:No
Channel:4
Wireless Communication:RF
Working voltage:9-12V
Working Current:less than equal 30mA
Operating RF Frequency:433MHz
Transmit power:Greater than 15mW
Wireless Operating Distance:150m(Free Space)
Frequency Deviation:0.2MHz
Transmission Rate:50 - 60KHz
Coded System:1527 Learning Code
Oscillation Resistance:340k
Use:Lighting,Electric Door,Automated curtains,Curtain control,Garage door control,Projection curtain control
Instructions:
Seven functions: inching, self-locking, interlocking, 2-way inching + 2-way self-locking, 2-way inching + 2-way i
