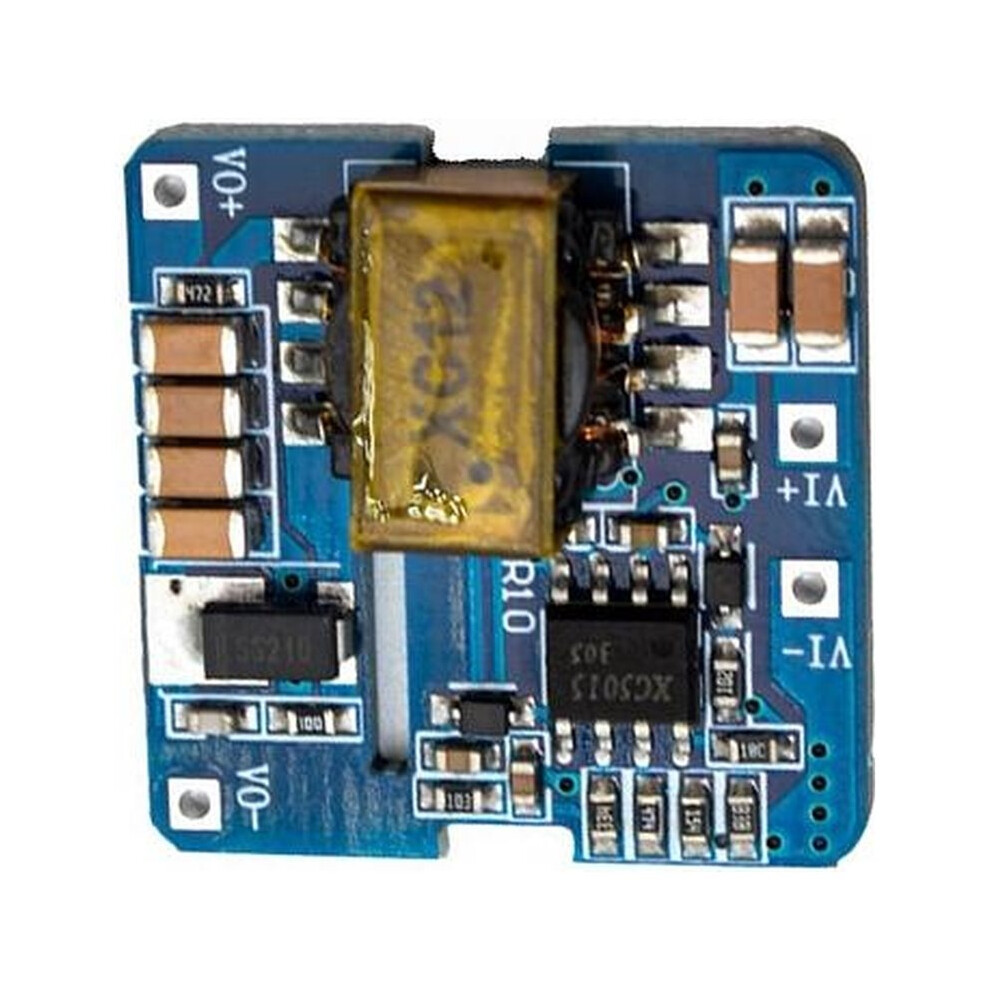

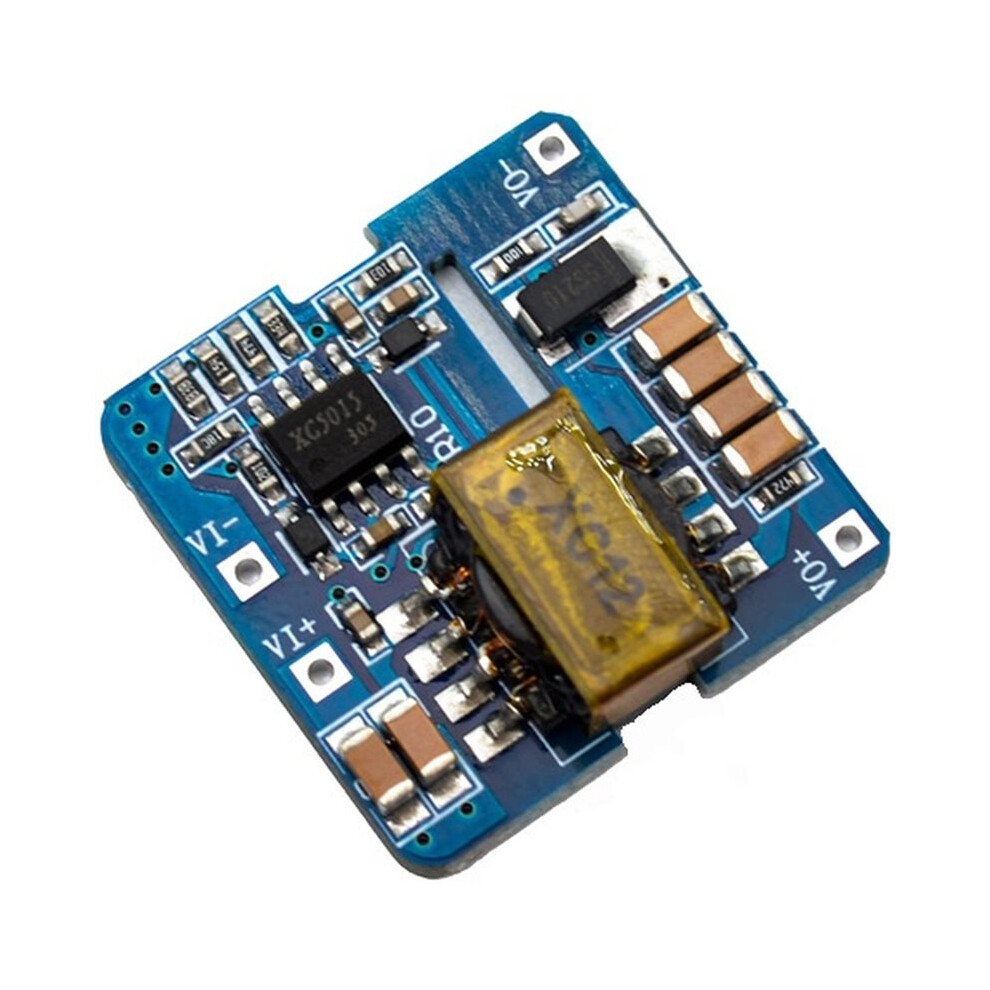

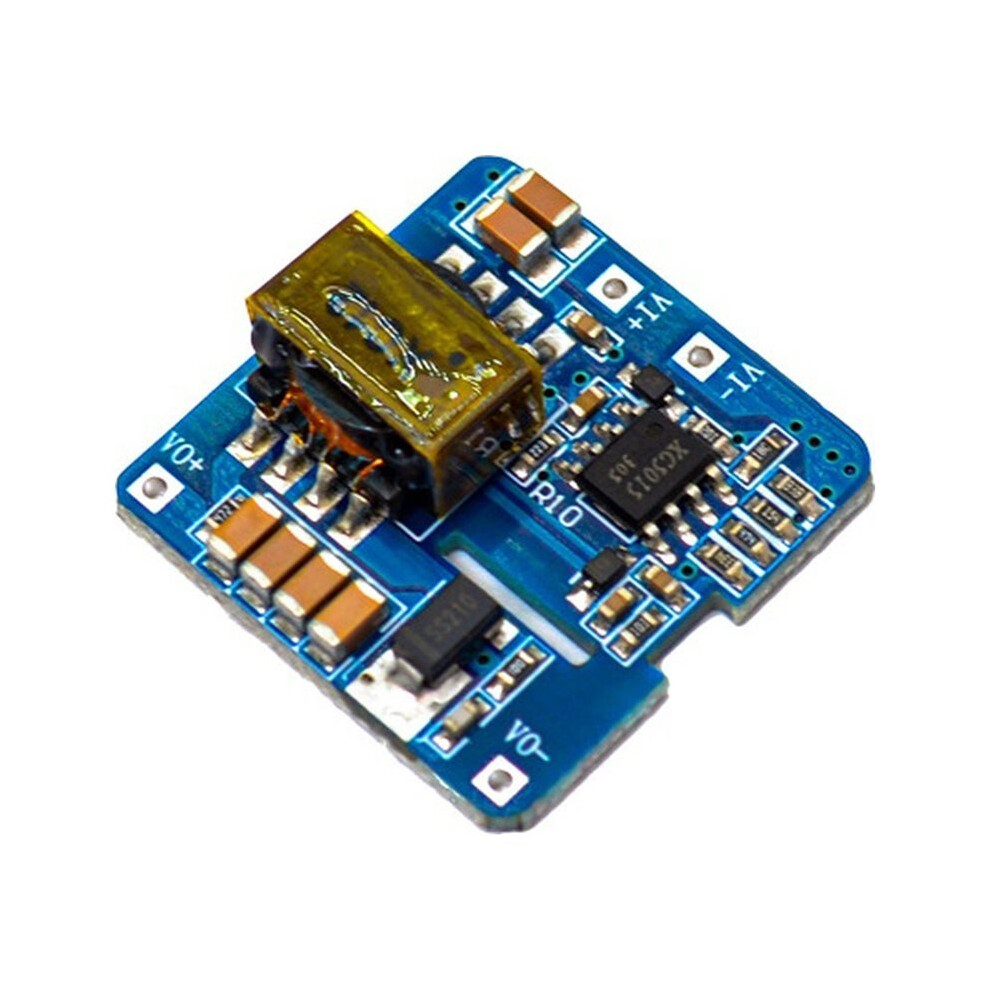

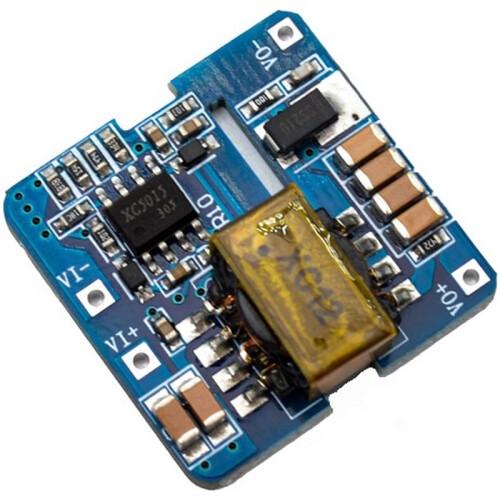

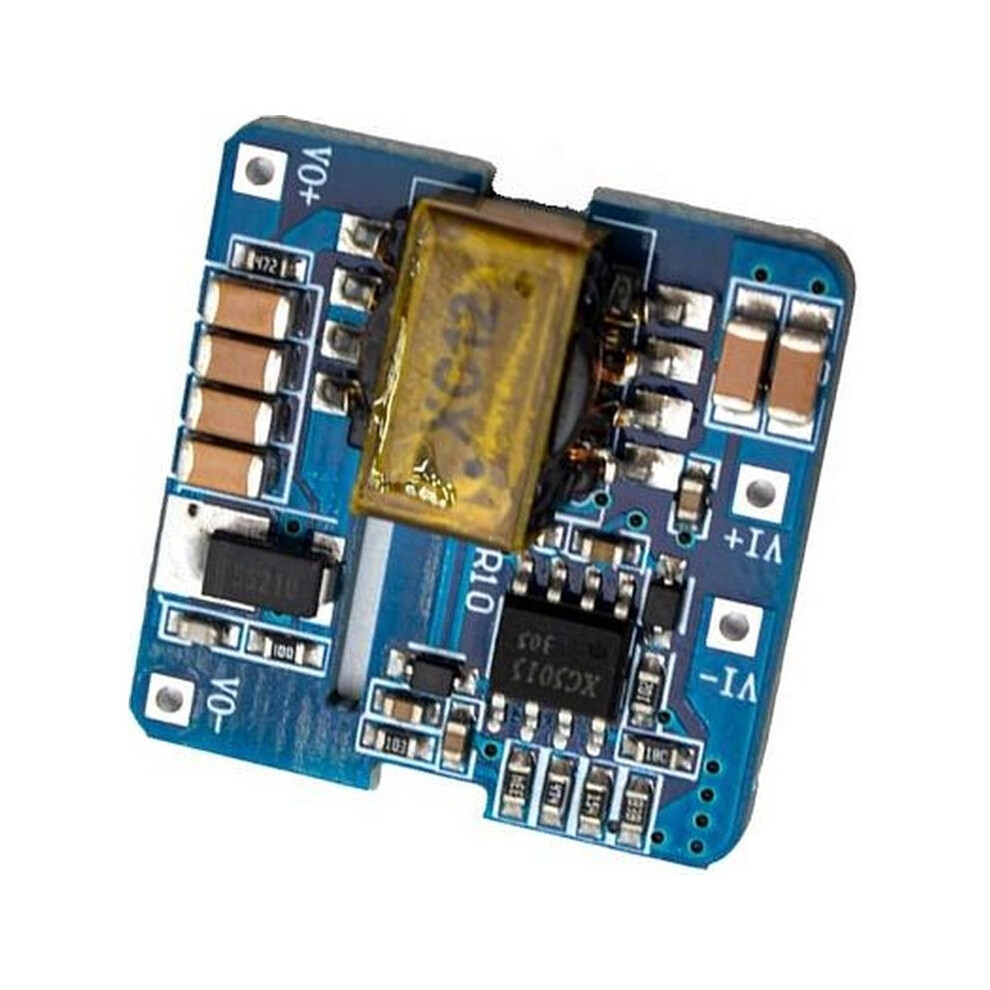

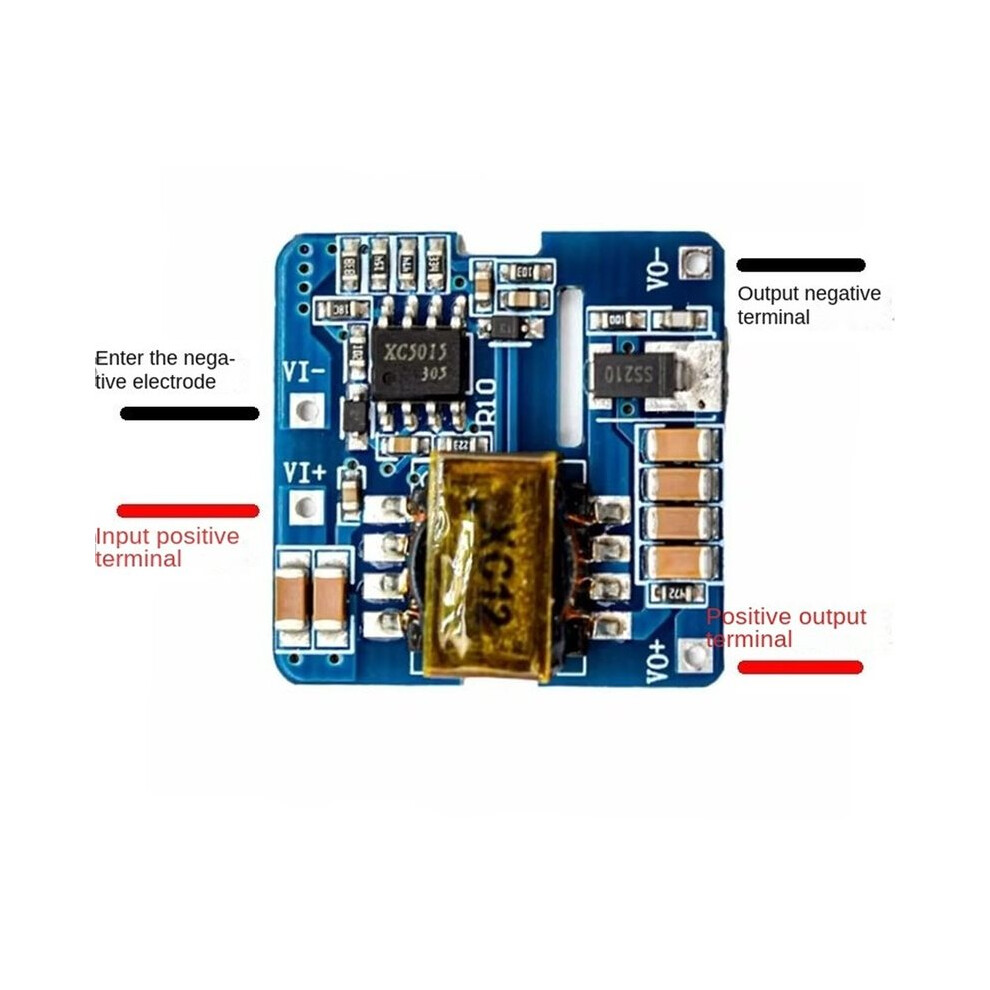

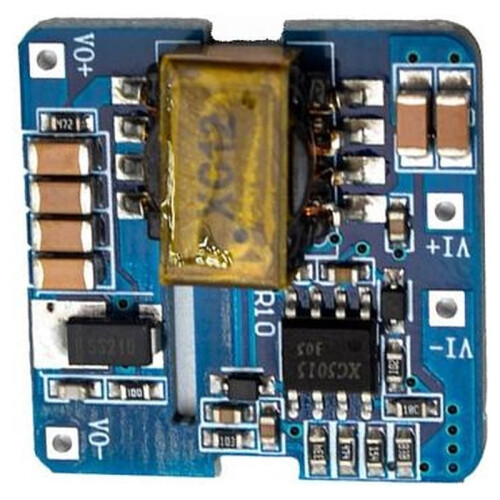

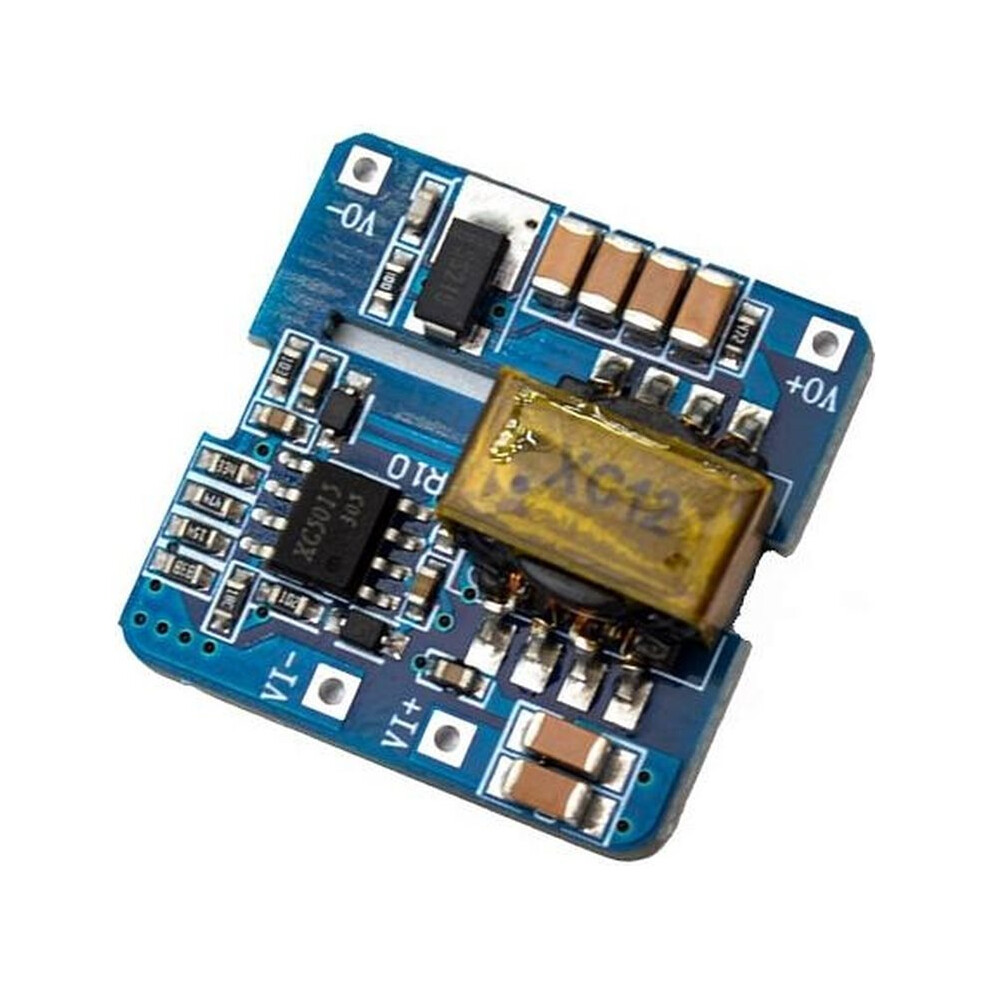

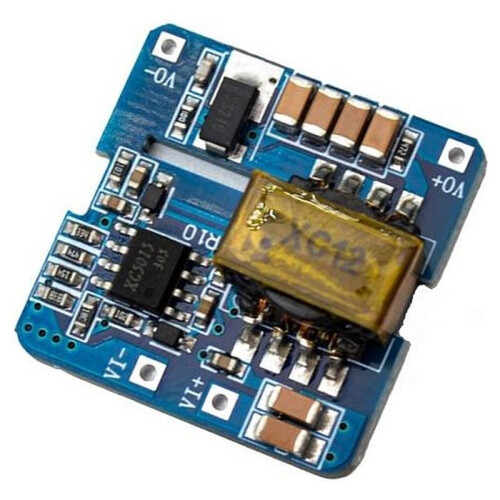

XC5015 Isolated Power Module 9-36V Input 24V Output - Converter 6W Rated 10W Max Isolated Power Supply Module
Brand Semoic
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 137,000 anmeldelser med vurderingen “Fremragende”
135,67 kr.
173,30 kr.
Spar 22%!
+15,00 kr. levering
1%
Tjen 1,36 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (15,00 kr.) | tor. 5. - lør. 7. nov.
Solgt af: PUPUSUN
Returnering: 30 dage
180 dages betalingsbeskyttelse
Beskrivelse og detaljer
Oversigt
- The XC5015 is designed for a variety of topologies (Flyback/Boost/Buck) and output voltage feedback mode (SSR/PSR/ resistor partial voltage) highly integrated power control chip.
- PSR feedback can be achieved at hundreds of KHz operating frequency, built-in The output voltage sampling circuit can work in CCM and DCM mode at the same time, and the time width of sampling voltage is as low as 400ns.
- Built-in loop compensation circuit with fast dynamic response function, so that the switching power supply stability and dynamic response indicators have a good performance.
- XC5015
- 24V Output DC-DC Converter
XC5015 Isolated Power Module 9-36V Input 24V Output - Converter 6W Rated 10W Max Isolated Power Supply Module Beskrivelse
The XC5015 is designed for a variety of topologies (Flyback/Boost/Buck) and output voltage feedback mode (SSR/PSR/ resistor partial voltage) highly integrated power control chip.
PSR feedback can be achieved at hundreds of KHz operating frequency, built-in The output voltage sampling circuit can work in CCM and DCM mode at the same , and the width of sampling voltage is as low as 400ns.
Built-in loop compensation circuit with fast dynamic response function, so that the switching power supply stability and dynamic response indicators have a good performance.
Wide input voltage range: 9-36V
Output voltage: 24V
Rated power: 6W
power: 10W
Efficiency: 88%
No-load power consumption: 0.12W
Isolation voltage: 1500VDC
Input under-voltage protection; output over-voltage, over-current, and short-circuit protection
Operating temperature: -40C to +85C
Color:
Material: PCB
Package Contents:
1 * XC5015 Isolated Power Module
Detaljer
| OPC | PY2GDJQ |
|---|---|
| Mærke | Semoic |
| Koder | 6032821042130 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 1cm |
| Length | 2cm |
| Weight | 0.0045kg |
| Colour | Blue |
| Material | PCB |
